JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS175,177 ; (0108- )JKS175,JZS171..D4

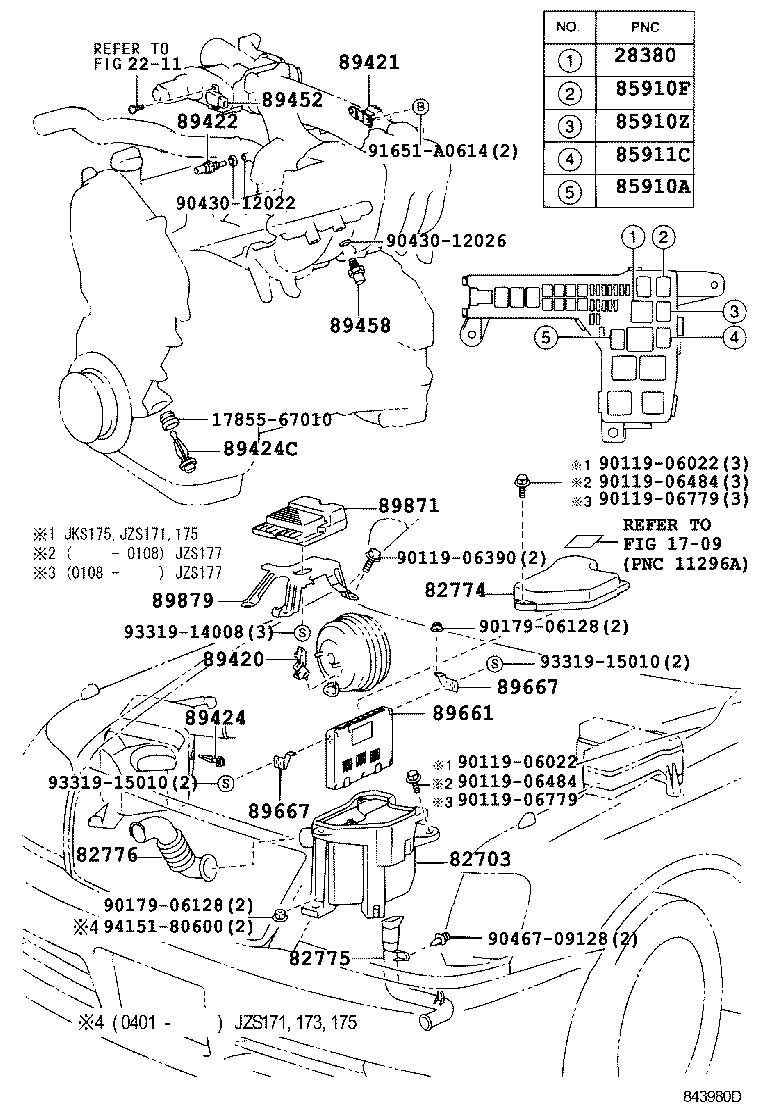

Click highlighted areas on diagram

diagram 1709 1785567010 2211 28380 82703 82774 82775 82776 85910A 85910F 85910Z 85911C 89420 89421 89422 89424 89424C 89452 89458 89661 89667 89667 89871 89879 9011906022 9011906022 9011906390 9011906484 9011906484 9011906779 9011906779 9017906128 9017906128 9043012022 9043012026 9046709128 91651A0614 9331914008 9331915010 9331915010 9415180600
Part # Description Qty Price
28380 - RELAY ASSY, FUEL PUMP
90987-03003

1JZGTE,2JZ#,1UZFE..JZS171,175,177,179,UZS17#

 1
90987-03003

1JZGTE,2JZ#,1UZFE..JKS175,JZS171,175,177,179,UZS17#

 1
82703 - BOX SUB-ASSY, ENGINE ROOM ECU
82703-30030

JZS177,UZS17#

 1
82703-30030

JZS177,UZS17#

 1
82774 - COVER, ENGINE ROOM ECU
82774-30030

JZS171,173,175,177,UZS17#..D4,HTWC,TWC

 1
82774-30030

JKS175,JZS171,173,175,177,UZS17#..D4,HTWC,TWC

 1
82775 - DUCT, ENGINE ROOM ECU INLET
82775-30020

GS171,JKS175,JZS17#,UZS17#

 1
82775-30020

GS171,JZS17#,UZS17#

 1
82776 - DUCT, ENGINE ROOM ECU OUTLET
82776-30050

JZS177

 1
82776-30050

JZS177

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

GS171,JKS175,JZS17#,UZS17#

 1
90987-02012

GS171,JZS17#,UZS17#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

GS171,JZS17#,UZS17#

 1
90987-02012

GS171,JKS175,JZS17#,UZS17#

 1
85910Z - RELAY, INJECTION (FOR EFI)
90987-02012

JZS177

 1
90987-02012

JZS175,177

 1
85911C - RELAY, EFI 2
90987-02012

JZS175,177

 1
90987-02012

JZS177

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-20190

GS171,JKS175,JZS171,173,175,177..D4,HTWC,TWC

 1
89421-20190

GS171,JZS171,173,175,177..D4,HTWC,TWC

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30030

JKS175,JZS17#,UZS17#

 1
89422-30030

JZS17#,UZS17#

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

GS171,JKS175,JZS171,173,175,177..D4,HTWC,TWC

 1
89424-12010

GS171,JZS171,173,175,177..D4,HTWC,TWC

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-30150

JZS175,177,179

 1
89458 - SENSOR, FUEL PRESSURE
89458-22010

JZS175,177

 1
89458-32010

JZS175,177

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3A810

JZS177

DENSO,ﾏｰｸ 89661−3A810

 1
89661-3A610

JZS177

DENSO,ﾏｰｸ 89661−3A610

 1
89661-3F180

JZS177

DENSO

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30250

JZS179;JZS171,175,177,UZS17#..D4,HTWC,TWT

 2
89667-30250

JZS171..TWT;JKS175,JZS175,177,179,UZS17#..SED

 2
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30250

JZS179;JZS171,175,177,UZS17#..D4,HTWC,TWT

 2
89667-30250

JZS171..TWT;JKS175,JZS175,177,179,UZS17#..SED

 2
89871 - DRIVER, INJECTOR
89871-30020

JZS175,177

 1
89871-30010

JZS177

 1
89879 - BRACKET, INJECTOR DRIVER
89879-30020

JZS177

 1
89879-30020

JZS177

 1
Common parts
17855-67010
90119-06022
90119-06390
90119-06484
90119-06779
90179-06128
90430-12022
90430-12026
90467-09128
91651-A0614
93319-14008
93319-15010
94151-80600
