JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta
ILLUST NO. 3 OF 9(9909- )

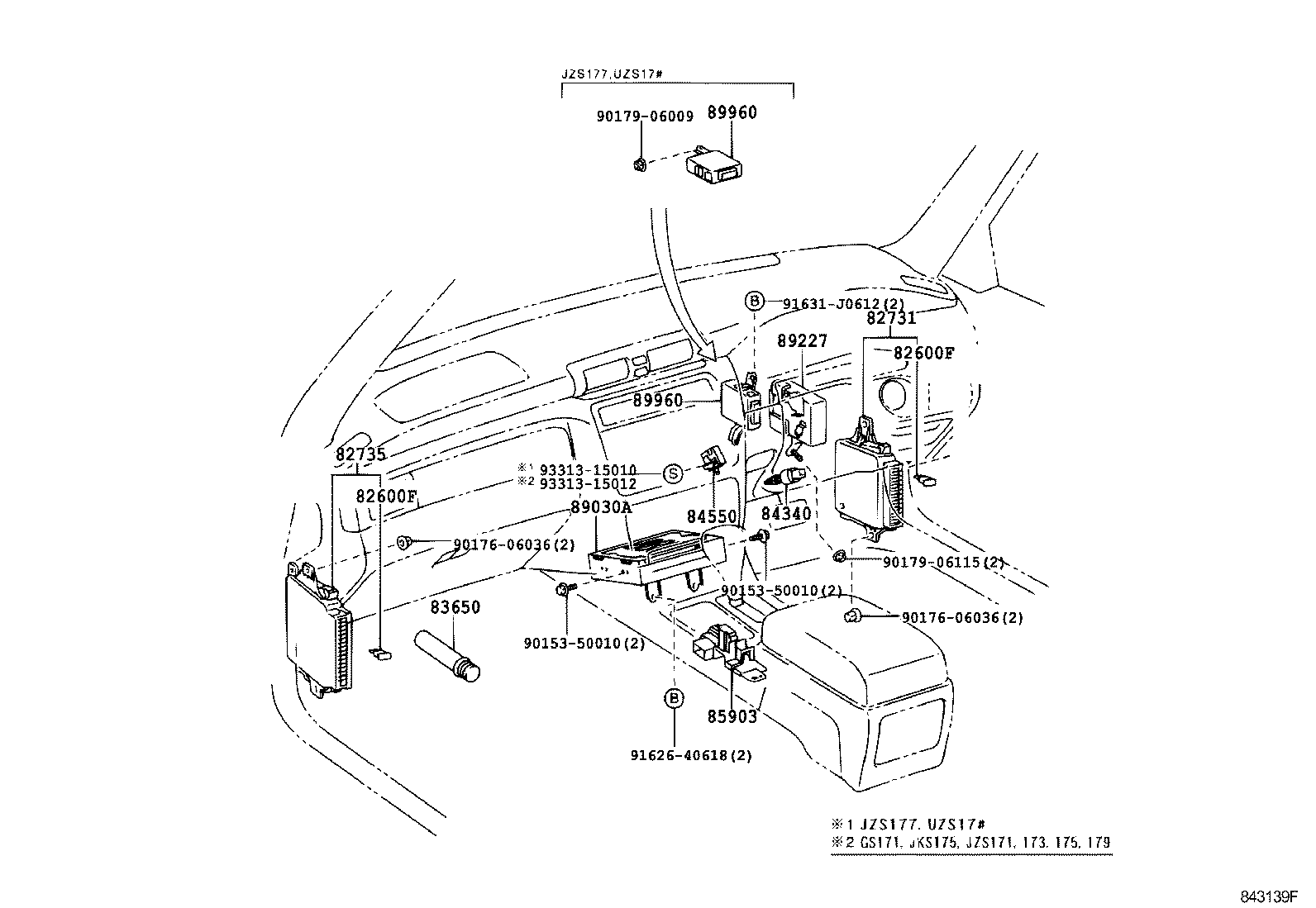

ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
GS171,JZS17#,UZS17# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09007 |
GS171,JZS17#,UZS17# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
GS171,JZS17#,UZS17# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
GS171,JZS17#,UZS17# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
GS171,JZS17#,UZS17# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
GS171,JZS17#,UZS17# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
GS171,JZS17#,UZS17# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
GS171,JZS17#,UZS17# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09007 |
GS171,JZS17#,UZS17# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
GS171,JZS17#,UZS17# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
GS171,JZS17#,UZS17# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
GS171,JZS17#,UZS17# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
GS171,JZS17#,UZS17# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
GS171,JZS17#,UZS17# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82730-30080 |
JZS177,UZS17# |
1 | ||
| 82730-30080 |
JZS171,173,175,177,UZS17#..SED..(A,ATH,ATHG,ATHV,C) |
1 | ||
| 82735 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82730-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 82730-30100 |
GS171,JZS17#,UZS17#..SED ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 82730-30101 |
JZS177,UZS17# ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 82730-30091 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 90986-01005 |
GS171,JZS17#,UZS17# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30110 |
UZS175;JZS175,177,UZS171,173..C,ROYG |
1 | ||
| 84340-30100 |
GS171,JZS17#..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 84340-30110 |
JKS175,JZS171,173,175,177,UZS17#..D4,HTWC,TWC |
1 | ||
| 84340-30110 |
JZS17#..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
GS171,JZS17#,UZS17# |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-30010 |
JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C |
1 | ||
| 89030A - COMPUTER ASSY, INSTRUMENT PANEL INTEGRATION | ||||
| 89030-30120 |
JZS177..A ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 89030-30120 |
JZS177..C ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 89030-30150 |
JZS177..A |
1 | ||
| 89030-30130 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 89030-30130 |
JZS177..C |
1 | ||
| 89030-30140 |
JZS177..A ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 89030-30121 |
JZS177 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 89030-30131 |
JZS177 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 89030-30151 |
JZS177..A |
1 | ||
| 89030-30141 |
JZS177..A ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-30030 |
JZS175,177,179,UZS17# |
1 | ||
| 89227-30030 |
JZS171..SED..TWT;JZS175,177,179,UZS17# |
1 | ||
| 89227-30040 |
JZS177,UZS17# |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-30061 |
JZS177,UZS175 |
1 | ||
| 89960-30060 |
JZS177,UZS175 |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-30061 |
JZS177,UZS175 |
1 | ||
| 89960-30060 |
JZS177,UZS175 |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90176-06036 | ||||
| 90179-06009 | ||||
| 90179-06115 | ||||
| 91626-40618 | ||||
| 91631-J0612 | ||||
| 93313-15010 | ||||
| 93313-15012 | ||||
ILLUST NO. 4 OF 9(9909-0108)

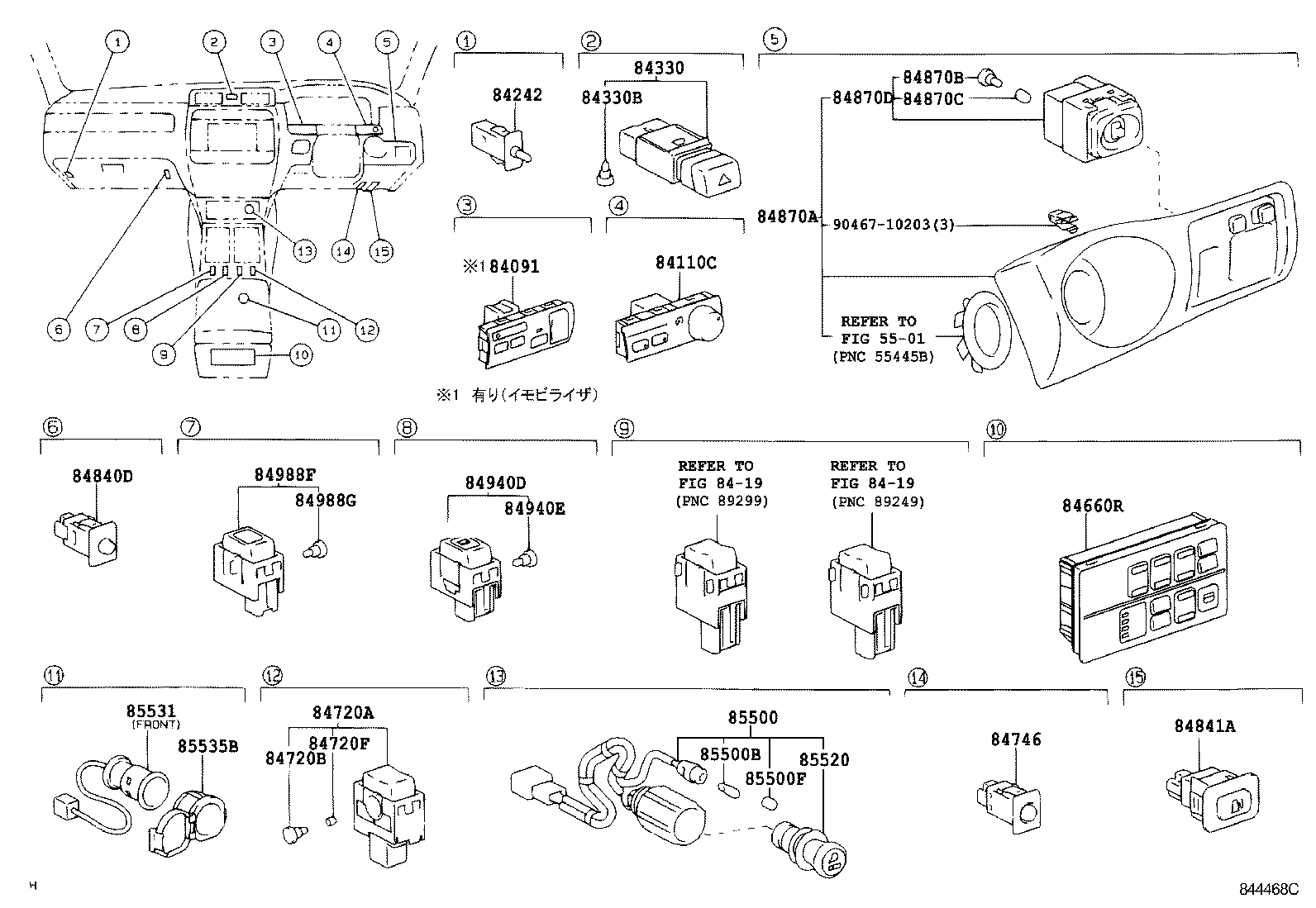

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-30300 |
JZS177,UZS17# |
1 | ||
| 84091-30301 |
JZS177,UZS17# |
1 | ||
| 84091-30301 |
JZS177,UZS17# |
1 | ||
| 84110C - SWITCH ASSY, LIGHT CONTROL, NO.2 | ||||
| 84110-30101 |
GS171,JZS17#,UZS17# |
1 | ||
| 84110-30100 |
GS171,JZS17#,UZS17# |
1 | ||
| 84110-30101 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-30040 |
GS171,JZS17#,UZS17# |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10540 |
GS171,JZS17#,UZS17# 14V 1.19W |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GS171,JZS17#,UZS17# |
1 | ||
| 84242-20030 |
JZS177,UZS17# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-30280C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84332-30280B0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG DK.CHARCOAL,TRIM1# |
1 | ||
| 84332-30280B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG DK.CHARCOAL,TRIM1# |
1 | ||
| 84332-30280E0 |
GS171,JZS17#,UZS17# SANDAL WOOD,TRIM0# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
GS171,JZS17#,UZS17# 14V 0.91W |
1 | ||
| 84999-10860 |
GS171,JKS175,JZS17#,UZS17# 14V 0.91W |
1 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-30190 |
JZS171..SED..(ATH,ATHV,ROY);JZS173,175,177,179,UZS175..SED..(A,ATH,ATHG,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ) |
1 | ||
| 84660-30180 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 84660-30220 |
JZS171,175,177,179,UZS175..SED..(A,ATHG,ATHV,ROY) ｱﾘ(ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 84660-30180 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 84660-30190 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ) |
1 | ||
| 84660-30210 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ) |
1 | ||
| 84660-30220 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 84660-30180 |
JZS177,UZS17# ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 84660-30210 |
JZS171,175,177,179,UZS175..SED..(A,ATHG,ATHV,ROY) ｱﾘ(ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ) |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-30340 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 84720-30340 |
GS171,JZS17#,UZS17# |
1 | ||
| 84720B - BULB (FOR PATTERN SELECT SWITCH) | ||||
| 84999-10710 |
GS171,JKS175,JZS17#,UZS17# 14V 0.56W |
1 | ||
| 84999-10710 |
GS171,JZS17#,UZS17# 14V 0.56W |
1 | ||
| 84720F - CAP, PATTERN SELECT SWITCH | ||||
| 84998-10670 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 84998-10670 |
GS171,JZS17#,UZS17# |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-30010 |
JZS177,UZS171,175 |
1 | ||
| 84746-30010 |
JZS171,175,177,UZS171,175..A,C,ROY,ROYEX,ROYG |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-30170 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 84840-30170 |
JZS177,UZS17# |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-30040B3 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84841-30040C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84841-30040A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 84841-30040B3 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30460A0 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 84870-30480A0 |
JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 84870-30480B1 |
JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84870-30460B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ),MD.CHARCOAL,TRIM1# |
1 | ||
| 84870-30510C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84870-30481B1 |
GS171,JKS175,JZS17#,UZS175..A,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 84870-30510B0 |
JKS175,JZS175,177,UZS17#..A,C,ROY,ROYG ｱﾘ(ｼ-ﾄ ﾒﾓﾘ- ｽｲﾂﾁ),MD.CHARCOAL,TRIM1# |
1 | ||
| 84870-30510A0 |
JKS175,JZS175,177,UZS17#..A,C,ROY,ROYG ｱﾘ(ｼ-ﾄ ﾒﾓﾘ- ｽｲﾂﾁ),IVORY,TRIM0# |
1 | ||
| 84940D - SWITCH ASSY, REAR SUN SHADE | ||||
| 84940-30020 |
JZS177,UZS17# |
1 | ||
| 84940-30020 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 84940-30020 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) |
1 | ||
| 84940E - BULB, REAR SUN SHADE | ||||
| 90010-01039 |
JZS177,UZS17# 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01039 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01039 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-30090 |
JZS171,175,177,UZS171,175..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG |
1 | ||
| 84988-30090 |
JZS177,UZS171,175 |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 90010-01039 |
JZS171,175,177,UZS171,175..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01039 |
JZS177,UZS171,175 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30500 |
GS171,JZS17#,UZS17# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10440 |
GS171,JZS17#,UZS17# 14V 2.0W |
1 | ||
| 84999-10440 |
GS171,JKS175,JZS17#,UZS17# 14V 2.0W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10530 |
GS171,JZS17#,UZS17# |
1 | ||
| 84998-10530 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
GS171,JZS17#,UZS17# |
1 | ||
| 85520-89101 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85531-30010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 85531-30010 |
GS171,JZS17#,UZS17# ﾌﾛﾝﾄ |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 86831-30010 |
GS171,JZS17#,UZS17# |
1 | ||
| 86831-30010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8419 | ||||
ILLUST NO. 5 OF 9(9909- )

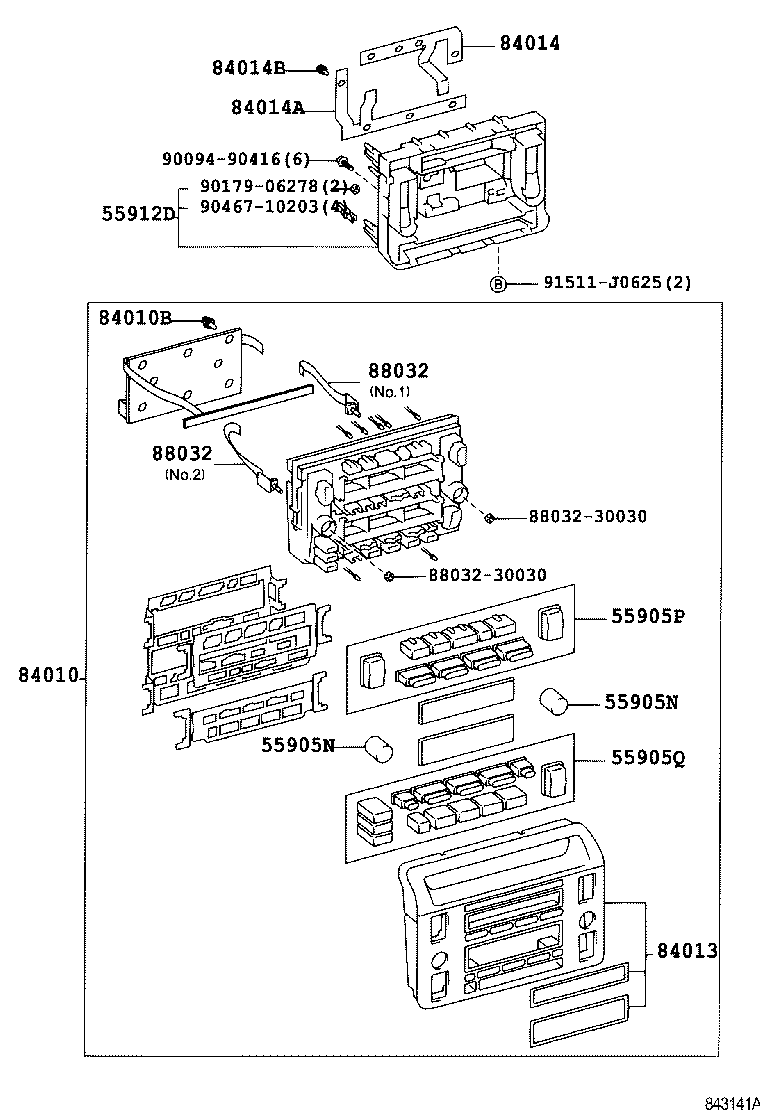

ｲﾝﾃｸﾞﾚ-ｼﾖﾝ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905N - KNOB SUB-ASSY, CONTROL, NO.1 | ||||
| 55905-30320 |
GS171,JZS17#,UZS17# |
2 | ||
| 55905-30321 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 55905N - KNOB SUB-ASSY, CONTROL, NO.1 | ||||
| 55905-30320 |
GS171,JZS17#,UZS17# |
2 | ||
| 55905-30321 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 55905P - KNOB SUB-ASSY, CONTROL, NO.2 | ||||
| 55905-30400 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 55905-30400 |
JZS175,177,UZS171,173..C,ROYG |
1 | ||
| 55905-30411 |
GS171,JKS175,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 55905-30401 |
GS171,JZS17#,UZS17#..SED ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 55905-30410 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 55905Q - KNOB SUB-ASSY, CONTROL, NO.3 | ||||
| 55905-30360 |
JZS175,177,179,UZS17# |
1 | ||
| 55905-30361 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) ｱﾘ(7 ｽﾋﾟ-ｶ) |
1 | ||
| 55912D - HOUSING, HEATER CONTROL | ||||
| 55912-30060 |
GS171,JZS17#,UZS17# |
1 | ||
| 55912-30060 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION | ||||
| 84012-30010 |
JZS175,177,UZS171,173..C,ROYG |
1 | ||
| 84012-30010 |
JZS175,177,179,UZS175..SED..(A,ATHG,ROY) ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 84012-30030 |
JZS175,177,179,UZS175..A,ATHG,ROY |
1 | ||
| 84012-30011 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & 7 ｽﾋﾟ-ｶ) |
1 | ||
| 84012-30031 |
JZS171..WG..TWT;JZS171,173..SED..(ATH,ATHV,ROY);JKS175,JZS175,177,179,UZS175..A,ATHG,ROY ｱﾘ(7 ｽﾋﾟ-ｶ) |
1 | ||
| 84010B - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90010-03034 |
GS171,JZS17#,UZS17# 14V 1.4W,ﾉﾌﾞ照明用 |
2 | ||
| 90010-03034 |
GS171,JKS175,JZS17#,UZS17# 14V 1.4W,ﾉﾌﾞ照明用 |
2 | ||
| 90010-03035 |
GS171,JKS175,JZS17#,UZS17# 14V 1.12W,液晶照明用 |
6 | ||
| 90010-03035 |
GS171,JZS17#,UZS17# 14V 1.12W,液晶照明用 |
6 | ||
| 84013 - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-30010 |
JZS175,177,179,UZS17# |
1 | ||
| 84013-30011 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) ｱﾘ(7 ｽﾋﾟ-ｶ) |
1 | ||
| 84014 - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84734-30010 |
GS171,JZS17#,UZS17# |
1 | ||
| 84734-30010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 84014A - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 | ||||
| 84734-30020 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 84734-30020 |
GS171,JZS17#,UZS17# |
1 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 90010-03034 |
GS171,JZS17#,UZS17# 14V 1.4W |
7 | ||
| 90010-03034 |
JZS177,UZS17# 14V 1.4W |
7 | ||
| 88032 - SWITCH, HEATER CONTROL VOLUME | ||||
| 88032-30010 |
GS171,JZS17#,UZS17# NO.1 |
1 | ||
| 88032-30010 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 88032-30020 |
GS171,JKS175,JZS17#,UZS17# NO.2 |
1 | ||
| 88032-30020 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 88032 - SWITCH, HEATER CONTROL VOLUME | ||||
| 88032-30010 |
GS171,JZS17#,UZS17# NO.1 |
1 | ||
| 88032-30010 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 88032-30020 |
GS171,JKS175,JZS17#,UZS17# NO.2 |
1 | ||
| 88032-30020 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| Common parts | ||||
| 88032-30030 | ||||
| 90094-90416 | ||||
| 90179-06278 | ||||
| 90467-10203 | ||||
| 91511-J0625 | ||||
ILLUST NO. 6 OF 9(9909- )
ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-22050 |
GS171,JZS17#,UZS17# |
1 | ||
| 84244 - SWITCH, STEERING PAD | ||||
| 84244-30020 |
JZS177,UZS171,175 |
1 | ||
| 84245 - MODULATOR, STEERING PAD SWITCH | ||||
| 84245-30030 |
JZS177,UZS17# |
1 | ||
| 84245-30010 |
JZS177,UZS17# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-51040 |
JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ｱﾘ(VSC) |
1 | ||
| 84306-30190 |
JZS175,177,UZS171,175..A,C,ROY,ROYG ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 84306-51040 |
JZS171..TWT;JKS175,JZS173,175,177,179,UZS17# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-3F200 |
JZS177,UZS17# |
1 | ||
| 84310-3F310 |
JKS175,JZS175,177,179,UZS17#..SED ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 84310-3F200 |
JKS175,JZS175,177,179,UZS17#..SED |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
GS171,JZS17#,UZS17# |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-14040 |
GS171,JZS17#,UZS17# |
1 | ||
| 86174D - CASE, SWITCH & VOLUME | ||||
| 86174-30020 |
JZS177,UZS17# |
1 | ||
| 86174-30020 |
JZS177,UZS17# |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 8414 | ||||

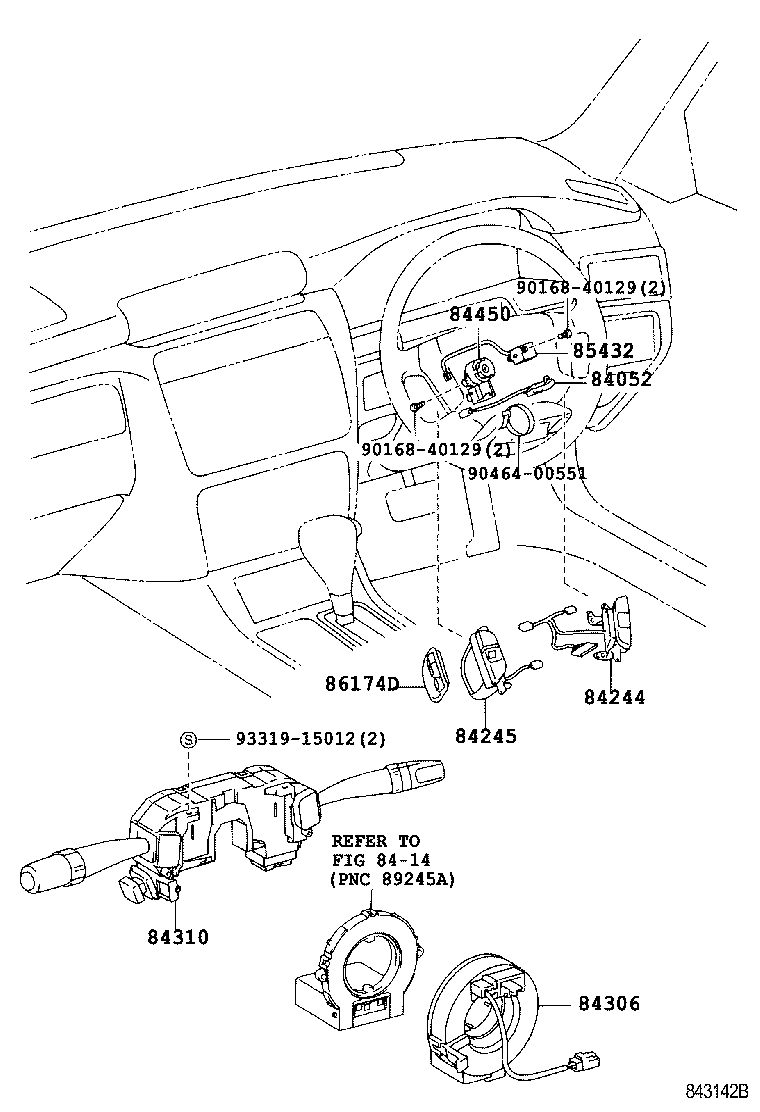

ILLUST NO. 7 OF 9(9909- )SED

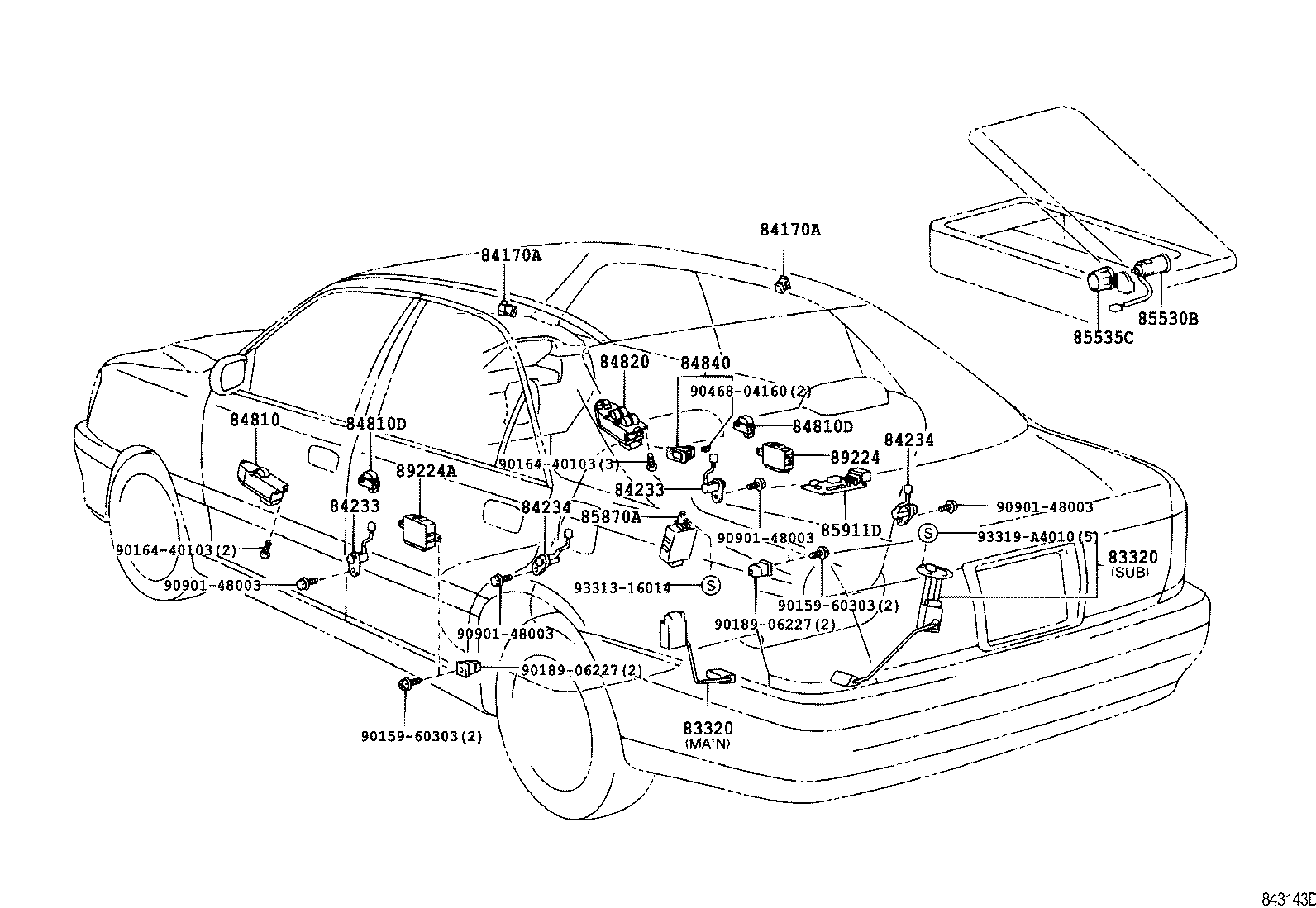

ﾙ-ﾌ,ﾄﾞｱ,ｼ-ﾄ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-30500 |
JZS177,UZS17# ﾒｲﾝ |
1 | ||
| 83320-80362 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,ｻﾌﾞ |
1 | ||
| 83320-80362 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,ｻﾌﾞ |
1 | ||
| 83320-30500 |
JZS177,UZS17# ﾒｲﾝ |
1 | ||
| 83320-80363 |
JZS177,UZS17# ｻﾌﾞ |
1 | ||
| 83320-80363 |
JZS177,UZS17# ｻﾌﾞ |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-30500 |
JZS177,UZS17# ﾒｲﾝ |
1 | ||
| 83320-80362 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,ｻﾌﾞ |
1 | ||
| 83320-80362 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,ｻﾌﾞ |
1 | ||
| 83320-30500 |
JZS177,UZS17# ﾒｲﾝ |
1 | ||
| 83320-80363 |
JZS177,UZS17# ｻﾌﾞ |
1 | ||
| 83320-80363 |
JZS177,UZS17# ｻﾌﾞ |
1 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-30020A0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) IVORY,TRIM0# |
1 | ||
| 84170-30020B2 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),MEDIUM CHARCOAL,TRIM23 |
2 | ||
| 84170-30020B2 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) MD.CHARCOAL,TRIM1# |
1 | ||
| 84170-30020A0 |
JZS177,UZS17# IVORY,TRIM0# |
2 | ||
| 84170-30020B2 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
2 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-30020A0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) IVORY,TRIM0# |
1 | ||
| 84170-30020B2 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),MEDIUM CHARCOAL,TRIM23 |
2 | ||
| 84170-30020B2 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) MD.CHARCOAL,TRIM1# |
1 | ||
| 84170-30020A0 |
JZS177,UZS17# IVORY,TRIM0# |
2 | ||
| 84170-30020B2 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30290 |
GS171,JZS17#,UZS17# |
2 | ||
| 84231-30290 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30290 |
GS171,JZS17#,UZS17# |
2 | ||
| 84231-30290 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30280 |
GS171,JZS17#,UZS17# |
2 | ||
| 84231-30280 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30280 |
GS171,JZS17#,UZS17# |
2 | ||
| 84231-30280 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-30060 |
JZS177,UZS17# |
1 | ||
| 84030-30061 |
JZS177,UZS17# |
1 | ||
| 84030-30062 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-30020C0 |
JZS177,UZS17# BLACK,TRIM0#,1# |
2 | ||
| 84030-30020C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 84030-30020C0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-30020C0 |
JZS177,UZS17# BLACK,TRIM0#,1# |
2 | ||
| 84030-30020C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 84030-30020C0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-30082 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 84040-30080 |
JZS177,UZS17# |
1 | ||
| 84040-30081 |
JZS177,UZS17# |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30140A0 |
GS171,JZS17#,UZS17#..SED IVORY,TRIM0# |
1 | ||
| 84840-30140B3 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84840-30140A0 |
GS171,JKS175,JZS17#,UZS17#..SED IVORY,TRIM0# |
1 | ||
| 84840-30140B3 |
GS171,JZS17#,UZS17#..SED..(A,C,ROY,ROYEX,ROYG) MD.CHARCOAL,TRIM1# |
1 | ||
| 84840-30140C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-30010 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) |
1 | ||
| 85530-30010 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 85530-30010 |
JZS177,UZS17# |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-30010 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) |
1 | ||
| 85535-30010 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 85535-30010 |
JKS175,JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 85911D - RELAY, REAR SUNSHADE | ||||
| 85911-30010 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 85911-30010 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) |
1 | ||
| 85911-30010 |
JZS177,UZS17# |
1 | ||
| 89224 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR RH | ||||
| 89224-30031 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 89224-30030 |
JZS177,UZS17# |
1 | ||
| 89224A - COMPUTER, MULTIPLEX NETWORK DOOR, REAR LH | ||||
| 89224-30030 |
JZS177,UZS17# |
1 | ||
| 89224-30031 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90189-06227 | ||||
| 90468-04160 | ||||
| 90901-48003 | ||||
| 93313-16014 | ||||
| 93319-A4010 | ||||
ILLUST NO. 8 OF 9(9909- )

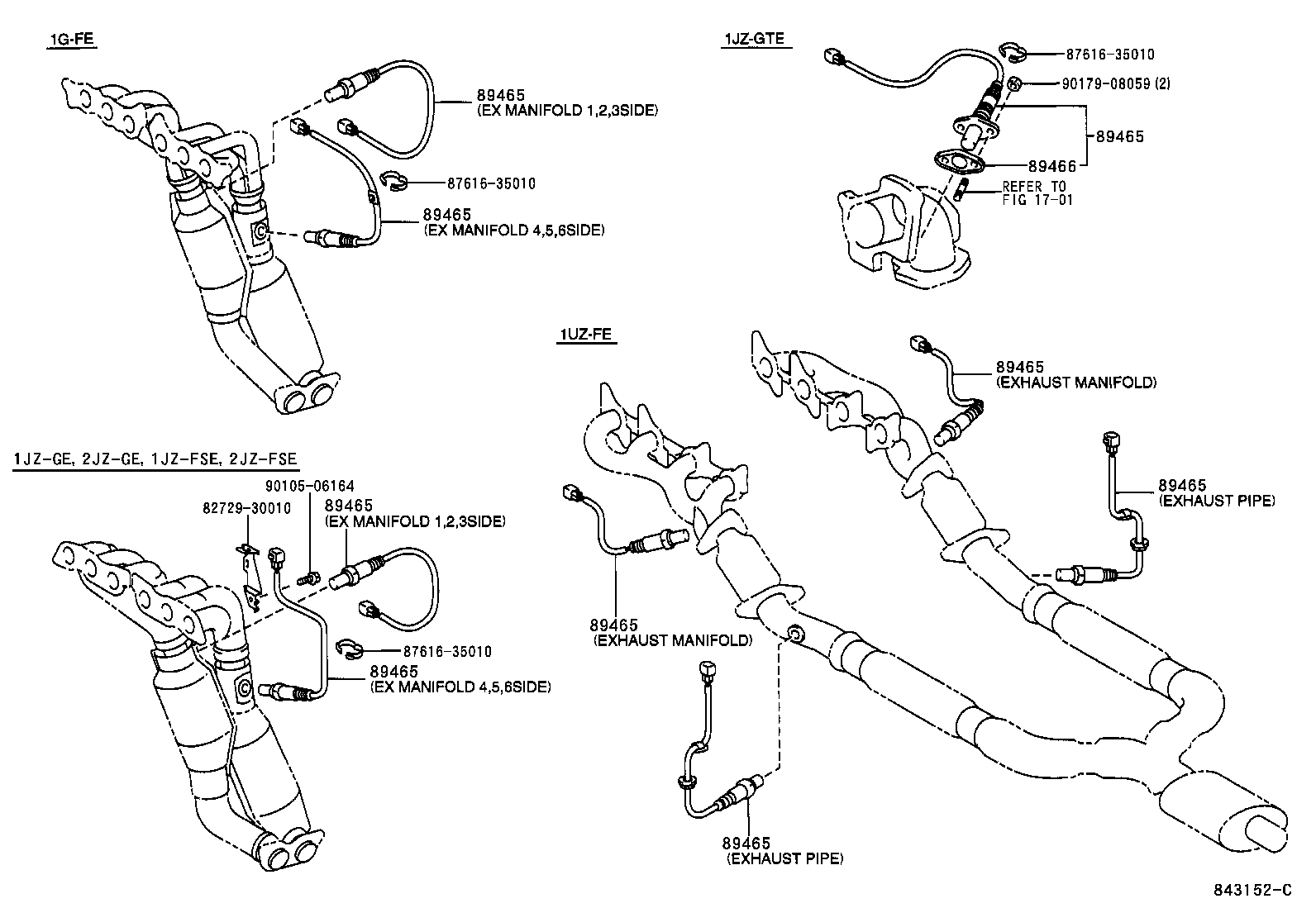

ｵｷｼｼﾞｴﾝ ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30530 |
JZS175,177 EX ﾏﾆﾎ-ﾙﾄﾞ 4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 EX ﾏﾆﾎ-ﾙﾄﾞ 1,2,3ｻｲﾄﾞ |
1 | ||
| 89465-30530 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ1,2,3ｻｲﾄﾞ |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30530 |
JZS175,177 EX ﾏﾆﾎ-ﾙﾄﾞ 4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 EX ﾏﾆﾎ-ﾙﾄﾞ 1,2,3ｻｲﾄﾞ |
1 | ||
| 89465-30530 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ1,2,3ｻｲﾄﾞ |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30530 |
JZS175,177 EX ﾏﾆﾎ-ﾙﾄﾞ 4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 EX ﾏﾆﾎ-ﾙﾄﾞ 1,2,3ｻｲﾄﾞ |
1 | ||
| 89465-30530 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ1,2,3ｻｲﾄﾞ |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30530 |
JZS175,177 EX ﾏﾆﾎ-ﾙﾄﾞ 4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 EX ﾏﾆﾎ-ﾙﾄﾞ 1,2,3ｻｲﾄﾞ |
1 | ||
| 89465-30530 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ1,2,3ｻｲﾄﾞ |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30530 |
JZS175,177 EX ﾏﾆﾎ-ﾙﾄﾞ 4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 EX ﾏﾆﾎ-ﾙﾄﾞ 1,2,3ｻｲﾄﾞ |
1 | ||
| 89465-30530 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ1,2,3ｻｲﾄﾞ |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30530 |
JZS175,177 EX ﾏﾆﾎ-ﾙﾄﾞ 4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 EX ﾏﾆﾎ-ﾙﾄﾞ 1,2,3ｻｲﾄﾞ |
1 | ||
| 89465-30530 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ1,2,3ｻｲﾄﾞ |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30530 |
JZS175,177 EX ﾏﾆﾎ-ﾙﾄﾞ 4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 EX ﾏﾆﾎ-ﾙﾄﾞ 1,2,3ｻｲﾄﾞ |
1 | ||
| 89465-30530 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ1,2,3ｻｲﾄﾞ |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30530 |
JZS175,177 EX ﾏﾆﾎ-ﾙﾄﾞ 4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 EX ﾏﾆﾎ-ﾙﾄﾞ 1,2,3ｻｲﾄﾞ |
1 | ||
| 89465-30530 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ1,2,3ｻｲﾄﾞ |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30530 |
JZS175,177 EX ﾏﾆﾎ-ﾙﾄﾞ 4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 EX ﾏﾆﾎ-ﾙﾄﾞ 1,2,3ｻｲﾄﾞ |
1 | ||
| 89465-30530 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-30610 |
JZS177 ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ1,2,3ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 82729-30010 | ||||
| 87616-35010 | ||||
| 90105-06164 | ||||
| 90179-08059 | ||||
| Linked diagrams | ||||
| 1701 | ||||

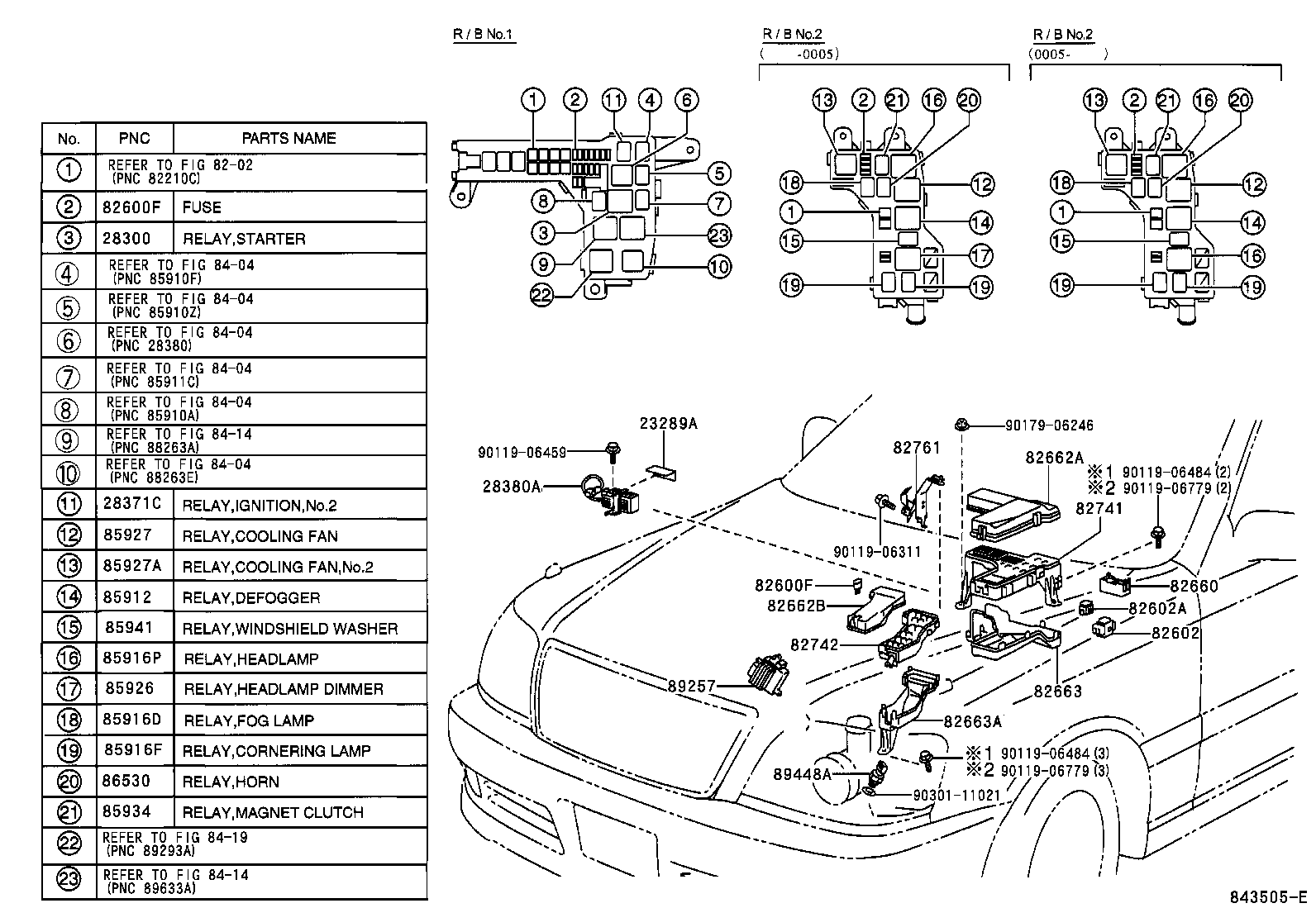

ILLUST NO. 2 OF 9(9909- )JZS177,UZS17#
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23289A - COVER, FUEL PUMP RESISTOR | ||||
| 23289-50020 |
1JZGTE,2JZ#,1UZFE..JKS175,JZS171,175,177,179,UZS17# |
1 | ||
| 23289-50020 |
1JZGTE,2JZ#,1UZFE..JZS171,175,177,179,UZS17# |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1GFE,1JZ#,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
1 | ||
| 28300-10020 |
1GFE,1JZ#,2JZ#,1UZFE..GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02012 |
1GFE,1JZ#,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
1 | ||
| 90987-02012 |
2JZFSE,1UZFE..JZS177,UZS17#;1JZFSE,1JZGE,2JZFSE..JZS171,173,175..WG |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-46080 |
2JZFSE..JZS177 |
1 | ||
| 23080-46080 |
2JZFSE,1UZFE..JZS177,UZS17# |
1 | ||
| 23080-46080 |
2JZFSE,1UZFE..JZS177,UZS17# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
GS171,JZS17#,UZS17# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09007 |
GS171,JZS17#,UZS17# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
GS171,JZS17#,UZS17# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
GS171,JZS17#,UZS17# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
GS171,JZS17#,UZS17# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
GS171,JZS17#,UZS17# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
GS171,JZS17#,UZS17# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
GS171,JZS17#,UZS17# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09007 |
GS171,JZS17#,UZS17# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
GS171,JZS17#,UZS17# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
GS171,JZS17#,UZS17# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
GS171,JZS17#,UZS17# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
GS171,JZS17#,UZS17# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
GS171,JZS17#,UZS17# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-13010 |
GS171,JZS17#,UZS17# |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-26210 |
GS171,JZS17#,UZS17# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-30450 |
GS171,JZS17#,UZS17# |
1 | ||
| 82662-30451 |
JZS177,UZS17# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-30461 |
JZS177,UZS17#;JZS171,173,175..WG..(D4,TWC) |
1 | ||
| 82662-30460 |
GS171,JZS17#,UZS17# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30170 |
JZS177,UZS17# |
1 | ||
| 82663-30170 |
JZS177,UZS17# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-30160 |
GS171,JZS17#,UZS17# |
1 | ||
| 82663-30160 |
JZS177,UZS17# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-30050 |
JZS177,UZS17# |
1 | ||
| 82741-30050 |
JZS177,UZS17# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-30040 |
JZS177,UZS17# |
1 | ||
| 82742-30040 |
JZS177,UZS17# |
1 | ||
| 82761 - BRACKET, RELAY BLOCK, NO.1 | ||||
| 82761-30010 |
JZS177 |
1 | ||
| 82761-30010 |
JZS177 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02025 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 90987-02016 |
GS171,JZS17#,UZS17# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 90987-02012 |
GS171,JZS17#,UZS17# |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02012 |
GS171,JZS17#,UZS17# |
2 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02016 |
JZS177,UZS17# |
2 | ||
| 90987-02016 |
JZS177,UZS17# |
2 | ||
| 90987-02016 |
GS171,JZS17#,UZS17# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04006 |
GS171,JZS17#,UZS17# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
JZS17#..D4,TWC |
1 | ||
| 90987-02016 |
JZS17#,UZS17# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-03003 |
JZS17#..D4,TWC |
1 | ||
| 90987-03003 |
JZS17#..D4,TWC |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
GS171,JZS17#,UZS17# |
1 | ||
| 90987-02012 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 90987-02012 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 90987-02012 |
GS171,JZS17#,UZS17# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 90987-02012 |
GS171,JZS17#,UZS17# |
1 | ||
| 89448A - SENSOR, POWER STEERING OIL PRESSURE | ||||
| 89448-51010 |
JZS17# |
1 | ||
| Common parts | ||||
| 90119-06311 | ||||
| 90119-06459 | ||||
| 90119-06484 | ||||
| 90119-06779 | ||||
| 90179-06246 | ||||
| 90301-11021 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||
| 8419 | ||||

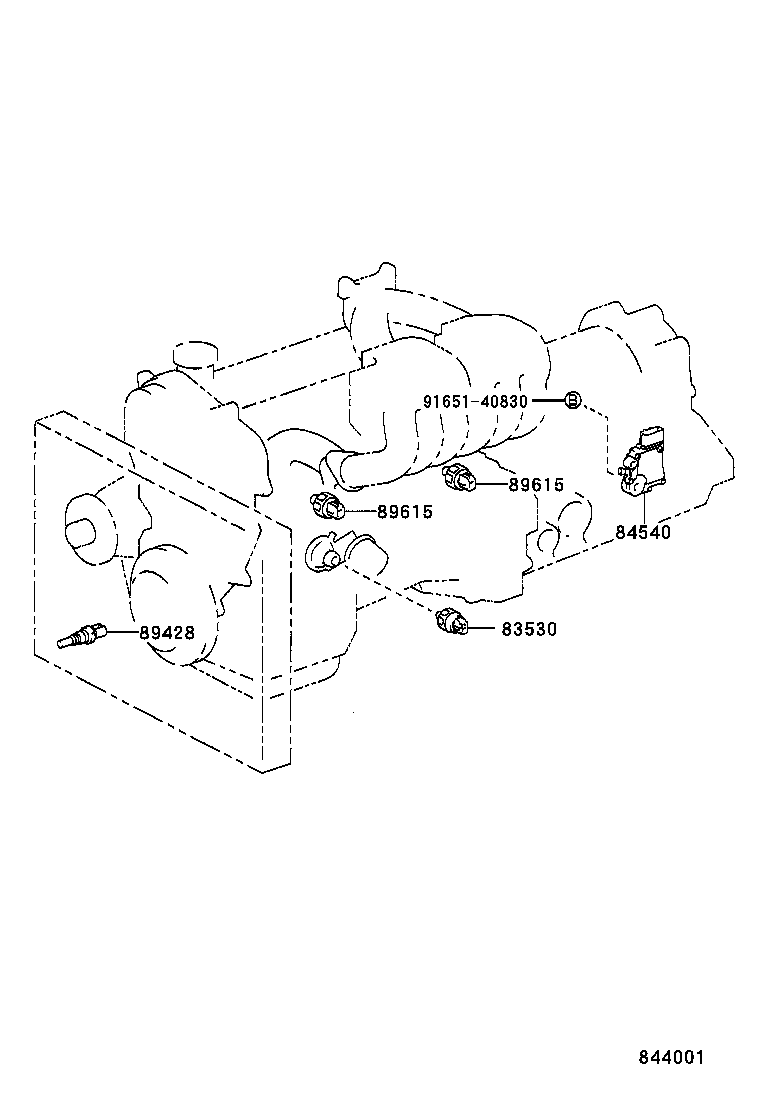

ILLUST NO. 1 OF 9(9909- )JZS175,177 ; (0108- )JKS175,JZS171..D4
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GS171,JZS17# DENSO |
1 | ||
| 83530-28020 |
GS171,JKS175,JZS17#,UZS17# DENSO |
1 | ||
| 83530-60020 |
GS171,JKS175,JZS17# YAZAKI |
1 | ||
| 83530-60020 |
GS171,JZS17# YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30320 |
JZS17#,UZS17# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-24010 |
JZS17#..D4,TWC |
1 | ||
| 89428-24010 |
JZS17#..D4,TWC |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30070 |
JZS175,177 |
2 | ||
| 89615-30070 |
JKS175,JZS171,175,177..D4 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30070 |
JZS175,177 |
2 | ||
| 89615-30070 |
JKS175,JZS171,175,177..D4 |
2 | ||
| Common parts | ||||
| 91651-40830 | ||||
ILLUST NO. 4 OF 9(0108- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-30300 |
JZS177,UZS17# |
1 | ||
| 84091-30301 |
JZS177,UZS17# |
1 | ||
| 84091-30301 |
JZS177,UZS17# |
1 | ||
| 84110C - SWITCH ASSY, LIGHT CONTROL, NO.2 | ||||
| 84110-30101 |
GS171,JZS17#,UZS17# |
1 | ||
| 84110-30100 |
GS171,JZS17#,UZS17# |
1 | ||
| 84110-30101 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GS171,JZS17#,UZS17# |
1 | ||
| 84242-20030 |
JZS177,UZS17# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-30280C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84332-30280B0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG DK.CHARCOAL,TRIM1# |
1 | ||
| 84332-30280B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG DK.CHARCOAL,TRIM1# |
1 | ||
| 84332-30280E0 |
GS171,JZS17#,UZS17# SANDAL WOOD,TRIM0# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
GS171,JZS17#,UZS17# 14V 0.91W |
1 | ||
| 84999-10860 |
GS171,JKS175,JZS17#,UZS17# 14V 0.91W |
1 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-30190 |
JZS171..SED..(ATH,ATHV,ROY);JZS173,175,177,179,UZS175..SED..(A,ATH,ATHG,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ) |
1 | ||
| 84660-30180 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 84660-30220 |
JZS171,175,177,179,UZS175..SED..(A,ATHG,ATHV,ROY) ｱﾘ(ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 84660-30180 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 84660-30190 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ) |
1 | ||
| 84660-30210 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ) |
1 | ||
| 84660-30220 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 84660-30180 |
JZS177,UZS17# ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 84660-30210 |
JZS171,175,177,179,UZS175..SED..(A,ATHG,ATHV,ROY) ｱﾘ(ﾘﾔ ﾗｼﾞｵ ｽｲﾂﾁ) |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-30340 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 84720-30340 |
GS171,JZS17#,UZS17# |
1 | ||
| 84720B - BULB (FOR PATTERN SELECT SWITCH) | ||||
| 84999-10710 |
GS171,JKS175,JZS17#,UZS17# 14V 0.56W |
1 | ||
| 84999-10710 |
GS171,JZS17#,UZS17# 14V 0.56W |
1 | ||
| 84720F - CAP, PATTERN SELECT SWITCH | ||||
| 84998-10670 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 84998-10670 |
GS171,JZS17#,UZS17# |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-30010 |
JZS177,UZS171,175 |
1 | ||
| 84746-30010 |
JZS171,175,177,UZS171,175..A,C,ROY,ROYEX,ROYG |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-30170 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 84840-30170 |
JZS177,UZS17# |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-30040B3 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84841-30040C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84841-30040A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 84841-30040B3 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30460A0 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 84870-30480A0 |
JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 84870-30480B1 |
JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84870-30460B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ),MD.CHARCOAL,TRIM1# |
1 | ||
| 84870-30510C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84870-30481B1 |
GS171,JKS175,JZS17#,UZS175..A,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 84870-30510B0 |
JKS175,JZS175,177,UZS17#..A,C,ROY,ROYG ｱﾘ(ｼ-ﾄ ﾒﾓﾘ- ｽｲﾂﾁ),MD.CHARCOAL,TRIM1# |
1 | ||
| 84870-30510A0 |
JKS175,JZS175,177,UZS17#..A,C,ROY,ROYG ｱﾘ(ｼ-ﾄ ﾒﾓﾘ- ｽｲﾂﾁ),IVORY,TRIM0# |
1 | ||
| 84870B - BULB, OUTER MIRROR SWITCH | ||||
| 84999-10470 |
GS171,JKS175,JZS17#,UZS17# 14V 1.12W |
1 | ||
| 84870C - CAP, OUTER MIRROR SWITCH BULB | ||||
| 84998-10430 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-30020 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 84940D - SWITCH ASSY, REAR SUN SHADE | ||||
| 84940-30020 |
JZS177,UZS17# |
1 | ||
| 84940-30020 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 84940-30020 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) |
1 | ||
| 84940E - BULB, REAR SUN SHADE | ||||
| 90010-01039 |
JZS177,UZS17# 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01039 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01039 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-30090 |
JZS171,175,177,UZS171,175..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG |
1 | ||
| 84988-30090 |
JZS177,UZS171,175 |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 90010-01039 |
JZS171,175,177,UZS171,175..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01039 |
JZS177,UZS171,175 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30500 |
GS171,JZS17#,UZS17# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10440 |
GS171,JZS17#,UZS17# 14V 2.0W |
1 | ||
| 84999-10440 |
GS171,JKS175,JZS17#,UZS17# 14V 2.0W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10530 |
GS171,JZS17#,UZS17# |
1 | ||
| 84998-10530 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
GS171,JZS17#,UZS17# |
1 | ||
| 85520-89101 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85531-30010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 85531-30010 |
GS171,JZS17#,UZS17# ﾌﾛﾝﾄ |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 86831-30010 |
GS171,JZS17#,UZS17# |
1 | ||
| 86831-30010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8419 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
