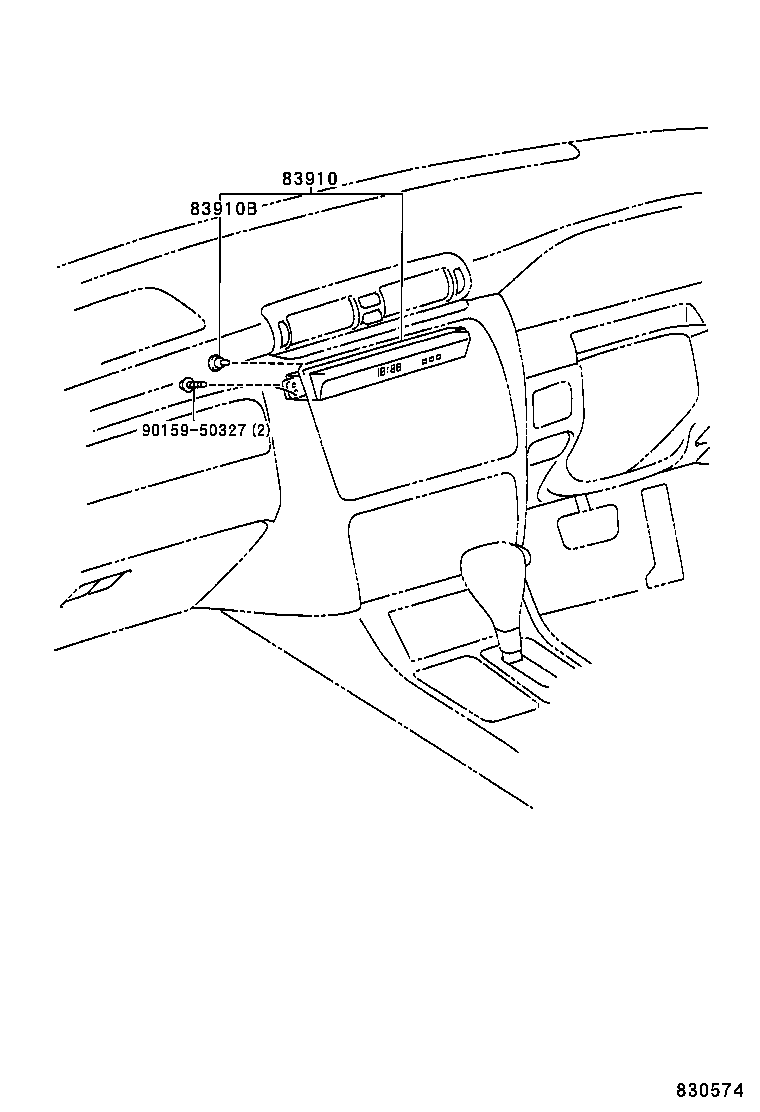

JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta
ILLUST NO. 4 OF 4(9909- )
ｸﾛﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-30590 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 83910-30590 |
GS171,JZS17#,UZS17# |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90072-02005 |
GS171,JZS17#,UZS17# 14V 1.12W |
1 | ||
| 90072-02005 |
GS171,JKS175,JZS17#,UZS17# 14V 1.12W |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
ILLUST NO. 1 OF 4(9909-0108)A,C,ROYG ; (0108- )JKS175,JZS175,177,UZS17#..A,C,ROY,ROYG
ﾃﾞﾕｱﾙﾋﾞｼﾞﾖﾝ ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83129C - WIRE, COMBINATION METER | ||||
| 83876-3A040 |
JZS175,177,UZS17#..A,C,ROYG |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-3A080 |
JZS177 |
1 | ||
| 83841-3A080 |
JZS177 |
1 | ||
| 83841-3A081 |
JZS177 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-3A040 |
JZS175,177,UZS17#..A,C,ROYG |
1 | ||
| 83811-3A040 |
JZS177,UZS17# |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83812-3A040 |
JZS177,UZS17# |
1 | ||
| 83812-3A040 |
JZS175,177,UZS17#..A,C,ROYG |
1 | ||
| 83133B - PLATE, COMBINATION METER, NO.3 | ||||
| 83813-3A040 |
JZS175,177,UZS17#..A,C,ROYG |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-3A040 |
JZS177,UZS17# |
1 | ||
| 83821-3A040 |
JZS175,177,UZS17#..A,C,ROYG |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-3A040 |
JZS177,UZS17# |
1 | ||
| 83852-3A040 |
JZS177,UZS17# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-3A040 |
JZS177,UZS17# |
1 | ||
| 83861-3A040 |
JZS175,177,UZS17#..A,C,ROYG |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83862-3A040 |
JZS175,177,UZS17#..A,C,ROYG |
1 | ||
| 83862-3A040 |
JZS177,UZS17# |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83801-3A110 |
JZS177 DENSO,ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 83801-3A101 |
JZS177 DENSO |
1 | ||
| 83801-3A111 |
JZS177 DENSO,ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 83801-3A100 |
JZS177 DENSO |
1 | ||
| 83875 - WIRE, COMBINATION METER, NO.1 | ||||
| 83875-3A040 |
JZS175,177,UZS17#..A,C,ROYG |
1 | ||
| 86111C - DISPLAY, MULTI-DISPLAY (COMBINATION METER) | ||||
| 86111-30211 |
JZS177,UZS17# DENSO |
1 | ||
| 86111-30210 |
JZS175,177,UZS17#..A,C,ROYG DENSO |
1 | ||
| Common parts | ||||
| 90099-00198 | ||||
| 90099-00262 | ||||
| 90099-00296 | ||||
| 90099-00297 | ||||
| 90099-00305 | ||||
| 93540-14010 | ||||
| 93568-55016 | ||||

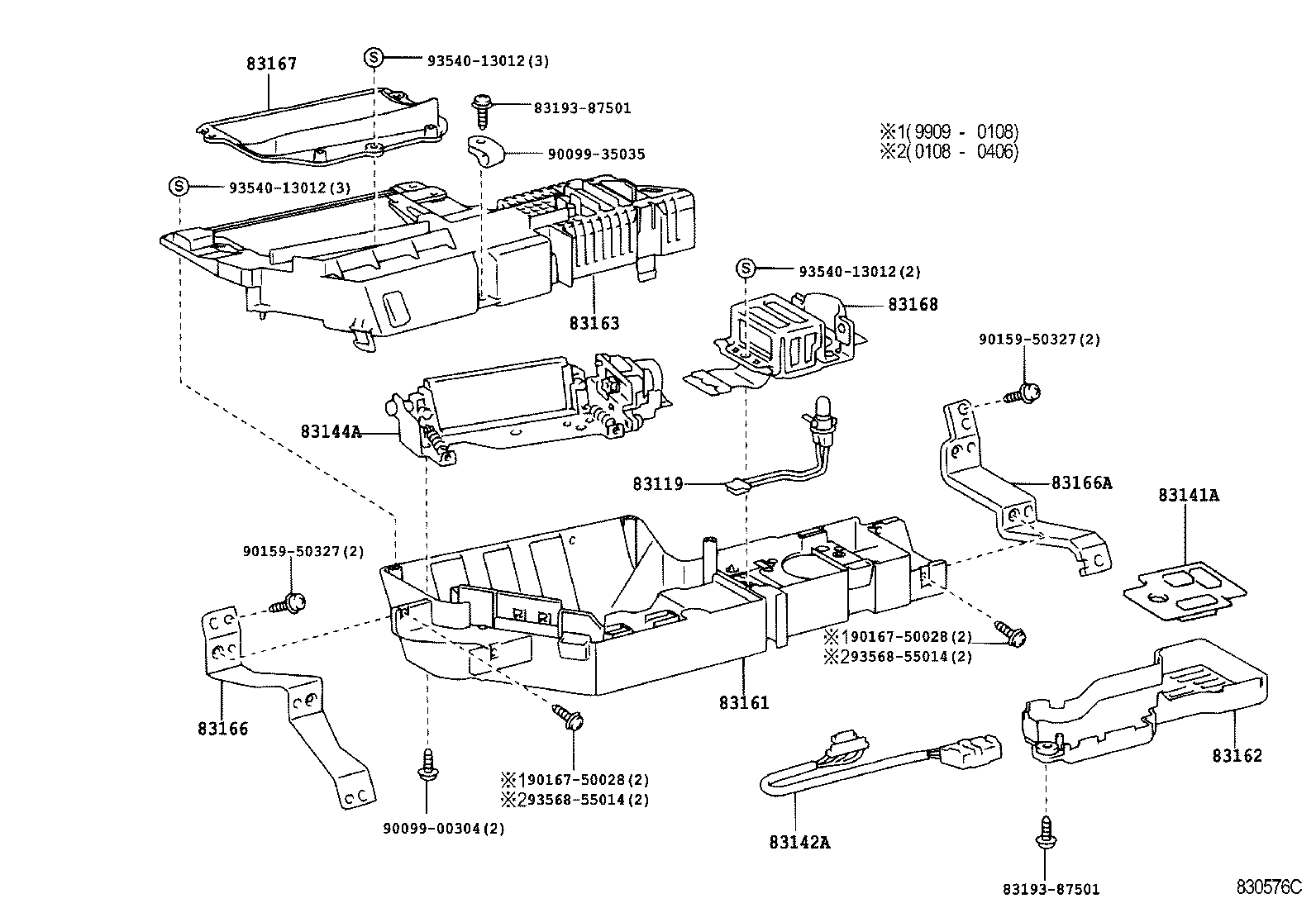

ILLUST NO. 3 OF 4(9909- )JZS177,UZS17#
ﾎﾛｸﾞﾗﾑﾍﾂﾄﾞｱﾂﾌﾟﾃﾞｲｽﾌﾟﾚｲ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83169-30020 |
JZS177,UZS17# |
1 | ||
| 83169-30020 |
JZS177,UZS17# |
1 | ||
| 83141A - COMPUTER, COMBINATION METER MIRROR | ||||
| 83141-30030 |
JZS177,UZS17# ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 83141-30030 |
JZS177,UZS17# ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 83141-30020 |
JZS177,UZS17# |
1 | ||
| 83141-30020 |
JZS177,UZS17# |
1 | ||
| 83142A - WIRE, COMBINATION METER | ||||
| 83142-30040 |
JZS177,UZS17# |
1 | ||
| 83142-30040 |
JZS177,UZS17# |
1 | ||
| 83142-30050 |
JZS177,UZS17# ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 83142-30050 |
JZS177,UZS17# ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 83144A - MIRROR, COMBINATION METER | ||||
| 83144-30040 |
JZS177,UZS17# |
1 | ||
| 83144-30040 |
JZS177,UZS17# |
1 | ||
| 83161 - CASE, COMBINATION METER MIRROR, NO.1 | ||||
| 83161-30040 |
JZS177,UZS17# |
1 | ||
| 83161-30040 |
JZS177,UZS17# |
1 | ||
| 83161-30050 |
JZS177,UZS17# ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 83161-30050 |
JZS177,UZS17# ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 83162 - CASE, COMBINATION METER MIRROR, NO.2 | ||||
| 83162-30040 |
JZS177,UZS17# |
1 | ||
| 83162-30040 |
JZS177,UZS17# |
1 | ||
| 83163 - PLATE, COMBINATION METER MIRROR, NO.1 | ||||
| 83163-30040 |
JZS177,UZS17# |
1 | ||
| 83163-30040 |
JZS177,UZS17# |
1 | ||
| 83166 - BRACKET, COMBINATION METER MIRROR, NO.1 | ||||
| 83166-30040 |
JZS177,UZS17# |
1 | ||
| 83166-30040 |
JZS177,UZS17# |
1 | ||
| 83166A - BRACKET, COMBINATION METER MIRROR, NO.1 | ||||
| 83166-30050 |
JZS177,UZS17# |
1 | ||
| 83166-30050 |
JZS177,UZS17# |
1 | ||
| 83167 - GLASS, COMBINATION METER MIRROR | ||||
| 83167-30040 |
JZS177,UZS17# |
1 | ||
| 83167-30040 |
JZS177,UZS17# |
1 | ||
| 83168 - DISPLAY, COMBINATION | ||||
| 83168-30020 |
JZS177,UZS17# |
1 | ||
| 83168-30030 |
JZS177,UZS17# ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 83168-30020 |
JZS177,UZS17# |
1 | ||
| 83168-30030 |
JZS177,UZS17# ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| Common parts | ||||
| 83193-87501 | ||||
| 90099-00304 | ||||
| 90099-35035 | ||||
| 90159-50327 | ||||
| 90167-50028 | ||||
| 93540-13012 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 4(9909-0108)A,C,ROYG ; (0108- )JKS175,JZS175,177,UZS17#..A,C,ROY,ROYG
ﾊﾞﾙﾌﾞ(ﾃﾞﾕｱﾙﾋﾞｼﾞﾖﾝ ｵﾌﾟﾃｲﾄﾛﾝ ﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GS171,JZS17#,UZS17# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
JZS177,UZS17# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GS171,JZS17#,UZS17# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
JZS177,UZS17# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GS171,JZS17#,UZS17# |
1 | ||
| 83101-14040 |
GS171,JZS17#,UZS17# |
1 | ||
