JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta
ILLUST NO. 1 OF 9(9909- )JZS177,UZS17#

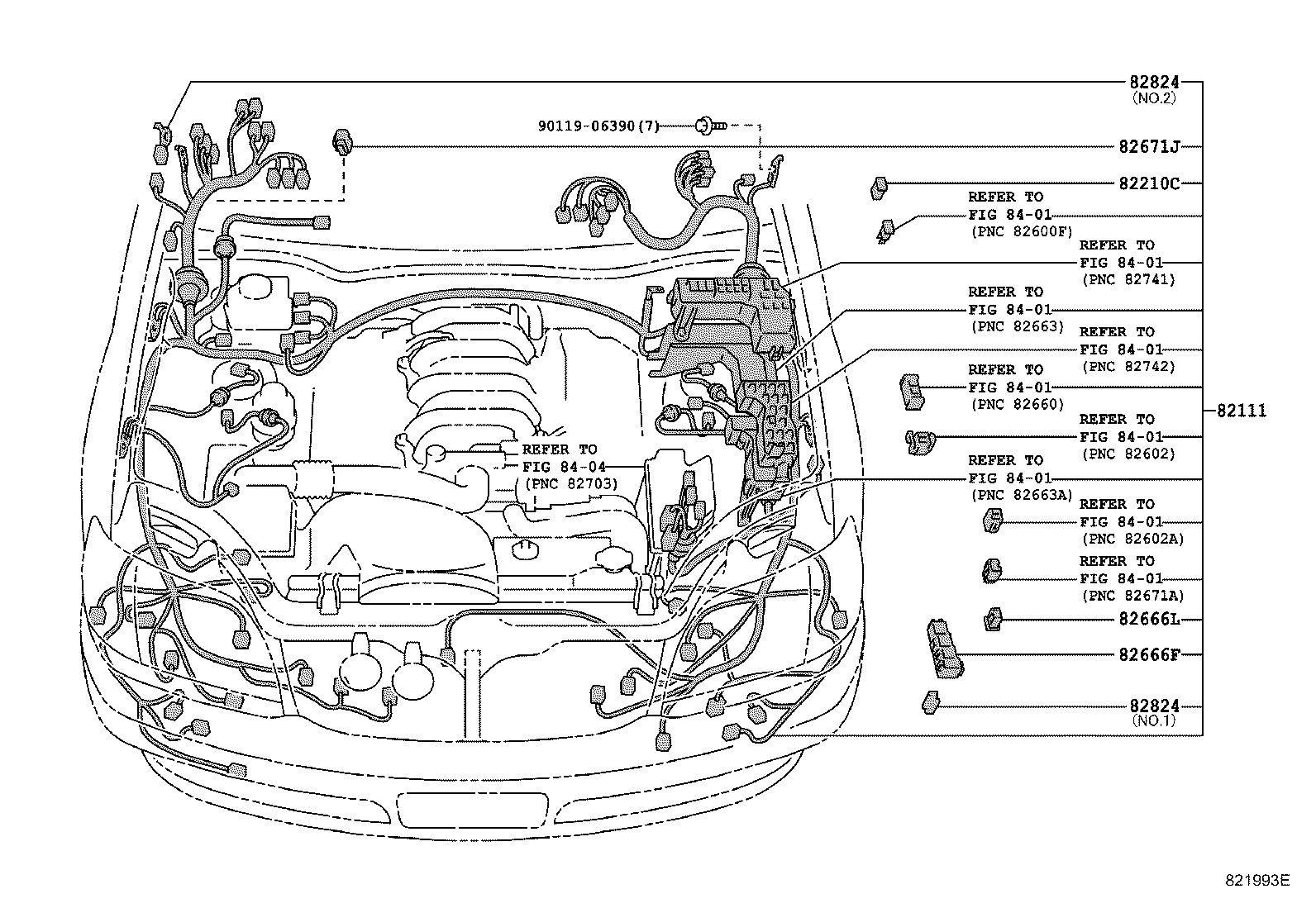

ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-30190 |
JZS177 |
1 | ||
| 82115-30010 |
JZS177 ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82115-30191 |
JZS177 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08280 |
JZS171..WG..TWT;GS171,JZS17#,UZS17#..D4,HTWC,TWC 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08281 |
JZS177,UZS175 40A,ﾒｽ端子,緑 |
2 | ||
| 90982-08202 |
GS171,JZS17#,UZS17# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08274 |
GS171,JZS17#,UZS17# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08282 |
JZS171..WG..TWT;GS171,JZS17#,UZS17#..D4,HTWC,TWC 50A,ﾒｽ端子,赤 |
6 | ||
| 90982-08203 |
GS171,JZS17#,UZS17# 80A,ｵｽ端子,黒 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-30610 |
GS171,JZS17#,UZS17# |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-30670 |
JZS177 |
1 | ||
| 82666-30670 |
JZS175,177 |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30350 |
JZS175,177 |
1 | ||
| 82671-30350 |
JZS177 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-12210 |
GS171,JZS17# NO.1 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-12210 |
GS171,JZS17# NO.1 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8404 | ||||
ILLUST NO. 2 OF 9(9909- )JZS175,177

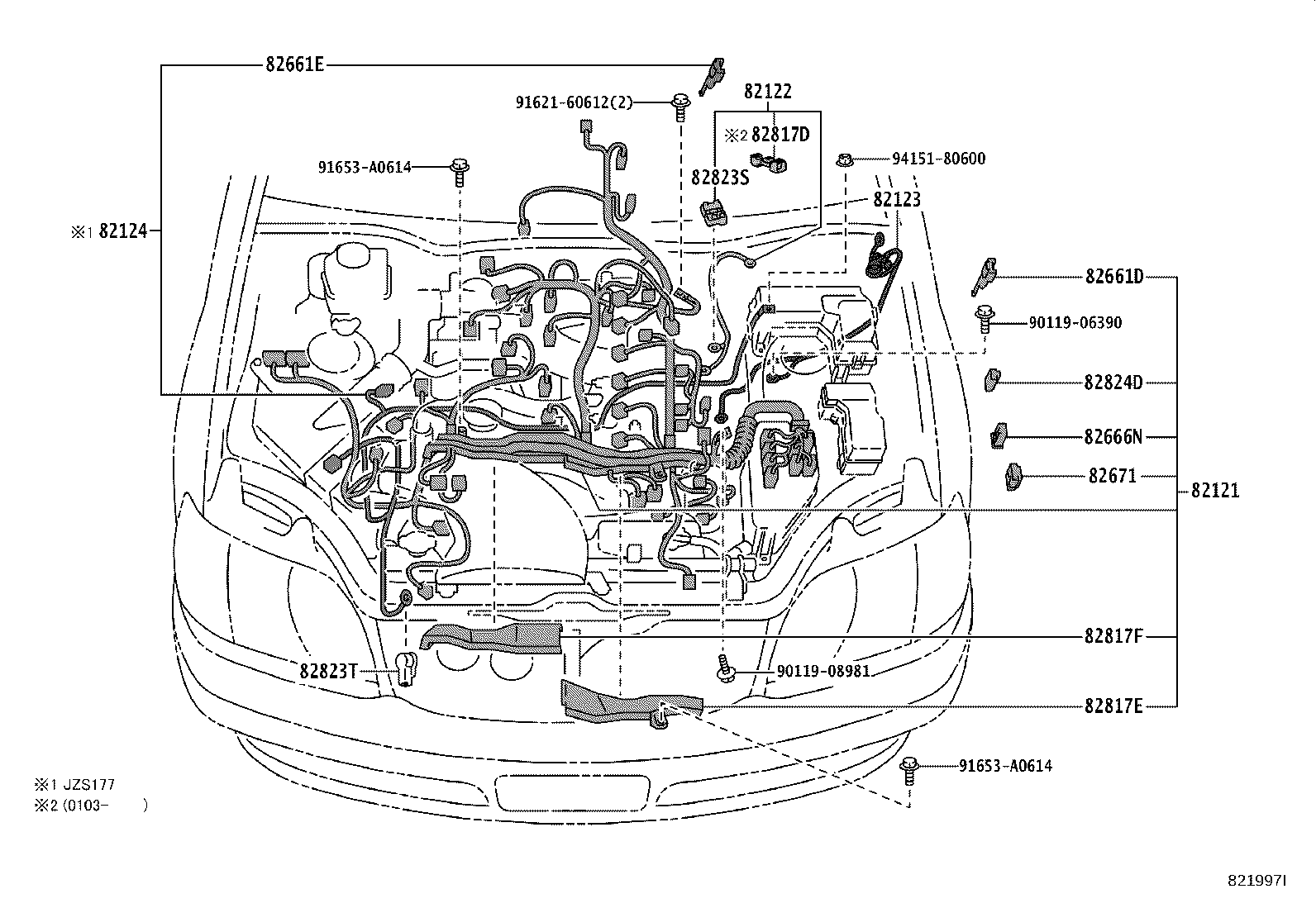

ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3A500 |
JZS177 |
1 | ||
| 82121-3A501 |
JZS177 |
1 | ||
| 82121-3A502 |
JZS177 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30740 |
JZS177 |
1 | ||
| 82122-30740 |
JZS177 |
1 | ||
| 82122-30750 |
JZS177 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82122-30750 |
JZS177 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30450 |
JZS177 |
1 | ||
| 82123-30450 |
JZS177 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-30230 |
JZS177 |
1 | ||
| 82124-30230 |
JZS177 |
1 | ||
| 82661E - COVER, RELAY BLOCK, SIDE NO.2 | ||||
| 82661-30450 |
JZS177,UZS17# |
1 | ||
| 82661-30450 |
JZS177,UZS17# |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-30670 |
JZS177;JZS175..WG |
2 | ||
| 82666-30670 |
GS171,JZS17#,UZS17# |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30350 |
GS171,JZS17#,UZS17# |
1 | ||
| 82824-12210 |
JKS175,JZS175,177,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾒﾓﾘ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 82671-30340 |
JZS177;JZS175..WG ｴﾝｼﾞﾝ |
1 | ||
| 82671-30350 |
JZS175;JZS171..WG..TWT;GS171,JKS175,JZS171,173,177,179,UZS175..SED..(A,ATH,ATHV,ROY,ROYEX) ｴﾝｼﾞﾝ ﾙ-ﾑ OR ﾌﾛﾝﾄ ｼ-ﾄ |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-3K610 |
JZS175,177 |
1 | ||
| 82817-3K610 |
JZS177;JZS175..WG |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-3K600 |
JZS175,177 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-30120 |
GS171,JZS17# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22070 |
JZS177,UZS17# |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-50110 |
GS171,JZS17# |
1 | ||
| 82824-50110 |
JZS177;JZS175..WG;GS171,JZS171,173,179..HTWC,TWC,TWT |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08981 | ||||
| 91621-60612 | ||||
| 91653-A0614 | ||||
| 94151-80600 | ||||
ILLUST NO. 3 OF 9(9909-0108)

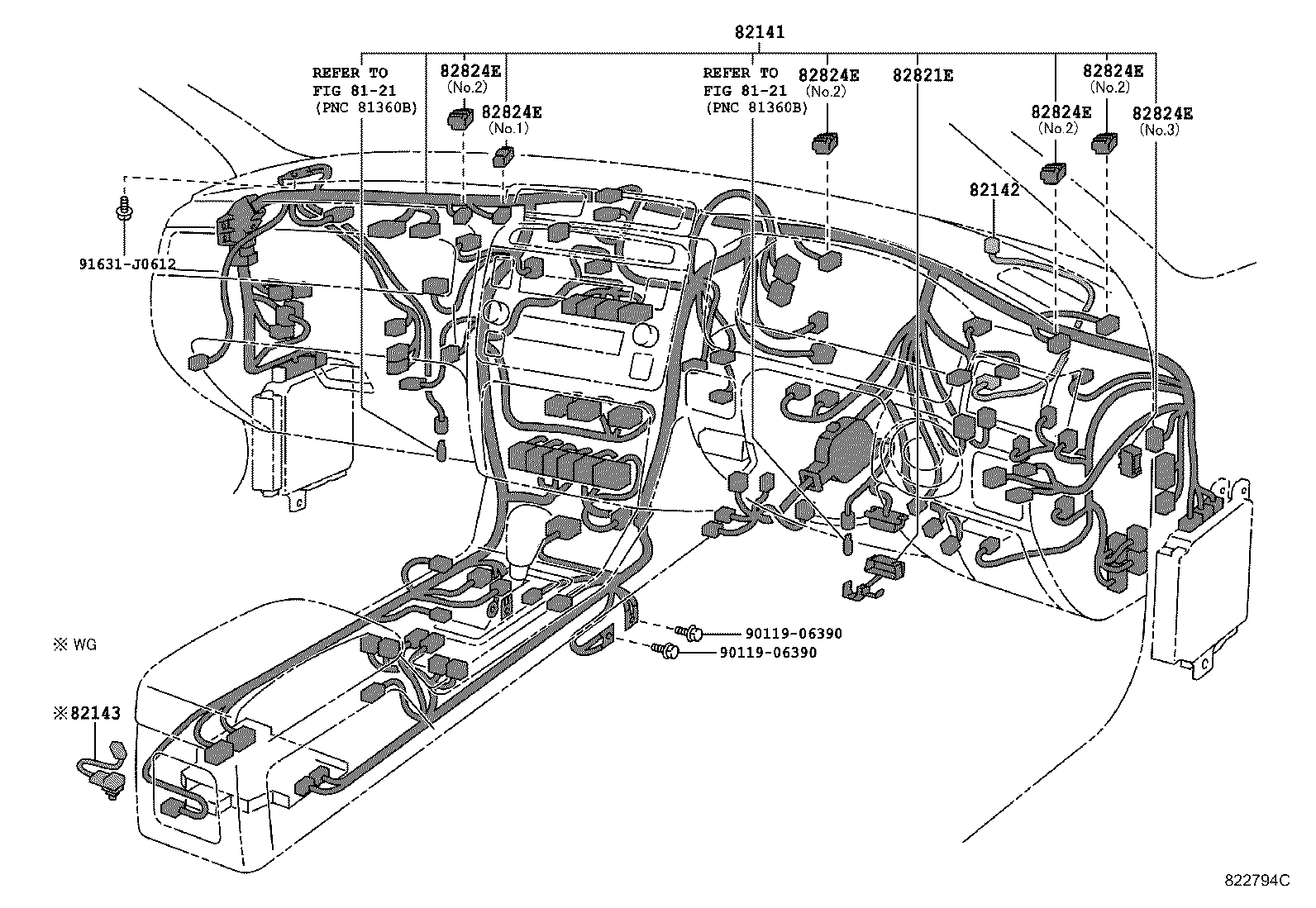

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3F400 |
JZS177 |
1 | ||
| 82141-3F390 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82141-3F391 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82141-3K020 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ & ﾚｰﾀﾞｰ ｸﾙｰｽﾞ ｺﾝﾄﾛｰﾙ) |
1 | ||
| 82141-3F401 |
JZS177 |
1 | ||
| 82141-3F392 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82141-3K021 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ & ﾚｰﾀﾞｰ ｸﾙｰｽﾞ ｺﾝﾄﾛｰﾙ) |
1 | ||
| 82141-3K030 |
JZS177 ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-30040 |
JZS177,UZS17# |
1 | ||
| 82142-30040 |
JZS177,UZS17# |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20330 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82821-20330 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824-30220 |
JZS173..WG;JZS177,UZS17# NO.2 |
3 | ||
| 82824-22070 |
GS171,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22070 |
GS171,JKS175,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824-30220 |
JZS173..WG;JZS177,UZS17# NO.2 |
3 | ||
| 82824-22070 |
GS171,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22070 |
GS171,JKS175,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824-30220 |
JZS173..WG;JZS177,UZS17# NO.2 |
3 | ||
| 82824-22070 |
GS171,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22070 |
GS171,JKS175,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 4 OF 9(9909- )SED

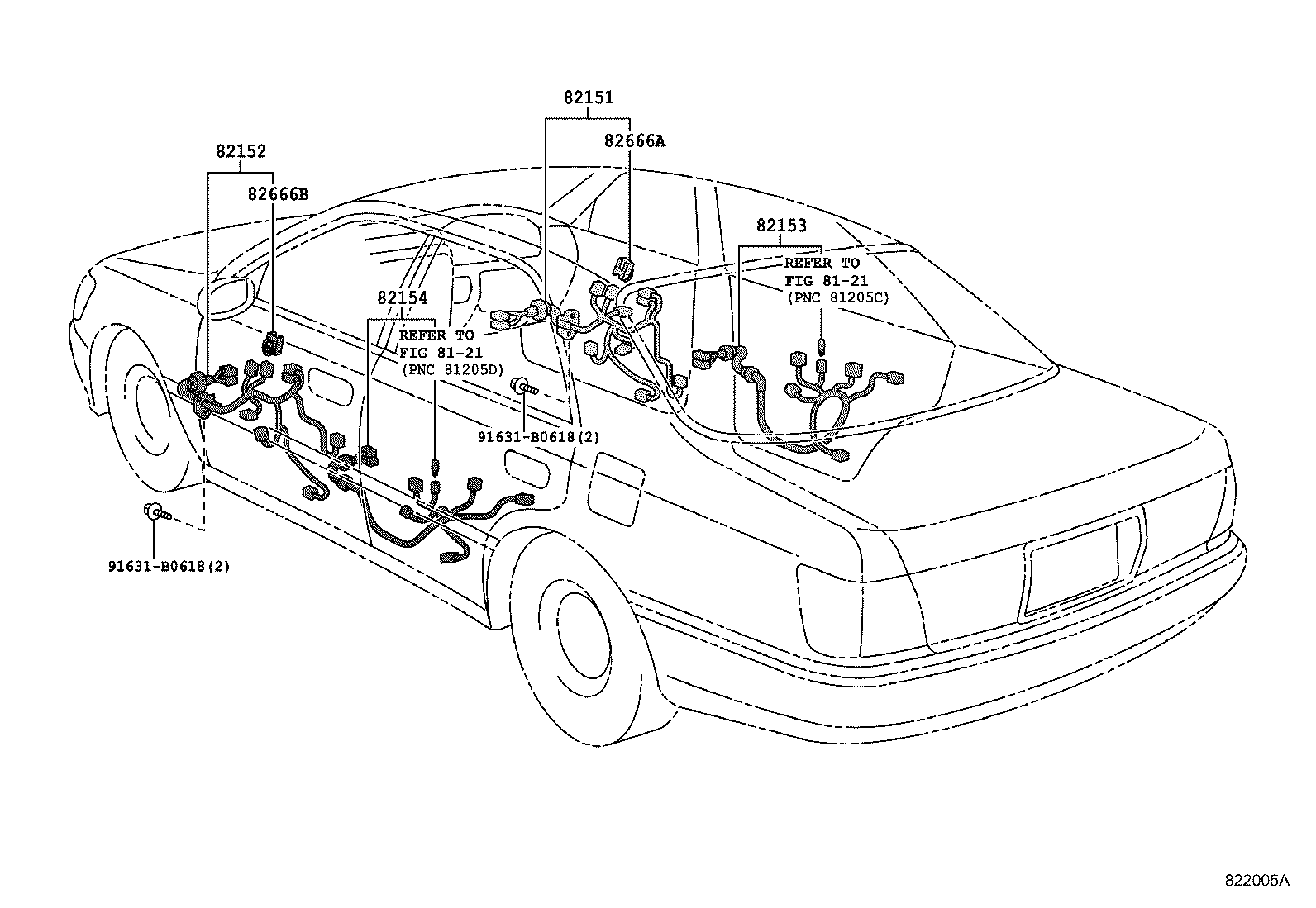

ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-3A230 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 82151-3A260 |
GS171,JZS171,173,177..A,ROYEX ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & AM/FM ｶｾﾂﾄ CD & 6ｽﾋﾟ-ｶ) |
1 | ||
| 82151-3A230 |
JZS177,UZS17# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-3A230 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 82151-3A260 |
GS171,JZS171,173,177..A,ROYEX ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & AM/FM ｶｾﾂﾄ CD & 6ｽﾋﾟ-ｶ) |
1 | ||
| 82151-3A230 |
JZS177,UZS17# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-30850 |
JZS177,UZS17# |
1 | ||
| 82152-30871 |
JZS177,UZS17#;JZS171,173,175..WG ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30510 |
JZS177,UZS17# |
1 | ||
| 82153-30510 |
JZS177,UZS17# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-30430 |
JZS177,UZS17# |
1 | ||
| 82154-30430 |
JZS177,UZS17# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-22080 |
GS171,JZS17#,UZS17# |
1 | ||
| 82666-22080 |
JZS171..ROYEX;JZS171,173,175..WG;GS171,JKS175,JZS173,177,UZS17#..A,ATHE,C,ROY,ROYEX |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-22080 |
JZS171..ROYEX;JZS171,173,175..WG;GS171,JKS175,JZS173,177,UZS17#..A,ATHE,C,ROY,ROYEX |
1 | ||
| 82666-22080 |
GS171,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 91631-B0618 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 5 OF 9(9909-0108)SED

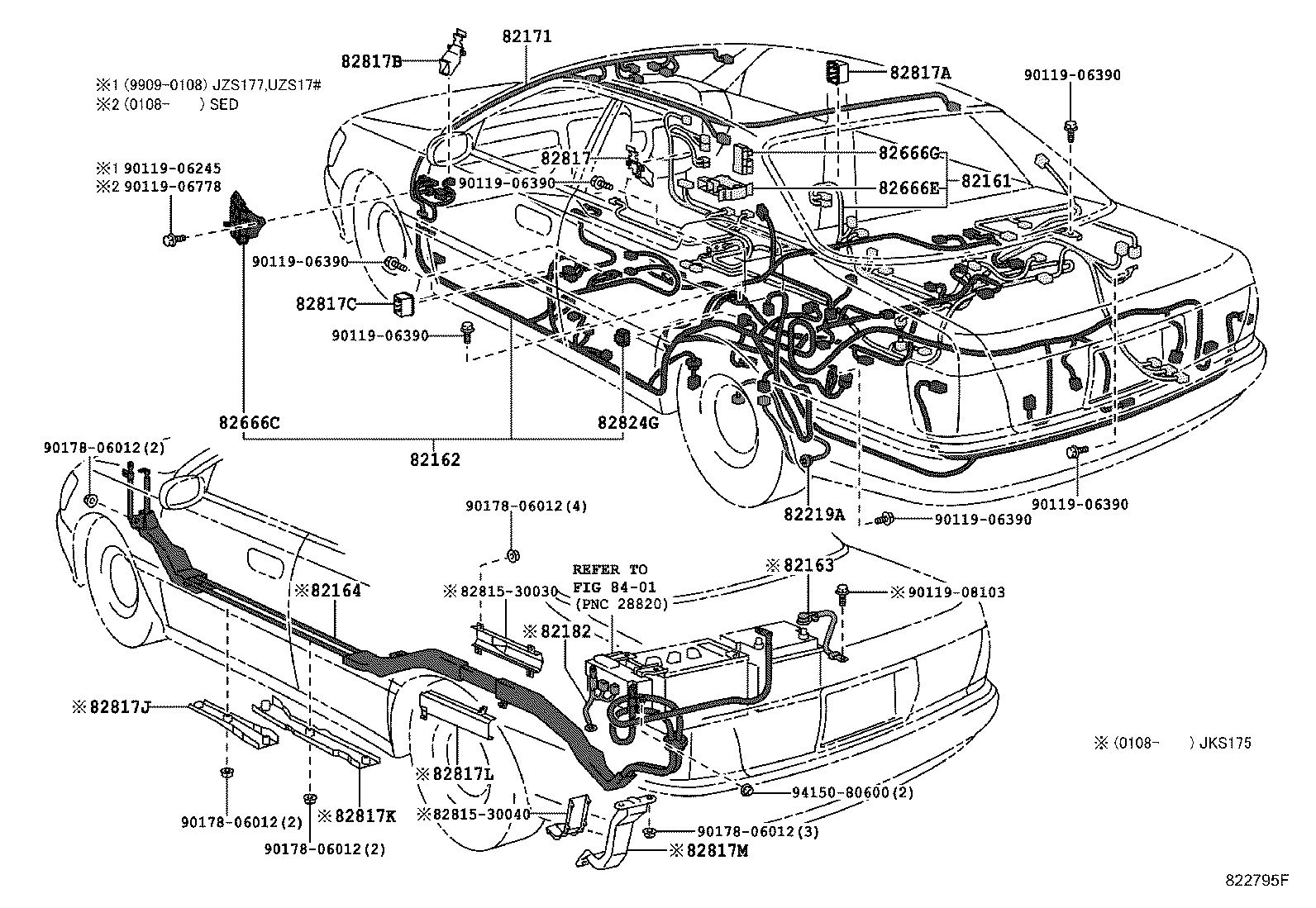

ﾙ-ﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-3F880 |
JZS177,UZS175 ｱﾘ(*80) |
1 | ||
| 82161-3F870 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82161-3F860 |
JZS177,UZS175 ｱﾘ(AM/FM ｶｾﾂﾄ CDｵ-ﾄﾁｴﾝｼﾞﾔ & 7ｽﾋﾟ-ｶ & EMV & *80) |
1 | ||
| 82161-3F890 |
JZS177 |
1 | ||
| 82161-3F861 |
JZS177,UZS175 ｱﾘ(AM/FM ｶｾﾂﾄ CDｵ-ﾄﾁｴﾝｼﾞﾔ & 7ｽﾋﾟ-ｶ & EMV & *80) |
1 | ||
| 82161-3F872 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82161-3F871 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82161-3F881 |
JZS177,UZS175 ｱﾘ(*80) |
1 | ||
| 82161-3F892 |
JZS177 |
1 | ||
| 82161-3F891 |
JZS177 |
1 | ||
| 82161-3F882 |
JZS177 ｱﾘ(*80) |
1 | ||
| 82161-3F862 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & *80) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-3F432 |
JZS177..A ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82162-3F090 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & *80) |
1 | ||
| 82162-3F080 |
JZS177..C |
1 | ||
| 82162-3F070 |
JZS177..C ｱﾘ(*80) |
1 | ||
| 82162-3F110 |
JZS177,UZS175..A ｱﾘ(*80) |
1 | ||
| 82162-3F070 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 82162-3F100 |
JZS177..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ) |
1 | ||
| 82162-3F120 |
JZS177..A |
1 | ||
| 82162-3F080 |
JZS177..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ｸ-ﾙﾎﾞﾂｸｽ & 6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ) |
1 | ||
| 82162-3F410 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82162-3F430 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82162-3F420 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F440 |
JZS177..A ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F071 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 82162-3F111 |
JZS177,UZS175..A ｱﾘ(*80) |
1 | ||
| 82162-3F081 |
JZS177..C |
1 | ||
| 82162-3F081 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ｸ-ﾙﾎﾞﾂｸｽ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F071 |
JZS177..C ｱﾘ(*80) |
1 | ||
| 82162-3F101 |
JZS177..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ) |
1 | ||
| 82162-3F091 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & *80) |
1 | ||
| 82162-3F121 |
JZS177..A |
1 | ||
| 82162-3F441 |
JZS177..A ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F411 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82162-3F421 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F431 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82162-3F122 |
JZS177..A |
1 | ||
| 82162-3F102 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ) |
1 | ||
| 82162-3F082 |
JZS177 ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ｸ-ﾙﾎﾞﾂｸｽ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F422 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F442 |
JZS177..A ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F072 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ｸ-ﾙﾎﾞﾂｸｽ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82162-3F112 |
JZS177..A ｱﾘ(*80) |
1 | ||
| 82162-3F072 |
JZS177..C ｱﾘ(*80) |
1 | ||
| 82162-3F092 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & *80) |
1 | ||
| 82162-3F412 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-30860 |
JZS177,UZS17# |
1 | ||
| 82171-30870 |
JZS177,UZS17# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82171-30871 |
JZS177,UZS17# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82171-30861 |
JZS177,UZS17# |
1 | ||
| 82171-3A060 |
JZS177,UZS17# ｱﾘ(ﾍﾙﾌﾟﾈﾂﾄ ｼｽﾃﾑ) |
1 | ||
| 82171-3A070 |
JZS177,UZS17# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾒ-ﾃﾞ- ｼｽﾃﾑ) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-30700 |
JZS177,UZS17# |
1 | ||
| 82666-30700 |
JZS177,UZS17# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-30680 |
JZS177,UZS17# |
1 | ||
| 82666-30680 |
JZS177,UZS17# |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-30720 |
GS171,JZS17#,UZS17# |
1 | ||
| 82666-30720 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-3K580 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82817-3K580 |
GS171,JZS17#,UZS17# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-51020 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82817-51020 |
GS171,JZS17#,UZS17# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-3K580 |
GS171,JZS17#,UZS17# |
1 | ||
| 82817-3K580 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-51020 |
GS171,JZS17#,UZS17# |
1 | ||
| 82817-51020 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17#..SED |
1 | ||
| Common parts | ||||
| 90119-06245 | ||||
| 90119-06390 | ||||
| 90119-06778 | ||||
ILLUST NO. 6 OF 9(9909- )
ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-30120 |
JZS177,UZS17# |
1 | ||
| 82191-30130 |
JZS177,UZS17# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 82191-30121 |
JZS177,UZS175..A ｱﾘ(ﾒﾓﾘ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-30140 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 82196 - WIRE, REAR SEAT, LH NO.2 | ||||
| 82196-30050 |
JKS175,JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 82196-30050 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 82196-30050 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30350 |
GS171,JZS17#,UZS17# |
1 | ||
| 82824-12210 |
JKS175,JZS175,177,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾒﾓﾘ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 82671-30340 |
JZS177;JZS175..WG ｴﾝｼﾞﾝ |
1 | ||
| 82671-30350 |
JZS175;JZS171..WG..TWT;GS171,JKS175,JZS171,173,177,179,UZS175..SED..(A,ATH,ATHV,ROY,ROYEX) ｴﾝｼﾞﾝ ﾙ-ﾑ OR ﾌﾛﾝﾄ ｼ-ﾄ |
1 | ||

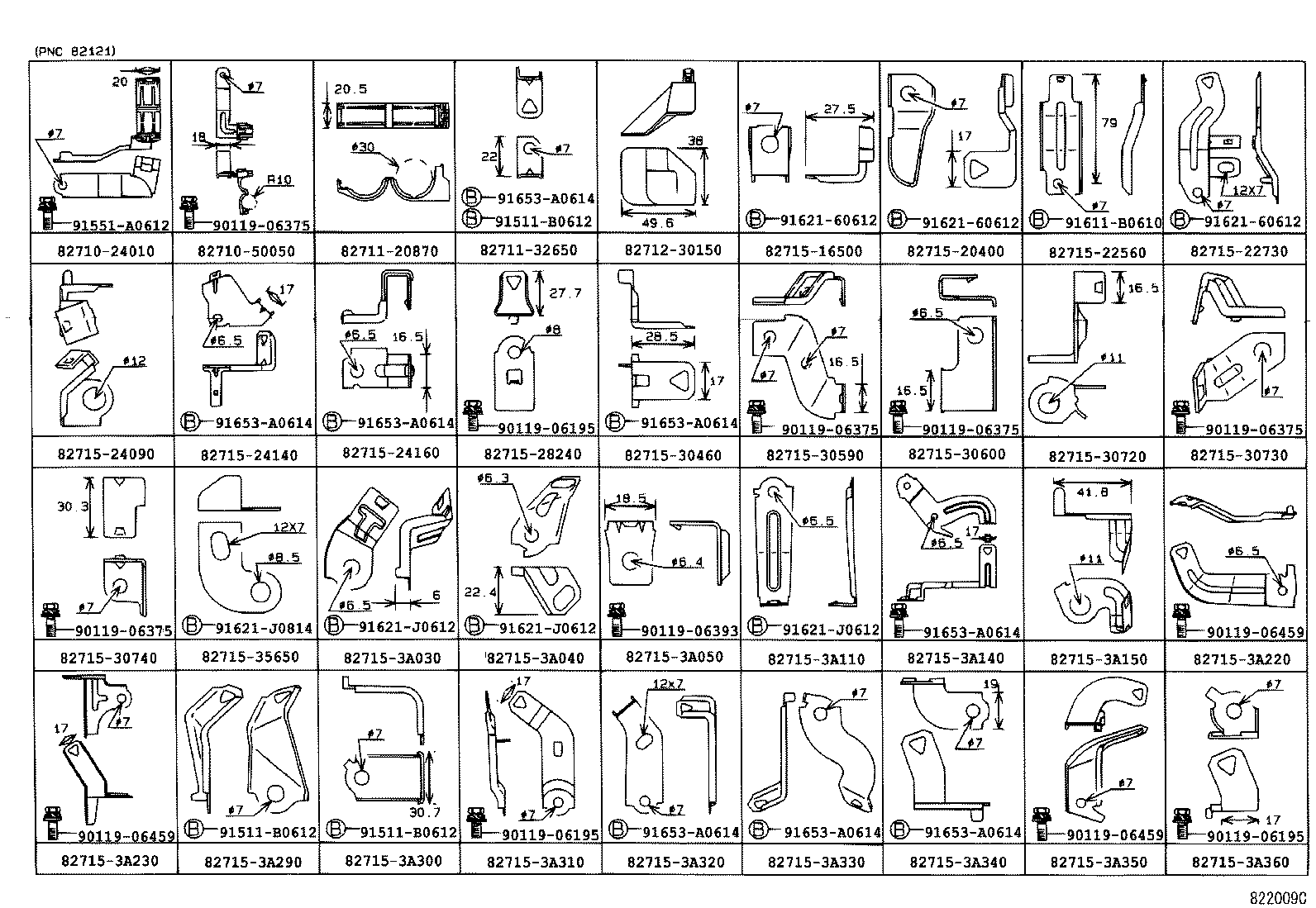

ILLUST NO. 7 OF 9(9909- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-24010 | ||||
| 82710-50050 | ||||
| 82711-20870 | ||||
| 82711-32650 | ||||
| 82712-30150 | ||||
| 82715-16500 | ||||
| 82715-20400 | ||||
| 82715-22560 | ||||
| 82715-22730 | ||||
| 82715-24090 | ||||
| 82715-24140 | ||||
| 82715-24160 | ||||
| 82715-28240 | ||||
| 82715-30460 | ||||
| 82715-30590 | ||||
| 82715-30600 | ||||
| 82715-30720 | ||||
| 82715-30730 | ||||
| 82715-30740 | ||||
| 82715-35650 | ||||
| 82715-3A030 | ||||
| 82715-3A040 | ||||
| 82715-3A050 | ||||
| 82715-3A110 | ||||
| 82715-3A140 | ||||
| 82715-3A150 | ||||
| 82715-3A220 | ||||
| 82715-3A230 | ||||
| 82715-3A290 | ||||
| 82715-3A300 | ||||
| 82715-3A310 | ||||
| 82715-3A320 | ||||
| 82715-3A330 | ||||
| 82715-3A340 | ||||
| 82715-3A350 | ||||
| 82715-3A360 | ||||
| 90119-06195 | ||||
| 90119-06375 | ||||
| 90119-06393 | ||||
| 90119-06459 | ||||
| 91511-B0612 | ||||
| 91551-A0612 | ||||
| 91611-B0610 | ||||
| 91621-60612 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91653-A0614 | ||||

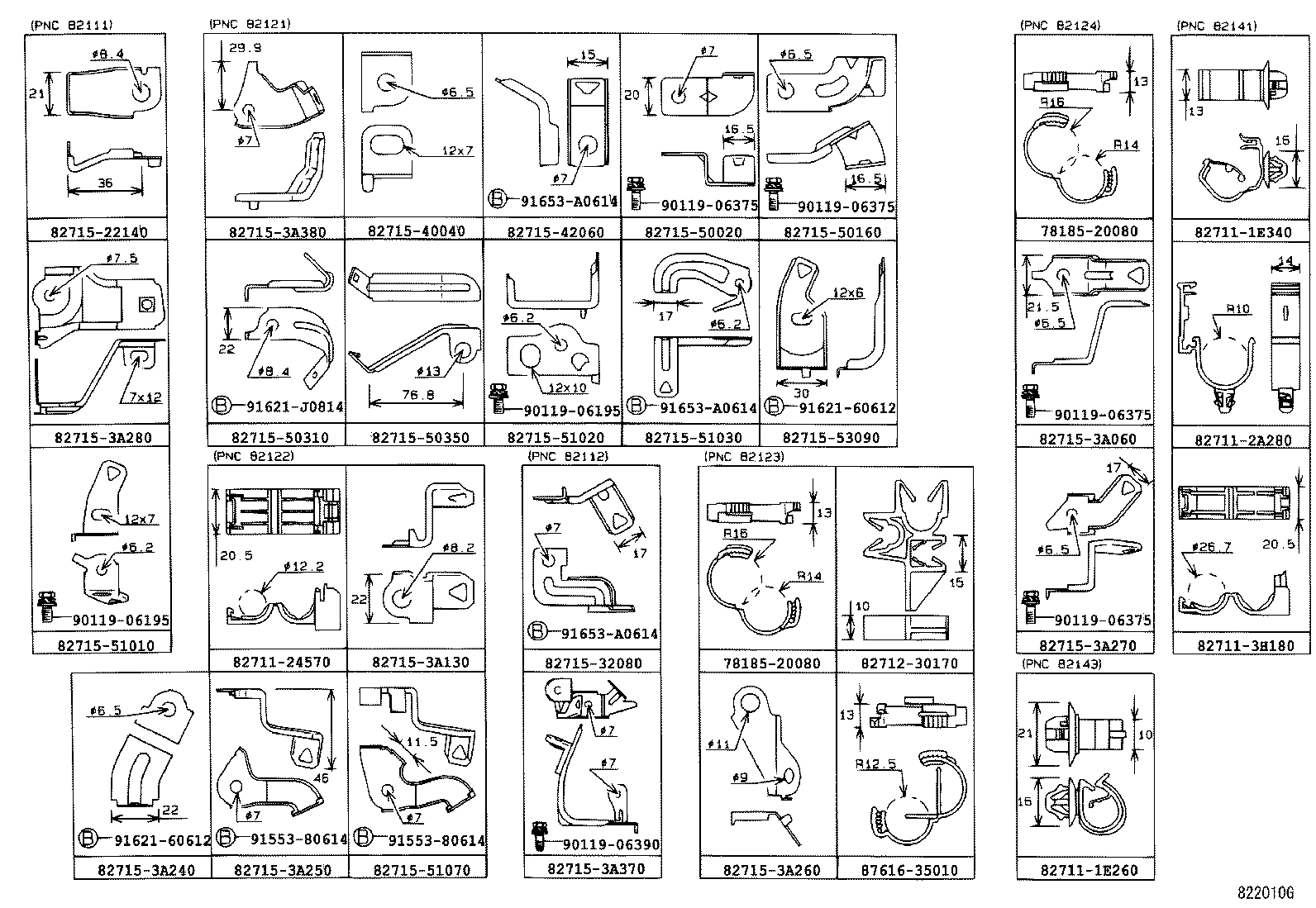

ILLUST NO. 7 OF 9(9909- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 78185-20080 | ||||
| 82711-1E260 | ||||
| 82711-1E340 | ||||
| 82711-24570 | ||||
| 82711-2A280 | ||||
| 82711-3H180 | ||||
| 82712-30170 | ||||
| 82715-22140 | ||||
| 82715-32080 | ||||
| 82715-3A060 | ||||
| 82715-3A130 | ||||
| 82715-3A240 | ||||
| 82715-3A250 | ||||
| 82715-3A260 | ||||
| 82715-3A270 | ||||
| 82715-3A280 | ||||
| 82715-3A370 | ||||
| 82715-3A380 | ||||
| 82715-40040 | ||||
| 82715-42060 | ||||
| 82715-50020 | ||||
| 82715-50160 | ||||
| 82715-50310 | ||||
| 82715-50350 | ||||
| 82715-51010 | ||||
| 82715-51020 | ||||
| 82715-51030 | ||||
| 82715-51070 | ||||
| 82715-53090 | ||||
| 87616-35010 | ||||
| 90119-06195 | ||||
| 90119-06375 | ||||
| 90119-06390 | ||||
| 91553-80614 | ||||
| 91621-60612 | ||||
| 91621-J0814 | ||||
| 91653-A0614 | ||||

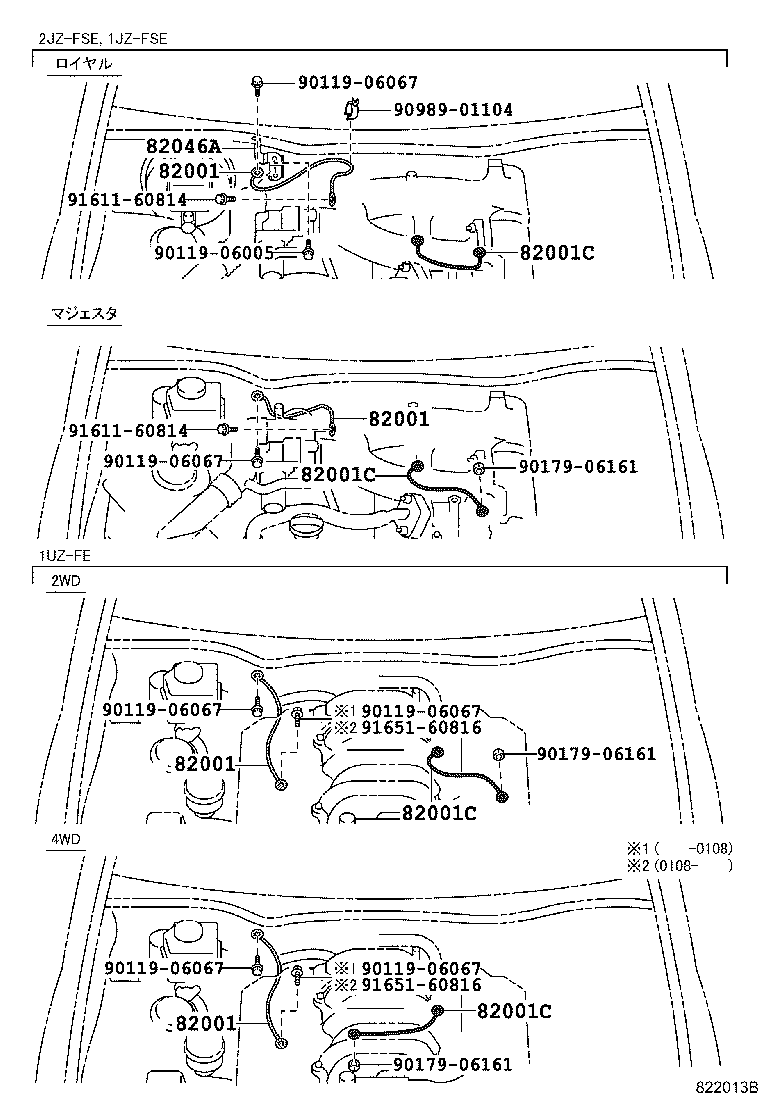

ILLUST NO. 8 OF 9(9909-0108)JZS175,177,UZS17# ; (0108- )JKS175,JZS171,175,177,UZS17#..D4,HTWC
ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07338 |
JZS17# |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07338 |
JZS17# |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07338 |
JZS17# |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07338 |
JZS17# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07403 |
JZS177,UZS171,175 |
1 | ||
| 90980-07403 |
JZS177,UZS171,175 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07403 |
JZS177,UZS171,175 |
1 | ||
| 90980-07403 |
JZS177,UZS171,175 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07403 |
JZS177,UZS171,175 |
1 | ||
| 90980-07403 |
JZS177,UZS171,175 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07403 |
JZS177,UZS171,175 |
1 | ||
| 90980-07403 |
JZS177,UZS171,175 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90179-06161 | ||||
| 90989-01104 | ||||
| 91611-60814 | ||||
| 91651-60816 | ||||

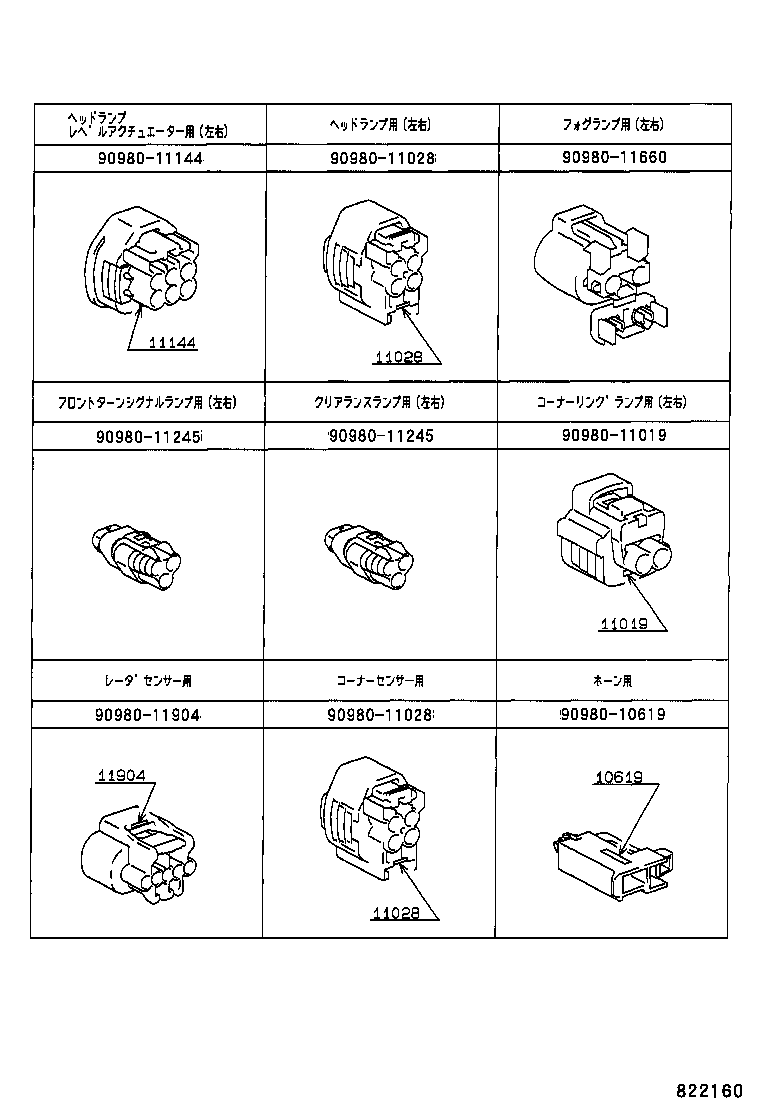

ILLUST NO. 9 OF 9(9909- )JZS177,UZS17#
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-11019 | ||||
| 90980-11028 | ||||
| 90980-11144 | ||||
| 90980-11245 | ||||
| 90980-11660 | ||||
| 90980-11904 | ||||

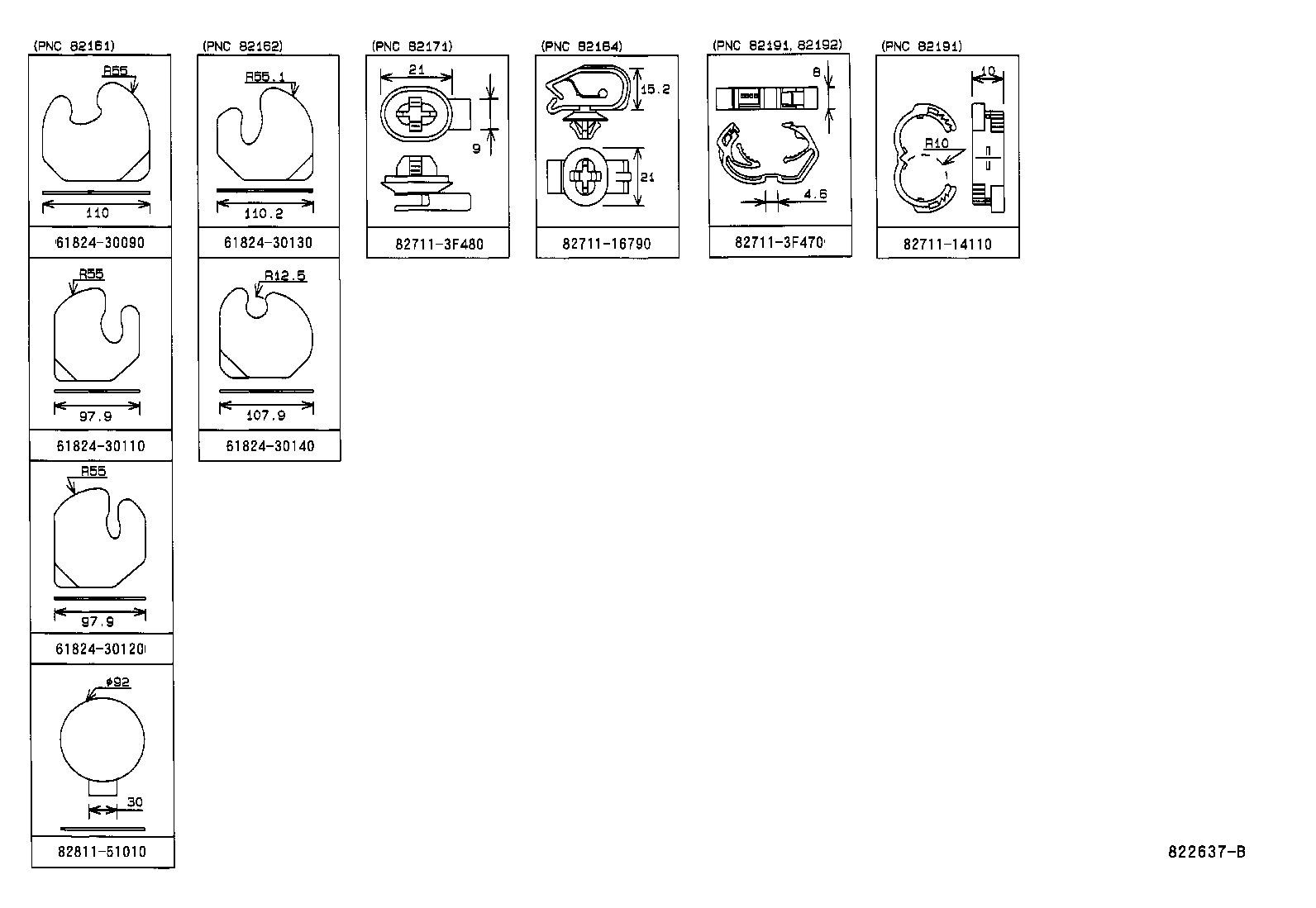

ILLUST NO. 7 OF 9(9909- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61824-30090 | ||||
| 61824-30110 | ||||
| 61824-30120 | ||||
| 61824-30130 | ||||
| 61824-30140 | ||||
| 82711-14110 | ||||
| 82711-16790 | ||||
| 82711-3F470 | ||||
| 82711-3F480 | ||||
| 82811-51010 | ||||
ILLUST NO. 3 OF 9(0108- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3F400 |
JZS177 |
1 | ||
| 82141-3F390 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82141-3F391 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82141-3K020 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ & ﾚｰﾀﾞｰ ｸﾙｰｽﾞ ｺﾝﾄﾛｰﾙ) |
1 | ||
| 82141-3F401 |
JZS177 |
1 | ||
| 82141-3F392 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82141-3K021 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ & ﾚｰﾀﾞｰ ｸﾙｰｽﾞ ｺﾝﾄﾛｰﾙ) |
1 | ||
| 82141-3K030 |
JZS177 ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-30040 |
JZS177,UZS17# |
1 | ||
| 82142-30040 |
JZS177,UZS17# |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20330 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82821-20330 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824-30220 |
JZS173..WG;JZS177,UZS17# NO.2 |
3 | ||
| 82824-22070 |
GS171,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22070 |
GS171,JKS175,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824-30220 |
JZS173..WG;JZS177,UZS17# NO.2 |
3 | ||
| 82824-22070 |
GS171,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22070 |
GS171,JKS175,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824-30220 |
JZS173..WG;JZS177,UZS17# NO.2 |
3 | ||
| 82824-22070 |
GS171,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22070 |
GS171,JKS175,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824-30220 |
JZS173..WG;JZS177,UZS17# NO.2 |
3 | ||
| 82824-22070 |
GS171,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22070 |
GS171,JKS175,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824-30220 |
JZS173..WG;JZS177,UZS17# NO.2 |
3 | ||
| 82824-22070 |
GS171,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22070 |
GS171,JKS175,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824-30220 |
JZS173..WG;JZS177,UZS17# NO.2 |
3 | ||
| 82824-22070 |
GS171,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22070 |
GS171,JKS175,JZS17#,UZS17# NO.3 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 8121 | ||||

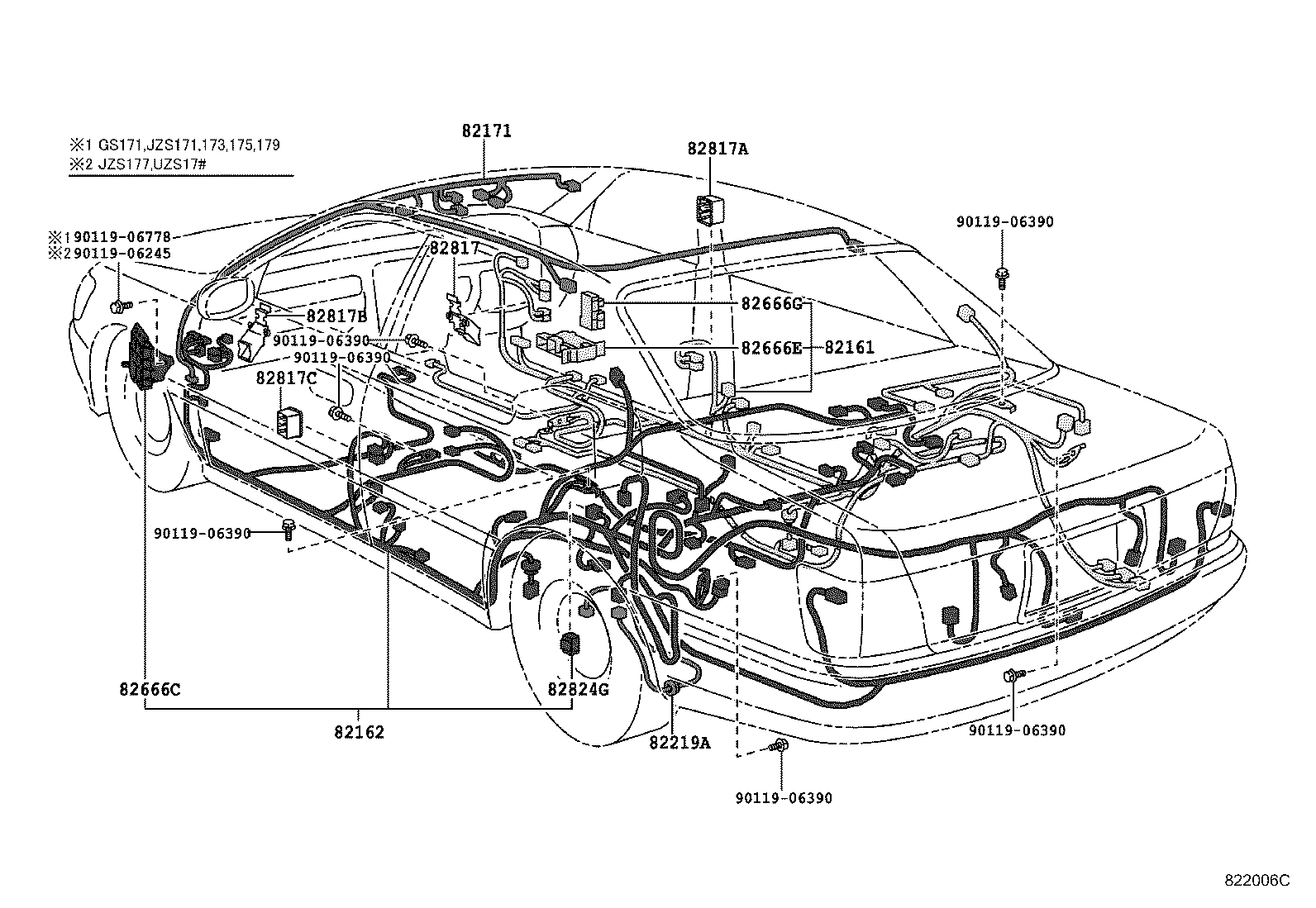

ILLUST NO. 5 OF 9(0108- )SED
ﾙ-ﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-3F880 |
JZS177,UZS175 ｱﾘ(*80) |
1 | ||
| 82161-3F870 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82161-3F860 |
JZS177,UZS175 ｱﾘ(AM/FM ｶｾﾂﾄ CDｵ-ﾄﾁｴﾝｼﾞﾔ & 7ｽﾋﾟ-ｶ & EMV & *80) |
1 | ||
| 82161-3F890 |
JZS177 |
1 | ||
| 82161-3F861 |
JZS177,UZS175 ｱﾘ(AM/FM ｶｾﾂﾄ CDｵ-ﾄﾁｴﾝｼﾞﾔ & 7ｽﾋﾟ-ｶ & EMV & *80) |
1 | ||
| 82161-3F872 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82161-3F871 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82161-3F881 |
JZS177,UZS175 ｱﾘ(*80) |
1 | ||
| 82161-3F892 |
JZS177 |
1 | ||
| 82161-3F891 |
JZS177 |
1 | ||
| 82161-3F882 |
JZS177 ｱﾘ(*80) |
1 | ||
| 82161-3F862 |
JZS177 ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & *80) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-3F432 |
JZS177..A ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82162-3F090 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & *80) |
1 | ||
| 82162-3F080 |
JZS177..C |
1 | ||
| 82162-3F070 |
JZS177..C ｱﾘ(*80) |
1 | ||
| 82162-3F110 |
JZS177,UZS175..A ｱﾘ(*80) |
1 | ||
| 82162-3F070 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 82162-3F100 |
JZS177..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ) |
1 | ||
| 82162-3F120 |
JZS177..A |
1 | ||
| 82162-3F080 |
JZS177..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ｸ-ﾙﾎﾞﾂｸｽ & 6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ) |
1 | ||
| 82162-3F410 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82162-3F430 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82162-3F420 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F440 |
JZS177..A ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F071 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 82162-3F111 |
JZS177,UZS175..A ｱﾘ(*80) |
1 | ||
| 82162-3F081 |
JZS177..C |
1 | ||
| 82162-3F081 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ｸ-ﾙﾎﾞﾂｸｽ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F071 |
JZS177..C ｱﾘ(*80) |
1 | ||
| 82162-3F101 |
JZS177..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ) |
1 | ||
| 82162-3F091 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & *80) |
1 | ||
| 82162-3F121 |
JZS177..A |
1 | ||
| 82162-3F441 |
JZS177..A ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F411 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82162-3F421 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F431 |
JZS177,UZS175..A ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82162-3F122 |
JZS177..A |
1 | ||
| 82162-3F102 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ) |
1 | ||
| 82162-3F082 |
JZS177 ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ｸ-ﾙﾎﾞﾂｸｽ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F422 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F442 |
JZS177..A ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ) |
1 | ||
| 82162-3F072 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ｸ-ﾙﾎﾞﾂｸｽ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82162-3F112 |
JZS177..A ｱﾘ(*80) |
1 | ||
| 82162-3F072 |
JZS177..C ｱﾘ(*80) |
1 | ||
| 82162-3F092 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & *80) |
1 | ||
| 82162-3F412 |
JZS177..A ｱﾘ(ﾘﾔ ｴｱｺﾝ & ｴｱﾋﾟﾕﾘﾌｱｲﾔ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ & *80) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-30860 |
JZS177,UZS17# |
1 | ||
| 82171-30870 |
JZS177,UZS17# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82171-30871 |
JZS177,UZS17# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82171-30861 |
JZS177,UZS17# |
1 | ||
| 82171-3A060 |
JZS177,UZS17# ｱﾘ(ﾍﾙﾌﾟﾈﾂﾄ ｼｽﾃﾑ) |
1 | ||
| 82171-3A070 |
JZS177,UZS17# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾒ-ﾃﾞ- ｼｽﾃﾑ) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-30700 |
JZS177,UZS17# |
1 | ||
| 82666-30700 |
JZS177,UZS17# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-30680 |
JZS177,UZS17# |
1 | ||
| 82666-30680 |
JZS177,UZS17# |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-30720 |
GS171,JZS17#,UZS17# |
1 | ||
| 82666-30720 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-3K580 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82817-3K580 |
GS171,JZS17#,UZS17# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-51020 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82817-51020 |
GS171,JZS17#,UZS17# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-3K580 |
GS171,JZS17#,UZS17# |
1 | ||
| 82817-3K580 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-51020 |
GS171,JZS17#,UZS17# |
1 | ||
| 82817-51020 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17#..SED |
1 | ||
| Common parts | ||||
| 82815-30030 | ||||
| 82815-30040 | ||||
| 90119-06245 | ||||
| 90119-06390 | ||||
| 90119-06778 | ||||
| 90119-08103 | ||||
| 90178-06012 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

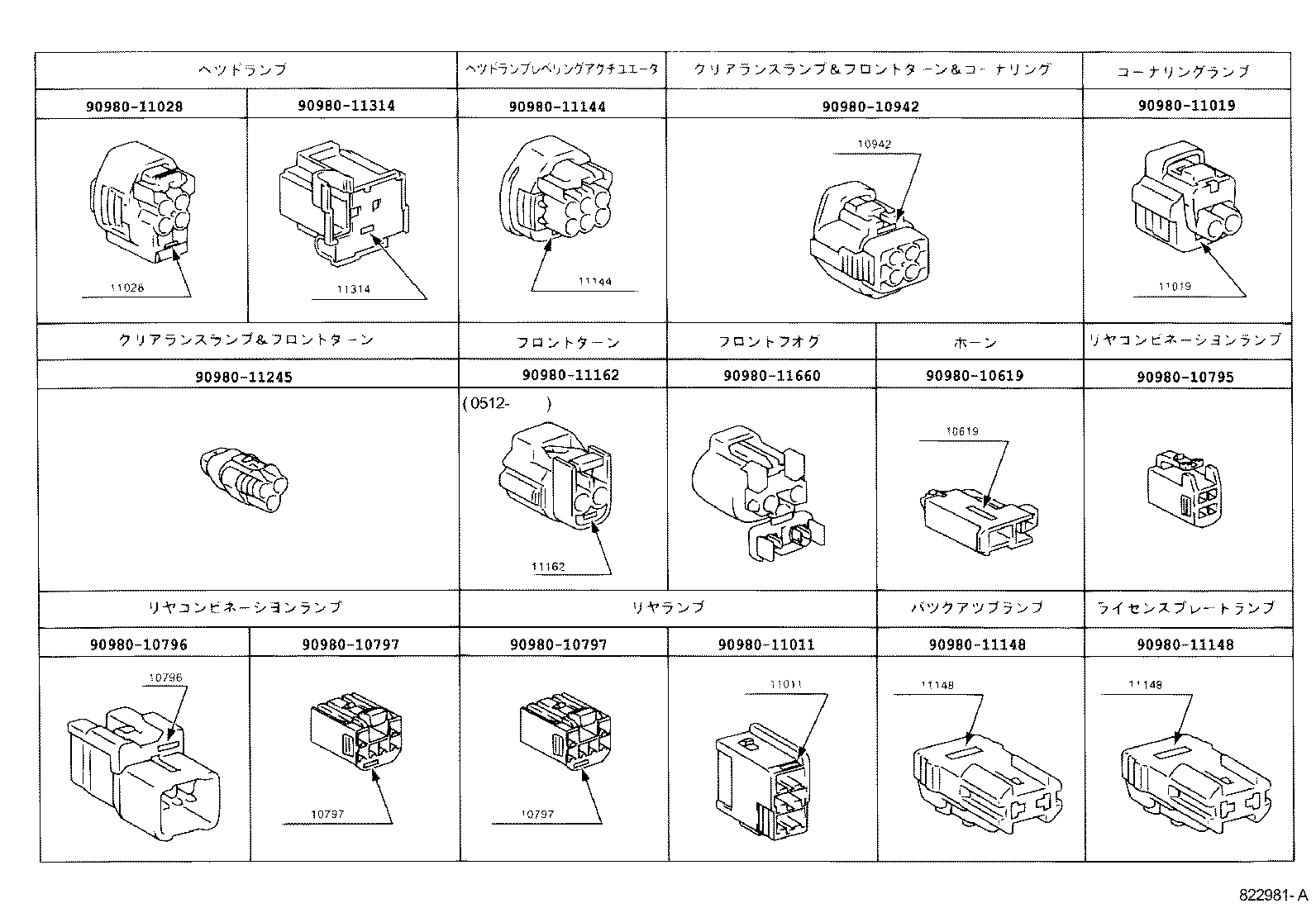

ILLUST NO. 9 OF 9(9909- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10796 | ||||
| 90980-10797 | ||||
| 90980-10942 | ||||
| 90980-11011 | ||||
| 90980-11019 | ||||
| 90980-11028 | ||||
| 90980-11144 | ||||
| 90980-11148 | ||||
| 90980-11162 | ||||
| 90980-11245 | ||||
| 90980-11314 | ||||
| 90980-11660 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
