JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS17#

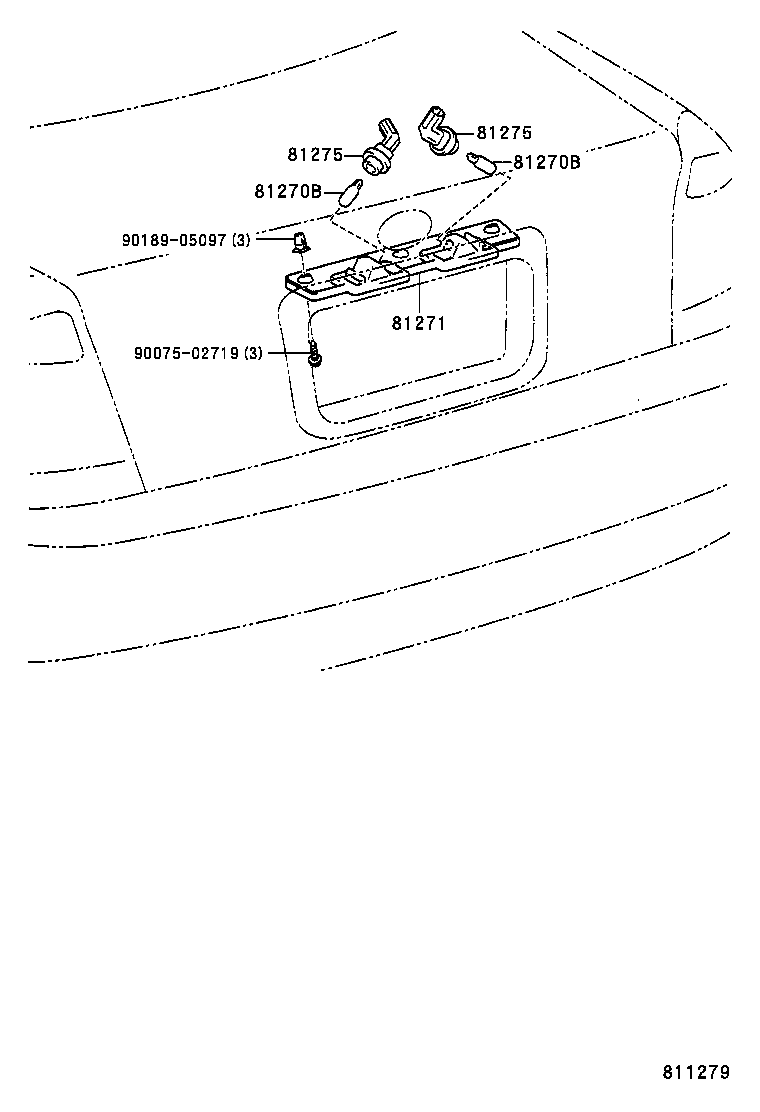

Click highlighted areas on diagram

diagram 81270B 81270B 81271 81275 81275 9007502719 9018905097
Part # Description Qty Price
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

GS171,JZS17#,UZS17#

12V 5W

 2
99132-12050

GS171,JKS175,JZS17#,UZS17#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

GS171,JZS17#,UZS17#

12V 5W

 2
99132-12050

GS171,JKS175,JZS17#,UZS17#

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-32240

JZS177,UZS17#

 1
81271-32240

JZS177,UZS17#

 1
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99005

JZS177,UZS17#

 2
90075-99005

JZS177,UZS17#

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99005

JZS177,UZS17#

 2
90075-99005

JZS177,UZS17#

 2
Common parts
90075-02719
90189-05097
