Toyota Crown/crown majesta JZS177 REAR COMBINATION LAMP

JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 2JZFSE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9909-0108)JZS177,UZS17#

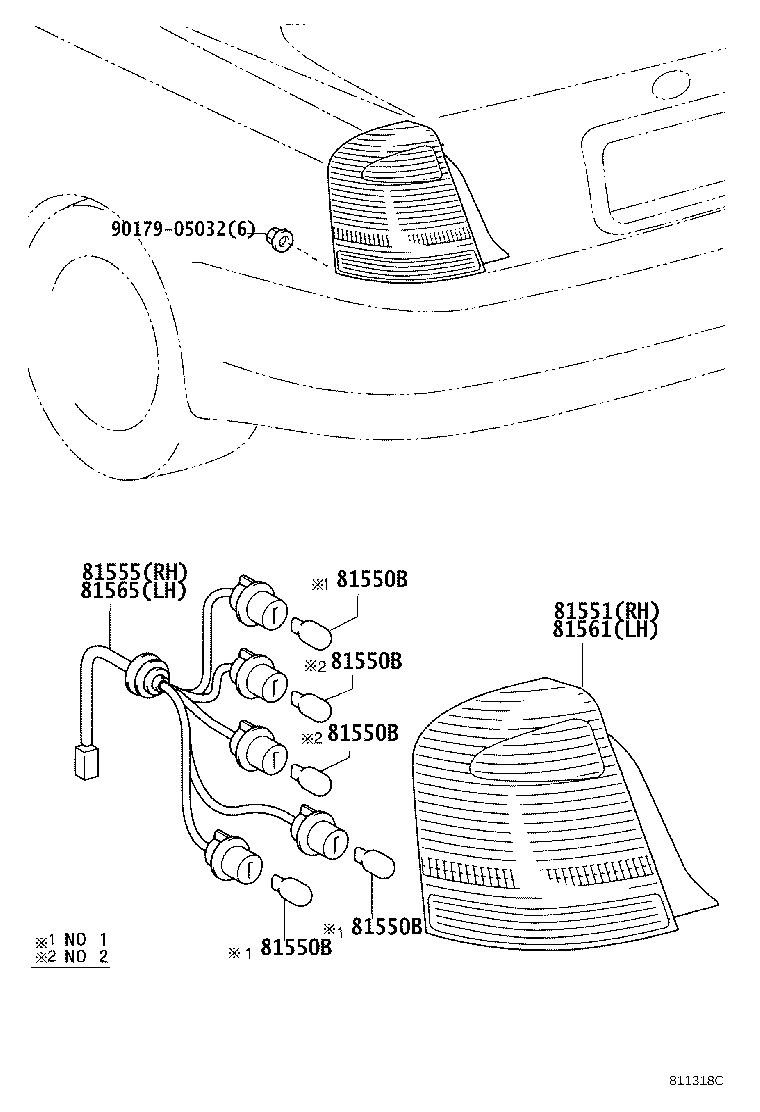

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1	09/1999 - 08/2001	6
90981-11042	JZS177,UZS17# 12V 21W,NO.1	09/1999 - 08/2001	4
90981-11047	JZS177,UZS17# 12V 21W	09/1999 - 08/2001	4
90981-11043	GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA	09/1999 - 08/2001	2
90981-11047	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	6
90981-11059	JZS177,UZS17# 12V 16W,NO.2	08/2001 - 06/2004	2
90981-11059	JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	08/2001 - 06/2004	4
90981-15011	JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3	08/2001 - 06/2004	2
90981-11048	JZS177,UZS17# 12V 21/5W,NO.1	08/2001 - 06/2004	4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1	09/1999 - 08/2001	6
90981-11042	JZS177,UZS17# 12V 21W,NO.1	09/1999 - 08/2001	4
90981-11047	JZS177,UZS17# 12V 21W	09/1999 - 08/2001	4
90981-11043	GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA	09/1999 - 08/2001	2
90981-11047	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	6
90981-11059	JZS177,UZS17# 12V 16W,NO.2	08/2001 - 06/2004	2
90981-11059	JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	08/2001 - 06/2004	4
90981-15011	JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3	08/2001 - 06/2004	2
90981-11048	JZS177,UZS17# 12V 21/5W,NO.1	08/2001 - 06/2004	4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1	09/1999 - 08/2001	6
90981-11042	JZS177,UZS17# 12V 21W,NO.1	09/1999 - 08/2001	4
90981-11047	JZS177,UZS17# 12V 21W	09/1999 - 08/2001	4
90981-11043	GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA	09/1999 - 08/2001	2
90981-11047	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	6
90981-11059	JZS177,UZS17# 12V 16W,NO.2	08/2001 - 06/2004	2
90981-11059	JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	08/2001 - 06/2004	4
90981-15011	JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3	08/2001 - 06/2004	2
90981-11048	JZS177,UZS17# 12V 21/5W,NO.1	08/2001 - 06/2004	4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1	09/1999 - 08/2001	6
90981-11042	JZS177,UZS17# 12V 21W,NO.1	09/1999 - 08/2001	4
90981-11047	JZS177,UZS17# 12V 21W	09/1999 - 08/2001	4
90981-11043	GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA	09/1999 - 08/2001	2
90981-11047	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	6
90981-11059	JZS177,UZS17# 12V 16W,NO.2	08/2001 - 06/2004	2
90981-11059	JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	08/2001 - 06/2004	4
90981-15011	JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3	08/2001 - 06/2004	2
90981-11048	JZS177,UZS17# 12V 21/5W,NO.1	08/2001 - 06/2004	4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1	09/1999 - 08/2001	6
90981-11042	JZS177,UZS17# 12V 21W,NO.1	09/1999 - 08/2001	4
90981-11047	JZS177,UZS17# 12V 21W	09/1999 - 08/2001	4
90981-11043	GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA	09/1999 - 08/2001	2
90981-11047	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	6
90981-11059	JZS177,UZS17# 12V 16W,NO.2	08/2001 - 06/2004	2
90981-11059	JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	08/2001 - 06/2004	4
90981-15011	JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3	08/2001 - 06/2004	2
90981-11048	JZS177,UZS17# 12V 21/5W,NO.1	08/2001 - 06/2004	4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-30800	JZS177,UZS17#	09/1999 - 08/2001	1
81551-3A050	JZS177,UZS17#	08/2001 - 06/2004	1
81551-30840	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	1
81551-3A070	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 06/2004	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-3A070	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 06/2004	1
81555-30800	JZS177,UZS17#	09/1999 - 08/2001	1
81555-30840	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	1
81555-3A050	JZS177,UZS17#	08/2001 - 06/2004	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-30890	JZS177,UZS17#	08/2001 - 06/2004	1
81561-30810	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	1
81561-30770	JZS177,UZS17#	09/1999 - 08/2001	1
81561-3A010	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 06/2004	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-30800	JZS177,UZS17#	09/1999 - 08/2001	1
81555-30840	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	1
81555-3A050	JZS177,UZS17#	08/2001 - 06/2004	1
81555-3A070	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 06/2004	1
Common parts
90179-05032

(0108- )JZS177,UZS17#

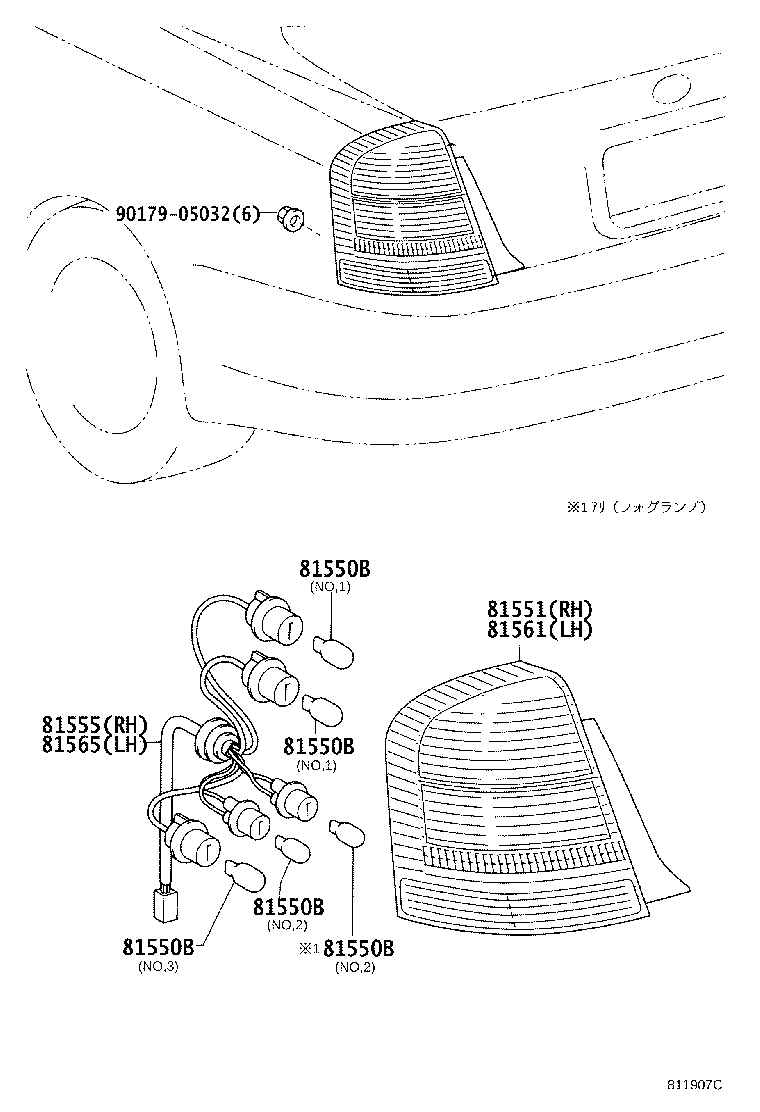

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1	09/1999 - 08/2001	6
90981-11042	JZS177,UZS17# 12V 21W,NO.1	09/1999 - 08/2001	4
90981-11047	JZS177,UZS17# 12V 21W	09/1999 - 08/2001	4
90981-11043	GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA	09/1999 - 08/2001	2
90981-11047	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	6
90981-11059	JZS177,UZS17# 12V 16W,NO.2	08/2001 - 06/2004	2
90981-11059	JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	08/2001 - 06/2004	4
90981-15011	JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3	08/2001 - 06/2004	2
90981-11048	JZS177,UZS17# 12V 21/5W,NO.1	08/2001 - 06/2004	4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1	09/1999 - 08/2001	6
90981-11042	JZS177,UZS17# 12V 21W,NO.1	09/1999 - 08/2001	4
90981-11047	JZS177,UZS17# 12V 21W	09/1999 - 08/2001	4
90981-11043	GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA	09/1999 - 08/2001	2
90981-11047	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	6
90981-11059	JZS177,UZS17# 12V 16W,NO.2	08/2001 - 06/2004	2
90981-11059	JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	08/2001 - 06/2004	4
90981-15011	JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3	08/2001 - 06/2004	2
90981-11048	JZS177,UZS17# 12V 21/5W,NO.1	08/2001 - 06/2004	4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1	09/1999 - 08/2001	6
90981-11042	JZS177,UZS17# 12V 21W,NO.1	09/1999 - 08/2001	4
90981-11047	JZS177,UZS17# 12V 21W	09/1999 - 08/2001	4
90981-11043	GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA	09/1999 - 08/2001	2
90981-11047	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	6
90981-11059	JZS177,UZS17# 12V 16W,NO.2	08/2001 - 06/2004	2
90981-11059	JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	08/2001 - 06/2004	4
90981-15011	JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3	08/2001 - 06/2004	2
90981-11048	JZS177,UZS17# 12V 21/5W,NO.1	08/2001 - 06/2004	4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1	09/1999 - 08/2001	6
90981-11042	JZS177,UZS17# 12V 21W,NO.1	09/1999 - 08/2001	4
90981-11047	JZS177,UZS17# 12V 21W	09/1999 - 08/2001	4
90981-11043	GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA	09/1999 - 08/2001	2
90981-11047	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	6
90981-11059	JZS177,UZS17# 12V 16W,NO.2	08/2001 - 06/2004	2
90981-11059	JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	08/2001 - 06/2004	4
90981-15011	JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3	08/2001 - 06/2004	2
90981-11048	JZS177,UZS17# 12V 21/5W,NO.1	08/2001 - 06/2004	4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1	09/1999 - 08/2001	6
90981-11042	JZS177,UZS17# 12V 21W,NO.1	09/1999 - 08/2001	4
90981-11047	JZS177,UZS17# 12V 21W	09/1999 - 08/2001	4
90981-11043	GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA	09/1999 - 08/2001	2
90981-11047	JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	6
90981-11059	JZS177,UZS17# 12V 16W,NO.2	08/2001 - 06/2004	2
90981-11059	JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	08/2001 - 06/2004	4
90981-15011	JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3	08/2001 - 06/2004	2
90981-11048	JZS177,UZS17# 12V 21/5W,NO.1	08/2001 - 06/2004	4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-30800	JZS177,UZS17#	09/1999 - 08/2001	1
81551-3A050	JZS177,UZS17#	08/2001 - 06/2004	1
81551-30840	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	1
81551-3A070	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 06/2004	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-3A070	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 06/2004	1
81555-30800	JZS177,UZS17#	09/1999 - 08/2001	1
81555-30840	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	1
81555-3A050	JZS177,UZS17#	08/2001 - 06/2004	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-30890	JZS177,UZS17#	08/2001 - 06/2004	1
81561-30810	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	1
81561-30770	JZS177,UZS17#	09/1999 - 08/2001	1
81561-3A010	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 06/2004	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-30800	JZS177,UZS17#	09/1999 - 08/2001	1
81555-30840	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/1999 - 08/2001	1
81555-3A050	JZS177,UZS17#	08/2001 - 06/2004	1
81555-3A070	JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 06/2004	1
Common parts
90179-05032
