JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS17#

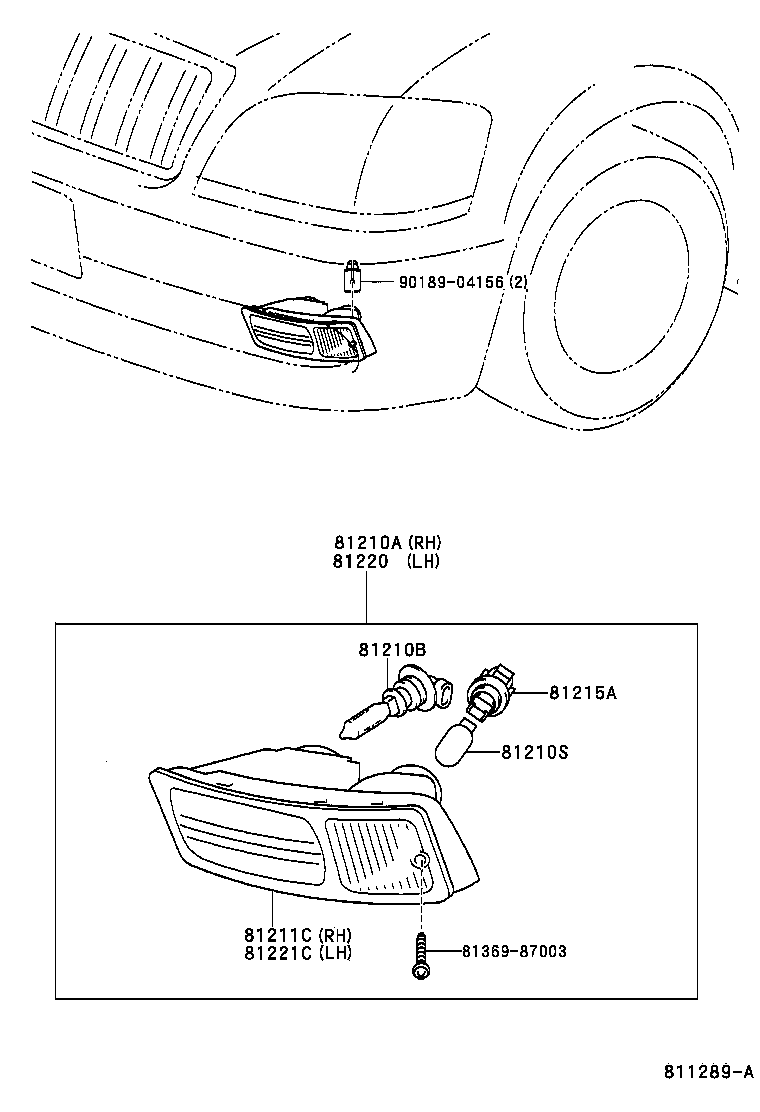

Click highlighted areas on diagram

diagram 81210A 81210B 81210S 81211C 81215A 81220 81221C 8136987003 9018904156
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-30270

JZS177,UZS17#

 1
81210-30260

JZS177,UZS17#

 1
81210B - BULB, FOG LAMP
90981-13047

GS171,JKS175,JZS17#,UZS17#

12V 55W,ﾊﾛｹﾞﾝ

 2
90080-81040

GS171,JZS17#,UZS17#

12V 51W

 2
81210S - BULB, CORNERING LAMP
90981-13043

JZS177,UZS17#

 2
90981-13043

JZS177,UZS17#

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-30260

JZS177,UZS17#

 1
81211-30270

JZS177,UZS17#

 1
81215A - SOCKET & WIRE, FOG LAMP
90075-99128

JZS177,UZS17#

 2
90075-99128

JZS177,UZS17#

 2
81220 - LAMP ASSY, FOG, LH
81220-30240

JZS177,UZS17#

 1
81220-30170

JZS177,UZS17#

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-30240

JZS177,UZS17#

 1
81221-30170

JZS177,UZS17#

 1
Common parts
81369-87003
90189-04156
