JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS17#

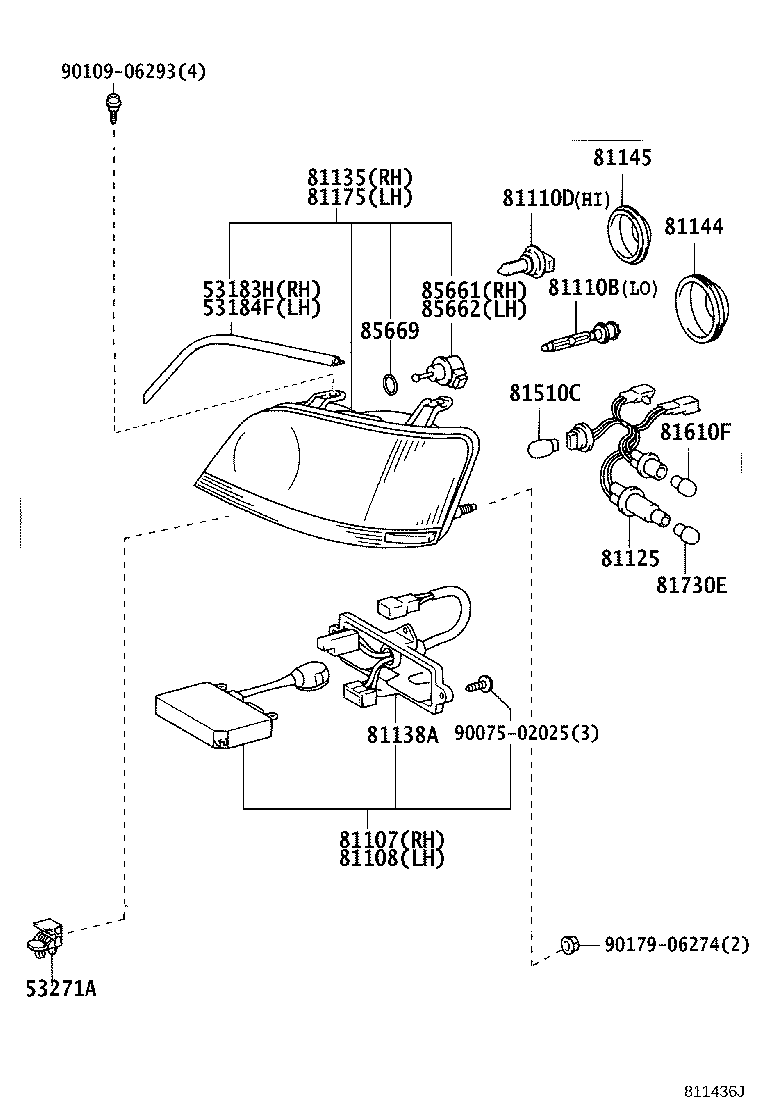

Click highlighted areas on diagram

diagram 53183H 53184F 53271A 81107 81108 81110B 81110D 81125 81135 81138A 81144 81145 81175 81510C 81610F 81730E 85661 85662 85669 9007502025 9010906293 9017906274
Part # Description Qty Price
53183H - SEAL, HEADLAMP COVER, RH
53183-30120

JZS177,UZS17#

 1
53183-30120

JZS177,UZS17#

 1
53184F - SEAL, HEADLAMP COVER, LH
53184-30090

JZS177,UZS17#

 1
53184-30090

JZS177,UZS17#

 1
53271A - BRACKET, HEADLAMP MOUNTING
53271-12060

JZS177,UZS17#

 2
53271-12060

JZS177,UZS17#

 2
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-3A540

JZS177,UZS17#

 1
81107-3A540

JZS177,UZS17#

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-3A540

JZS177,UZS17#

 1
81107-3A540

JZS177,UZS17#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-20001

JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C

85V 35W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13063

JZS171,173;GS171,JKS175,JZS175,177,179,UZS17#..A,ATHE,ATHG,C,ROY,ROYG

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13063

JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C

12V 55W,ﾊﾛｹﾞﾝ

 2
81125 - CORD, HEADLAMP
81125-3A540

JZS177,UZS17#

 2
81125-3A540

JZS177,UZS17#

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-3A540

JZS177,UZS17#

 1
81130-3A720

JZS177,UZS17#

 1
81138A - SOCKET & WIRE, HEADLAMP
81165-3A660

JZS177,UZS17#

 2
81165-3A660

JZS177,UZS17#

 2
81144 - COVER, HEADLAMP, NO.1
81135-3A150

JZS177,UZS17#

 2
81135-3A150

JZS177,UZS17#

 2
81145 - COVER, HEADLAMP, NO.2
90075-66004

JZS177,UZS17#

 2
90075-66004

JZS177,UZS17#

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-3A660

JZS177,UZS17#

 1
81170-3A840

JZS177,UZS17#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043

JZS177,UZS17#

12V 21W

 2
90981-13043

JZS177,UZS17#

12V 21W

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

GS171,JKS175,JZS171,173,177,UZS17#..A,C,ROY,ROYEX

12V 5W

 2
99132-12050

JZS177,UZS17#

12V 5W

 2
81730E - BULB (FOR SIDE TURN SIGNAL)
99132-12050

JZS177,UZS17#

 2
99132-12050

JZS177,UZS17#

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-33010

JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C

 1
85661-50040

JZS171,173;GS171,JKS175,JZS175,177,179,UZS17#..A,ATHE,ATHG,C,ROY,ROYG

 1
85661-50040

JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-50040

JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C

 1
85661-50040

JZS171,173;GS171,JKS175,JZS175,177,179,UZS17#..A,ATHE,ATHG,C,ROY,ROYG

 1
85661-33010

JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C

 1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

JZS171,173;GS171,JKS175,JZS175,177,179,UZS17#..A,ATHE,ATHG,C,ROY,ROYG

 2
90075-99120

JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C

 2
Common parts
90075-02025
90109-06293
90179-06274
