JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta
(9909-0108)JZS177,UZS17# ; (0108- )UZS17#

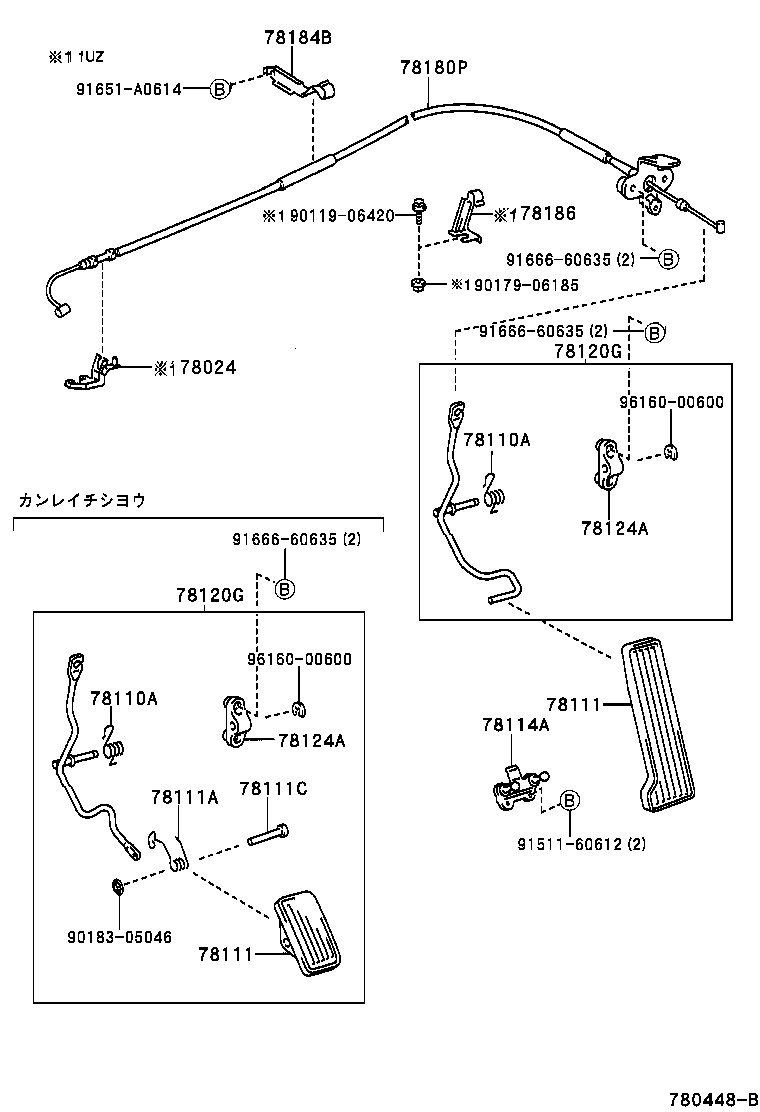

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03204 |
GS171,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78214-50010 |
JZS179;GS171,JZS171,175,177,UZS17#..D4,HTWC,TWT |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03204 |
GS171,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78214-50010 |
JZS179;GS171,JZS171,175,177,UZS17#..D4,HTWC,TWT |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-22020 |
GS171,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 78111-22020 |
GS171,JKS175,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JZS17#,UZS17# |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-22020 |
GS171,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 78111-22020 |
GS171,JKS175,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JZS17#,UZS17# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90905-08002 |
GS171,JKS175,JZS17# |
1 | ||
| 90905-08001 |
JZS177,UZS17# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90241-05022 |
GS171,JZS17#,UZS17# |
1 | ||
| 90241-05022 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 78114A - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-30080 |
JZS177,UZS17# |
1 | ||
| 78114-30080 |
JZS177,UZS17# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-3A190 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78010-30100 |
JZS177 |
1 | ||
| 78010-30080 |
JZS177 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-3A180 |
JZS177,UZS17# |
1 | ||
| 78010-30070 |
JZS177 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-3A190 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78010-30100 |
JZS177 |
1 | ||
| 78010-30080 |
JZS177 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-3A180 |
JZS177,UZS17# |
1 | ||
| 78010-30070 |
JZS177 |
1 | ||
| 78124A - BRACKET, ACCELERATOR PEDAL ROD | ||||
| 78124-50020 |
GS171,JZS17#,UZS17# |
1 | ||
| 78124A - BRACKET, ACCELERATOR PEDAL ROD | ||||
| 78124-50020 |
GS171,JZS17#,UZS17# |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-3A710 |
JZS177 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-30250 |
JZS177,UZS17# |
1 | ||
| Common parts | ||||
| 90119-06420 | ||||
| 90179-06185 | ||||
| 90183-05046 | ||||
| 91511-60612 | ||||
| 91651-A0614 | ||||
| 91666-60635 | ||||
| 96160-00600 | ||||
(0108- )D4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-22020 |
GS171,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 78111-22020 |
GS171,JKS175,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JZS17#,UZS17# |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-22020 |
GS171,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 78111-22020 |
GS171,JKS175,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JZS17#,UZS17# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90905-08002 |
GS171,JKS175,JZS17# |
1 | ||
| 90905-08001 |
JZS177,UZS17# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90241-05022 |
GS171,JZS17#,UZS17# |
1 | ||
| 90241-05022 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 78114A - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-30080 |
JZS177,UZS17# |
1 | ||
| 78114-30080 |
JZS177,UZS17# |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06008 |
JKS175,JZS171,175,177..D4 |
2 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06008 |
JKS175,JZS171,175,177..D4 |
2 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06008 |
JKS175,JZS171,175,177..D4 |
2 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06008 |
JKS175,JZS171,175,177..D4 |
2 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-3A190 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78010-30100 |
JZS177 |
1 | ||
| 78010-30080 |
JZS177 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-3A180 |
JZS177,UZS17# |
1 | ||
| 78010-30070 |
JZS177 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-3A190 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78010-30100 |
JZS177 |
1 | ||
| 78010-30080 |
JZS177 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-3A180 |
JZS177,UZS17# |
1 | ||
| 78010-30070 |
JZS177 |
1 | ||
| 78125A - BRACKET, ACCELERATOR PEDAL ROD, NO.2 | ||||
| 78125-30060 |
JKS175,JZS171,175,177..D4 |
1 | ||
| Common parts | ||||
| 90178-06008 | ||||
| 90179-06274 | ||||
| 90183-05046 | ||||
| 91511-60612 | ||||
| 91651-G0635 | ||||
| 91666-60635 | ||||
| 96160-00600 | ||||
