JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta

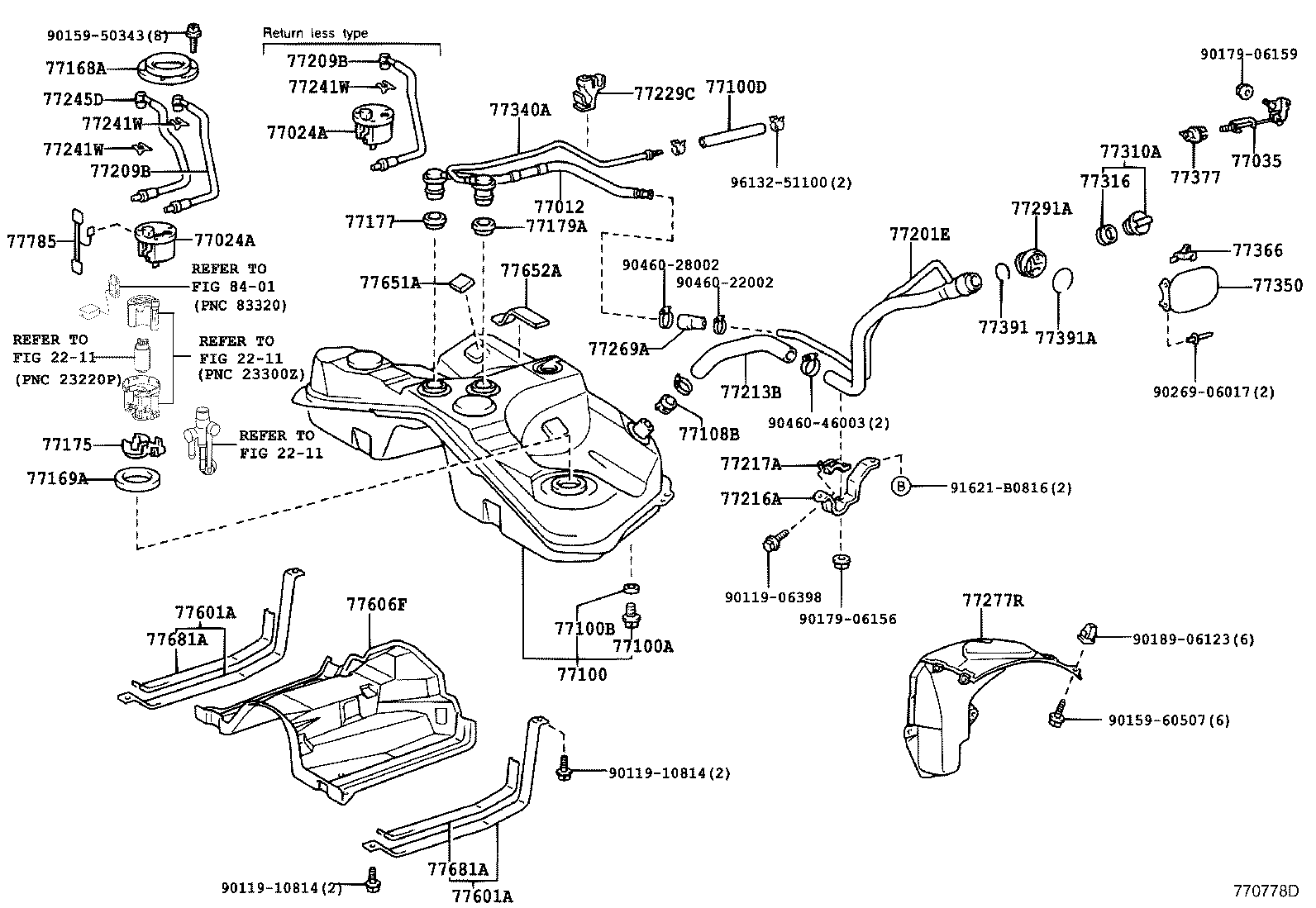

ILLUST NO. 1 OF 2(9909- )JZS177,UZS17#
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-30101 |
JZS177,UZS17# |
1 | ||
| 77012-30101 |
JZS177,UZS17# |
1 | ||
| 77012-30100 |
JZS177,UZS17# |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-22010 |
JZS177 |
1 | ||
| 77024-30050 |
JZS175,177 |
1 | ||
| 77024-22010 |
JZS175,177 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-22010 |
JZS177 |
1 | ||
| 77024-30050 |
JZS175,177 |
1 | ||
| 77024-22010 |
JZS175,177 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77030-30130 |
JZS177,UZS17# |
1 | ||
| 77030-30130 |
JZS177,UZS17# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30540 |
JZS177,UZS17# |
1 | ||
| 77001-30540 |
JZS177,UZS17# |
1 | ||
| 77001-30541 |
JZS177,UZS17# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
GS171,JZS17#,UZS17# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GS171,JZS17#,UZS17# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95333-06020 |
JZS177,UZS17# *H,L=130 |
1 | ||
| 95333-06020 |
JZS177,UZS17# *H,L=150 |
1 | ||
| 95333-06020 |
JZS177,UZS17# *H,L=150 |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-12020 |
JZS177,UZS17# |
1 | ||
| 77108-12020 |
JZS177,UZS17# |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33050 |
GS171,JZS17#,UZS17# |
1 | ||
| 77168-33050 |
JZS177,UZS17# |
1 | ||
| 77168-12240 |
GS171,JZS17#,UZS17# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
JZS177,UZS17# |
1 | ||
| 77169-33020 |
GS171,JZS17#,UZS17# |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-30030 |
JZS179;JZS171,175,177,UZS17#..D4,HTWC,TWT |
1 | ||
| 77175-30040 |
JZS175,177 |
1 | ||
| 77175-30030 |
JZS177,UZS17# |
1 | ||
| 77177 - GASKET, CHECK VALVE | ||||
| 77177-33010 |
JZS177,UZS17# |
1 | ||
| 77177-33010 |
JZS177,UZS17# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
JZS177,UZS17# |
1 | ||
| 77179-33010 |
GS171,JZS17#,UZS17# |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-30360 |
JZS177,UZS17# |
1 | ||
| 77201-30360 |
JZS177,UZS17# |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-30070 |
JZS177,UZS17# |
1 | ||
| 77209-30070 |
JZS177,UZS17# |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-30070 |
JZS177,UZS17# |
1 | ||
| 77209-30070 |
JZS177,UZS17# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-30180 |
JZS177,UZS17# |
1 | ||
| 77213-30180 |
JZS177,UZS17# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-30030 |
JZS177,UZS17# |
1 | ||
| 77216-30030 |
JZS177,UZS17# |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-30100 |
JZS177,UZS17# |
1 | ||
| 77217-30100 |
JZS177,UZS17# |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-30030 |
JZS177,UZS17# |
1 | ||
| 77229-30030 |
JZS177,UZS17# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
JZS171,173,175,177 |
2 | ||
| 77241-33011 |
JZS177 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
JZS171,173,175,177 |
2 | ||
| 77241-33011 |
JZS177 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
JZS171,173,175,177 |
2 | ||
| 77241-33011 |
JZS177 |
2 | ||
| 77245D - TUBE, FUEL TANK RETURN VENT | ||||
| 77245-51010 |
JZS177 |
1 | ||
| 77245-51010 |
JZS177 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-30060 |
JZS177,UZS17# |
1 | ||
| 77269-30060 |
JZS177,UZS17# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-30010 |
JZS177,UZS17# |
1 | ||
| 77277-30010 |
JZS177,UZS17# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-30080 |
JZS177,UZS17# |
1 | ||
| 77291-30080 |
JZS177,UZS17# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
JZS177,UZS17# |
1 | ||
| 77310-48010 |
GS171,JZS17#,UZS17# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
JZS177,UZS17# |
1 | ||
| 77316-16010 |
GS171,JZS17#,UZS17# |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-30021 |
JZS177,UZS17# |
1 | ||
| 77340-30021 |
JZS177,UZS17# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-30350 |
JZS177,UZS17# |
1 | ||
| 77350-30350 |
JZS177,UZS17# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-48010 |
JZS177,UZS17# |
1 | ||
| 77360-30080 |
JZS177,UZS17# |
1 | ||
| 77360-30080 |
JZS177,UZS17# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 77377-12050 |
GS171,JKS175,JZS17#,UZS17#..SED |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GS171,JZS17#,UZS17# |
1 | ||
| 77391-12020 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-30030 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 77391-30030 |
GS171,JKS175,JZS17#,UZS17#..SED |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30160 |
JZS177,UZS17# |
2 | ||
| 77601-30160 |
JZS177,UZS17# |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30160 |
JZS177,UZS17# |
2 | ||
| 77601-30160 |
JZS177,UZS17# |
2 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-30160 |
JZS177,UZS17# |
1 | ||
| 77606-30160 |
JZS177,UZS17# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
JZS177,UZS17# |
6 | ||
| 77651-20090 |
JZS177,UZS17# |
6 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-30070 |
JZS177,UZS17# |
1 | ||
| 77652-30070 |
JZS177,UZS17# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
GS171,JZS17#,UZS17# |
2 | ||
| 77681-32060 |
JZS177,UZS17# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
GS171,JZS17#,UZS17# |
2 | ||
| 77681-32060 |
JZS177,UZS17# |
2 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
JZS177,UZS17# |
1 | ||
| 77785-52020 |
GS171,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90119-10814 | ||||
| 90159-50343 | ||||
| 90159-60507 | ||||
| 90179-06156 | ||||
| 90179-06159 | ||||
| 90189-06123 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-28002 | ||||
| 90460-46003 | ||||
| 91621-B0816 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||

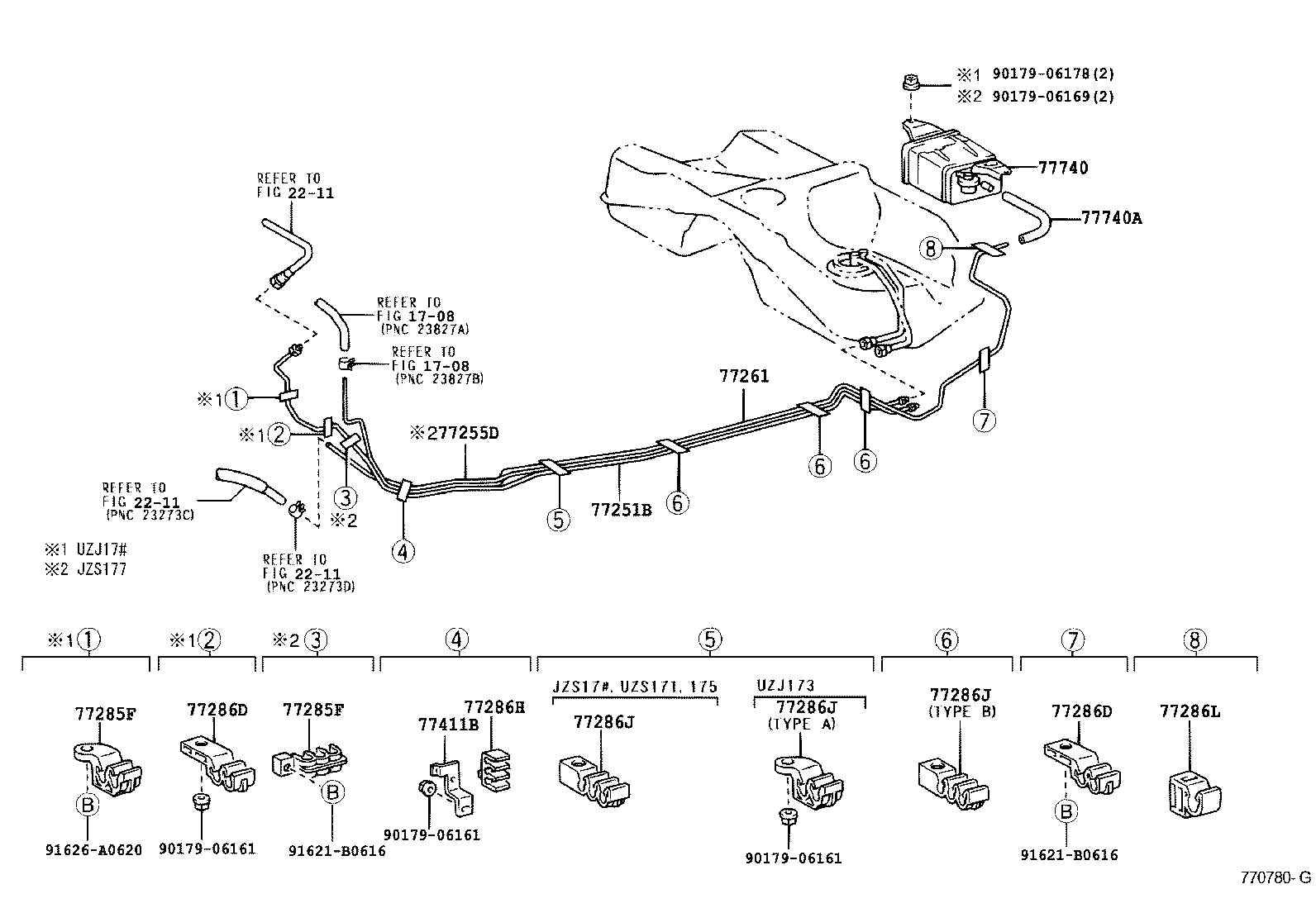

ILLUST NO. 2 OF 2(9909- )JZS177,UZS17#
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-30340 |
JZS177 |
1 | ||
| 77251-30340 |
JZS177 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-30140 |
JZS177 |
1 | ||
| 77255-30140 |
JZS177 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-30270 |
JZS177 |
1 | ||
| 77261-30270 |
JZS177 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77298-30140 |
JZS177 |
1 | ||
| 77298-30140 |
JZS177 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77298-30140 |
JZS177 |
1 | ||
| 77298-30140 |
JZS177 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77413-30040 |
JZS177 |
1 | ||
| 77413-30040 |
JZS177 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77413-30040 |
JZS177 |
1 | ||
| 77413-30040 |
JZS177 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-30100 |
JZS177,UZS17# |
1 | ||
| 77286-30100 |
JZS177,UZS17# |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-30050 |
JZS177,UZS171,175 |
4 | ||
| 77289-30050 |
JZS177,UZS171,175 |
4 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-30050 |
JZS177,UZS171,175 |
4 | ||
| 77289-30050 |
JZS177,UZS171,175 |
4 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-30050 |
JZS177,UZS171,175 |
4 | ||
| 77289-30050 |
JZS177,UZS171,175 |
4 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77285-53010 |
JZS177,UZS17# |
1 | ||
| 77285-53010 |
JZS177,UZS17# |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-30020 |
JZS177,UZS17# |
1 | ||
| 77411-30020 |
JZS177,UZS17# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-30300 |
JZS177,UZS17# |
1 | ||
| 77740-30280 |
JZS177 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23829-46140 |
JZS177,UZS17# |
1 | ||
| 23829-46140 |
JZS177,UZS17# |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90179-06169 | ||||
| 90179-06178 | ||||
| 91621-B0616 | ||||
| 91626-A0620 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
