JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )

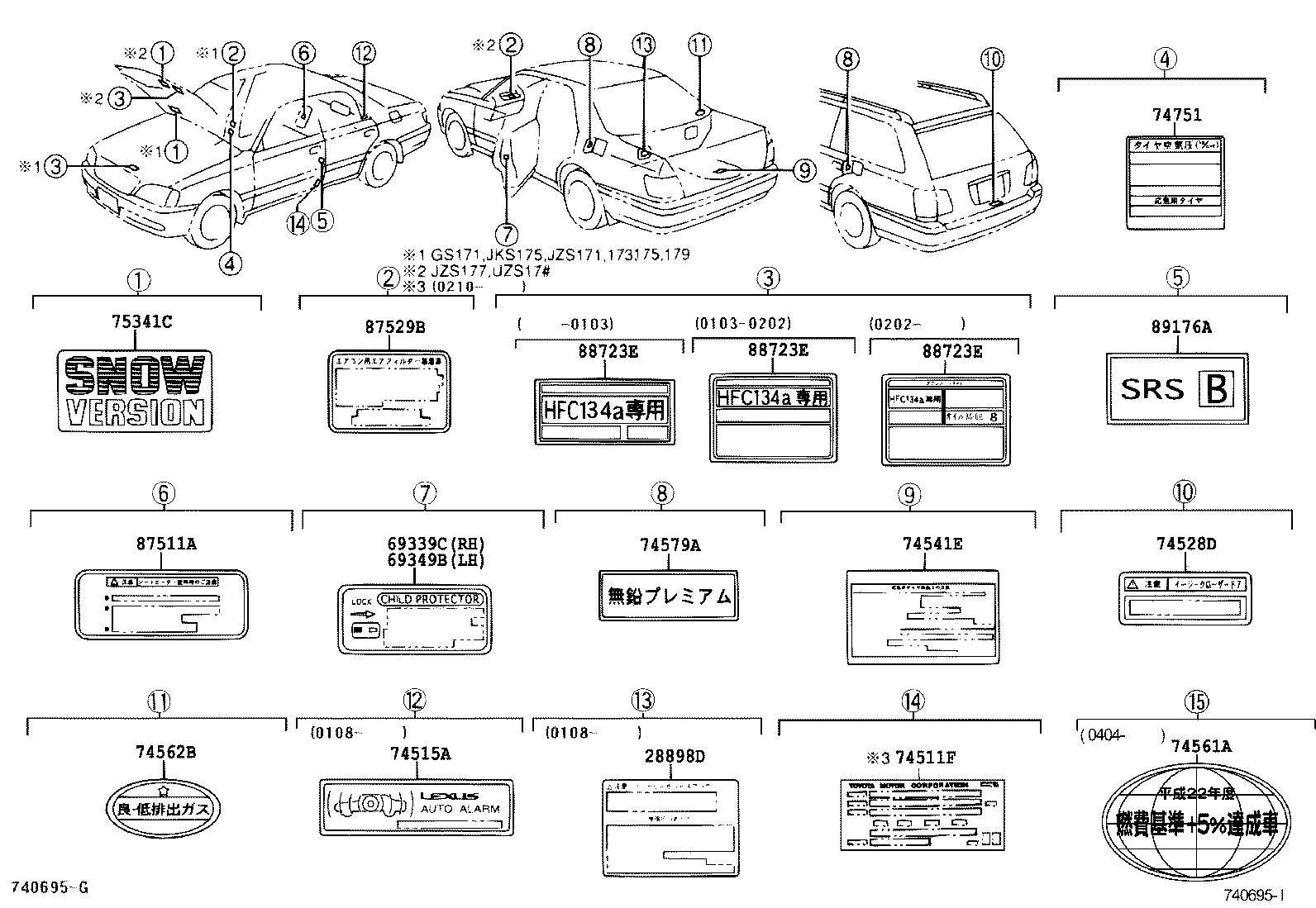

Click highlighted areas on diagram

diagram 28898D 69339C 69349B 74511F 74515A 74528D 74541E 74561A 74562B 74579A 74751 75341C 87511A 87529B 88723E 88723E 88723E 89176A
Part # Description Qty Price
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-51010

GS171,JZS17#,UZS17#

 1
69339-51010

JZS177,UZS17#

 1
69349B - LABEL, CHILD PROTECTOR INFORMATION, LH
69349-51010

GS171,JKS175,JZS17#,UZS17#

 1
69349-51010

GS171,JZS17#,UZS17#

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

JZS177,UZS17#

*111

 1
74515A - PLATE, THEFT WARNING
74515-50040

JZS177,UZS17#

 2
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-30010

JZS177,UZS171,175

 1
42668-30010

JZS177,UZS171,175

 1
42668-40010

JZS17#,UZS171,175..D4,HTWC,TWC

 1
42668-30010

GS171,JZS17#,UZS171,175..D4,HTWC,TWC

 1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
74561-52020

JZS177

 1
74562B - LABEL, EMISSION INFORMATION
74562-40040

GS171,JZS17#,UZS171,175..D4,HTWC,TWC

 1
74562-40040

GS171,JZS17#,UZS171,175..D4,HTWC,TWC

 1
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-24010

JZS17#,UZS17#

 1
74579-24010

JKS175,JZS17#,UZS17#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-30550

JZS177,UZS17#

 1
42661-30551

JZS177,UZS17#

 1
42661-30551

JZS177,UZS17#

 1
75341C - PLATE, HOOD NAME
75341-20060

GS171,JZS17#,UZS17#

 1
75341-20060

JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS177,179,UZS17#

 1
87511A - PLATE, SEAT HEATER CAUTION
87511-24010

UZS175;JZS171,175,177,UZS171,173..SED..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT)

 1
87511-24010

UZS175;JZS175,177,UZS171,173..SED..(ATHG,C,ROY,ROYG)

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020

GS171,JZS17#,UZS17#

 1
87529-50020

JZS177,UZS17#

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-22060

GS171,JZS17#,UZS17#

 1
88733-27010

JZS177,UZS175..A

 1
88723-42050

GS171,JZS17#,UZS17#

 1
88723-42050

GS171,JKS175,JZS17#,UZS17#

 1
88733-30050

JZS177,UZS17#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-22060

GS171,JZS17#,UZS17#

 1
88733-27010

JZS177,UZS175..A

 1
88723-42050

GS171,JZS17#,UZS17#

 1
88723-42050

GS171,JKS175,JZS17#,UZS17#

 1
88733-30050

JZS177,UZS17#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-22060

GS171,JZS17#,UZS17#

 1
88733-27010

JZS177,UZS175..A

 1
88723-42050

GS171,JZS17#,UZS17#

 1
88723-42050

GS171,JKS175,JZS17#,UZS17#

 1
88733-30050

JZS177,UZS17#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-51010

GS171,JZS17#,UZS17#

 1
89176-51010

JZS177,UZS17#

 1
