JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS17#

Click highlighted areas on diagram

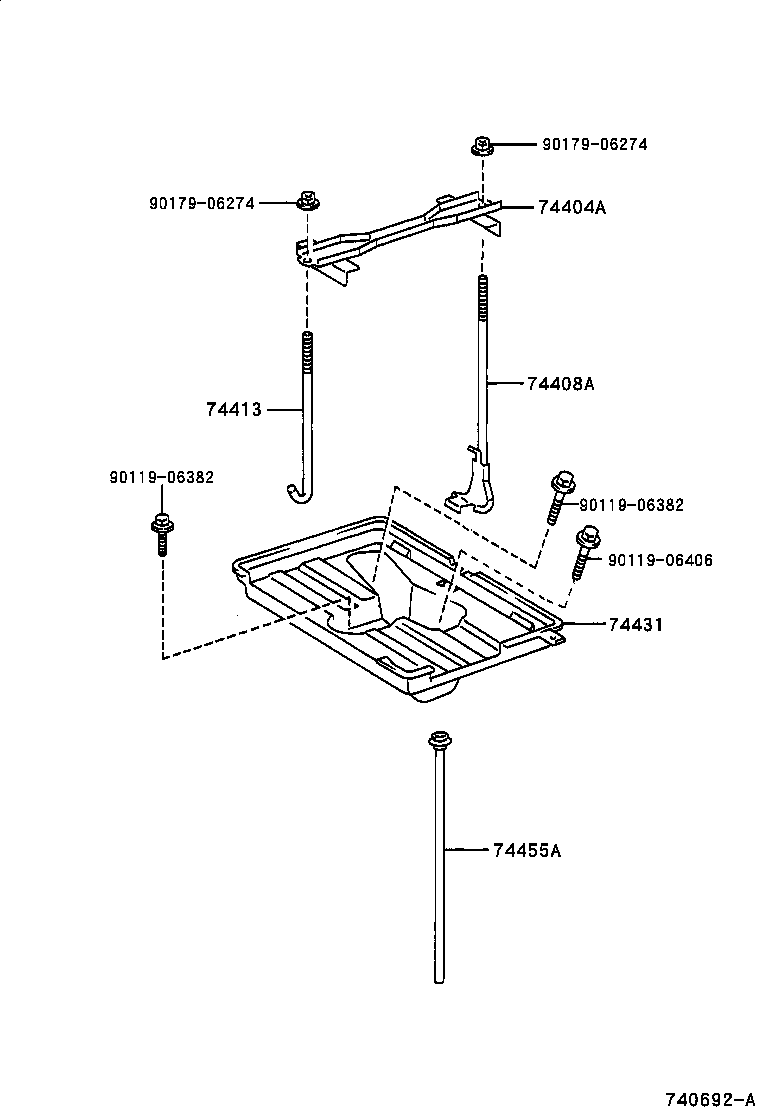

diagram 74404A 74408A 74413 74431 74455A 9011906382 9011906382 9011906406 9017906274 9017906274
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-30280

GS171,JZS17#,UZS17#

 1
74404-30280

GS171,JZS17#,UZS17#

 1
74408A - BOLT SUB-ASSY, BATTERY CLAMP, NO.2
74408-30010

JZS177,UZS17#

 1
74408-30010

JZS177,UZS17#

 1
74413 - BOLT, BATTERY CLAMP
74451-30100

JZS177,UZS17#

 1
74451-30100

JZS177,UZS17#

 1
74431 - TRAY, BATTERY
74431-30140

JZS177,UZS17#

 1
74431-30140

JZS177,UZS17#

 1
74455A - HOSE, BATTERY DRAIN
74455-30020

GS171,JZS17#,UZS17#

 1
74455-30020

GS171,JKS175,JZS17#,UZS17#

 1
Common parts
90119-06382
90119-06406
90179-06274
