JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta

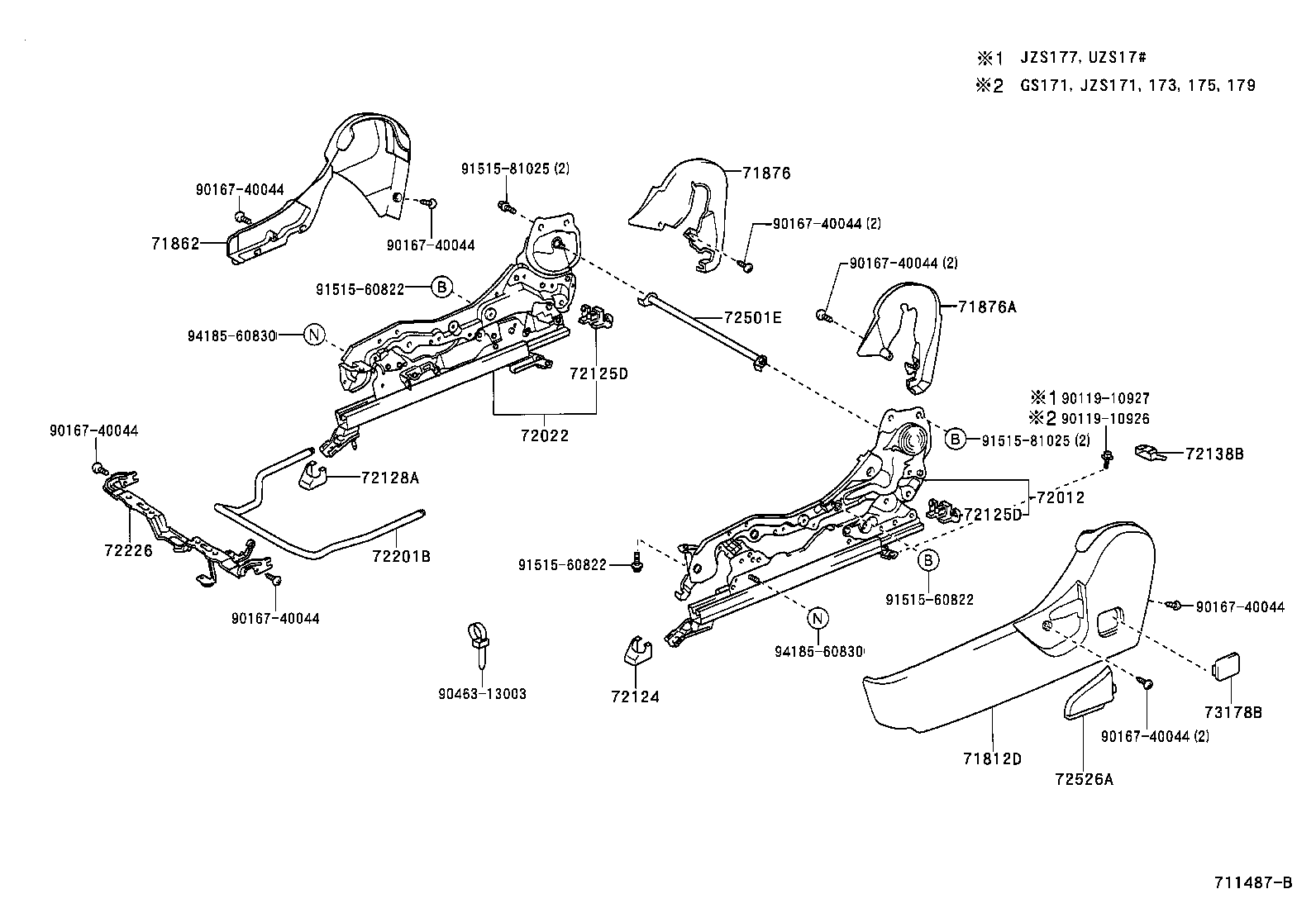

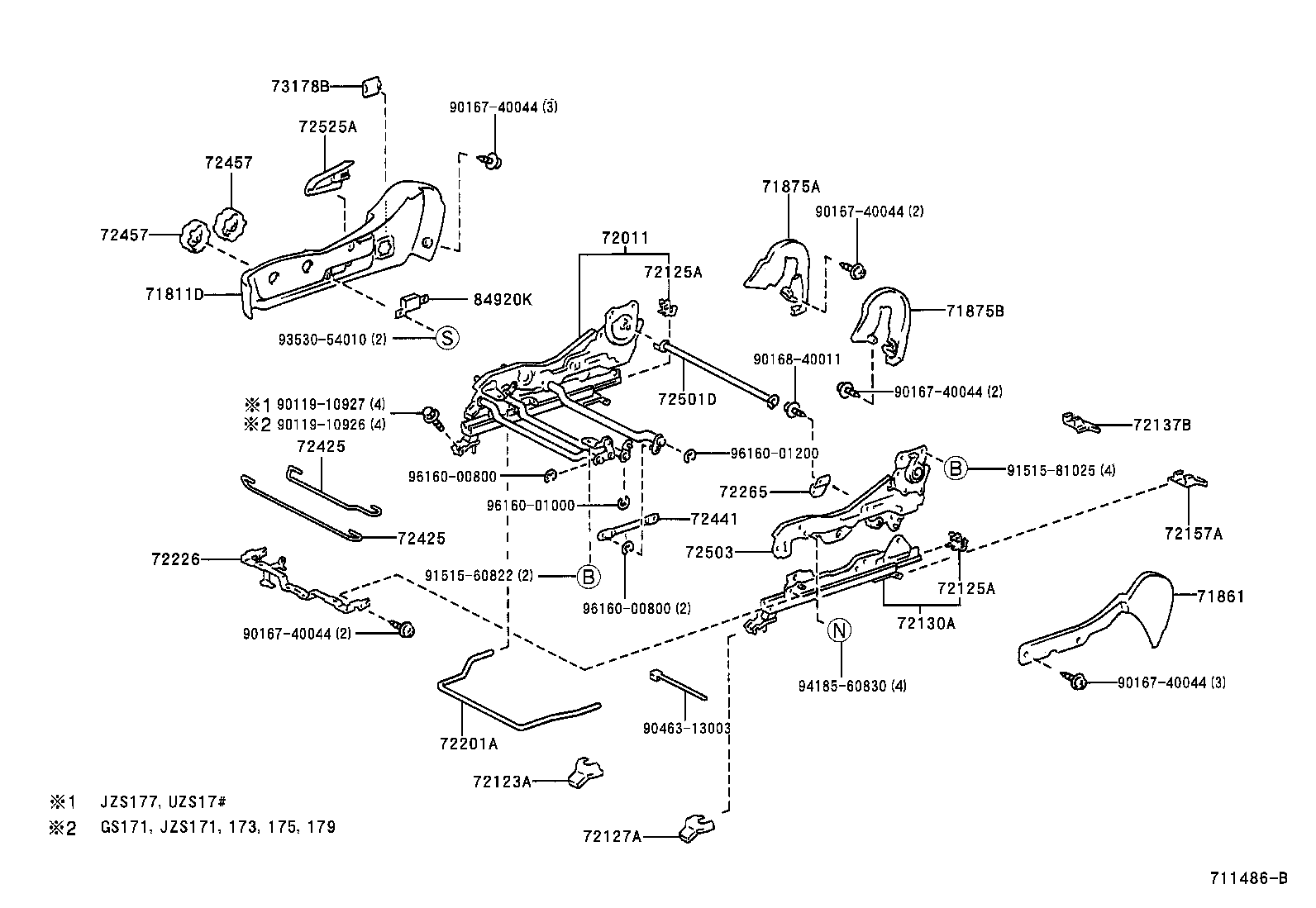

ILLUST NO. 3 OF 3(9909-0108)
| Part # | Description | Qty | Price |
|---|

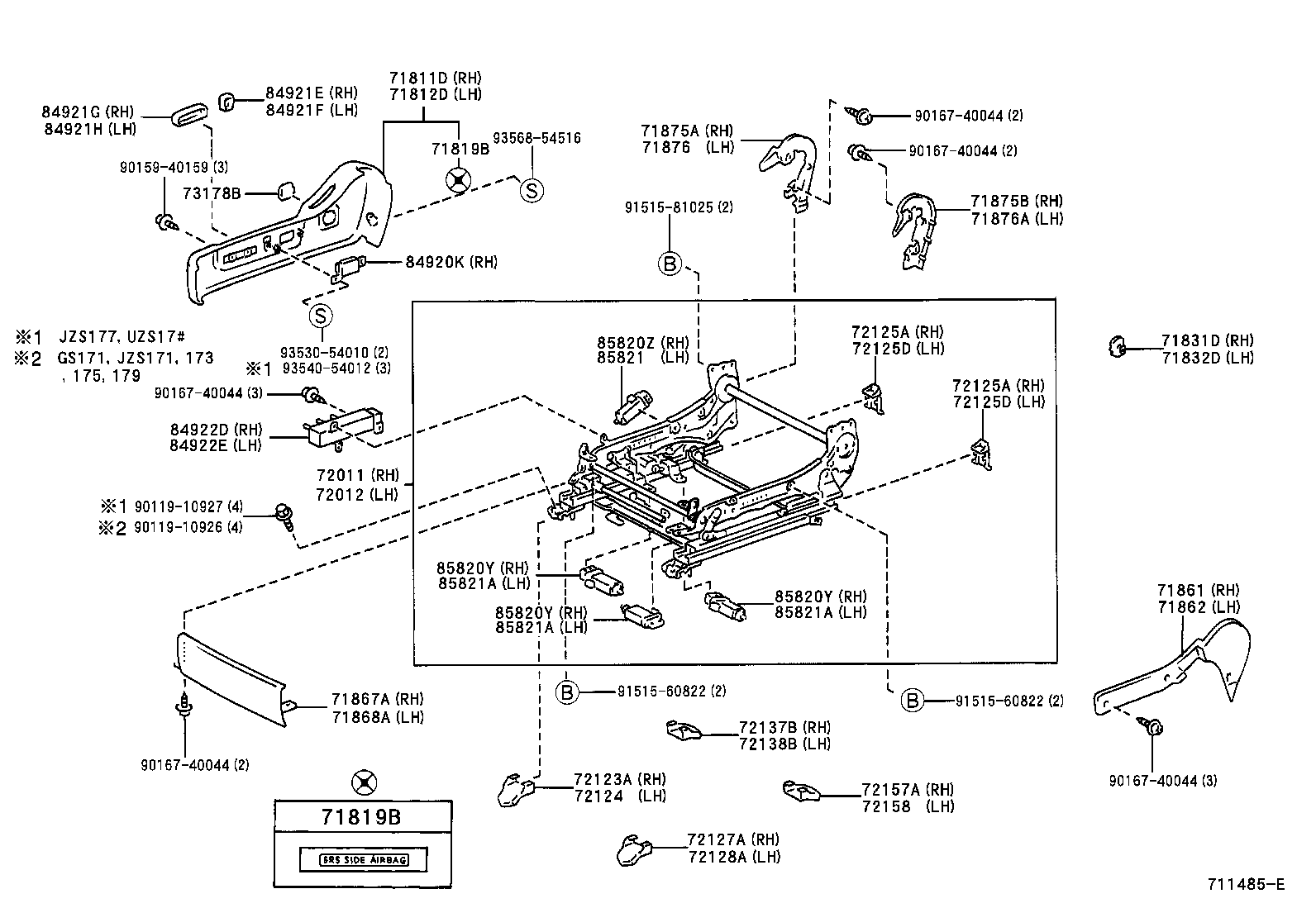

ILLUST NO. 3 OF 3(0108- )
| Part # | Description | Qty | Price |
|---|

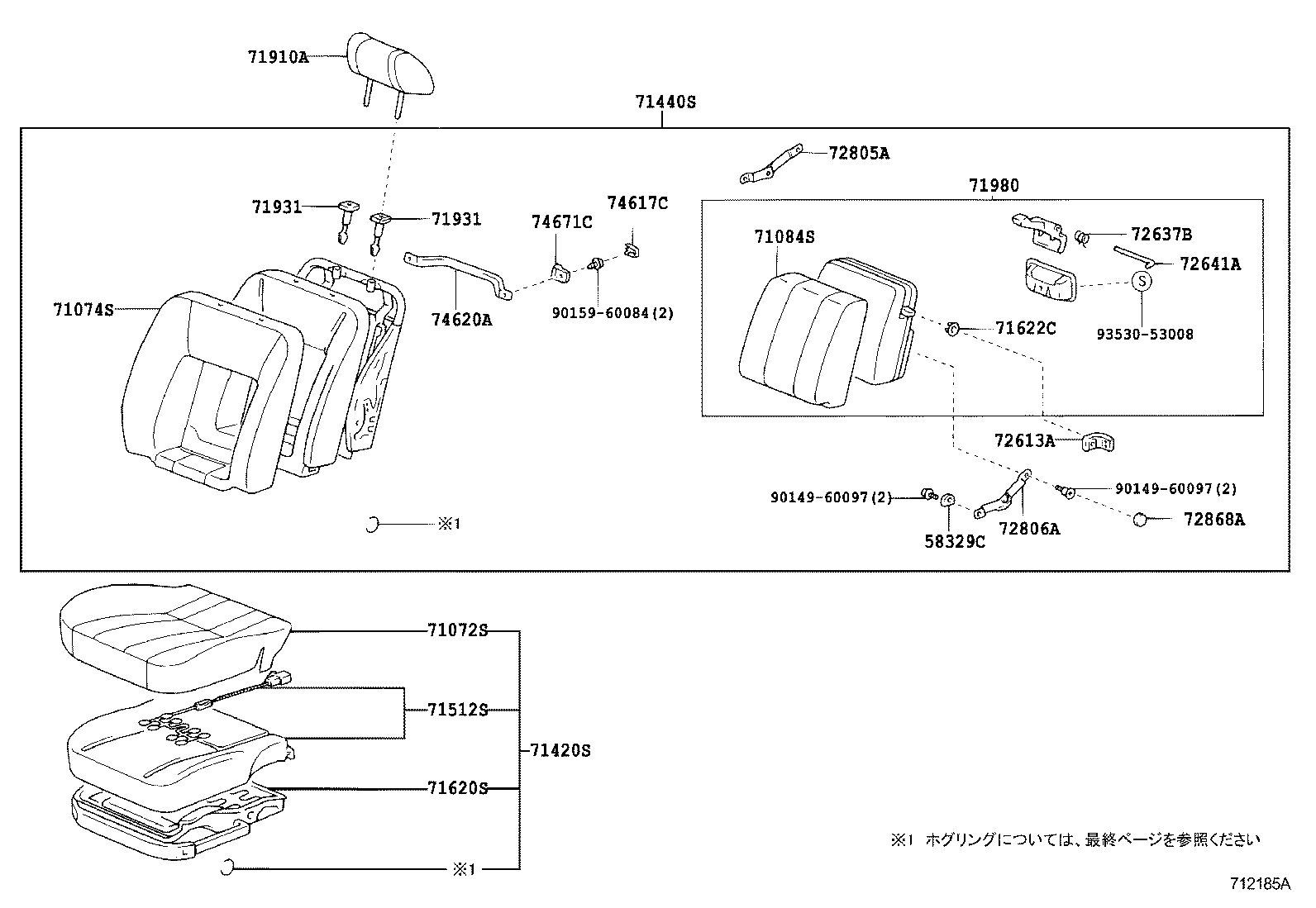

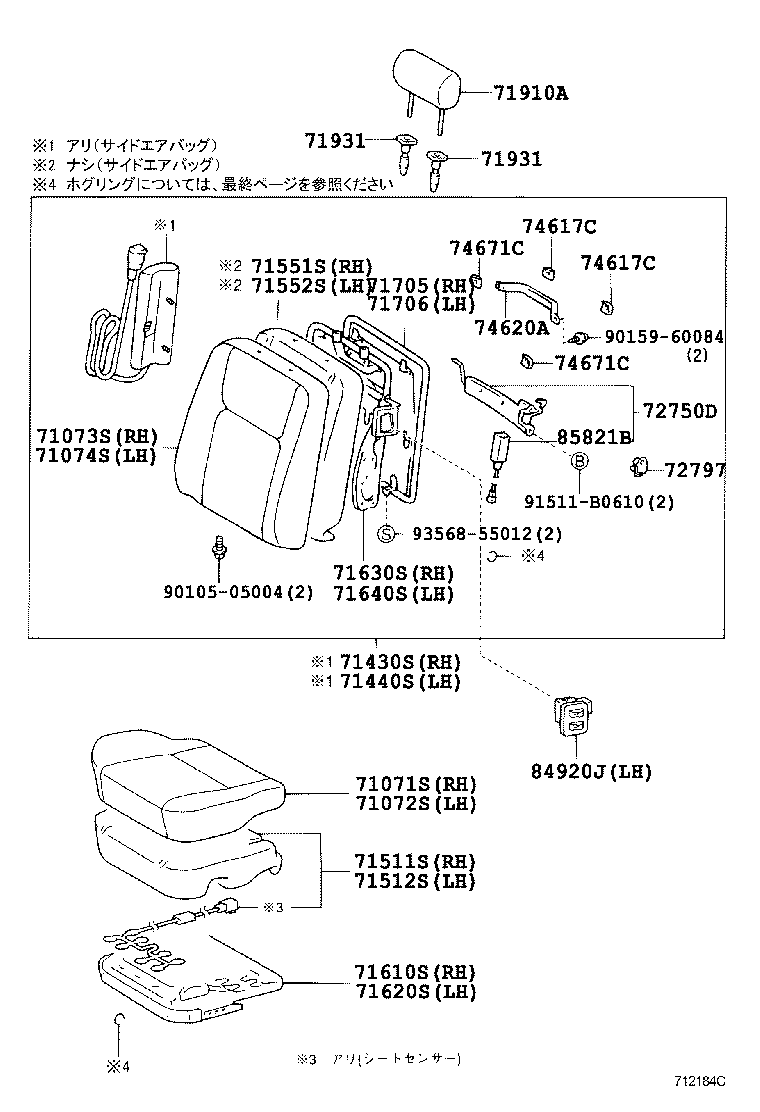

ILLUST NO. 1 OF 3(9909-0108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3K240A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71071-3K190A0 |
GS171,JZS17#..A,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71071-3K230C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71071-3K230A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71071-3K230A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71071-3K240B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-3K390A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71071-3K390B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71071-3K230A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71071-3K230A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3F540A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072-3F550B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-3F540A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71072-3F540C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71072-3F550A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-3F540A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072-3F700B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71072-3F700A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-3F540A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3F750A0 |
JZS175,177..ATHG,C,ROY ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F700A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F710A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F710B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-3F700C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM23 |
1 | ||
| 71073-3F760A0 |
JZS177 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F760B0 |
JZS177 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-3F700A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F750A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71073-3F750A0 |
JKS175,JZS175,177..C,ROY ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F750C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71073-3F700A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM06 |
1 | ||
| 71073-3F750A0 |
JZS171,175,177..(ATHG,ATHV,C,ROY)..(D4,TWT) ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F860B0 |
JZS177 ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71073-3F700A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F860A0 |
JZS177 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F850B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71073-3F850A1 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3F750A0 |
JZS175,177..ATHG,C,ROY ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F760B0 |
JZS177 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-3F190A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F760A0 |
JZS177 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F190A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM06 |
1 | ||
| 71073-3F750C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71074-3F200B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-3F190A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F750A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71073-3F750A0 |
JKS175,JZS175,177..C,ROY ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F190C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM23 |
1 | ||
| 71073-3F860B0 |
JZS177 ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71074-3F200A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F860A0 |
JZS177 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F190A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F280A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F750A0 |
JZS171,175,177..(ATHG,ATHV,C,ROY)..(D4,TWT) ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F280B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3K480A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71410-3K500B0 |
JZS177,UZS17# ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K500A0 |
JZS177,UZS17# ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71410-3K480A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3F680A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71420-3F690A0 |
JZS177,UZS17# ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71420-3F680A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71420-3F690B0 |
JZS177,UZS17# ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-30450A0 |
JZS177..C ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71040-30440A0 |
JZS177 ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71040-30420A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71040-30430A0 |
UZS175;JZS177,UZS171,173..C ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71040-30430A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71040-30420B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30430C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71040-30430A1 |
UZS175;JZS177,UZS171,173..C ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71040-30580B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30440B0 |
JZS177 ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30580A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-30240A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71070-30240B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30250A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71070-30270A0 |
JZS177..C ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71070-30260A0 |
JZS177 ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71070-30250A0 |
UZS175;JZS177,UZS171,173..C ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71070-30260B0 |
JZS177 ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30250A1 |
UZS175;JZS177,UZS171,173..C ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71070-30430B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30430A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71070-30250C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-3A080 |
JZS175,177;GS171,JZS171,173,179,UZS17#..(A,ATHV,C,ROY,ROYEX)..(HTWC,TWC,TWT) ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71511-3A080 |
GS171,JZS17#,UZS17#..A,ATHG,ATHV,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71511-3A080 |
JZS17#,UZS17#..A,ATHG,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-30070 |
JZS175..SED;GS171,JKS175,JZS171,173,177,179,UZS17#..A,ATHV,C,ROY,ROYEX ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71052-30070 |
GS171,JZS17#,UZS17#..A,ATHG,ATHV,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71052-30070 |
JZS17#,UZS17#..A,ATHG,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-3A060 |
JZS17#..A,ATHG,C,ROY,ROYEX ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71551-3A060 |
GS171,JZS17#..A,ATHG,ATHV,C,ROY,ROYEX ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71551-3A060 |
JZS175,177..A,ATHG,C,ROY;GS171,JZS171,173,179..(ATHV,ROY,ROYEX)..(HTWC,TWC,TWT) ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-30560 |
JKS175,JZS171,175,177,179..A,ATHG,ATHV,C,ROY ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 & ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71552-30560 |
JZS171,175,177,179..A,ATHG,C,ROY ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 & ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71552-30570 |
GS171,JZS171,173,177..A,ROY,ROYEX ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71552-30560 |
JZS171,175,177,179..A,ATHG,ATHV,C,ROY ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 & ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30760 |
GS171,JZS17#,UZS17# |
1 | ||
| 71610-30760 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30400 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 71620-30400 |
GS171,JZS17#,UZS17# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-3A280 |
JZS177,UZS17# |
1 | ||
| 71630-3A280 |
JZS177,UZS17# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-3A070 |
JZS171..WG..TWT;JKS175,JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71640-3A080 |
JZS175..ATHG;GS171,JZS171,173,177..A,ATH,ATHE,ATHV,ROY,ROYEX |
1 | ||
| 71640-3A070 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30710C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71705-30710A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71705-30710A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71705-30710B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71705-30710A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71705-30710B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-30710A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71705-30710A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71705-30710C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71705-30710B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71705-30710A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71705-30710B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3A190A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A200A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A190A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71910-3A200B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 71910-3A190C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71910-3A190A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A190A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A230A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A230B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30110A0 |
GS171,JZS17#,UZS17# ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-30110B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-30110B1 |
JZS177..A ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-30030B1 |
JZS177..A ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-30030A0 |
JZS177..A ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-30030A0 |
GS171,JZS17#,UZS17# ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-30110A0 |
JZS177..A ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-30110C0 |
JZS177,UZS171,173..C ﾛｯｸ付,10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71931-30030C0 |
JZS177,UZS171,173..C ﾛｯｸ無,10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71930-30110A0 |
JZS177,UZS171,173..C ﾛｯｸ付,10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71931-30030A0 |
JZS177,UZS171,173..C ﾛｯｸ無,10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71931-30030B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-30030B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-30110B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30110A0 |
GS171,JZS17#,UZS17# ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-30110B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-30110B1 |
JZS177..A ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-30030B1 |
JZS177..A ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-30030A0 |
JZS177..A ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-30030A0 |
GS171,JZS17#,UZS17# ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-30110A0 |
JZS177..A ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-30110C0 |
JZS177,UZS171,173..C ﾛｯｸ付,10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71931-30030C0 |
JZS177,UZS171,173..C ﾛｯｸ無,10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71930-30110A0 |
JZS177,UZS171,173..C ﾛｯｸ付,10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71931-30030A0 |
JZS177,UZS171,173..C ﾛｯｸ無,10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71931-30030B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-30030B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-30110B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30250 |
JZS177,UZS17# 上側 |
1 | ||
| 72750-30240 |
JZS177,UZS17# 下側 |
1 | ||
| 72750-30240 |
JZS177,UZS17# 下側 |
1 | ||
| 72750-30250 |
JZS177,UZS17# 上側 |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-30020 |
JZS177,UZS17# |
2 | ||
| 72797-30020 |
JZS177,UZS17# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30040A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
4 | ||
| 74617-30040B0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 74617-30040B0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
4 | ||
| 74617-30040B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
4 | ||
| 74617-30040A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23 |
4 | ||
| 74617-30040A0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30040A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
4 | ||
| 74617-30040B0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 74617-30040B0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
4 | ||
| 74617-30040B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
4 | ||
| 74617-30040A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23 |
4 | ||
| 74617-30040A0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30070A0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 74620-30070A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
2 | ||
| 74620-30070C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 74620-30070A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 74620-30070B1 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 74620-30070B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
2 | ||
| 74620-30070B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS171,JKS175,JZS17#,UZS17# |
4 | ||
| 74671-30010 |
GS171,JZS17#,UZS17# |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS171,JKS175,JZS17#,UZS17# |
4 | ||
| 74671-30010 |
GS171,JZS17#,UZS17# |
4 | ||
| 84920J - SWITCH ASSY, POWER SEAT | ||||
| 84920-30221A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 84920-30221B1 |
JZS171,175,177,179,UZS17#..A,C,ROY,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84920-30221C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84920-30221A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 84920-30221B1 |
JKS175,JZS171,175,177,179,UZS17#..A,C,ROY,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 85821B - MOTOR ASSY, POWER SEAT | ||||
| 85820-30700 |
JZS177,UZS17# |
2 | ||
| 85820-30700 |
JZS177,UZS17# |
2 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90159-60084 | ||||
| 91511-B0610 | ||||
| 93568-55012 | ||||
ILLUST NO. 2 OF 3(9909- )
ﾊﾟﾜ- ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-30410B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-30440B0 |
JZS177..C ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-30410A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71811-30440A0 |
JZS177 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71811-30410A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71811-30410A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71811-30410C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71811-30410B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-30440B0 |
JZS177 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-30440A0 |
JZS177..C ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-30340B1 |
JZS171,175,177,179..A,C,ROY ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-30320A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71812-30320B1 |
JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-30340A0 |
JZS173..SED..ATH;JZS171,175,177,179..A,ATH,ATHE,ATHG,ATHV,C,ROY ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71812-30340A0 |
JZS171..WG..TWT;JZS171,173..SED..(ATH,ATHV,ROY);JKS175,JZS175,177,179..A,ATHG,C,ROY ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71812-30340B1 |
JKS175,JZS171,175,177,179..A,C,ROY ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-30340A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71812-30340C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71812-30320B1 |
JKS175,JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-30320A0 |
JZS171..WG..TWT;JKS175,JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71812-30350B1 |
GS171,JZS171,173,177..A,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020B4 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
2 | ||
| 71819-12020A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71819-12020A1 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
2 | ||
| 71819-12020C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71819-12020B4 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-30070 |
JZS171..WG..TWT;GS171,JKS175,JZS17#,UZS17#..SED |
2 | ||
| 71831-30070 |
GS171,JZS17#,UZS17# |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-30070 |
JZS171..WG..TWT;JKS175,JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) |
2 | ||
| 71831-30070 |
GS171,JZS17#,UZS17# |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-30070B0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-30070A0 |
GS171,JZS17#,UZS17# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71861-30070B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-30070C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71861-30070A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-30070A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71862-30070B0 |
JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71862-30070A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71862-30080B1 |
GS171,JZS171,173,177..A,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 71862-30070A0 |
JZS171..WG..TWT;JKS175,JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71862-30070B0 |
JKS175,JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71862-30070C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-30110A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71867-30110A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 71867-30110B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 71867-30110C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71867-30110B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-30150A0 |
JZS173..WG;JZS171,175,177,UZS171,175..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71868-30160C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM23 |
1 | ||
| 71868-30150B1 |
JZS171,175,177,UZS171,175..A,C,ROY,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 71868-30150A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71868-30160A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM06 |
1 | ||
| 71868-30150C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71868-30150B1 |
JKS175,JZS171,175,177,UZS171,175..A,C,ROY,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-30100A0 |
GS171,JZS17#,UZS17# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71875-30100B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-30100C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71875-30100A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71875-30100B0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-30120B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-30120A0 |
GS171,JZS17#,UZS17# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71875-30120A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71875-30120B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-30120C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-30100B0 |
JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30100A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71876-30100C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71875-30130B1 |
GS171,JZS171,173,177..A,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30100B0 |
JKS175,JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30100A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-30140B1 |
GS171,JZS171,173,177..A,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30120C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71876-30120B1 |
JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30120A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71876-30120B1 |
JKS175,JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30120A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-30080 |
JZS177,UZS175..A ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72010-30080 |
JZS177,UZS17# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72010-30130 |
JZS177,UZS17# ｱﾘ(ﾒﾓﾘ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-30110 |
JZS177,UZS171,175 |
1 | ||
| 72020-30110 |
JZS177,UZS171,175 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72137-24020A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-30030 |
GS171,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),右側 |
1 | ||
| 72125-30040 |
GS171,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),左側 |
1 | ||
| 72125-30030 |
GS171,JKS175,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),右側 |
1 | ||
| 72125-30040 |
GS171,JKS175,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),左側 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-30030 |
GS171,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),右側 |
1 | ||
| 72125-30040 |
GS171,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),左側 |
1 | ||
| 72125-30030 |
GS171,JKS175,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),右側 |
1 | ||
| 72125-30040 |
GS171,JKS175,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),左側 |
1 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-30030 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) 右側 |
1 | ||
| 72125-30030 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),右側 |
1 | ||
| 72125-30040 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),左側 |
1 | ||
| 72125-30040 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) 左側 |
1 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-30030 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) 右側 |
1 | ||
| 72125-30030 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),右側 |
1 | ||
| 72125-30040 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),左側 |
1 | ||
| 72125-30040 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) 左側 |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-24020A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72137-24020A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-30180A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-30180C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-30180A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-30180C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72137-30180C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-30180A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-30180A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-30180C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-50010B3 |
JZS175..SED..ROY;JZS171,177,179..A,ROY ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 73178-50010B3 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
2 | ||
| 73178-50010A1 |
JZS175..SED..ROY;JZS171,177,179..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 73178-50010A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 73178-50010A1 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
2 | ||
| 73178-50010B3 |
GS171,JZS173,175,177,179,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
2 | ||
| 73178-50010C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 84920K - SWITCH ASSY, POWER SEAT | ||||
| 84920-30230B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 84920-30230A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 84920-30230B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 84920-30230A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 84920-30230C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84920-30230A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 84921E - KNOB, POWER SEAT SWITCH | ||||
| 84921-30120B0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84921-30120B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84921-30120A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 84921-30120C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84921-30120A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 84921F - KNOB, POWER SEAT SWITCH | ||||
| 84921-30130B0 |
JZS171,175,177,179,UZS17#..A,C,ROY,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84921-30130A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 84921-30130C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84921-30130A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 84921-30130B0 |
JKS175,JZS171,175,177,179,UZS17#..A,C,ROY,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84921G - KNOB, POWER SEAT SWITCH | ||||
| 84921-24030A1 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 84921-24030B3 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84921-24030A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 84921-24030B3 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84921-24030C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84921H - KNOB, POWER SEAT SWITCH | ||||
| 84921-24040C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84921-24040B3 |
JZS171,175,177,179,UZS17#..A,C,ROY,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84921-24040B3 |
JKS175,JZS171,175,177,179,UZS17#..A,C,ROY,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84921-24040A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 84921-24040A1 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 84922D - SWITCH, FRONT POWER SEAT | ||||
| 84070-51010 |
JKS175,JZS175,177,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾒﾓﾘ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 84922-30300 |
GS171,JZS17#,UZS17# |
1 | ||
| 84922E - SWITCH, FRONT POWER SEAT | ||||
| 84922-30290 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
JZS175;JZS171..WG..TWT;GS171,JKS175,JZS171,173,177,179,UZS17#..SED |
3 | ||
| 85820-30710 |
GS171,JZS17#,UZS17# |
3 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
JZS175;JZS171..WG..TWT;GS171,JKS175,JZS171,173,177,179,UZS17#..SED |
3 | ||
| 85820-30710 |
GS171,JZS17#,UZS17# |
3 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
JZS175;JZS171..WG..TWT;GS171,JKS175,JZS171,173,177,179,UZS17#..SED |
3 | ||
| 85820-30710 |
GS171,JZS17#,UZS17# |
3 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85820-30720 |
GS171,JZS17#,UZS17# |
1 | ||
| 85820-30720 |
JZS175;JZS171..WG..TWT;GS171,JKS175,JZS171,173,177,179,UZS17#..SED |
1 | ||
| 85821 - MOTOR ASSY, POWER SEAT | ||||
| 85820-30720 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 85820-30720 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) |
1 | ||
| 85821A - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) |
1 | ||
| 85820-30710 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 85821A - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) |
1 | ||
| 85820-30710 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 85821A - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) |
1 | ||
| 85820-30710 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| Common parts | ||||
| 90119-10926 | ||||
| 90119-10927 | ||||
| 90159-40159 | ||||
| 90167-40044 | ||||
| 91515-60822 | ||||
| 91515-81025 | ||||
| 93530-54010 | ||||
| 93540-54012 | ||||
| 93568-54516 | ||||
ILLUST NO. 2 OF 3(9909- )
ﾊﾞ-ﾁｶﾙ ｼ-ﾄ (RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-30410B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-30440B0 |
JZS177..C ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-30410A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71811-30440A0 |
JZS177 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71811-30410A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71811-30410A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71811-30410C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71811-30410B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-30440B0 |
JZS177 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-30440A0 |
JZS177..C ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-30070B0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-30070A0 |
GS171,JZS17#,UZS17# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71861-30070B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-30070C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71861-30070A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-30100A0 |
GS171,JZS17#,UZS17# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71875-30100B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-30100C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71875-30100A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71875-30100B0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-30120B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-30120A0 |
GS171,JZS17#,UZS17# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71875-30120A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71875-30120B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-30120C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-30080 |
JZS177,UZS175..A ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72010-30080 |
JZS177,UZS17# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72010-30130 |
JZS177,UZS17# ｱﾘ(ﾒﾓﾘ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-30030 |
GS171,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),右側 |
1 | ||
| 72125-30040 |
GS171,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),左側 |
1 | ||
| 72125-30030 |
GS171,JKS175,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),右側 |
1 | ||
| 72125-30040 |
GS171,JKS175,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),左側 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-30030 |
GS171,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),右側 |
1 | ||
| 72125-30040 |
GS171,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),左側 |
1 | ||
| 72125-30030 |
GS171,JKS175,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),右側 |
1 | ||
| 72125-30040 |
GS171,JKS175,JZS17#,UZS17#..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),左側 |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-24020A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-30180A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-30180C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72137-30180C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-30180A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-50010B3 |
JZS175..SED..ROY;JZS171,177,179..A,ROY ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 73178-50010B3 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
2 | ||
| 73178-50010A1 |
JZS175..SED..ROY;JZS171,177,179..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 73178-50010A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 73178-50010A1 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
2 | ||
| 73178-50010B3 |
GS171,JZS173,175,177,179,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
2 | ||
| 73178-50010C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 84920K - SWITCH ASSY, POWER SEAT | ||||
| 84920-30230B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 84920-30230A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 84920-30230B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 84920-30230A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 84920-30230C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84920-30230A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10926 | ||||
| 90119-10927 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90463-13003 | ||||
| 91515-60822 | ||||
| 91515-81025 | ||||
| 93530-54010 | ||||
| 94185-60830 | ||||
| 96160-00800 | ||||
| 96160-01000 | ||||
| 96160-01200 | ||||
ILLUST NO. 2 OF 3(9909- )
ﾉ-ﾏﾙ ｼ-ﾄ (LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-30340B1 |
JZS171,175,177,179..A,C,ROY ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-30320A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71812-30320B1 |
JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-30340A0 |
JZS173..SED..ATH;JZS171,175,177,179..A,ATH,ATHE,ATHG,ATHV,C,ROY ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71812-30340A0 |
JZS171..WG..TWT;JZS171,173..SED..(ATH,ATHV,ROY);JKS175,JZS175,177,179..A,ATHG,C,ROY ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71812-30340B1 |
JKS175,JZS171,175,177,179..A,C,ROY ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-30340A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71812-30340C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71812-30320B1 |
JKS175,JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-30320A0 |
JZS171..WG..TWT;JKS175,JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71812-30350B1 |
GS171,JZS171,173,177..A,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-30070A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71862-30070B0 |
JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71862-30070A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71862-30080B1 |
GS171,JZS171,173,177..A,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 71862-30070A0 |
JZS171..WG..TWT;JKS175,JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71862-30070B0 |
JKS175,JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71862-30070C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-30100B0 |
JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30100A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71876-30100C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71875-30130B1 |
GS171,JZS171,173,177..A,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30100B0 |
JKS175,JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30100A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-30140B1 |
GS171,JZS171,173,177..A,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30120C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71876-30120B1 |
JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30120A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71876-30120B1 |
JKS175,JZS171,175,177,179,UZS17#..A,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30120A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-30110 |
JZS177,UZS171,175 |
1 | ||
| 72020-30110 |
JZS177,UZS171,175 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72137-24020A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-30030 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) 右側 |
1 | ||
| 72125-30030 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),右側 |
1 | ||
| 72125-30040 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),左側 |
1 | ||
| 72125-30040 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) 左側 |
1 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-30030 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) 右側 |
1 | ||
| 72125-30030 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),右側 |
1 | ||
| 72125-30040 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),左側 |
1 | ||
| 72125-30040 |
JZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY) 左側 |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72137-24020A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-24020A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-24020C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72137-24020B1 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-30180A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-30180C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 72137-30180B0 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 72137-30180A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-50010B3 |
JZS175..SED..ROY;JZS171,177,179..A,ROY ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 73178-50010B3 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
2 | ||
| 73178-50010A1 |
JZS175..SED..ROY;JZS171,177,179..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 73178-50010A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 73178-50010A1 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
2 | ||
| 73178-50010B3 |
GS171,JZS173,175,177,179,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
2 | ||
| 73178-50010C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| Common parts | ||||
| 90119-10926 | ||||
| 90119-10927 | ||||
| 90167-40044 | ||||
| 90463-13003 | ||||
| 91515-60822 | ||||
| 91515-81025 | ||||
| 94185-60830 | ||||
ILLUST NO. 1 OF 3(0108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3K240A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71071-3K190A0 |
GS171,JZS17#..A,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71071-3K230C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71071-3K230A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71071-3K230A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71071-3K240B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-3K390A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71071-3K390B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71071-3K230A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71071-3K230A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3F540A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072-3F550B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-3F540A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71072-3F540C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71072-3F550A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-3F540A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072-3F700B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71072-3F700A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-3F540A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3F750A0 |
JZS175,177..ATHG,C,ROY ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F700A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F710A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F710B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-3F700C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM23 |
1 | ||
| 71073-3F760A0 |
JZS177 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F760B0 |
JZS177 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-3F700A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F750A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71073-3F750A0 |
JKS175,JZS175,177..C,ROY ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F750C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71073-3F700A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM06 |
1 | ||
| 71073-3F750A0 |
JZS171,175,177..(ATHG,ATHV,C,ROY)..(D4,TWT) ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F860B0 |
JZS177 ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71073-3F700A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F860A0 |
JZS177 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F850B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71073-3F850A1 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3F750A0 |
JZS175,177..ATHG,C,ROY ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F760B0 |
JZS177 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-3F190A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F760A0 |
JZS177 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F190A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM06 |
1 | ||
| 71073-3F750C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71074-3F200B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-3F190A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F750A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71073-3F750A0 |
JKS175,JZS175,177..C,ROY ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F190C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM23 |
1 | ||
| 71073-3F860B0 |
JZS177 ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71074-3F200A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F860A0 |
JZS177 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F190A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F280A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F750A0 |
JZS171,175,177..(ATHG,ATHV,C,ROY)..(D4,TWT) ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F280B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-30450A0 |
JZS177..C ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71040-30440A0 |
JZS177 ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71040-30420A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71040-30430A0 |
UZS175;JZS177,UZS171,173..C ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71040-30430A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71040-30420B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30430C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71040-30430A1 |
UZS175;JZS177,UZS171,173..C ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71040-30580B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30440B0 |
JZS177 ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30580A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-30240A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71070-30240B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30250A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71070-30270A0 |
JZS177..C ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71070-30260A0 |
JZS177 ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71070-30250A0 |
UZS175;JZS177,UZS171,173..C ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71070-30260B0 |
JZS177 ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30250A1 |
UZS175;JZS177,UZS171,173..C ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71070-30430B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30430A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71070-30250C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-3A080 |
JZS175,177;GS171,JZS171,173,179,UZS17#..(A,ATHV,C,ROY,ROYEX)..(HTWC,TWC,TWT) ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71511-3A080 |
GS171,JZS17#,UZS17#..A,ATHG,ATHV,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71511-3A080 |
JZS17#,UZS17#..A,ATHG,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-30070 |
JZS175..SED;GS171,JKS175,JZS171,173,177,179,UZS17#..A,ATHV,C,ROY,ROYEX ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71052-30070 |
GS171,JZS17#,UZS17#..A,ATHG,ATHV,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71052-30070 |
JZS17#,UZS17#..A,ATHG,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-3A060 |
JZS17#..A,ATHG,C,ROY,ROYEX ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71551-3A060 |
GS171,JZS17#..A,ATHG,ATHV,C,ROY,ROYEX ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71551-3A060 |
JZS175,177..A,ATHG,C,ROY;GS171,JZS171,173,179..(ATHV,ROY,ROYEX)..(HTWC,TWC,TWT) ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-30560 |
JKS175,JZS171,175,177,179..A,ATHG,ATHV,C,ROY ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 & ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71552-30560 |
JZS171,175,177,179..A,ATHG,C,ROY ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 & ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71552-30570 |
GS171,JZS171,173,177..A,ROY,ROYEX ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71552-30560 |
JZS171,175,177,179..A,ATHG,ATHV,C,ROY ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 & ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30760 |
GS171,JZS17#,UZS17# |
1 | ||
| 71610-30760 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30400 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 71620-30400 |
GS171,JZS17#,UZS17# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-3A280 |
JZS177,UZS17# |
1 | ||
| 71630-3A280 |
JZS177,UZS17# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-3A070 |
JZS171..WG..TWT;JKS175,JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71640-3A080 |
JZS175..ATHG;GS171,JZS171,173,177..A,ATH,ATHE,ATHV,ROY,ROYEX |
1 | ||
| 71640-3A070 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30710C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71705-30710A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71705-30710A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71705-30710B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71705-30710A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71705-30710B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-30710A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71705-30710A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71705-30710C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71705-30710B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71705-30710A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71705-30710B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3A190A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A200A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A190A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71910-3A200B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 71910-3A190C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71910-3A190A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A190A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A230A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A230B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30110A0 |
GS171,JZS17#,UZS17# ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-30110B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-30110B1 |
JZS177..A ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-30030B1 |
JZS177..A ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-30030A0 |
JZS177..A ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-30030A0 |
GS171,JZS17#,UZS17# ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-30110A0 |
JZS177..A ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-30110C0 |
JZS177,UZS171,173..C ﾛｯｸ付,10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71931-30030C0 |
JZS177,UZS171,173..C ﾛｯｸ無,10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71930-30110A0 |
JZS177,UZS171,173..C ﾛｯｸ付,10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71931-30030A0 |
JZS177,UZS171,173..C ﾛｯｸ無,10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71931-30030B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-30030B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-30110B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30110A0 |
GS171,JZS17#,UZS17# ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-30110B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-30110B1 |
JZS177..A ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-30030B1 |
JZS177..A ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-30030A0 |
JZS177..A ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-30030A0 |
GS171,JZS17#,UZS17# ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-30110A0 |
JZS177..A ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-30110C0 |
JZS177,UZS171,173..C ﾛｯｸ付,10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71931-30030C0 |
JZS177,UZS171,173..C ﾛｯｸ無,10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71930-30110A0 |
JZS177,UZS171,173..C ﾛｯｸ付,10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71931-30030A0 |
JZS177,UZS171,173..C ﾛｯｸ無,10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71931-30030B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-30030B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-30110B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30250 |
JZS177,UZS17# 上側 |
1 | ||
| 72750-30240 |
JZS177,UZS17# 下側 |
1 | ||
| 72750-30240 |
JZS177,UZS17# 下側 |
1 | ||
| 72750-30250 |
JZS177,UZS17# 上側 |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-30020 |
JZS177,UZS17# |
2 | ||
| 72797-30020 |
JZS177,UZS17# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30040A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
4 | ||
| 74617-30040B0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 74617-30040B0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
4 | ||
| 74617-30040B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
4 | ||
| 74617-30040A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23 |
4 | ||
| 74617-30040A0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30040A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
4 | ||
| 74617-30040B0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 74617-30040B0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
4 | ||
| 74617-30040B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
4 | ||
| 74617-30040A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23 |
4 | ||
| 74617-30040A0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30070A0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 74620-30070A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
2 | ||
| 74620-30070C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 74620-30070A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 74620-30070B1 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 74620-30070B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
2 | ||
| 74620-30070B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS171,JKS175,JZS17#,UZS17# |
4 | ||
| 74671-30010 |
GS171,JZS17#,UZS17# |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS171,JKS175,JZS17#,UZS17# |
4 | ||
| 74671-30010 |
GS171,JZS17#,UZS17# |
4 | ||
| 84920J - SWITCH ASSY, POWER SEAT | ||||
| 84920-30221A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 84920-30221B1 |
JZS171,175,177,179,UZS17#..A,C,ROY,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84920-30221C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 84920-30221A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 84920-30221B1 |
JKS175,JZS171,175,177,179,UZS17#..A,C,ROY,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 85821B - MOTOR ASSY, POWER SEAT | ||||
| 85820-30700 |
JZS177,UZS17# |
2 | ||
| 85820-30700 |
JZS177,UZS17# |
2 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90159-60084 | ||||
| 91511-B0610 | ||||
| 93568-55012 | ||||
ILLUST NO. 1 OF 3(0108- )
ｵﾂﾄﾏﾝｷｺｳ ﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3F540A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072-3F550B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-3F540A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71072-3F540C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71072-3F550A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-3F540A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072-3F700B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71072-3F700A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-3F540A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3F750A0 |
JZS175,177..ATHG,C,ROY ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F760B0 |
JZS177 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-3F190A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F760A0 |
JZS177 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F190A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM06 |
1 | ||
| 71073-3F750C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71074-3F200B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-3F190A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F750A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71073-3F750A0 |
JKS175,JZS175,177..C,ROY ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F190C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM23 |
1 | ||
| 71073-3F860B0 |
JZS177 ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71074-3F200A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F860A0 |
JZS177 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F190A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F280A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F750A0 |
JZS171,175,177..(ATHG,ATHV,C,ROY)..(D4,TWT) ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F280B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3F680A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71420-3F690A0 |
JZS177,UZS17# ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71420-3F680A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71420-3F690B0 |
JZS177,UZS17# ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-30240A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71070-30240B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30250A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 71070-30270A0 |
JZS177..C ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71070-30260A0 |
JZS177 ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71070-30250A0 |
UZS175;JZS177,UZS171,173..C ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71070-30260B0 |
JZS177 ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30250A1 |
UZS175;JZS177,UZS171,173..C ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71070-30430B0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30430A0 |
JZS177,UZS17# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71070-30250C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-30070 |
JZS175..SED;GS171,JKS175,JZS171,173,177,179,UZS17#..A,ATHV,C,ROY,ROYEX ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71052-30070 |
GS171,JZS17#,UZS17#..A,ATHG,ATHV,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71052-30070 |
JZS17#,UZS17#..A,ATHG,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30400 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 71620-30400 |
GS171,JZS17#,UZS17# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3A190A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A200A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A190A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71910-3A200B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 71910-3A190C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71910-3A190A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A190A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A230A0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A230B0 |
JZS177,UZS17# ｼ-ﾄ = TYPE B-*104,CHARCORL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30110A0 |
GS171,JZS17#,UZS17# ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-30110B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-30110B1 |
JZS177..A ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-30030B1 |
JZS177..A ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-30030A0 |
JZS177..A ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-30030A0 |
GS171,JZS17#,UZS17# ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-30110A0 |
JZS177..A ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-30110C0 |
JZS177,UZS171,173..C ﾛｯｸ付,10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71931-30030C0 |
JZS177,UZS171,173..C ﾛｯｸ無,10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71930-30110A0 |
JZS177,UZS171,173..C ﾛｯｸ付,10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71931-30030A0 |
JZS177,UZS171,173..C ﾛｯｸ無,10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71931-30030B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-30030B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-30110B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30110A0 |
GS171,JZS17#,UZS17# ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-30110B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-30110B1 |
JZS177..A ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-30030B1 |
JZS177..A ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-30030A0 |
JZS177..A ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-30030A0 |
GS171,JZS17#,UZS17# ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-30110A0 |
JZS177..A ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-30110C0 |
JZS177,UZS171,173..C ﾛｯｸ付,10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71931-30030C0 |
JZS177,UZS171,173..C ﾛｯｸ無,10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 71930-30110A0 |
JZS177,UZS171,173..C ﾛｯｸ付,10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71931-30030A0 |
JZS177,UZS171,173..C ﾛｯｸ無,10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 71931-30030B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-30030B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-30110B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30040A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
4 | ||
| 74617-30040B0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 74617-30040B0 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
4 | ||
| 74617-30040B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
4 | ||
| 74617-30040A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23 |
4 | ||
| 74617-30040A0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30070A0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 74620-30070A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
2 | ||
| 74620-30070C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 74620-30070A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 74620-30070B1 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 74620-30070B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
2 | ||
| 74620-30070B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS171,JKS175,JZS17#,UZS17# |
4 | ||
| 74671-30010 |
GS171,JZS17#,UZS17# |
4 | ||
| Common parts | ||||
| 90149-60097 | ||||
| 90159-60084 | ||||
| 93530-53008 | ||||
(9909- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
