JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )SED

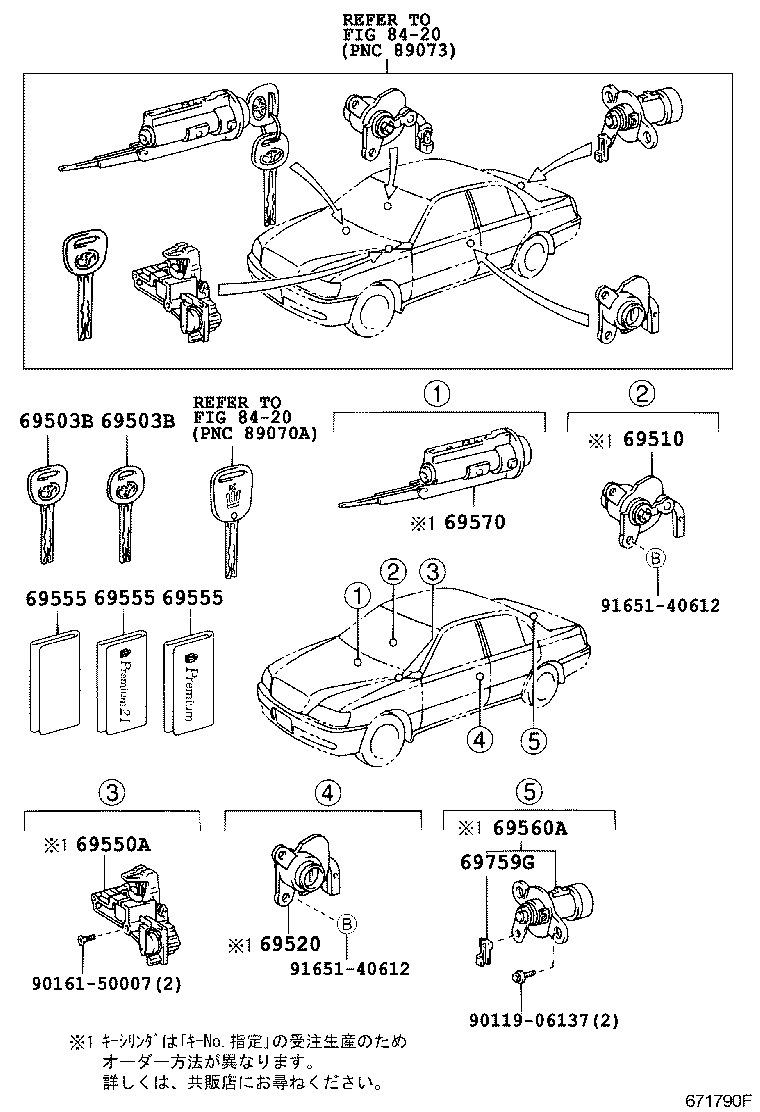

Click highlighted areas on diagram

ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)

diagram 69503B 69503B 69510 69520 69550A 69555 69555 69555 69560A 69570 69759G 8420 8420 9011906137 9016150007 9165140612 9165140612
Part # Description Qty Price
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-30250

GS171,JZS17#,UZS17#

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-30220

GS171,JZS17#,UZS17#

 1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-30140

GS171,JZS17#,UZS17#

 1
69555 - COVER, KEY
69555-30060

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A)

 1
69555 - COVER, KEY
69555-30060

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A)

 1
69555 - COVER, KEY
69555-30060

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A)

 1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-30280

JZS177,UZS17#

 1
69560-30320

JZS177,UZS17#

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24080

JZS177,UZS17#

 1
69759-24080

JZS177,UZS17#

 1
Common parts
90119-06137
90161-50007
91651-40612
Linked diagrams
8420

(9909- )SED

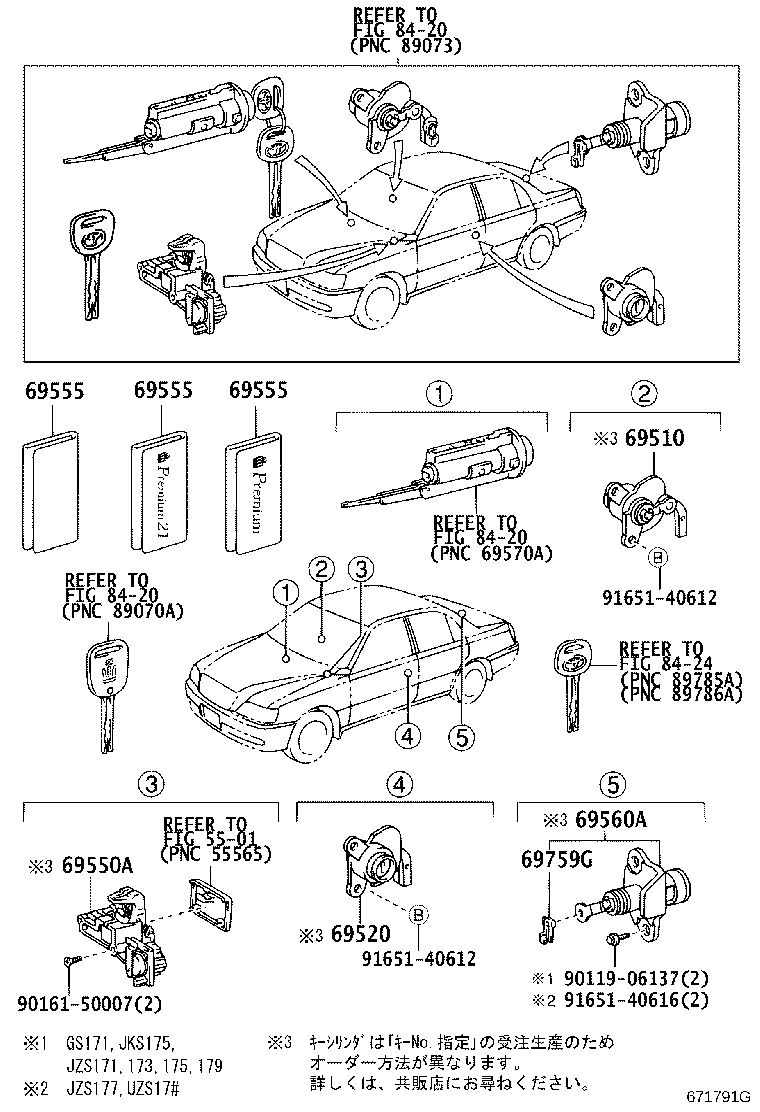

Click highlighted areas on diagram

ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)

diagram 5501 69510 69520 69550A 69555 69555 69555 69560A 69759G 8420 8420 8420 8424 9011906137 9016150007 9165140612 9165140612 9165140616
Part # Description Qty Price
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-30250

GS171,JZS17#,UZS17#

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-30220

GS171,JZS17#,UZS17#

 1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-30140

GS171,JZS17#,UZS17#

 1
69555 - COVER, KEY
69555-30060

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A)

 1
69555 - COVER, KEY
69555-30060

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A)

 1
69555 - COVER, KEY
69555-30060

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A)

 1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-30280

JZS177,UZS17#

 1
69560-30320

JZS177,UZS17#

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24080

JZS177,UZS17#

 1
69759-24080

JZS177,UZS17#

 1
Common parts
90119-06137
90161-50007
91651-40612
91651-40616
Linked diagrams
5501
8420
8424
