JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta
Production
Sep 1999
-
Jun 2004
Engine
2JZFSE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9909- )

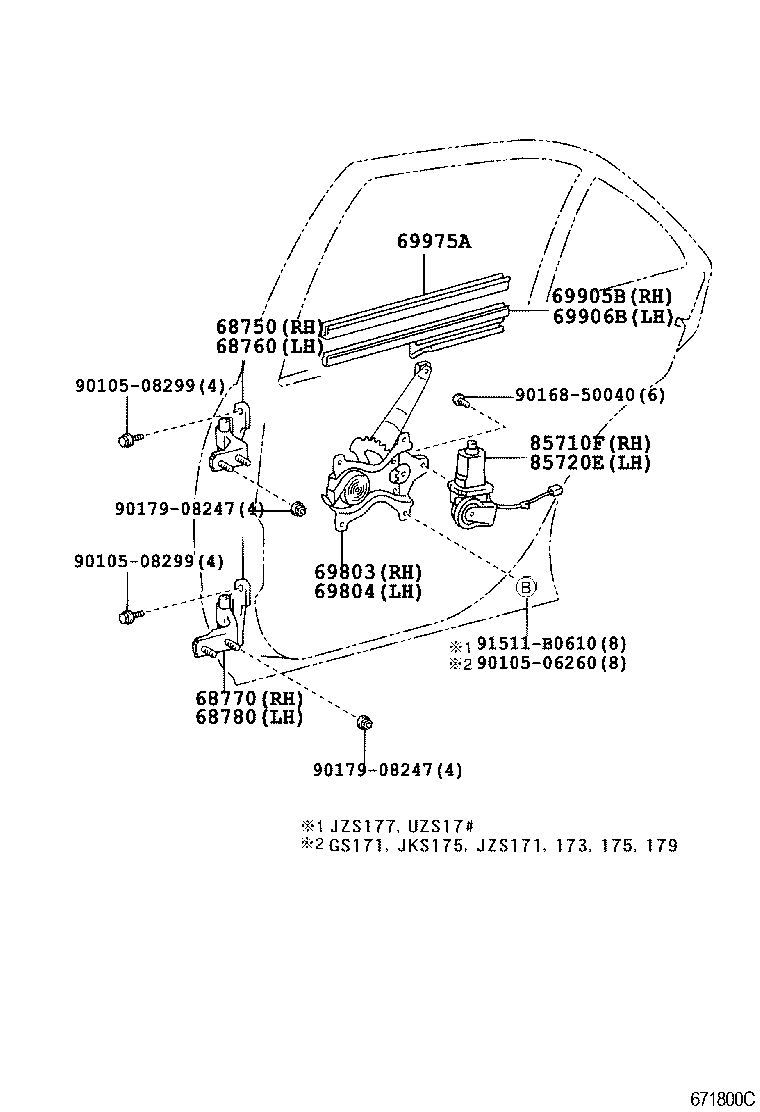

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-30110 |
GS171,JZS17#,UZS17# |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-30120 |
GS171,JZS17#,UZS17# |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-30110 |
GS171,JZS17#,UZS17# |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-30120 |
GS171,JZS17#,UZS17# |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-30250 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 69803-30250 |
GS171,JKS175,JZS17#,UZS17#..SED |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-30250 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 69804-30250 |
GS171,JKS175,JZS17#,UZS17#..SED |
1 | ||
| 69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-30110 |
JZS177,UZS17# |
1 | ||
| 69905-30110 |
JZS177,UZS17# |
1 | ||
| 69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-30090 |
JZS177,UZS17# |
1 | ||
| 69906-30090 |
JZS177,UZS17# |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-30080 |
JZS177,UZS17# |
2 | ||
| 69975-30080 |
JZS177,UZS17# |
2 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85720-30320 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 85720-30320 |
JZS177,UZS17# |
1 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85710-30380 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 85710-30380 |
JZS177,UZS17# |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-08299 | ||||
| 90168-50040 | ||||
| 90179-08247 | ||||
| 91511-B0610 | ||||
