JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )

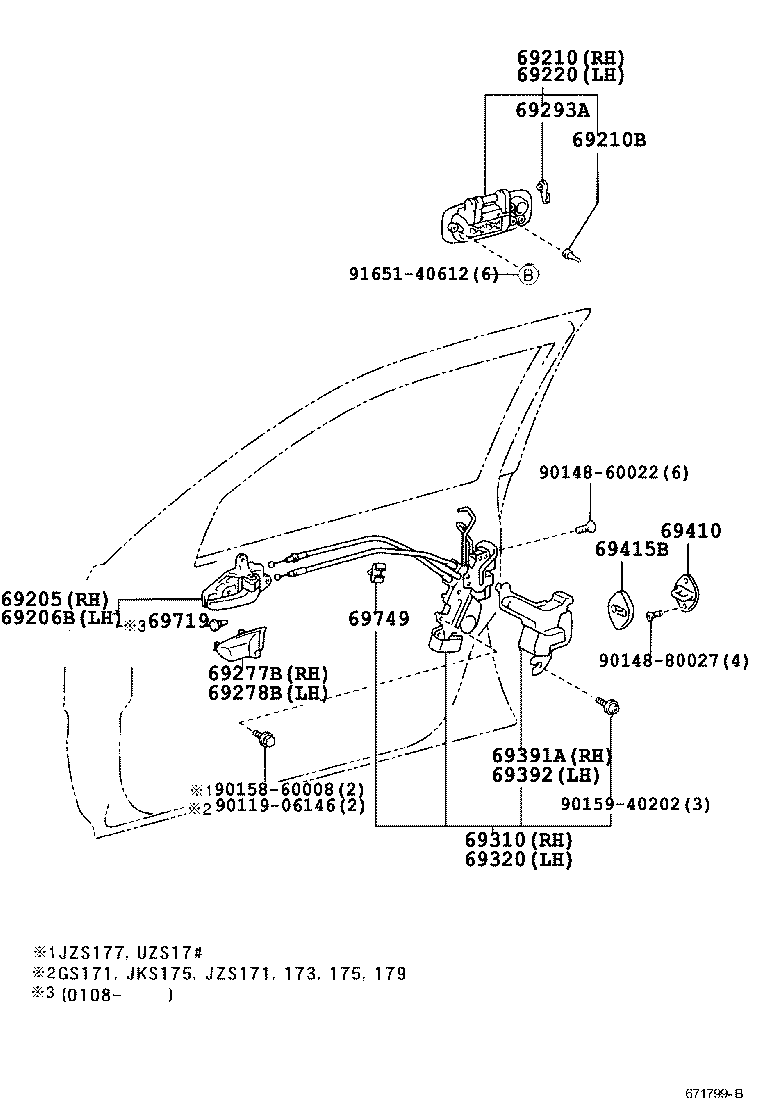

Click highlighted areas on diagram

diagram 69205 69206B 69210 69210B 69220 69277B 69278B 69293A 69310 69320 69391A 69392 69410 69415B 69719 69749 9011906146 9014860022 9014880027 9015860008 9015940202 9165140612
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-30140B0

GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

DK.CHARCOAL,TRIM1#

 1
69205-30140B0

GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

DK.CHARCOAL,TRIM1#

 1
69205-30140C0

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

 1
69205-30140E0

GS171,JZS17#,UZS17#

SANDAL WOOD,TRIM0#

 1
69205-30140E0

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-30140C0

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

 1
69206-30140B0

GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

DK.CHARCOAL,TRIM1#

 1
69206-30140E0

GS171,JZS17#,UZS17#

SANDAL WOOD,TRIM0#

 1
69206-30140E0

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06

 1
69206-30140B0

GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

DK.CHARCOAL,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-30280

GS171,JZS17#,UZS17#

 1
69210-30280

GS171,JKS175,JZS17#,UZS17#

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04018

GS171,JZS17#,UZS17#

 4
90541-04018

GS171,JKS175,JZS17#,UZS17#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-30260

GS171,JKS175,JZS17#,UZS17#

 1
69220-30260

GS171,JZS17#,UZS17#

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69297-30030E0

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06

 1
69297-30030B0

GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

DK.CHARCOAL,TRIM1#

 1
69297-30030E0

GS171,JZS17#,UZS17#

SANDAL WOOD,TRIM0#

 1
69297-30030B0

GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

DK.CHARCOAL,TRIM1#

 1
69297-30030C0

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69298-30030C0

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

 1
69298-30030E0

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06

 1
69298-30030B0

GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

DK.CHARCOAL,TRIM1#

 1
69298-30030B0

GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

DK.CHARCOAL,TRIM1#

 1
69298-30030E0

GS171,JZS17#,UZS17#

SANDAL WOOD,TRIM0#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12030

GS171,JKS175,JZS17#,UZS17#

左側

 1
69293-12040

GS171,JZS17#,UZS17#

右側

 1
69293-12030

GS171,JZS17#,UZS17#

左側

 1
69293-12040

GS171,JKS175,JZS17#,UZS17#

右側

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-3A050

JZS177,UZS17#

 1
69030-3A050

JZS177,UZS17#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-3A010

JZS177,UZS17#

 1
69040-3A100

JZS177,UZS17#

 1
69391A - COVER, FRONT DOOR LOCK, OUTER RH
69391-30050

GS171,JKS175,JZS17#,UZS17#

 1
69391-30050

GS171,JZS17#,UZS17#

 1
69392 - COVER, FRONT DOOR LOCK, OUTER LH
69392-30050

GS171,JZS17#,UZS17#

 1
69392-30050

GS171,JKS175,JZS17#,UZS17#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-51010

GS171,JKS175,JZS17#,UZS17#

 2
69410-51010

GS171,JZS17#,UZS17#

 2
69415B - COVER, DOOR LOCK STRIKER, FRONT
69415-30020

GS171,JKS175,JZS17#,UZS17#

 2
69415-30020

GS171,JZS17#,UZS17#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-30050

GS171,JKS175,JZS17#,UZS17#

 2
69749-30050

GS171,JZS17#,UZS17#

 2
Common parts
90119-06146
90148-60022
90148-80027
90158-60008
90159-40202
91651-40612
