JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta

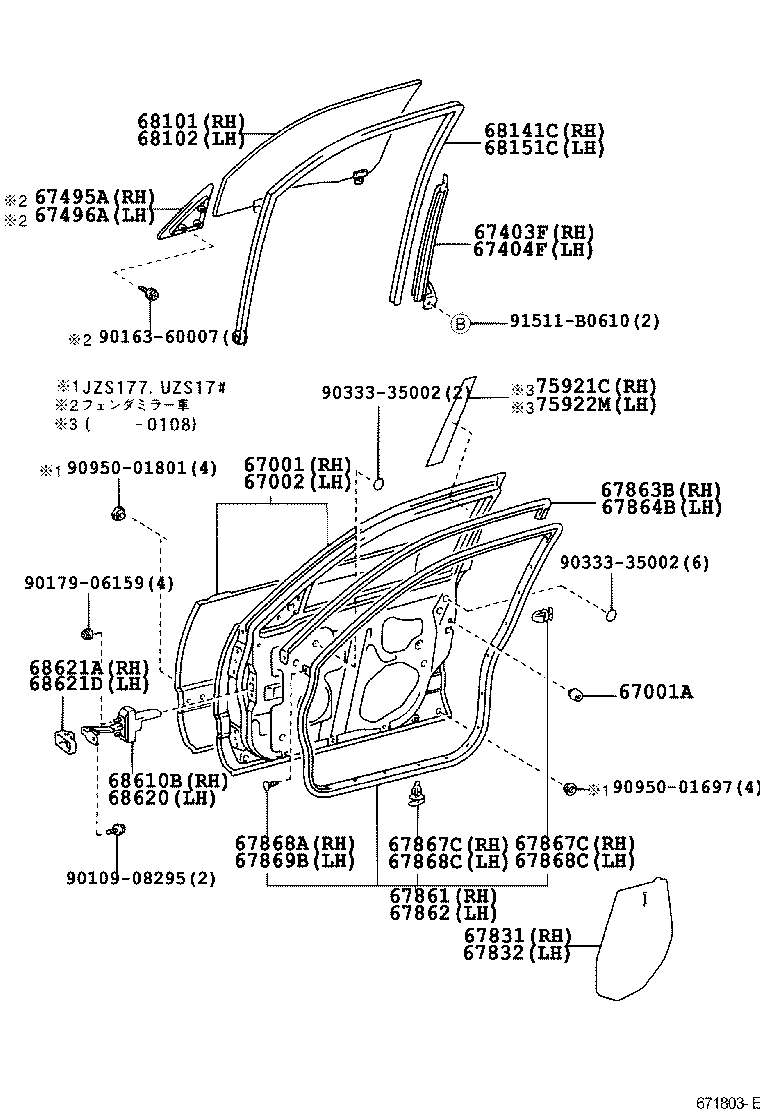

ILLUST NO. 1 OF 3(9909- )
ﾄﾞｱ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-30810 |
JZS177,UZS17# |
1 | ||
| 67001-30810 |
JZS177,UZS17# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-10027 |
GS171,JZS17#,UZS17# |
4 | ||
| 90541-10027 |
GS171,JKS175,JZS17#,UZS17# |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-30890 |
JZS177,UZS17# |
1 | ||
| 67002-30890 |
JZS177,UZS17# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-30160 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 67403-30160 |
GS171,JZS17#,UZS17# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-30160 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 67404-30160 |
GS171,JZS17#,UZS17# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-30390 |
GS171,JZS17#,UZS17# |
1 | ||
| 67831-30390 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-30390 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 67831-30390 |
GS171,JZS17#,UZS17# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-30261 |
JZS17#,UZS17#..SED |
1 | ||
| 67861-30260 |
JZS17#,UZS17# |
1 | ||
| 67861-30261 |
GS171,JZS17#,UZS17# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-30261 |
GS171,JZS17#,UZS17# |
1 | ||
| 67862-30260 |
JZS17#,UZS17# |
1 | ||
| 67862-30261 |
JZS17#,UZS17#..SED |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-30120 |
JZS17#,UZS17# |
1 | ||
| 67863-30121 |
GS171,JZS17#,UZS17# |
1 | ||
| 67863-30121 |
JZS17#,UZS17#..SED |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-30120 |
JZS17#,UZS17# |
1 | ||
| 67864-30121 |
GS171,JZS17#,UZS17# |
1 | ||
| 67864-30121 |
JZS17#,UZS17#..SED |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GS171,JZS17#,UZS17# ﾅﾁｭﾗﾙ |
19 | ||
| 67867-50020 |
GS171,JZS17#,UZS17# ﾌﾞﾗｯｸ |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GS171,JZS17#,UZS17# ﾅﾁｭﾗﾙ |
19 | ||
| 67867-50020 |
GS171,JZS17#,UZS17# ﾌﾞﾗｯｸ |
1 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-22010 |
GS171,JZS17#,UZS17# |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
JZS177,UZS17# ｸﾞﾘｰﾝ |
19 | ||
| 67867-12150 |
GS171,JZS17#,UZS17# ｸﾞﾘｰﾝ |
19 | ||
| 67867-50020 |
GS171,JZS17#,UZS17# ﾌﾞﾗｯｸ |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
JZS177,UZS17# ｸﾞﾘｰﾝ |
19 | ||
| 67867-12150 |
GS171,JZS17#,UZS17# ｸﾞﾘｰﾝ |
19 | ||
| 67867-50020 |
GS171,JZS17#,UZS17# ﾌﾞﾗｯｸ |
1 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-22010 |
GS171,JZS17#,UZS17# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-30730 |
GS171,JZS17#,UZS17# *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-30730 |
GS171,JKS175,JZS17#,UZS17# *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-30730 |
GS171,JZS17#,UZS17# *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-30730 |
GS171,JKS175,JZS17#,UZS17# *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-30300 |
JZS17#,UZS17# |
1 | ||
| 68141-30301 |
GS171,JZS17#,UZS17# |
1 | ||
| 68141-30300 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 68141-30301 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 68141-30300 |
GS171,JZS17#,UZS17# |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-30140 |
JZS17#,UZS17# |
1 | ||
| 68151-30140 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 68151-30141 |
GS171,JZS17#,UZS17# |
1 | ||
| 68151-30141 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 68151-30140 |
GS171,JZS17#,UZS17# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-30160 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 68610-30160 |
GS171,JZS17#,UZS17# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-30080 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 68620-30080 |
GS171,JZS17#,UZS17# |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-33010 |
GS171,JZS17#,UZS17# |
1 | ||
| 68621-33010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 68621D - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-33010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 68622-33010 |
GS171,JZS17#,UZS17# |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-30011 |
GS171,JZS17#,UZS17# |
1 | ||
| 75921-30010 |
JZS17#,UZS17# |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-30040 |
JZS17#,UZS17# |
1 | ||
| 75922-30041 |
GS171,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90163-60007 | ||||
| 90179-06159 | ||||
| 90333-35002 | ||||
| 90950-01697 | ||||
| 90950-01801 | ||||
| 91511-B0610 | ||||

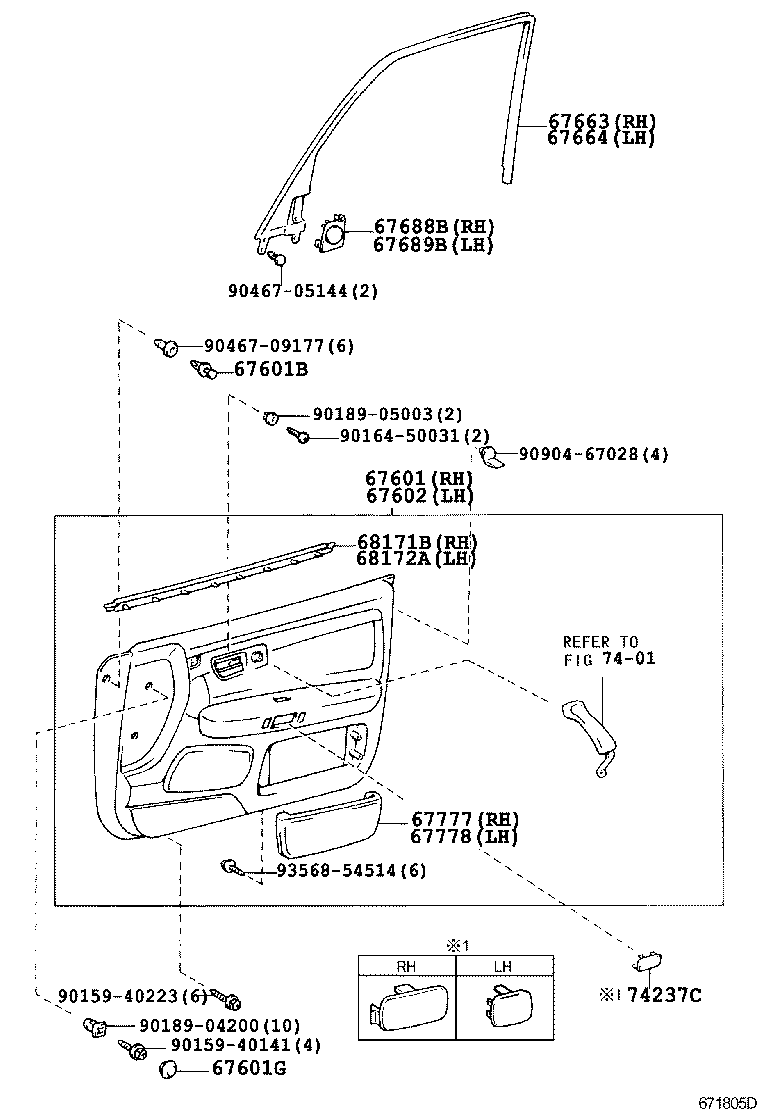

ILLUST NO. 2 OF 3(9909- )
ﾄﾞｱ ﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3F830A0 |
JZS177,UZS17# ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67610-3F830B0 |
JZS177,UZS17# ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-3F820A0 |
UZS175;JZS177,UZS171,173..C ﾄﾞｱﾄﾘﾑ=TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67610-3F820C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 67610-3F820A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 67610-3F831B0 |
JZS177,UZS17# ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-3F831A0 |
JZS177,UZS17# ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67610-3F820A0 |
UZS175;JZS177,UZS171,173..C ﾄﾞｱﾄﾘﾑ=TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07066A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
10 | ||
| 90467-0706622 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
10 | ||
| 90467-07066B8 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
10 | ||
| 90467-07066B8 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
10 | ||
| 90467-07066A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
10 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800A1 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
4 | ||
| 90950-01800C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
4 | ||
| 90950-01800B8 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
4 | ||
| 90950-01800B8 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
4 | ||
| 90950-01800A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3K140A0 |
JZS177,UZS17# ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67620-3K130C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 67620-3K130A0 |
UZS175;JZS177,UZS171,173..C ﾄﾞｱﾄﾘﾑ=TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67620-3K130A0 |
UZS175;JZS177,UZS171,173..C ﾄﾞｱﾄﾘﾑ=TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67620-3K140B0 |
JZS177,UZS17# ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 67620-3K130A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 67620-3K141A0 |
JZS177,UZS17# ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67620-3K141B0 |
JZS177,UZS17# ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 67663 - GARNISH, DOOR FRAME, UPPER RH | ||||
| 67663-30040 |
GS171,JZS17#,UZS17# |
1 | ||
| 67663-30040 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 67664 - GARNISH, DOOR FRAME, UPPER LH | ||||
| 67664-30040 |
GS171,JZS17#,UZS17# |
1 | ||
| 67664-30040 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 67688B - GRILLE, SPEAKER DOOR, NO.2 RH | ||||
| 67688-30040 |
GS171,JZS17#,UZS17# |
1 | ||
| 67688-30040 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 67689B - GRILLE, SPEAKER DOOR, NO.2 LH | ||||
| 67689-30030 |
GS171,JZS17#,UZS17# |
1 | ||
| 67689-30030 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-30110B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 67770-30110A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 67770-30110A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 67770-30110B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 67770-30110C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-30110B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 67780-30110B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 67780-30110C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 67780-30110A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 67780-30110A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-30140 |
GS171,JZS17#,UZS17# |
1 | ||
| 68171-30140 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-30110 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 68172-30110 |
GS171,JZS17#,UZS17# |
1 | ||
| 74237C - CAP, FRONT DOOR ARMREST BASE | ||||
| 74237-30030A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0#,左側 |
1 | ||
| 74237-30030B3 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 74237-30030C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23,左側 |
1 | ||
| 74237-30030B3 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 74237-30030A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,左側 |
1 | ||
| 74237-30030A0 |
GS171,JKS175,JZS17#,UZS17#..SED IVORY,TRIM0#,左側 |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90159-40223 | ||||
| 90164-50031 | ||||
| 90189-04200 | ||||
| 90189-05003 | ||||
| 90467-05144 | ||||
| 90467-09177 | ||||
| 90904-67028 | ||||
| 93568-54514 | ||||
| Linked diagrams | ||||
| 7401 | ||||
ILLUST NO. 3 OF 3(9909-0108)
ﾄﾘﾑ ｺｰﾄﾞ
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(0108- )
ﾄﾘﾑ ｺｰﾄﾞ
| Part # | Description | Qty | Price |
|---|
