JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS17#

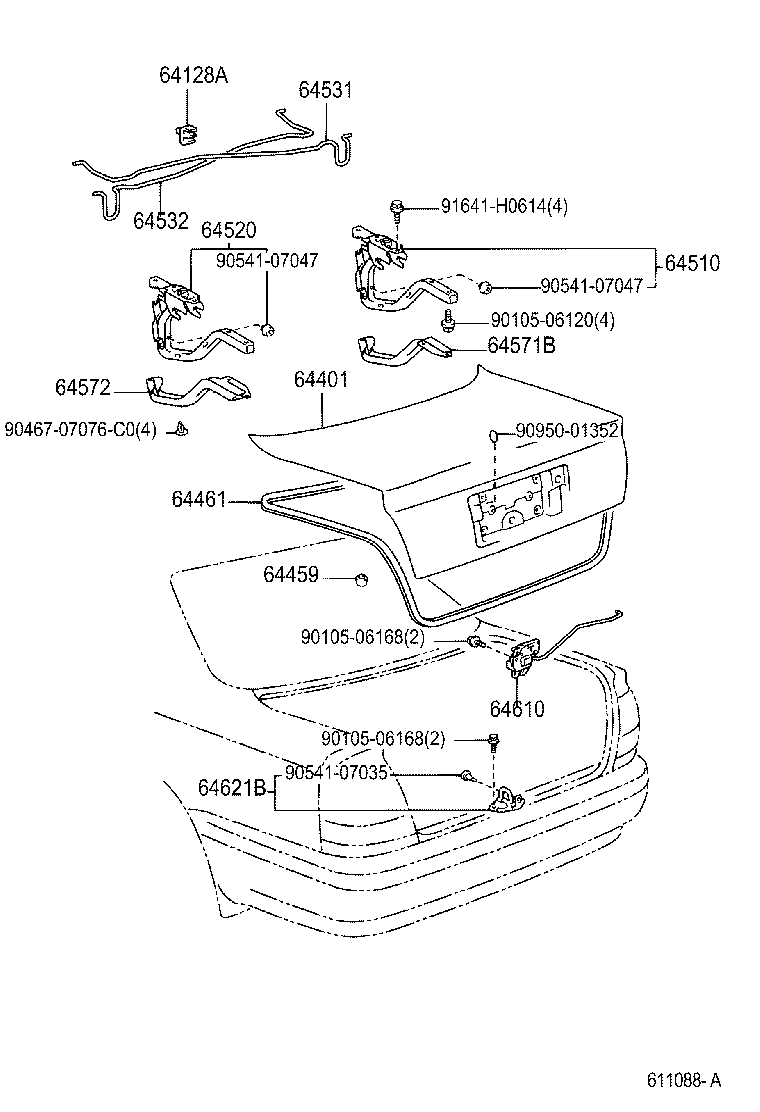

Click highlighted areas on diagram

diagram 64128A 64401 64459 64461 64510 64520 64531 64532 64571B 64572 64610 64621B 9010506120 9010506168 9010506168 9046707076C0 9054107035 9054107047 9054107047 9095001352 91641H0614
Part # Description Qty Price
64128A - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2
90469-08002

JZS177,UZS17#

 1
90469-08002

JZS177,UZS17#

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-3A110

JZS177,UZS17#

 1
64401-3A110

JZS177,UZS17#

 1
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09079

GS171,JZS17#,UZS17#..SED

 2
90541-10027

GS171,JZS17#,UZS17#..SED

 2
90541-09079

GS171,JKS175,JZS17#,UZS17#..SED

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-30300

JZS177,UZS17#

 1
64461-30300

JZS177,UZS17#

 1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-30360

JZS177,UZS17#

 1
64510-30360

JZS177,UZS17#

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-30170

JZS177,UZS17#

 1
64520-30170

JZS177,UZS17#

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-30280

JZS177,UZS17#

 1
64531-30280

JZS177,UZS17#

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-30280

JZS177,UZS17#

 1
64532-30280

JZS177,UZS17#

 1
64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571-30090C0

JZS177,UZS17#

BLACK,TRIM0#,1#

 1
64571-30090C0

JZS177,UZS17#

BLACK,TRIM0#,1#

 1
64571-30090C0

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM06,23

 1
64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64572-30050C0

JZS177,UZS17#

BLACK,TRIM0#,1#

 1
64572-30050C0

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM06,23

 1
64572-30050C0

JZS177,UZS17#

BLACK,TRIM0#,1#

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-30170C0

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM06,23

 1
64600-30170C0

JZS177,UZS17#

BLACK,TRIM0#,1#

 1
64600-30170C0

JZS177,UZS17#

BLACK,TRIM0#,1#

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64620-30110

GS171,JKS175,JZS17#,UZS17#..SED

 1
64620-30110

GS171,JZS17#,UZS17#..SED

 1
Common parts
90105-06120
90105-06168
90467-07076C0
90541-07035
90541-07047
90950-01352
91641-H0614
