JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS17#

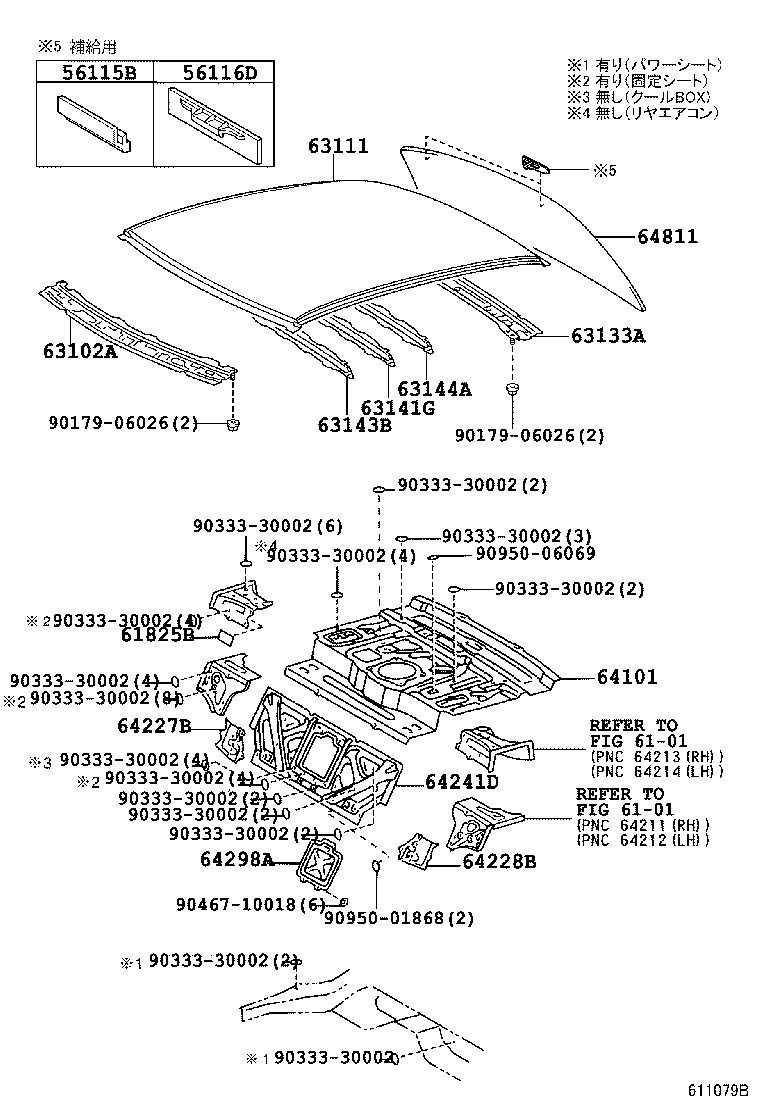

Click highlighted areas on diagram

diagram 56115B 56116D 6101 6101 61825B 63102A 63111 63133A 63141G 63143B 63144A 64101 64227B 64228B 64241D 64298A 64811 9017906026 9017906026 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9046710018 9095001868 9095006069
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30100

GS171,JZS17#,UZS17#..SED

 2
56115-30100

GS171,JKS175,JZS17#,UZS17#..SED

 2
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

GS171,JZS17#,UZS17#..SED

 2
56116-22050

GS171,JKS175,JZS17#,UZS17#..SED

 2
61825B - PLATE, NOISE CONTROL, NO.2
61825-22050

JZS177,UZS17#

 2
61825-22050

JZS177,UZS17#

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-30210

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
63102-30210

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
63102-30200

JZS177,UZS17#

 1
63102-30230

JZS177,UZS17#

 1
63111 - PANEL, ROOF
63111-30440

JZS177,UZS17#

 1
63111-30450

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
63111-30440

JZS177,UZS17#

 1
63111-30500

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾍﾙﾌﾟﾈﾂﾄ ｼｽﾃﾑ)

 1
63111-30450

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
63111-30490

JZS177,UZS17#

ｱﾘ(ﾍﾙﾌﾟﾈﾂﾄ ｼｽﾃﾑ)

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-30240

JZS177,UZS17#

 1
63133-30240

JZS177,UZS17#

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-30180

JZS177,UZS17#

 1
63141-30180

JZS177,UZS17#

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-30220

JZS177,UZS17#

 1
63143-30220

JZS177,UZS17#

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-30120

JZS177,UZS17#

 1
63144-30120

JZS177,UZS17#

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-30720

JZS177,UZS175..A

 1
64101-30710

JZS177,UZS175..A

ｱﾘ(ﾘﾔ ｴｱｺﾝ)

 1
64101-30700

JZS177,UZS17#

ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ)

 1
64101-30700

JZS177,UZS17#

ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ)

 1
64101-30720

JZS177,UZS175..A

 1
64101-30710

JZS177,UZS175..A

ｱﾘ(ﾘﾔ ｴｱｺﾝ)

 1
64227B - EXTENSION, CENTER FLOOR TO BLACE, NO.1
64227-30090

JZS177,UZS17#

 1
64227-30090

JZS177,UZS17#

 1
64228B - EXTENSION, CENTER FLOOR TO BRACE, NO.2
64228-30070

JZS177,UZS17#

 1
64228-30070

JZS177,UZS17#

 1
64241D - PANEL, ROOM PARTITION
64241-30060

JZS177,UZS17#

 1
64241-30060

JZS177,UZS17#

 1
64298A - PANEL, ROOM PARTITION CENTER
64298-30020

JZS177,UZS175..A

 1
64298-30020

JZS177,UZS175..A

 1
64811 - GLASS, BACK WINDOW
64801-3A600

JZS177,UZS171,173..C

*EHTT,厚さ=3.5,10TH ANNIVERSARY EDITION *(A)

 1
64801-3A570

JZS177,UZS17#

*UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
64801-3A570

JZS177,UZS17#

*UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
64801-3A560

JZS177,UZS17#

*UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ)

 1
64801-3A560

JZS177,UZS17#

*UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ)

 1
Common parts
90179-06026
90333-30002
90467-10018
90950-01868
90950-06069
Linked diagrams
6101

ILLUST NO. 2 OF 2(9909-0108)SED

Click highlighted areas on diagram

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

diagram 63102A 63111 63118 63119 63133A 63142 63148A 63201G 63203F 63207 63208 63209 63214F 63217G 63218G 63218H 63218H 63219A 63221 63223A 63224 63233C 63235D 63241B 63245D 63251H 63260A 63265B 63603 63604A 63625 63626 63635A 63669B 6402 9002901006 9002901007 9002904001 9002904001 9002904900 9002904902 9011906774 9016840079 9016840079 9017906026 9017906026 9017906069 9017906097 9017906276 9046714001 9046715012 9046909004 9095901335 9151160614 9331914012 9616000400
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-30210

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
63102-30210

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
63102-30200

JZS177,UZS17#

 1
63102-30230

JZS177,UZS17#

 1
63111 - PANEL, ROOF
63111-30440

JZS177,UZS17#

 1
63111-30450

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
63111-30440

JZS177,UZS17#

 1
63111-30500

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾍﾙﾌﾟﾈﾂﾄ ｼｽﾃﾑ)

 1
63111-30450

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
63111-30490

JZS177,UZS17#

ｱﾘ(ﾍﾙﾌﾟﾈﾂﾄ ｼｽﾃﾑ)

 1
63118 - SUPPORT, ROOF PANEL, RH
63118-30100

JZS177,UZS17#

 1
63118-30100

JZS177,UZS17#

 1
63119 - SUPPORT, ROOF PANEL, LH
63119-30030

JZS177,UZS17#

 1
63119-30030

JZS177,UZS17#

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-30240

JZS177,UZS17#

 1
63133-30240

JZS177,UZS17#

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-30110

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63142-30110

GS171,JKS175,JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-30080

JZS177,UZS17#

 1
63148-30080

JZS177,UZS17#

 1
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-30110

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

*TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ

 1
63201-30110

GS171,JKS175,JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

*TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ

 1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-30140

JZS177,UZS17#

 1
63203-30120

JZS177,UZS17#

 1
63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH
63207-30100

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH
63208-30100

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-30090

JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG)

 1
63209-30090

JZS177,UZS17#

 1
63214F - CHANNEL, ROOF DRIP, REAR
63214-50020

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63217G - GARNISH, SLIDING ROOF SIDE, RH
63217-30080

JZS177,UZS17#

 1
63217-30080

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63218G - GARNISH, SLIDING ROOF SIDE, LH
63218-30090

JZS177,UZS17#

 1
63218-30090

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63218H - HOSE, SLIDING ROOF DRAIN
63220-30070

JZS177,UZS17#

ﾌﾛﾝﾄ

 2
63247-30050

JZS177,UZS17#

ﾘﾔ右側

 1
63248-30030

JZS177,UZS17#

ﾘﾔ左側

 1
63248-30030

JZS177,UZS17#

ﾘﾔ左側

 1
63247-30050

JZS177,UZS17#

ﾘﾔ右側

 1
63220-30070

JZS177,UZS17#

ﾌﾛﾝﾄ

 2
63218H - HOSE, SLIDING ROOF DRAIN
63220-30070

JZS177,UZS17#

ﾌﾛﾝﾄ

 2
63247-30050

JZS177,UZS17#

ﾘﾔ右側

 1
63248-30030

JZS177,UZS17#

ﾘﾔ左側

 1
63248-30030

JZS177,UZS17#

ﾘﾔ左側

 1
63247-30050

JZS177,UZS17#

ﾘﾔ右側

 1
63220-30070

JZS177,UZS17#

ﾌﾛﾝﾄ

 2
63219A - GARNISH, SLIDING ROOF, REAR
63219-30080

JZS177,UZS17#

 1
63219-30080

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63221 - CASING, SLIDING ROOF CABLE GUIDE
63221-30100

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63223A - CABLE, SLIDING ROOF DRIVE, RH
63223-30060

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63224 - CABLE, SLIDING ROOF DRIVE, LH
63224-30060

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63233C - PANEL, SLIDING ROOF HOUSING
63233-30100

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63235D - FRAME, SLIDING ROOF HOUSING, CENTER
63235-30040

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-30110

JZS177,UZS17#

 2
63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH
63245-30110

JZS177,UZS17#

 2
63251H - WEATHERSTRIP, SLIDING ROOF
63251-30081

JZS177,UZS17#

 1
63251-30080

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63251-30080

GS171,JKS175,JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-30070

JZS177,UZS17#

 1
63260-30100

JZS177,UZS17#

 1
63260-30090

JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG)

 1
63260-30070

JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG)

 1
63265B - GEAR, SLIDING ROOF DRIVE
63265-30020

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63265-30020

JZS177,UZS17#

 1
63603 - RAIL SUB-ASSY, SLIDING ROOF DRIVE, RH
63603-30100

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63604A - RAIL SUB-ASSY, SLIDING ROOF DRIVE, LH
63604-30030

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63625 - BLOCK, SLIDING ROOF GUIDE, RH
63625-30010

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63626 - BLOCK, SLIDING ROOF GUIDE, LH
63626-30010

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63635A - GARNISH, SLIDING ROOF, FRONT
63635-30060

JZS177,UZS17#

 1
63635-30060

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63669B - GROMMET, SLIDING ROOF DRAIN
90904-80007

JZS177,UZS17#

 2
90904-80007

JZS177,UZS17#

 2
Common parts
90029-01006
90029-01007
90029-04001
90029-04900
90029-04902
90119-06774
90168-40079
90179-06026
90179-06069
90179-06097
90179-06276
90467-14001
90467-15012
90469-09004
90959-01335
91511-60614
93319-14012
96160-00400
Linked diagrams
6402

ILLUST NO. 2 OF 2(0108- )SED

Click highlighted areas on diagram

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

diagram 63102A 63111 63118 63119 63133A 63142 63148A 63201G 63203F 63209 63217G 63218G 63218H 63218H 63219A 63251H 63260A 63265B 63635A 63669B 9011906853 9017906026 9017906026 9017906274 9017906274 9046714001 9046715012 9046909004 9095901335 91511B0614 9331914012 9616000400
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-30210

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
63102-30210

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
63102-30200

JZS177,UZS17#

 1
63102-30230

JZS177,UZS17#

 1
63111 - PANEL, ROOF
63111-30440

JZS177,UZS17#

 1
63111-30450

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
63111-30440

JZS177,UZS17#

 1
63111-30500

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾍﾙﾌﾟﾈﾂﾄ ｼｽﾃﾑ)

 1
63111-30450

JZS177,UZS17#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
63111-30490

JZS177,UZS17#

ｱﾘ(ﾍﾙﾌﾟﾈﾂﾄ ｼｽﾃﾑ)

 1
63118 - SUPPORT, ROOF PANEL, RH
63118-30100

JZS177,UZS17#

 1
63118-30100

JZS177,UZS17#

 1
63119 - SUPPORT, ROOF PANEL, LH
63119-30030

JZS177,UZS17#

 1
63119-30030

JZS177,UZS17#

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-30240

JZS177,UZS17#

 1
63133-30240

JZS177,UZS17#

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-30110

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63142-30110

GS171,JKS175,JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-30080

JZS177,UZS17#

 1
63148-30080

JZS177,UZS17#

 1
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-30110

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

*TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ

 1
63201-30110

GS171,JKS175,JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

*TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ

 1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-30140

JZS177,UZS17#

 1
63203-30120

JZS177,UZS17#

 1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-30090

JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG)

 1
63209-30090

JZS177,UZS17#

 1
63217G - GARNISH, SLIDING ROOF SIDE, RH
63217-30080

JZS177,UZS17#

 1
63217-30080

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63218G - GARNISH, SLIDING ROOF SIDE, LH
63218-30090

JZS177,UZS17#

 1
63218-30090

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63218H - HOSE, SLIDING ROOF DRAIN
63220-30070

JZS177,UZS17#

ﾌﾛﾝﾄ

 2
63247-30050

JZS177,UZS17#

ﾘﾔ右側

 1
63248-30030

JZS177,UZS17#

ﾘﾔ左側

 1
63248-30030

JZS177,UZS17#

ﾘﾔ左側

 1
63247-30050

JZS177,UZS17#

ﾘﾔ右側

 1
63220-30070

JZS177,UZS17#

ﾌﾛﾝﾄ

 2
63218H - HOSE, SLIDING ROOF DRAIN
63220-30070

JZS177,UZS17#

ﾌﾛﾝﾄ

 2
63247-30050

JZS177,UZS17#

ﾘﾔ右側

 1
63248-30030

JZS177,UZS17#

ﾘﾔ左側

 1
63248-30030

JZS177,UZS17#

ﾘﾔ左側

 1
63247-30050

JZS177,UZS17#

ﾘﾔ右側

 1
63220-30070

JZS177,UZS17#

ﾌﾛﾝﾄ

 2
63219A - GARNISH, SLIDING ROOF, REAR
63219-30080

JZS177,UZS17#

 1
63219-30080

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63251H - WEATHERSTRIP, SLIDING ROOF
63251-30081

JZS177,UZS17#

 1
63251-30080

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63251-30080

GS171,JKS175,JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-30070

JZS177,UZS17#

 1
63260-30100

JZS177,UZS17#

 1
63260-30090

JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG)

 1
63260-30070

JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG)

 1
63265B - GEAR, SLIDING ROOF DRIVE
63265-30020

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63265-30020

JZS177,UZS17#

 1
63635A - GARNISH, SLIDING ROOF, FRONT
63635-30060

JZS177,UZS17#

 1
63635-30060

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

 1
63669B - GROMMET, SLIDING ROOF DRAIN
90904-80007

JZS177,UZS17#

 2
90904-80007

JZS177,UZS17#

 2
Common parts
90119-06853
90179-06026
90179-06274
90467-14001
90467-15012
90469-09004
90959-01335
91511-B0614
93319-14012
96160-00400
