JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta

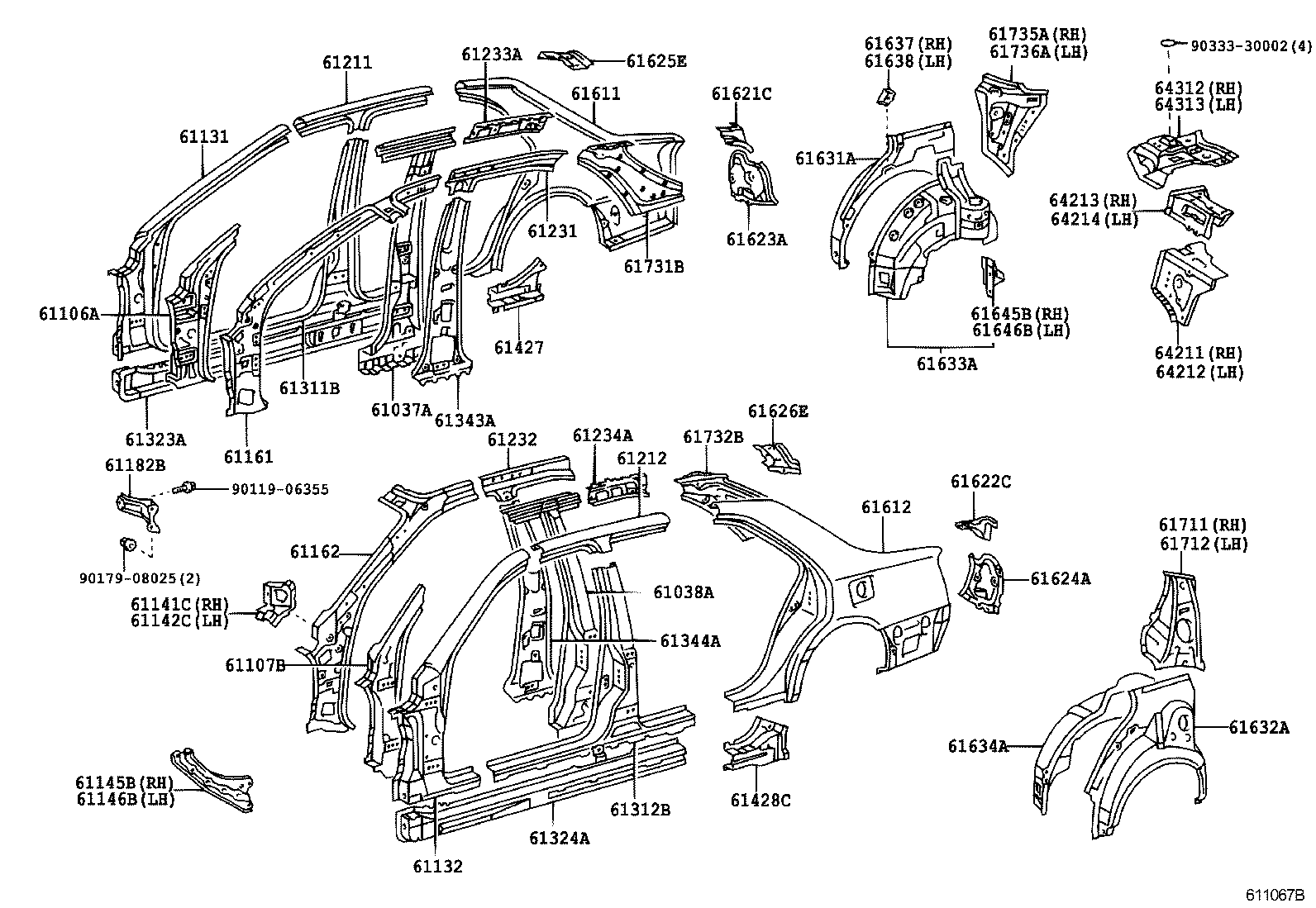

ILLUST NO. 1 OF 2(9909- )JZS177,UZS17#
ｻｲﾄﾞ ﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61047-30900 |
GS171,JKS175,JZS17#,UZS17#..SED |
1 | ||
| 61047-30900 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61048-30900 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 61048-30900 |
JZS177,UZS17# |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-30140 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 61106-30140 |
JZS177,UZS17# |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-30120 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 61107-30120 |
JZS177,UZS17# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-30270 |
JZS177,UZS17# |
1 | ||
| 61131-30270 |
JZS177,UZS17# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-30280 |
JZS177,UZS17# |
1 | ||
| 61132-30280 |
JZS177,UZS17# |
1 | ||
| 61141C - EXTENSION, FRONT PILLAR, UPPER INNER RH | ||||
| 61141-30150 |
JZS177,UZS17# |
1 | ||
| 61141-30150 |
JZS177,UZS17# |
1 | ||
| 61142C - EXTENSION, FRONT PILLAR, UPPER INNER LH | ||||
| 61142-30150 |
JZS177,UZS17# |
1 | ||
| 61142-30150 |
JZS177,UZS17# |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61015-30040 |
JZS177,UZS17# |
1 | ||
| 61015-30040 |
JZS177,UZS17# |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61016-30040 |
JZS177,UZS17# |
1 | ||
| 61016-30040 |
JZS177,UZS17# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-30290 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 61161-30290 |
GS171,JKS175,JZS17#,UZS17#..SED |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-30290 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 61162-30290 |
GS171,JKS175,JZS17#,UZS17#..SED |
1 | ||
| 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH | ||||
| 61182-30060 |
GS171,JZS17#,UZS17# |
1 | ||
| 61182-30060 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-30260 |
JZS177,UZS17# |
1 | ||
| 61211-30260 |
JZS177,UZS17# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-30260 |
JZS177,UZS17# |
1 | ||
| 61212-30260 |
JZS177,UZS17# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-30380 |
JZS177,UZS17# |
1 | ||
| 61231-30380 |
JZS177,UZS17# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-30380 |
JZS177,UZS17# |
1 | ||
| 61232-30380 |
JZS177,UZS17# |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-30030 |
JZS177,UZS17# |
1 | ||
| 61233-30030 |
JZS177,UZS17# |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-30030 |
JZS177,UZS17# |
1 | ||
| 61234-30030 |
JZS177,UZS17# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-30230 |
JZS177,UZS17# |
1 | ||
| 61311-30230 |
JZS177,UZS17# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-30320 |
JZS177,UZS17# |
1 | ||
| 61312-30320 |
JZS177,UZS17# |
1 | ||
| 61323A - REINFORCEMENT, CENTER BODY PILLAR, LOWER RH | ||||
| 61401-30251 |
JZS177,UZS17# |
1 | ||
| 61401-30250 |
JZS177,UZS17# |
1 | ||
| 61401-30251 |
JZS177,UZS17# |
1 | ||
| 61324A - REINFORCEMENT, CENTER BODY PILLAR, LOWER LH | ||||
| 61402-30251 |
JZS177,UZS17# |
1 | ||
| 61402-30251 |
JZS177,UZS17# |
1 | ||
| 61402-30250 |
JZS177,UZS17# |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-30201 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 61343-30201 |
GS171,JKS175,JZS17#,UZS17#..SED |
1 | ||
| 61343-30200 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-30210 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 61344-30211 |
GS171,JKS175,JZS17#,UZS17#..SED |
1 | ||
| 61344-30211 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-30070 |
JZS177,UZS17# |
1 | ||
| 61427-30070 |
JZS177,UZS17# |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-30120 |
JZS177,UZS17# |
1 | ||
| 61428-30120 |
JZS177,UZS17# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-30830 |
JZS177,UZS17# |
1 | ||
| 61611-30830 |
JZS177,UZS17# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-3A220 |
JZS177,UZS17# |
1 | ||
| 61612-3A220 |
JZS177,UZS17# |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-30210 |
JZS177,UZS17# |
1 | ||
| 61621-30210 |
JZS177,UZS17# |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-30200 |
JZS177,UZS17# |
1 | ||
| 61622-30200 |
JZS177,UZS17# |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-30901 |
JZS177,UZS17# |
1 | ||
| 61623-30901 |
JZS177,UZS17# |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-30901 |
JZS177,UZS17# |
1 | ||
| 61624-30901 |
JZS177,UZS17# |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-30060 |
JZS177,UZS17# |
1 | ||
| 61625-30060 |
JZS177,UZS17# |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-30060 |
JZS177,UZS17# |
1 | ||
| 61626-30060 |
JZS177,UZS17# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-30180 |
JZS177,UZS17# |
1 | ||
| 61631-30180 |
JZS177,UZS17# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-30180 |
JZS177,UZS17# |
1 | ||
| 61632-30180 |
JZS177,UZS17# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-30220 |
JZS177,UZS175 |
1 | ||
| 61607-30220 |
JZS177,UZS175 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-30210 |
JZS177,UZS175 |
1 | ||
| 61608-30210 |
JZS177,UZS175 |
1 | ||
| 61637 - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61637-30110 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) |
2 | ||
| 61637-30110 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
2 | ||
| 61637-30110 |
JZS177,UZS17# |
2 | ||
| 61638 - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61637-30110 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) |
2 | ||
| 61637-30110 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
2 | ||
| 61637-30110 |
JZS177,UZS17# |
2 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-30050 |
JZS177,UZS17# |
1 | ||
| 61645-30050 |
JZS177,UZS17# |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-30050 |
JZS177,UZS17# |
1 | ||
| 61646-30050 |
JZS177,UZS17# |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-30120 |
JZS177,UZS17# |
1 | ||
| 61711-30120 |
JZS177,UZS17# |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-30120 |
JZS177,UZS17# |
1 | ||
| 61712-30120 |
JZS177,UZS17# |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-30200 |
JZS177,UZS17# |
1 | ||
| 61731-30200 |
JZS177,UZS17# |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-30210 |
JZS177,UZS17# |
1 | ||
| 61732-30210 |
JZS177,UZS17# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-30060 |
JZS177,UZS17# |
1 | ||
| 61735-30060 |
JZS177,UZS17# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-30060 |
JZS177,UZS17# |
1 | ||
| 61736-30060 |
JZS177,UZS17# |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-30170 |
JZS177,UZS17# |
1 | ||
| 64211-30170 |
JZS177,UZS17# |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-30160 |
JZS177,UZS17# |
1 | ||
| 64212-30160 |
JZS177,UZS17# |
1 | ||
| 64213 - EXTENSION, PACKAGE TRAY STRAINER, RH | ||||
| 64213-30090 |
JZS177,UZS17# |
1 | ||
| 64213-30090 |
JZS177,UZS17# |
1 | ||
| 64214 - EXTENSION, PACKAGE TRAY STRAINER, LH | ||||
| 64214-30090 |
JZS177,UZS17# |
1 | ||
| 64214-30090 |
JZS177,UZS17# |
1 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-30230 |
JZS177,UZS175..A |
1 | ||
| 64312-30220 |
JZS177,UZS17# ｱﾘ(ｴｱ ｻｽﾍﾟﾝｼﾖﾝ OR ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 64312-30230 |
JZS177,UZS175..A |
1 | ||
| 64312-30220 |
JZS177,UZS17# ｱﾘ(ｴｱ ｻｽﾍﾟﾝｼﾖﾝ OR ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-30220 |
JZS177,UZS17# ｱﾘ(ｴｱ ｻｽﾍﾟﾝｼﾖﾝ OR ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 64313-30230 |
JZS177,UZS175..A |
1 | ||
| 64313-30220 |
JZS177,UZS17# ｱﾘ(ｴｱ ｻｽﾍﾟﾝｼﾖﾝ OR ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 64313-30230 |
JZS177,UZS175..A |
1 | ||
| Common parts | ||||
| 90119-06355 | ||||
| 90179-08025 | ||||
| 90333-30002 | ||||

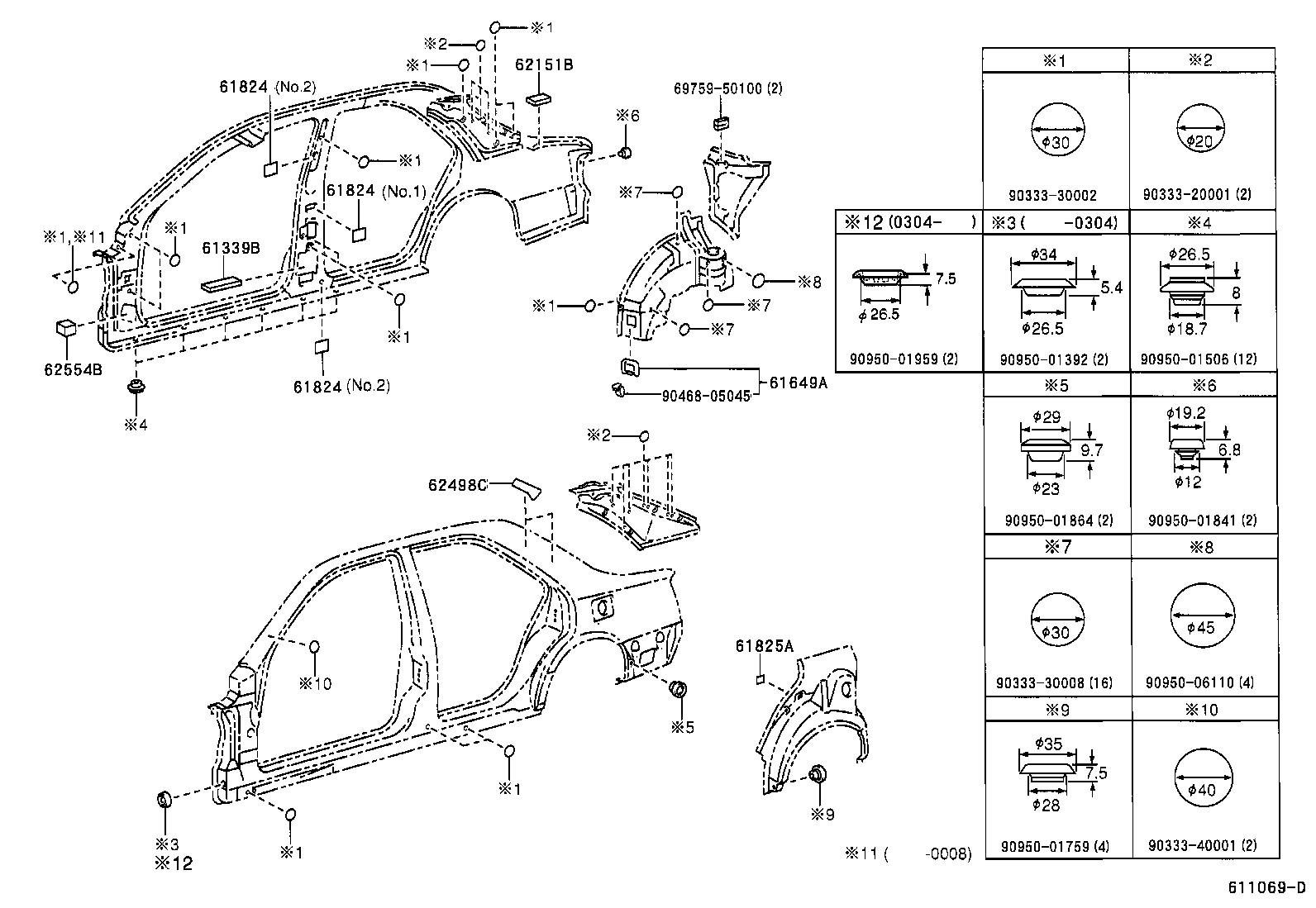

ILLUST NO. 2 OF 2(9909- )JZS177,UZS17#
ﾎｰﾙ ﾌﾟﾗｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-30010 |
GS171,JZS17#,UZS17# |
2 | ||
| 61339-30010 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 61649A - PLATE, QUARTER WHEEL HOUSE | ||||
| 61649-50010 |
JZS177,UZS17# |
2 | ||
| 61649-50010 |
JZS177,UZS17# |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61825-22050 |
JZS17#,UZS17#..SED NO.2 |
4 | ||
| 61824-50020 |
GS171,JKS175,JZS17#,UZS17#..SED NO.1 |
2 | ||
| 61825-22050 |
GS171,JZS17#,UZS17#..SED NO.2 |
2 | ||
| 61825-22050 |
GS171,JKS175,JZS17#,UZS17# NO.2 |
2 | ||
| 61824-50020 |
GS171,JZS17#,UZS17#..SED NO.1 |
2 | ||
| 61824-30080 |
GS171,JKS175,JZS17#,UZS17#..SED NO.1 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61825-22050 |
JZS17#,UZS17#..SED NO.2 |
4 | ||
| 61824-50020 |
GS171,JKS175,JZS17#,UZS17#..SED NO.1 |
2 | ||
| 61825-22050 |
GS171,JZS17#,UZS17#..SED NO.2 |
2 | ||
| 61825-22050 |
GS171,JKS175,JZS17#,UZS17# NO.2 |
2 | ||
| 61824-50020 |
GS171,JZS17#,UZS17#..SED NO.1 |
2 | ||
| 61824-30080 |
GS171,JKS175,JZS17#,UZS17#..SED NO.1 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61825-22050 |
JZS17#,UZS17#..SED NO.2 |
4 | ||
| 61824-50020 |
GS171,JKS175,JZS17#,UZS17#..SED NO.1 |
2 | ||
| 61825-22050 |
GS171,JZS17#,UZS17#..SED NO.2 |
2 | ||
| 61825-22050 |
GS171,JKS175,JZS17#,UZS17# NO.2 |
2 | ||
| 61824-50020 |
GS171,JZS17#,UZS17#..SED NO.1 |
2 | ||
| 61824-30080 |
GS171,JKS175,JZS17#,UZS17#..SED NO.1 |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-22050 |
GS171,JZS17#,UZS17# |
2 | ||
| 61825-22050 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-20160 |
GS171,JZS17#,UZS17#..SED |
2 | ||
| 62151-20160 |
GS171,JKS175,JZS17#,UZS17#..SED |
2 | ||
| 62498C - PAD, ROOF SIDE INNER GARNISH, LH | ||||
| 62498-30080 |
JZS177,UZS17# |
1 | ||
| 62498-30080 |
JZS177,UZS17# |
1 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
JZS177,UZS17# |
10 | ||
| 62554-30010 |
JZS177,UZS17# |
10 | ||
| Common parts | ||||
| 69759-50100 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90333-40001 | ||||
| 90468-05045 | ||||
| 90950-01392 | ||||
| 90950-01506 | ||||
| 90950-01759 | ||||
| 90950-01841 | ||||
| 90950-01864 | ||||
| 90950-01959 | ||||
| 90950-06110 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
