JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta

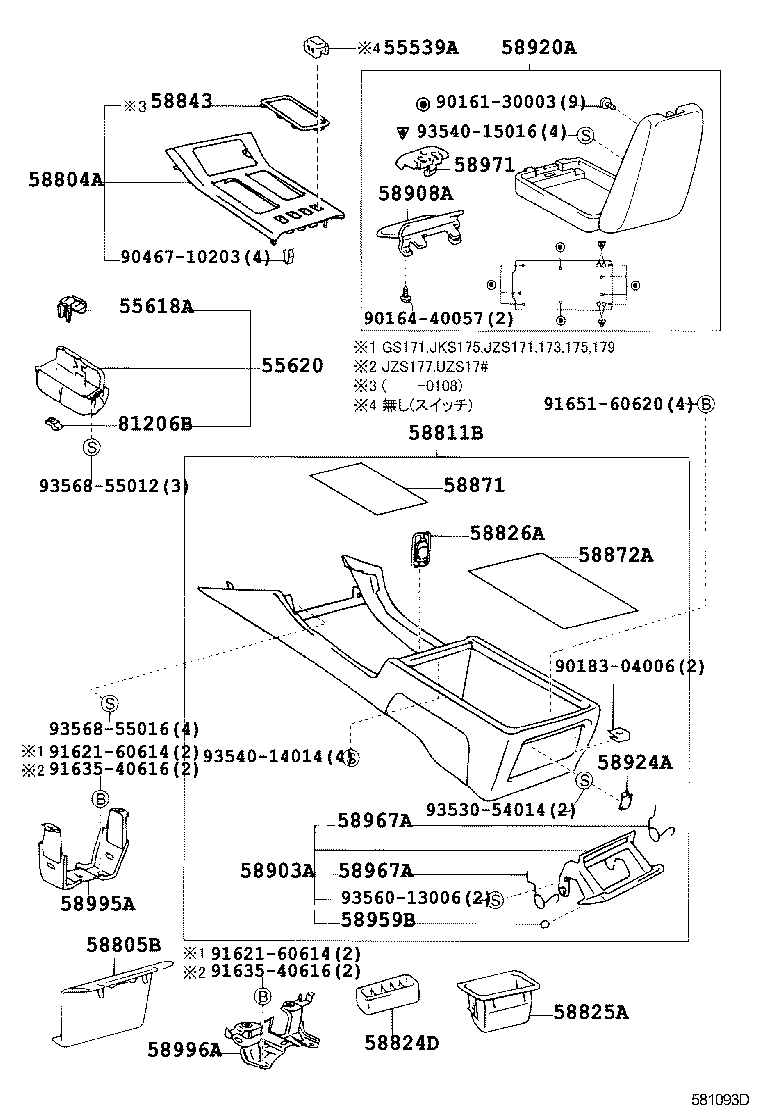

ILLUST NO. 1 OF 2(9909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-30160A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23 |
1 | ||
| 55539-30160B0 |
JZS175..SED..ROY;GS171,JZS171,173,177,179,UZS173,175..A,C,ROY,ROYEX MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 55539-30160A0 |
JZS175..SED..(ATHG,ROY);JZS171,173,177,179,UZS173,175..D4,HTWC,TWC IVORY,TRIM0# |
1 | ||
| 55539-30160B0 |
JZS177,UZS173,175 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 55539-30160A0 |
JZS171,175..SED..(ATHG,ATHV,ROY)..(D4,TWT);GS171,JZS171,173,177,179,UZS173,175..D4,HTWC,TWC IVORY,TRIM0# |
1 | ||
| 55539-30160A0 |
JZS177,UZS173,175 IVORY,TRIM0# |
1 | ||
| 55618A - HOLDER, CONSOLE BOX CUP | ||||
| 55618-30030 |
JZS177,UZS17# |
1 | ||
| 55618-30030 |
GS171,JZS17#,UZS17# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-30090A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23 |
1 | ||
| 55620-30080A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55620-30090A0 |
JZS177,UZS17# IVORY,TRIM0# |
1 | ||
| 55620-30090B0 |
JZS177,UZS17# MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 55620-30080B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-30380A0 |
JZS171,175,177,UZS17#..SED..(A,ATHG,C,ROY,ROYG) ｱﾘ(4 ｽｲﾂﾁ ﾎ-ﾙ),IVORY,TRIM0# |
1 | ||
| 58804-30390B0 |
GS171,JZS17#,UZS175..A,ROY,ROYEX ｱﾘ(2 ｽｲﾂﾁ ﾎ-ﾙ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58804-30380A0 |
JZS171,175,177,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) ｱﾘ(4 ｽｲﾂﾁ ﾎ-ﾙ),IVORY,TRIM0# |
1 | ||
| 58804-30430A0 |
JZS177,UZS17# ｱﾘ(4 ｽｲﾂﾁ ﾎ-ﾙ),IVORY,TRIM0# |
1 | ||
| 58804-30390A0 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX ｱﾘ(2 ｽｲﾂﾁ ﾎ-ﾙ),IVORY,TRIM0# |
1 | ||
| 58804-30380B0 |
JZS171,175,177,UZS17#..SED..(A,C,ROY,ROYG) ｱﾘ(4 ｽｲﾂﾁ ﾎ-ﾙ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58804-30430B0 |
JZS177,UZS17# ｱﾘ(4 ｽｲﾂﾁ ﾎ-ﾙ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58804-30440B0 |
JZS177,UZS175..A ｱﾘ(2 ｽｲﾂﾁ ﾎ-ﾙ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58804-30430A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23 |
1 | ||
| 58804-30440A0 |
JZS177,UZS175..A ｱﾘ(2 ｽｲﾂﾁ ﾎ-ﾙ),IVORY,TRIM0# |
1 | ||
| 58805B - PANEL SUB-ASSY, CONSOLE, LOWER | ||||
| 58805-30140 |
GS171,JZS17#,UZS17# |
1 | ||
| 58805-30140 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58811-30320C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 58811-30320A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 58811-30320B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 58811-30320A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 58811-30320B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 58824D - BOX, CONSOLE COIN | ||||
| 58824-30040 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 58824-30040 |
GS171,JZS17#,UZS17# |
1 | ||
| 58826A - POCKET, CONSOLE BOX, LOWER | ||||
| 58826-30140 |
GS171,JZS17#,UZS17# |
1 | ||
| 58826-30140 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-30110 |
GS171,JZS17#,UZS17# |
1 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 58871-30060 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 58871-30060 |
GS171,JZS17#,UZS17# |
1 | ||
| 58872A - CUSHION, CONSOLE BOX, NO.2 | ||||
| 58872-30030 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 58872-30030 |
GS171,JZS17#,UZS17# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-30190C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 58903-30190B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 58903-30190A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 58903-30190A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 58903-30190B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-30050 |
GS171,JZS17#,UZS17# |
1 | ||
| 58908-30050 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-30080A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 58920-30080A0 |
UZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT) ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 58920-30070B0 |
JZS177,UZS17# ﾄﾘﾑ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58920-30080A0 |
UZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 58920-30080C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 58920-30070A0 |
JZS177,UZS17# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 58920-30080A0 |
UZS175;JKS175,JZS175,177,UZS171,173..C,ROY,ROYG ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 58920-30100B0 |
JZS177,UZS17# ﾄﾘﾑ = TYPE B-*104,CHARCORL,TRIM1# |
1 | ||
| 58920-30100A0 |
JZS177,UZS17# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 58924A - PANEL, CONSOLE REAR END, NO.2 | ||||
| 58924-30100B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
2 | ||
| 58924-30100A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
2 | ||
| 58924-30100A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
2 | ||
| 58924-30100C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 58924-30100B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
2 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16020 |
GS171,JKS175,JZS17#,UZS17#..A,ATHG,ATHV,C,ROY,ROYEX,ROYG |
2 | ||
| 58959-16020 |
GS171,JZS17#,UZS17# |
2 | ||
| 58967A - SPRING, CONSOLE DOOR STOPPER | ||||
| 58967-30050 |
GS171,JZS17#,UZS17# 右側 |
1 | ||
| 58967-30090 |
GS171,JKS175,JZS17#,UZS17# 左側 |
1 | ||
| 58967-30050 |
GS171,JKS175,JZS17#,UZS17# 右側 |
1 | ||
| 58967-30090 |
GS171,JZS17#,UZS17# 左側 |
1 | ||
| 58967A - SPRING, CONSOLE DOOR STOPPER | ||||
| 58967-30050 |
GS171,JZS17#,UZS17# 右側 |
1 | ||
| 58967-30090 |
GS171,JKS175,JZS17#,UZS17# 左側 |
1 | ||
| 58967-30050 |
GS171,JKS175,JZS17#,UZS17# 右側 |
1 | ||
| 58967-30090 |
GS171,JZS17#,UZS17# 左側 |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-30080A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 58971-30080C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 58971-30080A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 58971-30080B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 58971-30080B1 |
GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-30190 |
JZS177,UZS17# |
1 | ||
| 58995-30190 |
JZS177,UZS17# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-30120 |
JZS177,UZS17# |
1 | ||
| 58996-30120 |
JZS177,UZS17# |
1 | ||
| 81206B - LAMP SUB-ASSY, CONSOLE BOX | ||||
| 81206-30020 |
GS171,JZS17#,UZS17# |
1 | ||
| 81206-30020 |
JZS177,UZS17# |
1 | ||
| Common parts | ||||
| 90161-30003 | ||||
| 90164-40057 | ||||
| 90183-04006 | ||||
| 90467-10203 | ||||
| 91621-60614 | ||||
| 91635-40616 | ||||
| 91651-60620 | ||||
| 93530-54014 | ||||
| 93540-14014 | ||||
| 93540-15016 | ||||
| 93560-13006 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
ILLUST NO. 2 OF 2(9909-0108)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0108- )
| Part # | Description | Qty | Price |
|---|
