JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS171,175

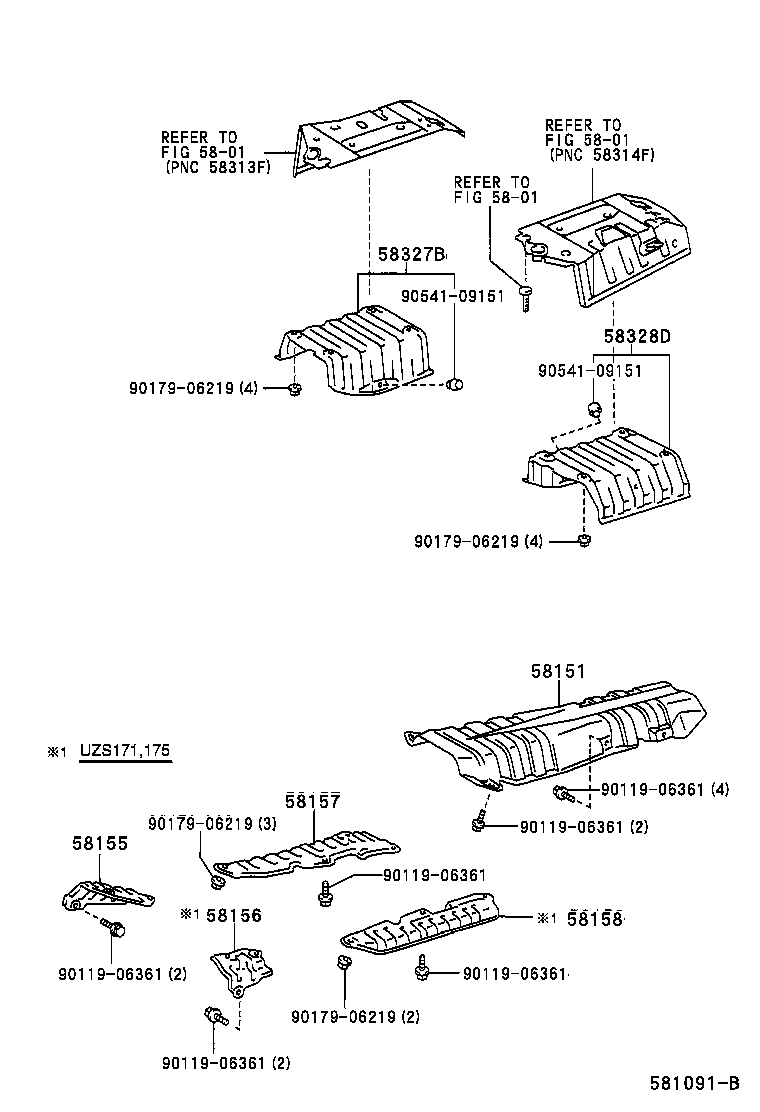

Click highlighted areas on diagram

diagram 5801 5801 5801 58151 58155 58156 58157 58158 58327B 58328D 9011906361 9011906361 9011906361 9011906361 9011906361 9011906361 9017906219 9017906219 9017906219 9017906219 9054109151 9054109151
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-30110

JZS177,UZS171,175

 1
58151-30110

JZS177,UZS171,175

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-30030

JZS177,UZS171,175

 1
58155-30030

JZS177,UZS171,175

 1
58157 - INSULATOR, FRONT FLOOR HEAT, NO.5
58157-30050

JZS177,UZS171,175

 1
58157-30050

JZS177,UZS171,175

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-30030

JZS177,UZS17#

 1
58327-30030

JZS177,UZS17#

 1
58328D - INSULATOR, MAIN MUFFLER HEAT, LH
58328-30020

JZS177,UZS17#

 1
58328-30020

JZS177,UZS17#

 1
Common parts
90119-06361
90179-06219
90541-09151
Linked diagrams
5801
