JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS17#

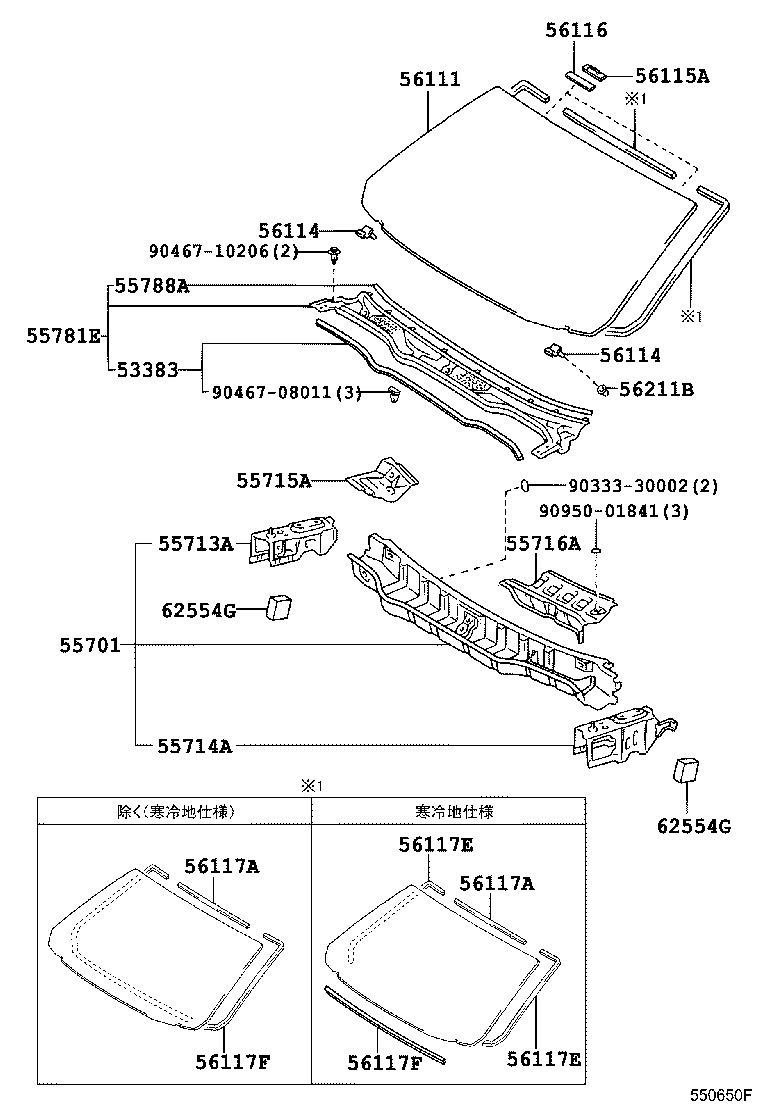

Click highlighted areas on diagram

diagram 53383 55701 55713A 55714A 55715A 55716A 55781E 55788A 56111 56114 56114 56115A 56116 56117A 56117A 56117E 56117E 56117F 56117F 56211B 62554G 62554G 9033330002 9046708011 9046710206 9095001841
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-30180

JZS177,UZS17#

 1
53383-30180

JZS177,UZS17#

 1
55701 - PANEL SUB-ASSY, COWL
55700-3A130

JZS177,UZS17#

 1
55700-3A140

JZS177,UZS17#

ｱﾘ(ｳｲﾝﾄﾞｼ-ﾙﾄﾞ ﾃﾞｱｲｻ = ﾎﾂﾄﾊﾟﾈﾙ ﾋ-ﾀ)

 1
55700-3A141

JZS177,UZS17#

ｱﾘ(ｳｲﾝﾄﾞｼ-ﾙﾄﾞ ﾃﾞｱｲｻ = ﾎﾂﾄﾊﾟﾈﾙ ﾋ-ﾀ)

 1
55700-3A131

JZS177,UZS17#

 1
55700-3A141

JZS177,UZS17#

ｱﾘ(ｳｲﾝﾄﾞｼ-ﾙﾄﾞ ﾃﾞｱｲｻ = ﾎﾂﾄﾊﾟﾈﾙ ﾋ-ﾀ)

 1
55700-3A131

JZS177,UZS17#

 1
55713A - PANEL, COWL TOP SIDE, RH
55705-30051

JZS177,UZS17#

 1
55705-30050

JZS177,UZS17#

 1
55705-30051

JZS177,UZS17#

 1
55714A - PANEL, COWL TOP SIDE, LH
55706-30060

JZS177,UZS17#

 1
55706-30060

JZS177,UZS17#

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-30100

JZS177,UZS17#

 1
55715-30100

JZS177,UZS17#

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-30120

JZS177,UZS17#

 1
55716-30120

JZS177,UZS17#

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-30070

JZS177,UZS17#

 1
55708-30080

JZS177,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55708-30080

JZS177,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55708-30070

JZS177,UZS17#

 1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-30130

JZS177,UZS17#

 1
55788-30130

JZS177,UZS17#

 1
56111 - GLASS, WINDSHIELD
56111-3A470

JZS177,UZS17#

*TL,T=5.3,ｸﾞﾘｰﾝ

 1
56101-30800

JZS177,UZS17#

*LAM,T=5.3,ｸﾞﾘｰﾝ,ｶﾝﾚｲﾁ ｼﾖｳ

 1
56111-3A550

JZS177,UZS17#

*LAM,T=5.3,ｸﾞﾘｰﾝ,ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56101-30710

JZS177,UZS17#

*TL,T=5.3,ｸﾞﾘｰﾝ,ｶﾝﾚｲﾁ ｼﾖｳ

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-50020

GS171,JZS17#,UZS17#

 2
56114-50020

GS171,JKS175,JZS17#,UZS17#

 2
56114 - RETAINER, WINDSHIELD GLASS
56114-50020

GS171,JZS17#,UZS17#

 2
56114-50020

GS171,JKS175,JZS17#,UZS17#

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

GS171,JKS175,JZS17#,UZS17#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
56115-30100

JZS177,UZS17#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
56116 - SPACER, WINDSHIELD GLASS
56116-22050

GS171,JKS175,JZS17#,UZS17#

 2
56116-22050

GS171,JZS17#,UZS17#

 2
56117A - DAM, WINDOW GLASS ADHESIVE
64813-52010

GS171,JZS17#,UZS17#

*H,L=650

 1
64813-52010

JZS177,UZS17#

*H,L=665

 1
56117A - DAM, WINDOW GLASS ADHESIVE
64813-52010

GS171,JZS17#,UZS17#

*H,L=650

 1
64813-52010

JZS177,UZS17#

*H,L=665

 1
56117E - DAM, WINDOW GLASS ADHESIVE
56117-30300

GS171,JZS17#,UZS17#

*D,L=900,ｶﾝﾚｲﾁ ｼﾖｳ

 2
56117E - DAM, WINDOW GLASS ADHESIVE
56117-30300

GS171,JZS17#,UZS17#

*D,L=900,ｶﾝﾚｲﾁ ｼﾖｳ

 2
56117F - DAM, WINDOW GLASS ADHESIVE
56117-44030

GS171,JZS17#,UZS17#

*D,L=1405,ｶﾝﾚｲﾁ ｼﾖｳ

 1
56117-44030

JZS177,UZS17#

*D,L=3235

 1
56117-30320

GS171,JZS17#,UZS17#

*D,L=3235

 1
56117F - DAM, WINDOW GLASS ADHESIVE
56117-44030

GS171,JZS17#,UZS17#

*D,L=1405,ｶﾝﾚｲﾁ ｼﾖｳ

 1
56117-44030

JZS177,UZS17#

*D,L=3235

 1
56117-30320

GS171,JZS17#,UZS17#

*D,L=3235

 1
56211B - CUSHION, WINDSHIELD
56211-30010

JZS177,UZS17#

 1
56211-30010

JZS177,UZS17#

 1
62554G - PAD, PILLAR, NO.4
62554-30010

JZS177,UZS17#

 2
62554-30010

JZS177,UZS17#

 2
62554G - PAD, PILLAR, NO.4
62554-30010

JZS177,UZS17#

 2
62554-30010

JZS177,UZS17#

 2
Common parts
90333-30002
90467-08011
90467-10206
90950-01841
