JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS17#

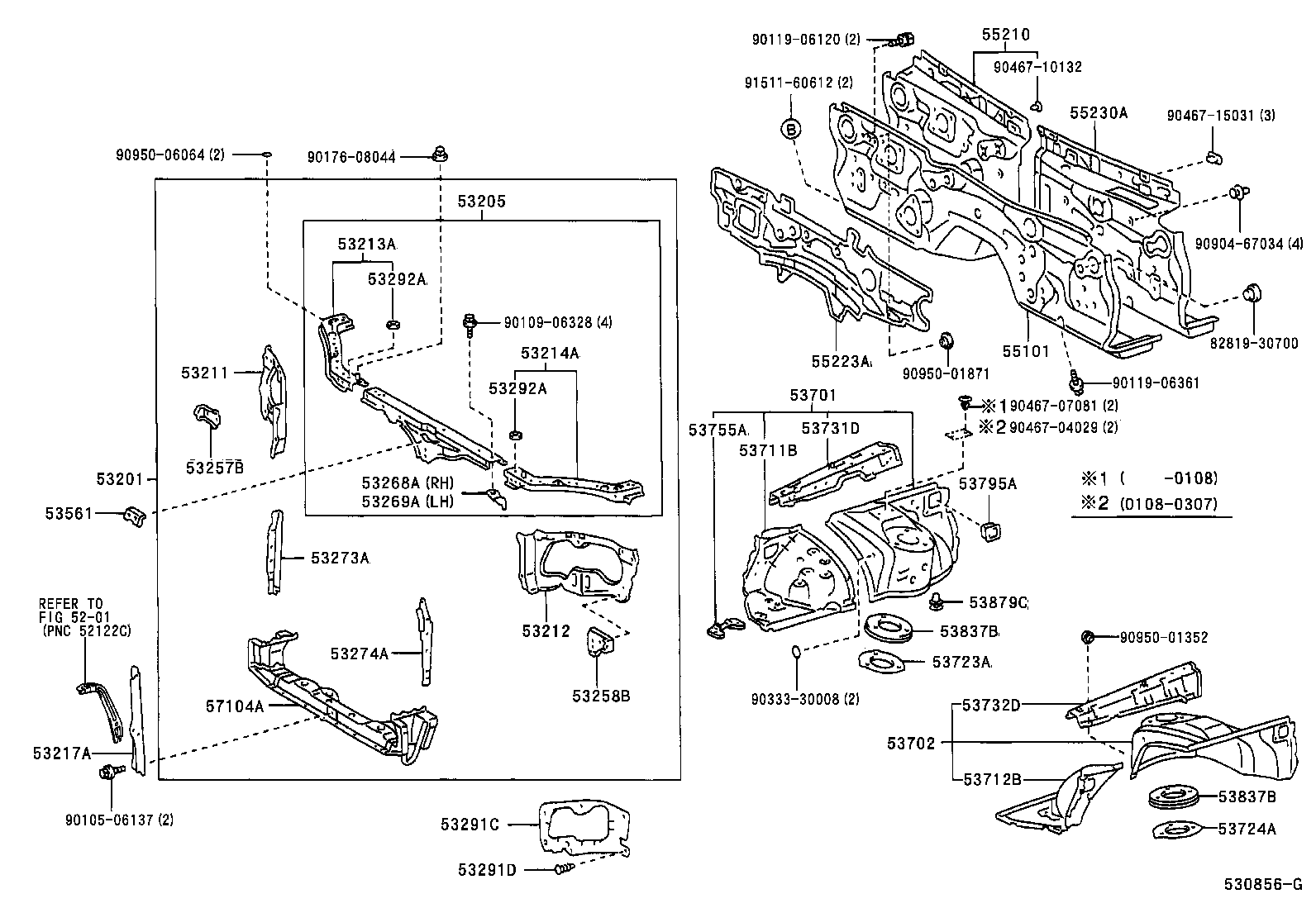

Click highlighted areas on diagram

diagram 5201 53201 53205 53211 53212 53213A 53214A 53217A 53257B 53258B 53268A 53269A 53273A 53274A 53291C 53291D 53292A 53292A 53561 53701 53702 53711B 53712B 53723A 53724A 53731D 53732D 53755A 53795A 53837B 53837B 53879C 55101 55210 55223A 55230A 57104A 8281930700 9010506137 9010906328 9011906120 9011906361 9017608044 9033330008 9046704029 9046707081 9046710132 9046715031 9090467034 9095001352 9095001871 9095006064 9151160612
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-30511

JZS177,UZS171,175

 1
53201-30511

JZS177,UZS171,175

 1
53201-30521

JZS177,UZS171,175

 1
53201-30510

JZS177,UZS171,175

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-30061

JZS177,UZS17#

 1
53205-30061

JZS177,UZS17#

 1
53205-30060

JZS177,UZS17#

 1
53211 - SUPPORT, RADIATOR, RH
53211-30300

JZS177,UZS17#

 1
53211-30300

JZS177,UZS17#

 1
53212 - SUPPORT, RADIATOR, LH
53212-30241

JZS177,UZS17#

 1
53212-30241

JZS177,UZS17#

 1
53212-30240

JZS177,UZS17#

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-30060

JZS177,UZS17#

 1
53213-30060

JZS177,UZS17#

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-30051

JZS177,UZS17#

 1
53214-30051

JZS177,UZS17#

 1
53214-30050

JZS177,UZS17#

 1
53217A - BRACE, HOOD LOCK SUPPORT
53217-30200

JZS177,UZS17#

 1
53217-30200

JZS177,UZS17#

 1
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-30050

JZS177,UZS17#

 1
53257-30050

JZS177,UZS17#

 1
53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53258-30030

JZS177,UZS17#

 1
53258-30030

JZS177,UZS17#

 1
53268A - REINFORCEMENT, RADIATOR MOUNTING, RH
53268-30110

JZS177,UZS17#

 1
53268-30110

JZS177,UZS17#

 1
53269A - REINFORCEMENT, RADIATOR MOUNTING, LH
53268-30110

JZS177,UZS17#

 1
53268-30110

JZS177,UZS17#

 1
53273A - REINFORCEMENT, RADIATOR SUPPORT, RH
53273-30040

JZS177,UZS17#

 1
53273-30040

JZS177,UZS17#

 1
53274A - REINFORCEMENT, RADIATOR SUPPORT, LH
53274-30020

JZS177,UZS17#

 1
53274-30020

JZS177,UZS17#

 1
53291C - SEAL, RADIATOR SUPPORT TO FRAME
53291-30120

JZS177,UZS17#

 2
53291-30120

JZS177,UZS17#

 2
53291D - CLIP, RADIATOR SUPPORT TO FRAME
90467-08188

JZS177,UZS17#

 10
90467-08188

JZS177,UZS17#

 10
53292A - SEAL, RADIATOR SUPPORT, UPPER
53882-30040

JZS177,UZS17#

 6
53882-30040

JZS177,UZS17#

 6
53292A - SEAL, RADIATOR SUPPORT, UPPER
53882-30040

JZS177,UZS17#

 6
53882-30040

JZS177,UZS17#

 6
53561 - GUIDE, HOOD AUXILIARY CATCH HOOK
53561-30010

GS171,JKS175,JZS17#,UZS17#

 1
53561-30010

GS171,JZS17#,UZS17#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-3A190

JZS177,UZS175

 1
53701-3A191

JZS177,UZS175

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-30750

JZS177,UZS175

 1
53702-30751

JZS177,UZS175

 1
53702-30751

JZS177,UZS175

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-3A020

JZS177,UZS17#

 1
53711-3A020

JZS177,UZS17#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-30620

JZS177,UZS17#

 1
53712-30620

JZS177,UZS17#

 1
53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH
53723-30030

JZS177,UZS17#

 1
53723-30030

JZS177,UZS17#

 1
53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH
53723-30030

JZS177,UZS17#

 1
53723-30030

JZS177,UZS17#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-30906

JZS177,UZS17#

 1
53731-30906

JZS177,UZS17#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-30905

JZS177,UZS17#

 1
53732-30905

JZS177,UZS17#

 1
53755A - REINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1
53755-30030

JZS177,UZS17#

 1
53795A - COVER, ENGINE ROOM, SIDE
53795-30030

JZS177,UZS17#

 2
53795-30030

JZS177,UZS17#

 2
53879C - RETAINER, FRONT FENDER LINER
53879-50010

JZS177,UZS17#

 6
53879-50010

JZS177,UZS17#

 6
55101 - PANEL SUB-ASSY, DASH
55101-3A490

JZS177,UZS171,175

 1
55101-3A491

JZS177,UZS171,175

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-30350

JZS177,UZS171,175

 1
55210-30351

JZS177,UZS171,175

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-30180

JZS177,UZS17#

 1
55223-30180

JZS177,UZS17#

 1
55230A - INSULATOR ASSY, DASH PANEL, NO.4
55230-30140

JZS177,UZS171,175

 1
55230-30140

JZS177,UZS171,175

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-30060

JZS177,UZS171,175

 1
57104-30060

JZS177,UZS171,175

 1
Common parts
82819-30700
90105-06137
90109-06328
90119-06120
90119-06361
90176-08044
90333-30008
90467-04029
90467-07081
90467-10132
90467-15031
90904-67034
90950-01352
90950-01871
90950-06064
91511-60612
Linked diagrams
5201
