JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )

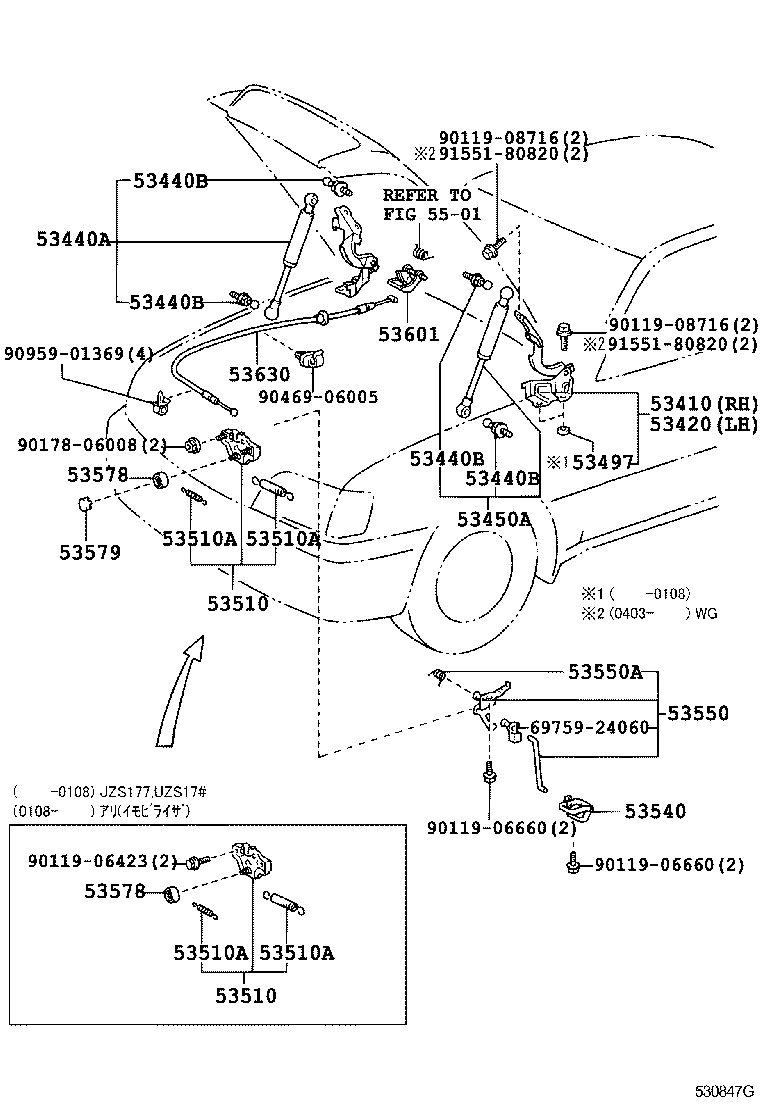

Click highlighted areas on diagram

diagram 53410 53420 53440A 53440B 53440B 53440B 53440B 53450A 53497 53510 53510 53510A 53510A 53510A 53510A 53540 53550 53550A 53578 53578 53579 53601 53630 5501 6975924060 9011906423 9011906660 9011906660 9011908716 9011908716 9017806008 9046906005 9095901369 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-30160

GS171,JZS17#,UZS17#

 1
53420 - HINGE ASSY, HOOD, LH
53420-30160

GS171,JZS17#,UZS17#

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-39195

JZS177,UZS17#

 1
53440-39195

JZS177,UZS17#

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-50010

JZS177,UZS17#

 4
68961-20051

GS171,JKS175,JZS17#,UZS17#

 4
53440B - BOLT, HOOD SUPPORT, NO.1
68961-50010

JZS177,UZS17#

 4
68961-20051

GS171,JKS175,JZS17#,UZS17#

 4
53440B - BOLT, HOOD SUPPORT, NO.1
68961-50010

JZS177,UZS17#

 4
68961-20051

GS171,JKS175,JZS17#,UZS17#

 4
53440B - BOLT, HOOD SUPPORT, NO.1
68961-50010

JZS177,UZS17#

 4
68961-20051

GS171,JKS175,JZS17#,UZS17#

 4
53450A - SUPPORT ASSY, HOOD, LH
53450-39175

JZS177,UZS17#

 1
53450-39175

JZS177,UZS17#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-20070

GS171,JZS17#,UZS17#

厚さ=2.0

 4
53497-50020

GS171,JZS17#,UZS17#

厚さ=1.0

 4
53497-50030

GS171,JZS17#,UZS17#

厚さ=2.0

 4
53510 - LOCK ASSY, HOOD
53510-50040

JZS177,UZS17#

 1
53510-50090

JKS175,JZS171,175,177,179,UZS17#

ｱﾘ(ﾄｳﾅﾝ ﾎﾞｳｼ ｼｽﾃﾑ:ｲﾓﾋﾞﾗｲｻﾞ)

 1
53510 - LOCK ASSY, HOOD
53510-50040

JZS177,UZS17#

 1
53510-50090

JKS175,JZS171,175,177,179,UZS17#

ｱﾘ(ﾄｳﾅﾝ ﾎﾞｳｼ ｼｽﾃﾑ:ｲﾓﾋﾞﾗｲｻﾞ)

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09050

GS171,JZS17#,UZS17#

線径=0.9,ｺｲﾙ巻数=20.5

 1
90506-18068

JZS177,UZS17#

線径=1.8,ｺｲﾙ巻数=18

 1
90506-18068

JKS175,JZS171,175,177,179,UZS17#

線径=1.8,ｺｲﾙ巻数=18,ｱﾘ(ﾄｳﾅﾝ ﾎﾞｳｼ ｼｽﾃﾑ:ｲﾓﾋﾞﾗｲｻﾞ)

 1
90506-09050

GS171,JKS175,JZS17#,UZS17#

線径=0.9,ｺｲﾙ巻数=20.5

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09050

GS171,JZS17#,UZS17#

線径=0.9,ｺｲﾙ巻数=20.5

 1
90506-18068

JZS177,UZS17#

線径=1.8,ｺｲﾙ巻数=18

 1
90506-18068

JKS175,JZS171,175,177,179,UZS17#

線径=1.8,ｺｲﾙ巻数=18,ｱﾘ(ﾄｳﾅﾝ ﾎﾞｳｼ ｼｽﾃﾑ:ｲﾓﾋﾞﾗｲｻﾞ)

 1
90506-09050

GS171,JKS175,JZS17#,UZS17#

線径=0.9,ｺｲﾙ巻数=20.5

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09050

GS171,JZS17#,UZS17#

線径=0.9,ｺｲﾙ巻数=20.5

 1
90506-18068

JZS177,UZS17#

線径=1.8,ｺｲﾙ巻数=18

 1
90506-18068

JKS175,JZS171,175,177,179,UZS17#

線径=1.8,ｺｲﾙ巻数=18,ｱﾘ(ﾄｳﾅﾝ ﾎﾞｳｼ ｼｽﾃﾑ:ｲﾓﾋﾞﾗｲｻﾞ)

 1
90506-09050

GS171,JKS175,JZS17#,UZS17#

線径=0.9,ｺｲﾙ巻数=20.5

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09050

GS171,JZS17#,UZS17#

線径=0.9,ｺｲﾙ巻数=20.5

 1
90506-18068

JZS177,UZS17#

線径=1.8,ｺｲﾙ巻数=18

 1
90506-18068

JKS175,JZS171,175,177,179,UZS17#

線径=1.8,ｺｲﾙ巻数=18,ｱﾘ(ﾄｳﾅﾝ ﾎﾞｳｼ ｼｽﾃﾑ:ｲﾓﾋﾞﾗｲｻﾞ)

 1
90506-09050

GS171,JKS175,JZS17#,UZS17#

線径=0.9,ｺｲﾙ巻数=20.5

 1
53540 - LEVER ASSY, AUXILIARY CATCH RELEASE
53540-30020

GS171,JZS17#,UZS17#

 1
53540-30020

GS171,JKS175,JZS17#,UZS17#

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-30100

JZS177,UZS17#

 1
53550-30100

JZS177,UZS17#

 1
53550A - SPRING, TORSION(FOR HOOD LOCK HOOK)
90508-18102

GS171,JKS175,JZS17#,UZS17#

 1
90508-18102

GS171,JZS17#,UZS17#

 1
53578 - NUT, HOOD LOCK
53578-50010

GS171,JZS17#,UZS17#

 1
53578-50010

GS171,JKS175,JZS17#,UZS17#

 1
53578 - NUT, HOOD LOCK
53578-50010

GS171,JZS17#,UZS17#

 1
53578-50010

GS171,JKS175,JZS17#,UZS17#

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53611-22010B2

GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

MD.CHARCOAL,TRIM1#

 1
53611-22010A0

GS171,JZS17#,UZS17#

IVORY,TRIM0#

 1
53611-22010A0

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

 1
53611-22010B2

GS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

MD.CHARCOAL,TRIM1#

 1
53611-22010C0

JZS177,UZS171,173..C

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-30270

JZS177,UZS17#

 1
53630-30290

JZS177,UZS17#

 1
Common parts
69759-24060
90119-06423
90119-06660
90119-08716
90178-06008
90469-06005
90959-01369
91551-80820
Linked diagrams
5501
