JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

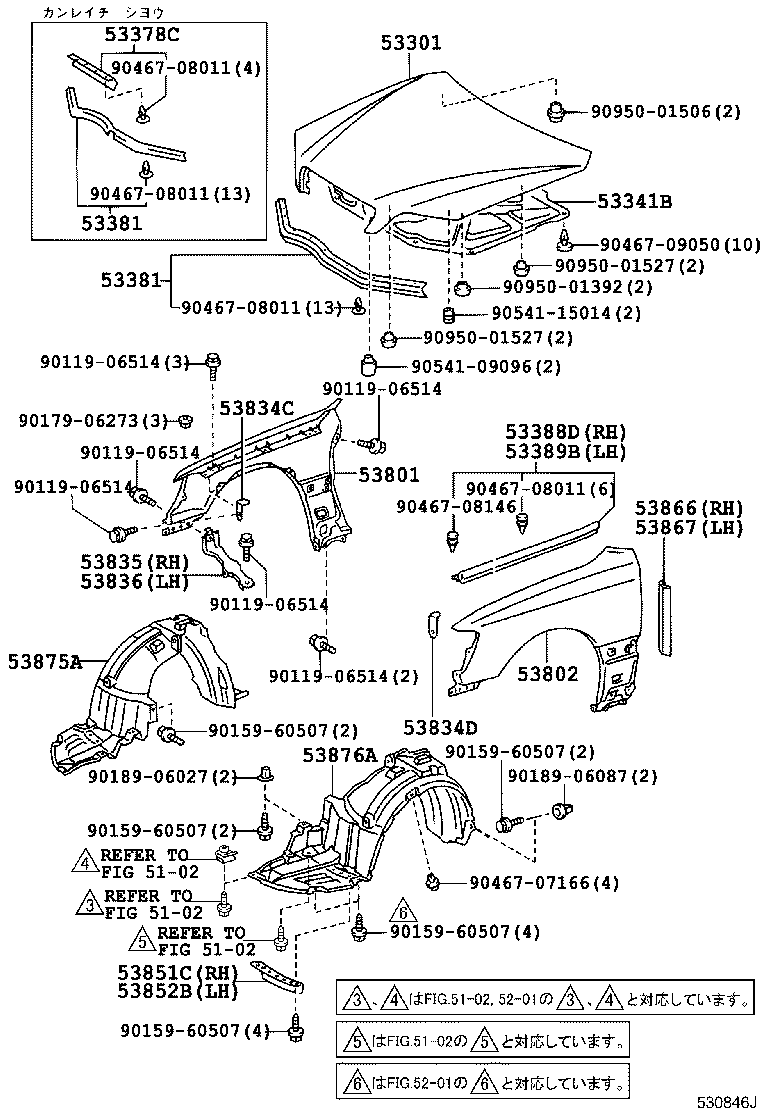

(9909-0104)JZS177,UZS17#

Click highlighted areas on diagram

diagram 5102 5102 5102 53301 53341B 53378C 53381 53381 53388D 53389B 53801 53802 53834C 53834D 53835 53836 53851C 53852B 53866 53867 53875A 53876A 9011906514 9011906514 9011906514 9011906514 9011906514 9011906514 9015960507 9015960507 9015960507 9015960507 9015960507 9017906273 9018906027 9018906087 9046707166 9046708011 9046708011 9046708011 9046708011 9046708146 9046709050 9054109096 9054115014 9095001392 9095001506 9095001527 9095001527
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-30400

JZS177,UZS17#

 1
53301-30400

JZS177,UZS17#

 1
53341B - INSULATOR, HOOD
53341-30230

JZS177,UZS17#

 1
53341-30230

JZS177,UZS17#

 1
53378C - SEAL, HOOD AIR INTAKE DUCT
53378-30070

JZS177,UZS17#

 1
53378-30070

JZS177,UZS17#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-30210

JZS177,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53381-30210

JZS177,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53381-30200

JZS177,UZS17#

 1
53381-30200

JZS177,UZS17#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-30210

JZS177,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53381-30210

JZS177,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53381-30200

JZS177,UZS17#

 1
53381-30200

JZS177,UZS17#

 1
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-30030

JZS177,UZS17#

 1
53388-30030

JZS177,UZS17#

 1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-30030

JZS177,UZS17#

 1
53389-30030

JZS177,UZS17#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-3F360

JZS177,UZS17#

 1
53801-3F360

JZS177,UZS17#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-3F180

JZS177,UZS17#

 1
53802-3F180

JZS177,UZS17#

 1
53834C - PLATE, FRONT FENDER SUPPORT, RH
53834-30110

JZS177,UZS17#

 1
53834D - PLATE, FRONT FENDER SUPPORT, LH
53834-30110

JZS177,UZS17#

 1
53835 - BRACE, FRONT FENDER TO EXTENSION, RH
53835-30090

JZS177,UZS17#

 1
53835-30090

JZS177,UZS17#

 1
53836 - BRACE, FRONT FENDER TO EXTENSION, LH
53835-30090

JZS177,UZS17#

 1
53835-30090

JZS177,UZS17#

 1
53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1
53851-30040

JZS177,UZS17#

 1
53851-30040

JZS177,UZS17#

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-30040

JZS177,UZS17#

 1
53852-30040

JZS177,UZS17#

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-30100

GS171,JKS175,JZS17#,UZS17#

 1
53866-30100

GS171,JZS17#,UZS17#

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-30100

GS171,JZS17#,UZS17#

 1
53867-30100

GS171,JKS175,JZS17#,UZS17#

 1
53875A - LINER, FRONT FENDER, RH
53805-30030

JZS177,UZS171,175

 1
53805-30030

JZS177,UZS171,175

 1
53876A - LINER, FRONT FENDER, LH
53806-30040

JZS177,UZS171,175

 1
53806-30040

JZS177,UZS171,175

 1
Common parts
90119-06514
90159-60507
90179-06273
90189-06027
90189-06087
90467-07166
90467-08011
90467-08146
90467-09050
90541-09096
90541-15014
90950-01392
90950-01506
90950-01527
Linked diagrams
5102

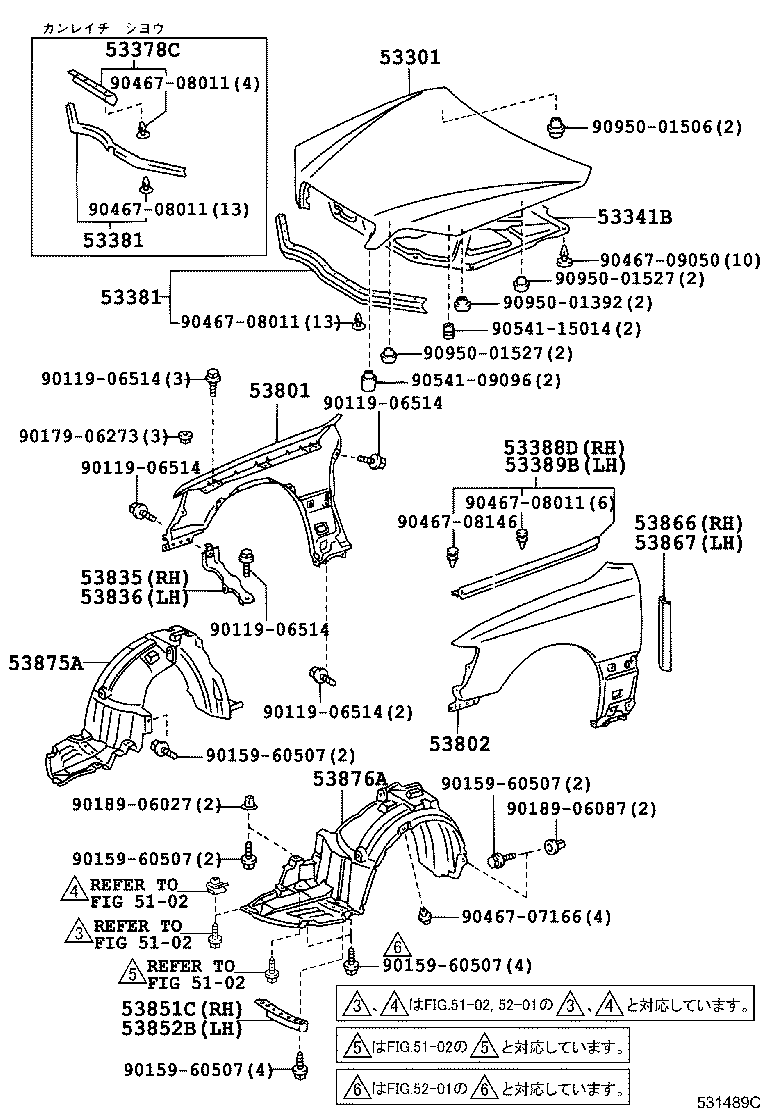

(0104- )JZS177,UZS17#

Click highlighted areas on diagram

diagram 5102 5102 5102 53301 53341B 53378C 53381 53381 53388D 53389B 53801 53802 53835 53836 53851C 53852B 53866 53867 53875A 53876A 9011906514 9011906514 9011906514 9011906514 9011906514 9015960507 9015960507 9015960507 9015960507 9015960507 9017906273 9018906027 9018906087 9046707166 9046708011 9046708011 9046708011 9046708011 9046708146 9046709050 9054109096 9054115014 9095001392 9095001506 9095001527 9095001527
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-30400

JZS177,UZS17#

 1
53301-30400

JZS177,UZS17#

 1
53341B - INSULATOR, HOOD
53341-30230

JZS177,UZS17#

 1
53341-30230

JZS177,UZS17#

 1
53378C - SEAL, HOOD AIR INTAKE DUCT
53378-30070

JZS177,UZS17#

 1
53378-30070

JZS177,UZS17#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-30210

JZS177,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53381-30210

JZS177,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53381-30200

JZS177,UZS17#

 1
53381-30200

JZS177,UZS17#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-30210

JZS177,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53381-30210

JZS177,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53381-30200

JZS177,UZS17#

 1
53381-30200

JZS177,UZS17#

 1
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-30030

JZS177,UZS17#

 1
53388-30030

JZS177,UZS17#

 1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-30030

JZS177,UZS17#

 1
53389-30030

JZS177,UZS17#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-3F360

JZS177,UZS17#

 1
53801-3F360

JZS177,UZS17#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-3F180

JZS177,UZS17#

 1
53802-3F180

JZS177,UZS17#

 1
53835 - BRACE, FRONT FENDER TO EXTENSION, RH
53835-30090

JZS177,UZS17#

 1
53835-30090

JZS177,UZS17#

 1
53836 - BRACE, FRONT FENDER TO EXTENSION, LH
53835-30090

JZS177,UZS17#

 1
53835-30090

JZS177,UZS17#

 1
53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1
53851-30040

JZS177,UZS17#

 1
53851-30040

JZS177,UZS17#

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-30040

JZS177,UZS17#

 1
53852-30040

JZS177,UZS17#

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-30100

GS171,JKS175,JZS17#,UZS17#

 1
53866-30100

GS171,JZS17#,UZS17#

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-30100

GS171,JZS17#,UZS17#

 1
53867-30100

GS171,JKS175,JZS17#,UZS17#

 1
53875A - LINER, FRONT FENDER, RH
53805-30030

JZS177,UZS171,175

 1
53805-30030

JZS177,UZS171,175

 1
53876A - LINER, FRONT FENDER, LH
53806-30040

JZS177,UZS171,175

 1
53806-30040

JZS177,UZS171,175

 1
Common parts
90119-06514
90159-60507
90179-06273
90189-06027
90189-06087
90467-07166
90467-08011
90467-08146
90467-09050
90541-09096
90541-15014
90950-01392
90950-01506
90950-01527
Linked diagrams
5102
