JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909-0406)JZS177,UZS17#

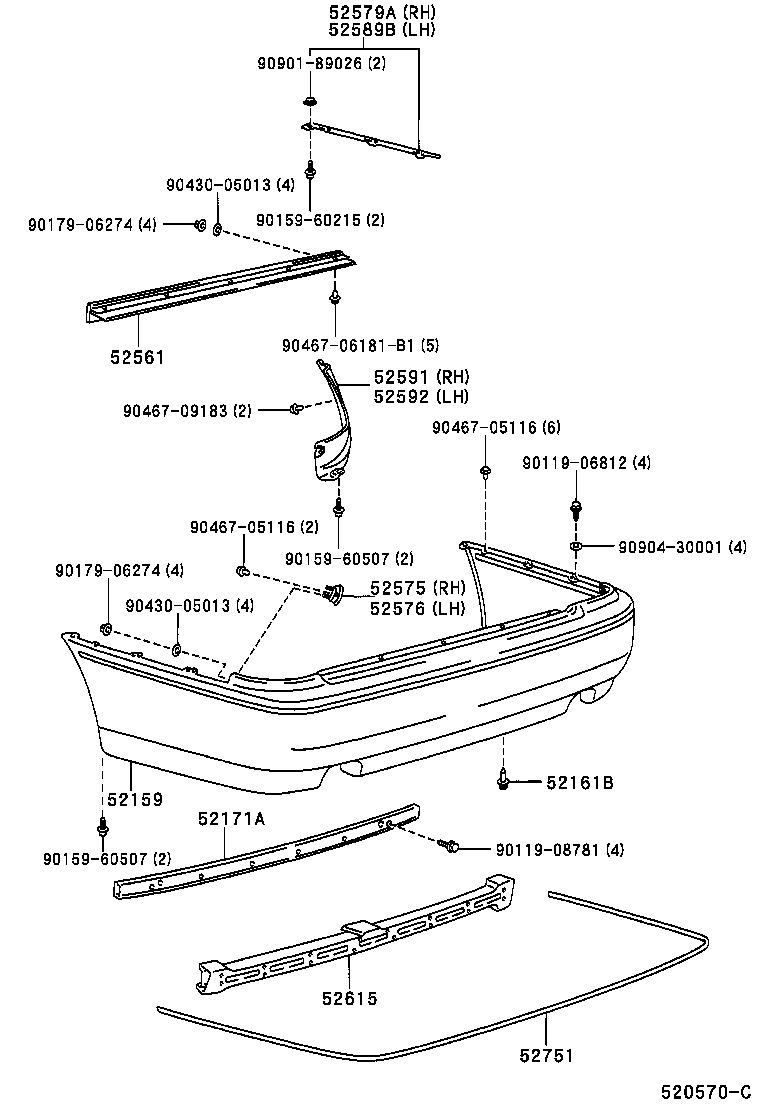

Click highlighted areas on diagram

diagram 52159 52161B 52171A 52561 52575 52576 52579A 52589B 52591 52592 52615 52751 9011906812 9011908781 9015960215 9015960507 9015960507 9017906274 9017906274 9043005013 9043005013 9046705116 9046705116 9046706181B1 9046709183 9090189026 9090430001
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-30310A0

JZS177,UZS17#

WHITE PEAL CS.,062

 1
52159-30310D0

JZS177,UZS17#

ROSE RED MC.,3M9

 1
52159-30310B0

JZS177,UZS17#

SILVER ME.,1C0

 1
52159-30310G1

JZS177,UZS17#

BLACKISH GREEN MC.CC,6R5

 1
52159-30310J0

JZS177,UZS17#

DK.BLUE MC.,8L4

 1
52159-30310C0

JZS177,UZS17#

BLACK,202

 1
52159-30310A0

JZS177,UZS17#

WHITE PEAL CS.,062

 1
52159-30310C0

JZS177,UZS17#

BLACK,202

 1
52159-30310C1

JZS177,UZS17#

BLACK,KA3

 1
52159-30310B0

JZS177,UZS17#

SILVER ME.,1C0

 1
52159-30310G1

JZS177,UZS17#

BLACKISH GREEN MC.CC,6R5

 1
52159-30310J1

JZS177,UZS17#

DARK BLUE MC.,8P8

 1
52159-30310D1

JZS177,UZS17#

BORDEAUX MC.,3P2

 1
52161B - PIECE, REAR BUMPER
52161-16010

GS171,JKS175,JZS17#,UZS17#

 4
52161-16010

GS171,JZS17#,UZS17#

 4
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-30190

JZS177,UZS17#

 1
52171-30190

JZS177,UZS17#

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-30180

JZS177,UZS17#

 1
52561-30180

JZS177,UZS17#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-30160

JZS177,UZS17#

 1
52575-30160

JZS177,UZS17#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52575-30160

JZS177,UZS17#

 1
52575-30160

JZS177,UZS17#

 1
52579A - RETAINER, REAR BUMPER SIDE, NO.3 RH
52579-30090

JZS177,UZS17#

 1
52579-30090

JZS177,UZS17#

 1
52589B - RETAINER, REAR BUMPER SIDE, NO.3 LH
52589-30090

JZS177,UZS17#

 1
52589-30090

JZS177,UZS17#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-30020

JZS177,UZS17#

 1
52591-30020

JZS177,UZS17#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-30020

JZS177,UZS17#

 1
52592-30020

JZS177,UZS17#

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-30210

JZS177,UZS17#

 1
52615-30210

JZS177,UZS17#

 1
52751 - MOULDING, REAR BUMPER
52751-30150

JZS177,UZS17#

 1
52751-30150

JZS177,UZS17#

 1
Common parts
90119-06812
90119-08781
90159-60215
90159-60507
90179-06274
90430-05013
90467-05116
90467-06181B1
90467-09183
90901-89026
90904-30001
