JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS17#

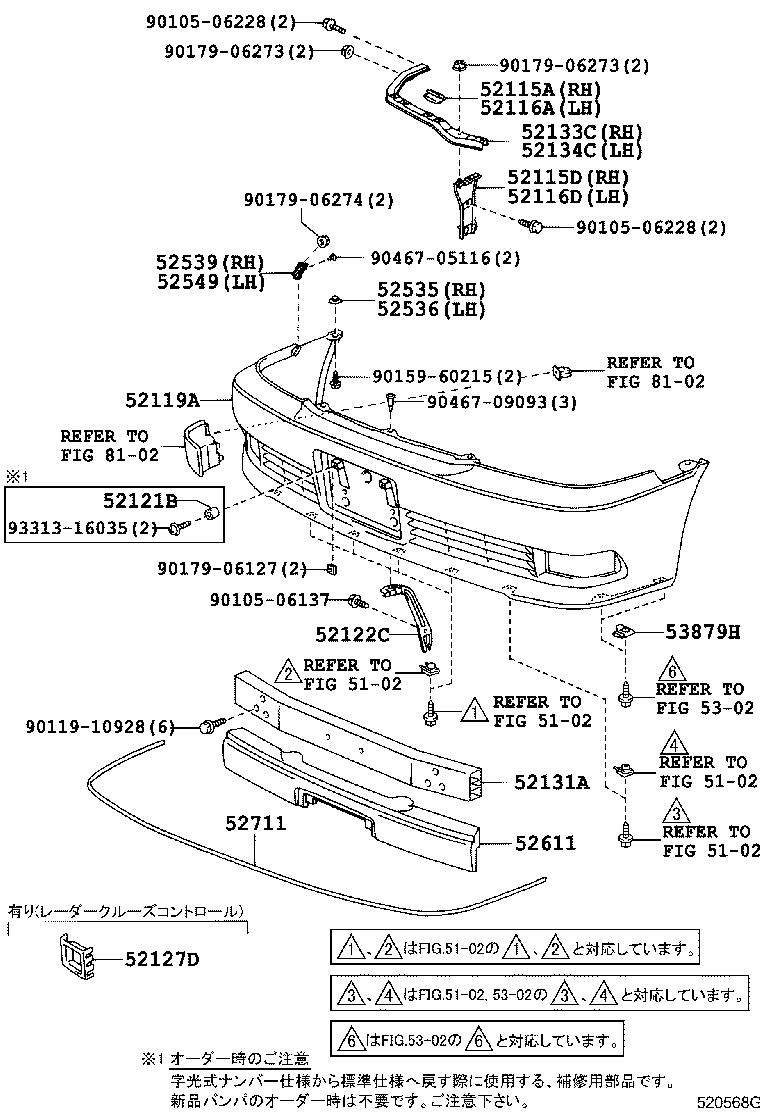

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 52115A 52115D 52116A 52116D 52119A 52121B 52122C 52127D 52131A 52133C 52134C 52535 52536 52539 52549 52611 52711 5302 53879H 8102 8102 9010506137 9010506228 9010506228 9011910928 9015960215 9017906127 9017906273 9017906273 9017906274 9046705116 9046709093 9331316035
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14130

GS171,JZS17#,UZS17#

 2
52115-14130

GS171,JKS175,JZS17#,UZS17#

 2
52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH
52115-30100

JZS177,UZS17#

 1
52115-30100

JZS177,UZS17#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-14130

GS171,JKS175,JZS17#,UZS17#

 2
52115-14130

GS171,JZS17#,UZS17#

 2
52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH
52116-30060

JZS177,UZS17#

 1
52116-30060

JZS177,UZS17#

 1
52119A - COVER, FRONT BUMPER
52119-30440J0

JZS177,UZS17#

DK.BLUE MC.,8L4

 1
52119-30440B0

JZS177,UZS17#

SILVER ME.,1C0

 1
52119-30440D0

JZS177,UZS17#

ROSE RED MC.,3M9

 1
52119-30440C0

JZS177,UZS17#

BLACK,202

 1
52119-30440G1

JZS177,UZS17#

BLACKISH GREEN MC.CC,6R5

 1
52119-30440A0

JZS177,UZS17#

WHITE PEAL CS.,062

 1
52119-30440A0

JZS177,UZS17#

WHITE PEAL CS.,062

 1
52119-30440C0

JZS177,UZS17#

BLACK,202

 1
52119-30440G1

JZS177,UZS17#

BLACKISH GREEN MC.CC,6R5

 1
52119-30450D1

JZS177,UZS171,175

ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ),BORDEAUX MC.,3P2

 1
52119-30440B0

JZS177,UZS17#

SILVER ME.,1C0

 1
52119-30440C1

JZS177,UZS17#

BLACK,KA3

 1
52119-30450G1

JZS177,UZS171,175

ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ),BLACKISH GREEN MC.CC,6R5

 1
52119-30450C0

JZS177,UZS171,175

ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ),BLACK,202

 1
52119-30450C1

JZS177,UZS171,175

ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ),BLACK,KA3

 1
52119-30440D1

JZS177,UZS17#

BORDEAUX MC.,3P2

 1
52119-30450B0

JZS177,UZS171,175

ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ),SILVER ME.,1C0

 1
52119-30450J1

JZS177,UZS171,175

ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ),DARK BLUE MC.,8P8

 1
52119-30440J1

JZS177,UZS17#

DARK BLUE MC.,8P8

 1
52119-30450A0

JZS177,UZS171,175

ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ),WHITE PEAL CS.,062

 1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
90560-11020

GS171,JKS175,JZS17#,UZS17#

 2
90560-11020

GS171,JZS17#,UZS17#

 2
52122C - PLATE, FRONT BUMPER REINFORCEMENT, CENTER
52122-30100

JZS177,UZS17#

 1
52122-30100

JZS177,UZS17#

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-30130C0

JZS177,UZS171,175

GRAY ME.,1C0

 1
52127-30130B0

JZS177,UZS171,175

SILVER ME.,062

 1
52127-30130C1

JZS177,UZS171,175

BLACK,202 ,KA3

 1
52127-30130E0

JZS177,UZS171,175

DARK GRAY ME.,6R5

 1
52127-30130F0

JZS177,UZS171,175

GRAY ME.,3P2

 1
52127-30130G0

JZS177,UZS171,175

DARK BLUE ME.,8P8

 1
52127-30130D0

JZS177,UZS171,175

DK. GRAY M.,202

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-30230

JZS177,UZS17#

 1
52131-30230

JZS177,UZS17#

 1
52133C - REINFORCEMENT, FRONT BUMPER BAR, RH
52133-30110

JZS177,UZS17#

 1
52133-30110

JZS177,UZS17#

 1
52134C - REINFORCEMENT, FRONT BUMPER BAR, LH
52134-30100

JZS177,UZS17#

 1
52134-30100

JZS177,UZS17#

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-30150

GS171,JZS17#,UZS17#

 1
52535-30150

GS171,JKS175,JZS17#,UZS17#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-30150

GS171,JKS175,JZS17#,UZS17#

 1
52535-30150

GS171,JZS17#,UZS17#

 1
52539 - RETAINER, FRONT BUMPER SIDE, NO.3 RH
52539-30050

JZS177,UZS17#

 1
52539-30050

JZS177,UZS17#

 1
52549 - RETAINER, FRONT BUMPER SIDE, NO.3 LH
52539-30050

JZS177,UZS17#

 1
52539-30050

JZS177,UZS17#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-30240

JZS177,UZS17#

 1
52611-30240

JZS177,UZS17#

 1
52711 - MOULDING, FRONT BUMPER
52711-30210

JZS177,UZS17#

 1
52711-30210

JZS177,UZS17#

 1
53879H - RETAINER, FRONT FENDER LINER
53879-17020

JZS177,UZS17#

 4
53879-17020

JZS177,UZS17#

 4
Common parts
90105-06137
90105-06228
90119-10928
90159-60215
90179-06127
90179-06273
90179-06274
90467-05116
90467-09093
93313-16035
Linked diagrams
5102
5302
8102
