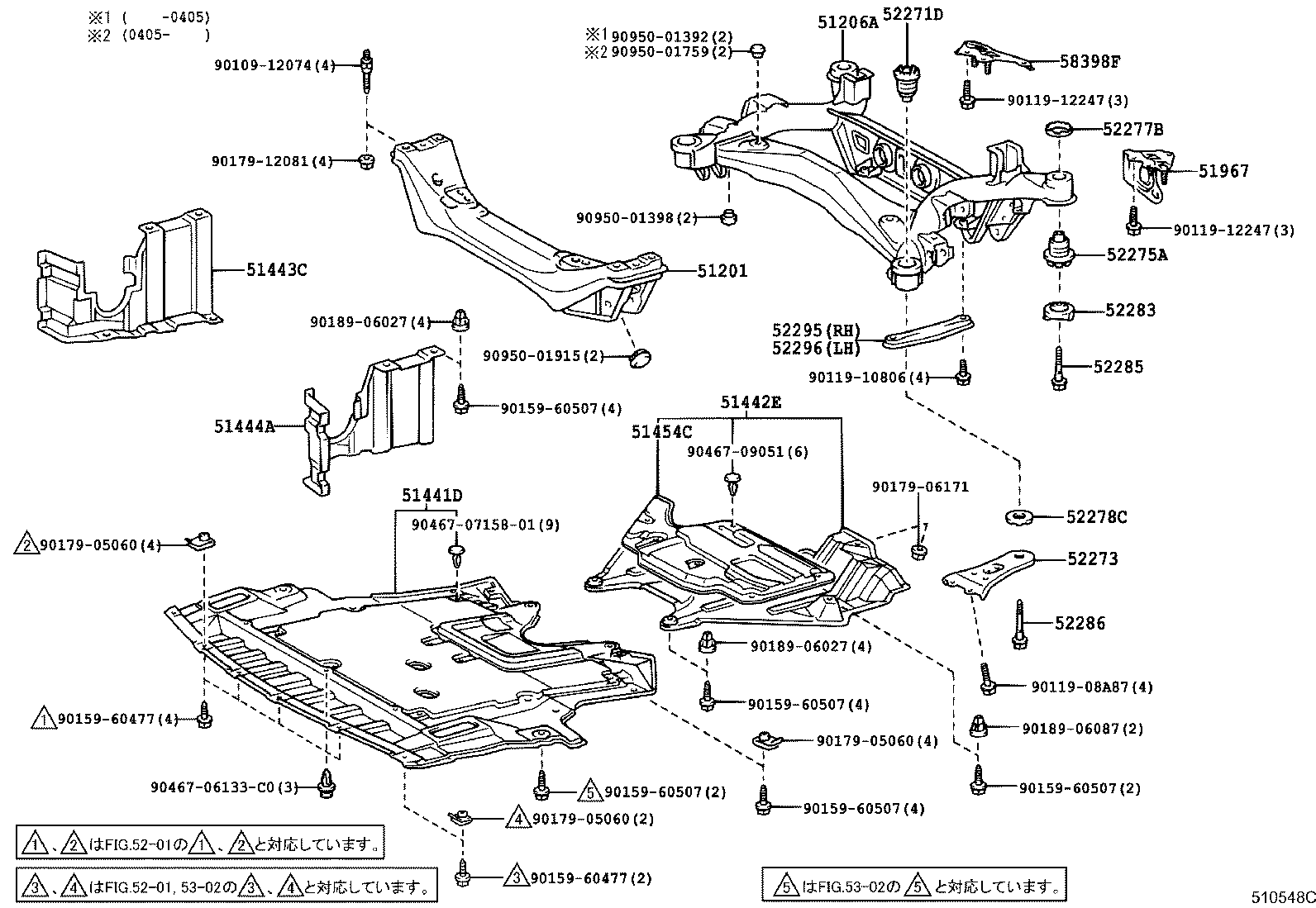

Toyota Crown/crown majesta JZS177 SUSPENSION CROSSMEMBER & UNDER COVER

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-30120	JZS177,UZS171,175	09/1999 - 08/2001	1
51201-30120	JZS177,UZS171,175	08/2001 - 06/2004	1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-30060	JZS177,UZS173,175	09/1999 - 08/2000	1
51206-30061	JZS177,UZS173,175	08/2000 - 08/2001	1
51206-30061	JZS177,UZS173,175	08/2001 - 06/2004	1
51441D - COVER, ENGINE UNDER
51410-30030	JZS177	09/1999 - 08/2001	1
51410-30030	JZS177	08/2001 - 06/2004	1
51442E - COVER, ENGINE UNDER, NO.2
51420-30020	JZS177	09/1999 - 08/2001	1
51420-30020	JZS177	08/2001 - 06/2004	1
51443C - COVER, ENGINE UNDER, REAR RH
51443-30131	JZS177,UZS171,175	11/2001 - 06/2004	1
51443-30130	JZS177,UZS171,175	09/1999 - 08/2001	1
51443-30130	JZS177,UZS171,175	08/2001 - 11/2001	1
51444A - COVER, ENGINE UNDER, REAR LH
51444-30160	JZS177,UZS171,175	08/2001 - 11/2001	1
51444-30160	JZS177,UZS171,175	09/1999 - 08/2001	1
51444-30161	JZS177,UZS171,175	11/2001 - 06/2004	1
51454C - SILENCER, ENGINE UNDER COVER, REAR
51454-30040	JZS177	08/2001 - 06/2004	1
51454-30040	JZS177	09/1999 - 08/2001	1
51967 - HOOK, TRANSPORT, REAR
51968-30050	JZS177,UZS17#	09/1999 - 08/2001	1
51968-30050	JZS177,UZS17#	08/2001 - 06/2004	1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-30090	JZS177,UZS17#	08/2001 - 06/2004	2
52271-30090	JZS177,UZS17#	09/1999 - 08/2001	2
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52273-30070	JZS177,UZS17#	09/1999 - 08/2001	2
52273-30070	JZS177,UZS17#	08/2001 - 06/2004	2
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-30100	JZS177,UZS17#	09/1999 - 08/2001	2
52275-30100	JZS177,UZS17#	08/2001 - 06/2004	2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-30040	JZS177,UZS17#	08/2001 - 06/2004	2
52277-30040	JZS177,UZS17#	09/1999 - 08/2001	2
52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52278-30030	JZS177,UZS17#	09/1999 - 08/2001	2
52278-30030	JZS177,UZS17#	08/2001 - 06/2004	2
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-30050	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
52283-30050	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30021	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
52285-30021	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
52286-30010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-30020	JZS177,UZS17#	08/2001 - 06/2004	1
52295-30020	JZS177,UZS17#	09/1999 - 08/2001	1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-30020	JZS177,UZS17#	08/2001 - 06/2004	1
52295-30020	JZS177,UZS17#	09/1999 - 08/2001	1
58398F - COVER, FLOOR UNDER, NO.1
58398-30020	JZS177,UZS17#	09/1999 - 08/2001	1
58398-30020	JZS177,UZS17#	08/2001 - 06/2004	1
Common parts
90109-12074
90119-08A87
90119-10806
90119-12247
90159-60477
90159-60507
90179-05060
90179-06171
90179-12081
90189-06027
90189-06087
90467-06133C0
90467-0715801
90467-09051
90950-01392
90950-01398
90950-01759
90950-01915

JZS177-CEAZH (1999)

(9909- )JZS177
