JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )GS171,JKS175,JZS17#,UZS175

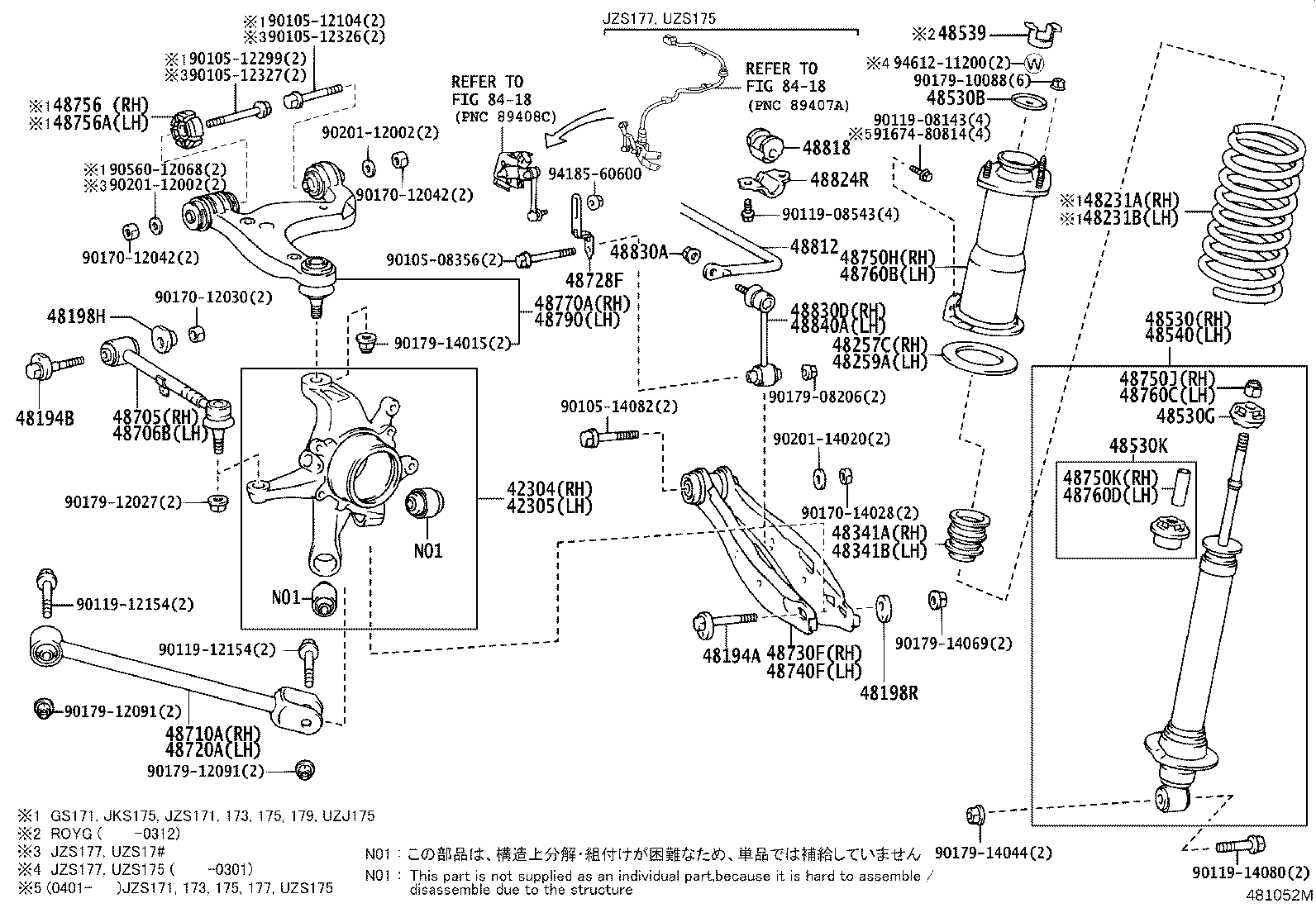

Click highlighted areas on diagram

diagram 42304 42305 48194A 48194B 48198H 48198R 48231A 48231B 48257C 48259A 48341A 48341B 48530 48530B 48530G 48530K 48539 48540 48705 48706B 48710A 48720A 48728F 48730F 48740F 48750H 48750J 48750K 48756 48756A 48760B 48760C 48760D 48770A 48790 48812 48818 48824R 48830A 48830D 48840A 8418 8418 9010508356 9010512104 9010512299 9010512326 9010512327 9010514082 9011908143 9011908543 9011912154 9011912154 9011914080 9017012030 9017012042 9017012042 9017014028 9017908206 9017910088 9017912027 9017912091 9017912091 9017914015 9017914044 9017914069 9020112002 9020112002 9020114020 9056012068 9167480814 9418560600 9461211200
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-30070

JZS177,UZS173,175

 1
42304-30070

JZS177,UZS173,175

 1
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-30070

JZS177,UZS173,175

 1
42305-30070

JZS177,UZS173,175

 1
48194A - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1
48190-30040

GS171,JKS175,JZS17#,UZS17#

 2
48190-30040

GS171,JZS17#,UZS17#

 2
48194B - CAM, REAR SUSPENSION CAMBER ADJUST, NO.3
48190-30060

GS171,JZS17#,UZS173,175

 2
48190-30060

GS171,JKS175,JZS17#,UZS173,175

 2
48198H - CAM, CAMBER ADJUST, NO.2
48198-30080

GS171,JKS175,JZS17#,UZS173,175

 2
48198-30080

GS171,JZS17#,UZS173,175

 2
48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48198-30060

GS171,JKS175,JZS17#,UZS17#

 2
48198-30060

GS171,JZS17#,UZS17#

 2
48231A - SPRING, COIL, REAR RH
48231-3A210

JZS177,UZS175

 1
48231-3A210

JZS177,UZS175

 1
48231B - SPRING, COIL, REAR LH
48231-3A210

JZS177,UZS175

 1
48231-3A210

JZS177,UZS175

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-30060

GS171,JKS175,JZS17#,UZS175

 1
48257-30060

GS171,JZS17#,UZS175

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-30060

GS171,JKS175,JZS17#,UZS175

 1
48257-30060

GS171,JZS17#,UZS175

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-30100

GS171,JKS175,JZS17#,UZS175

 1
48341-30100

GS171,JZS17#,UZS175

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-30100

GS171,JZS17#,UZS175

 1
48341-30100

GS171,JKS175,JZS17#,UZS175

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-39595

JZS177,UZS175

ﾏｰｸ 48530−30290

 1
48530-39595

JZS177,UZS175

ﾏｰｸ 48530−30290

 1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03021

GS171,JZS17#,UZS175

 2
90948-03021

GS171,JKS175,JZS17#,UZS175

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01073

GS171,JKS175,JZS17#,UZS175

 2
90948-01073

GS171,JZS17#,UZS175

 2
48530K - CUSHION, REAR SHOCK ABSORBER, NO.2
90948-01074

GS171,JZS17#,UZS175

 2
90948-01074

GS171,JKS175,JZS17#,UZS175

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-39595

JZS177,UZS175

ﾏｰｸ 48530−30290

 1
48530-39595

JZS177,UZS175

ﾏｰｸ 48530−30290

 1
48705 - LINK SUB-ASSY, TOE CONTROL, RH
48705-30080

GS171,JKS175,JZS17#,UZS173,175

 1
48705-30080

GS171,JZS17#,UZS173,175

 1
48706B - LINK SUB-ASSY, TOE CONTROL, LH
48705-30080

GS171,JZS17#,UZS173,175

 1
48705-30080

GS171,JKS175,JZS17#,UZS173,175

 1
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-30210

GS171,JZS17#,UZS17#

 1
48710-30210

GS171,JKS175,JZS17#,UZS17#

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-30210

GS171,JZS17#,UZS17#

 1
48710-30210

GS171,JKS175,JZS17#,UZS17#

 1
48728F - BRACKET, LOAD SENSING VALVE SENSOR
48728-30030

JZS171,173,175,177,UZS175..A,ATH,ATHE,ATHG,ATHV,C

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-30110

JZS177,UZS17#

 1
48730-30110

JZS177,UZS17#

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48740-30100

JZS177,UZS17#

 1
48740-30100

JZS177,UZS17#

 1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-30130

JZS177,UZS175

 1
48750-30130

JZS177,UZS175

 1
48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90177-12002

GS171,JZS17#,UZS175

 1
94187-11200

JZS17#,UZS175

 1
90179-12127

GS171,JKS175,JZS17#,UZS175

 1
90177-12002

GS171,JKS175,JZS17#,UZS175

 1
48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90387-12050

GS171,JZS17#,UZS175

 1
90387-12050

GS171,JKS175,JZS17#,UZS175

 2
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48760-30010

JZS177,UZS175

 1
48760-30010

JZS177,UZS175

 1
48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90177-12002

GS171,JKS175,JZS17#,UZS175

 1
90177-12002

GS171,JZS17#,UZS175

 1
90179-12127

GS171,JKS175,JZS17#,UZS175

 1
94187-11200

JZS17#,UZS175

 1
48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90387-12050

GS171,JKS175,JZS17#,UZS175

 2
90387-12050

GS171,JZS17#,UZS175

 1
48770A - ARM ASSY, UPPER CONTROL, REAR RH
48770-39026

JZS177,UZS17#

 1
48770-39025

JZS177,UZS17#

 1
48770-39026

JZS177,UZS17#

 1
48790 - ARM ASSY, UPPER CONTROL, REAR LH
48790-39025

JZS177,UZS17#

 1
48790-39026

JZS177,UZS17#

 1
48790-39026

JZS177,UZS17#

 1
48812 - BAR, STABILIZER, REAR
48812-30360

JZS177,UZS171,175

 1
48812-30360

JZS177,UZS171,175

 1
48818 - BUSH, STABILIZER, REAR
48818-30120

JZS177,UZS171,175

 2
48818-30120

JZS177,UZS171,175

 2
48824R - BRACKET, STABILIZER(FOR REAR)
48832-30050

GS171,JKS175,JZS17#,UZS17#

 2
48832-30050

GS171,JZS17#,UZS17#

 2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10054

GS171,JZS17#,UZS17#

 2
90179-10054

GS171,JKS175,JZS17#,UZS17#

 2
48830D - LINK ASSY, REAR STABILIZER, RH
48830-30080

JZS177,UZS17#

 1
48830-30080

JZS177,UZS17#

 1
48840A - LINK ASSY, REAR STABILIZER, LH
48830-30080

JZS177,UZS17#

 1
48830-30080

JZS177,UZS17#

 1
Common parts
90105-08356
90105-12104
90105-12299
90105-12326
90105-12327
90105-14082
90119-08143
90119-08543
90119-12154
90119-14080
90170-12030
90170-12042
90170-14028
90179-08206
90179-10088
90179-12027
90179-12091
90179-14015
90179-14044
90179-14069
90201-12002
90201-14020
90560-12068
91674-80814
94185-60600
94612-11200
Linked diagrams
8418
