JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS175

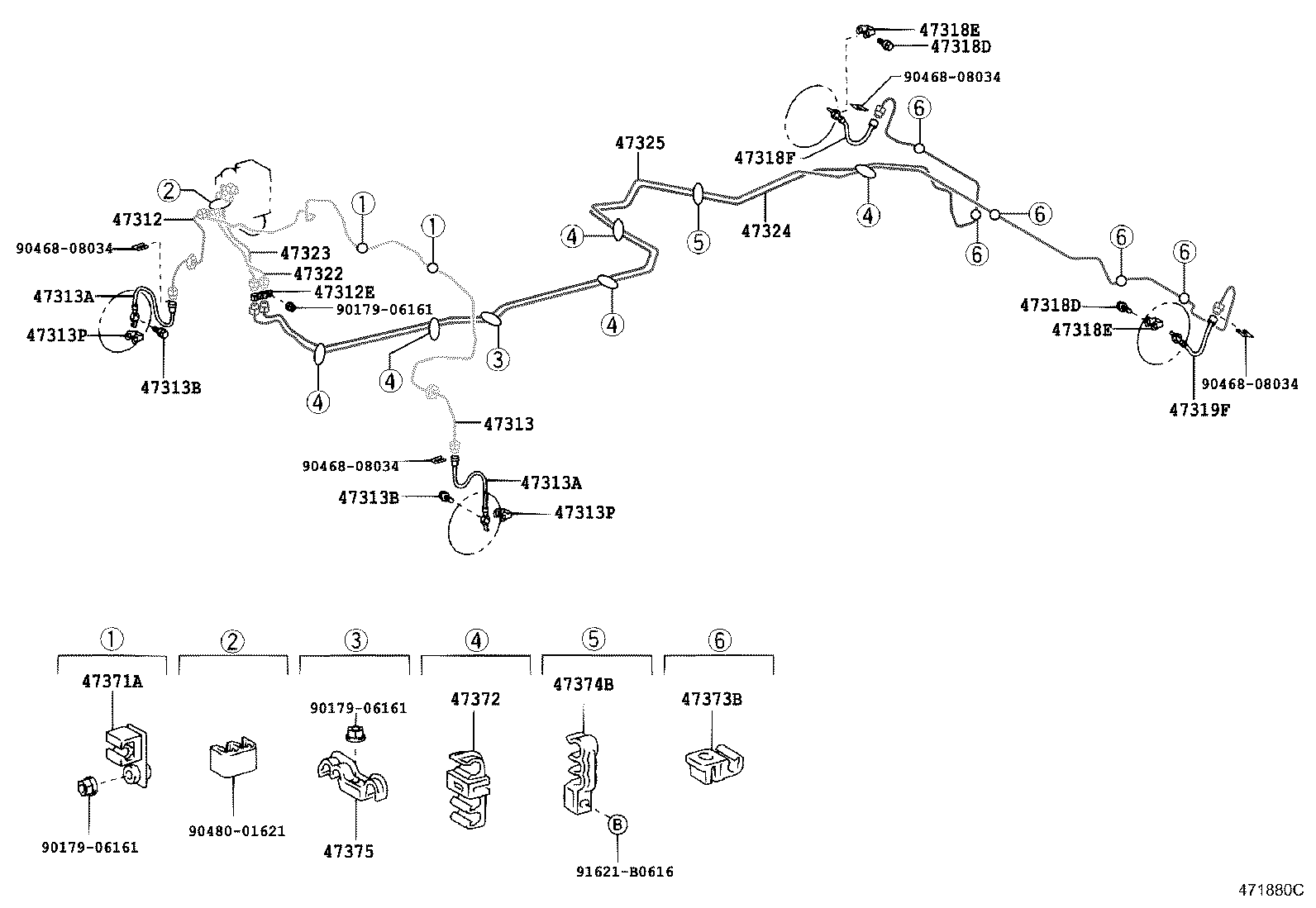

Click highlighted areas on diagram

diagram 47312 47312E 47313 47313A 47313A 47313B 47313B 47313P 47313P 47318D 47318D 47318E 47318E 47318F 47319F 47322 47323 47324 47325 47371A 47372 47373B 47374B 47375 9017906161 9017906161 9017906161 9046808034 9046808034 9046808034 9046808034 9048001621 91621B0616
Part # Description Qty Price
47312 - TUBE, FRONT BRAKE, NO.2
47312-30510

JZS177,UZS17#

 1
47312-30510

JZS177,UZS17#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10158

JZS177,UZS17#

 1
90412-10158

JZS177,UZS17#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-30460

JZS177,UZS17#

 1
47313-30460

JZS177,UZS17#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02972

JZS177,UZS171,175

 2
90947-02972

JZS177,UZS171,175

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02972

JZS177,UZS171,175

 2
90947-02972

JZS177,UZS171,175

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GS171,JKS175,JZS17#,UZS17#

 2
90401-10058

GS171,JZS17#,UZS17#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GS171,JKS175,JZS17#,UZS17#

 2
90401-10058

GS171,JZS17#,UZS17#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GS171,JKS175,JZS17#,UZS17#

 2
47389-50020

GS171,JZS17#,UZS17#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GS171,JKS175,JZS17#,UZS17#

 2
47389-50020

GS171,JZS17#,UZS17#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GS171,JKS175,JZS17#,UZS17#

 2
90401-10058

GS171,JZS17#,UZS17#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GS171,JKS175,JZS17#,UZS17#

 2
90401-10058

GS171,JZS17#,UZS17#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GS171,JKS175,JZS17#,UZS17#

 2
47389-50020

GS171,JZS17#,UZS17#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GS171,JKS175,JZS17#,UZS17#

 2
47389-50020

GS171,JZS17#,UZS17#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02973

JZS177,UZS17#

 1
90947-02973

JZS177,UZS17#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02973

JZS177,UZS17#

 1
90947-02973

JZS177,UZS17#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-30290

JZS177,UZS17#

 1
47322-30290

JZS177,UZS17#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-30250

JZS177,UZS17#

 1
47323-30250

JZS177,UZS17#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-30280

JZS177,UZS17#

 1
47324-30280

JZS177,UZS17#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-30070

JZS177,UZS17#

 1
47325-30070

JZS177,UZS17#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-30480

JZS177,UZS17#

 2
47371-30480

JZS177,UZS17#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-30460

JZS177,UZS175

 5
47371-30460

JZS177,UZS175

 5
47373B - CLAMP, BRAKE TUBE, NO.3
47371-30470

JZS177,UZS175

 5
47371-30470

JZS177,UZS175

 5
47374B - CLAMP, BRAKE TUBE, NO.4
47371-30510

JZS177,UZS175

 1
47371-30510

JZS177,UZS175

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-30520

JZS177,UZS175

 1
47371-30520

JZS177,UZS175

 1
Common parts
90179-06161
90468-08034
90480-01621
91621-B0616
