JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS171,175

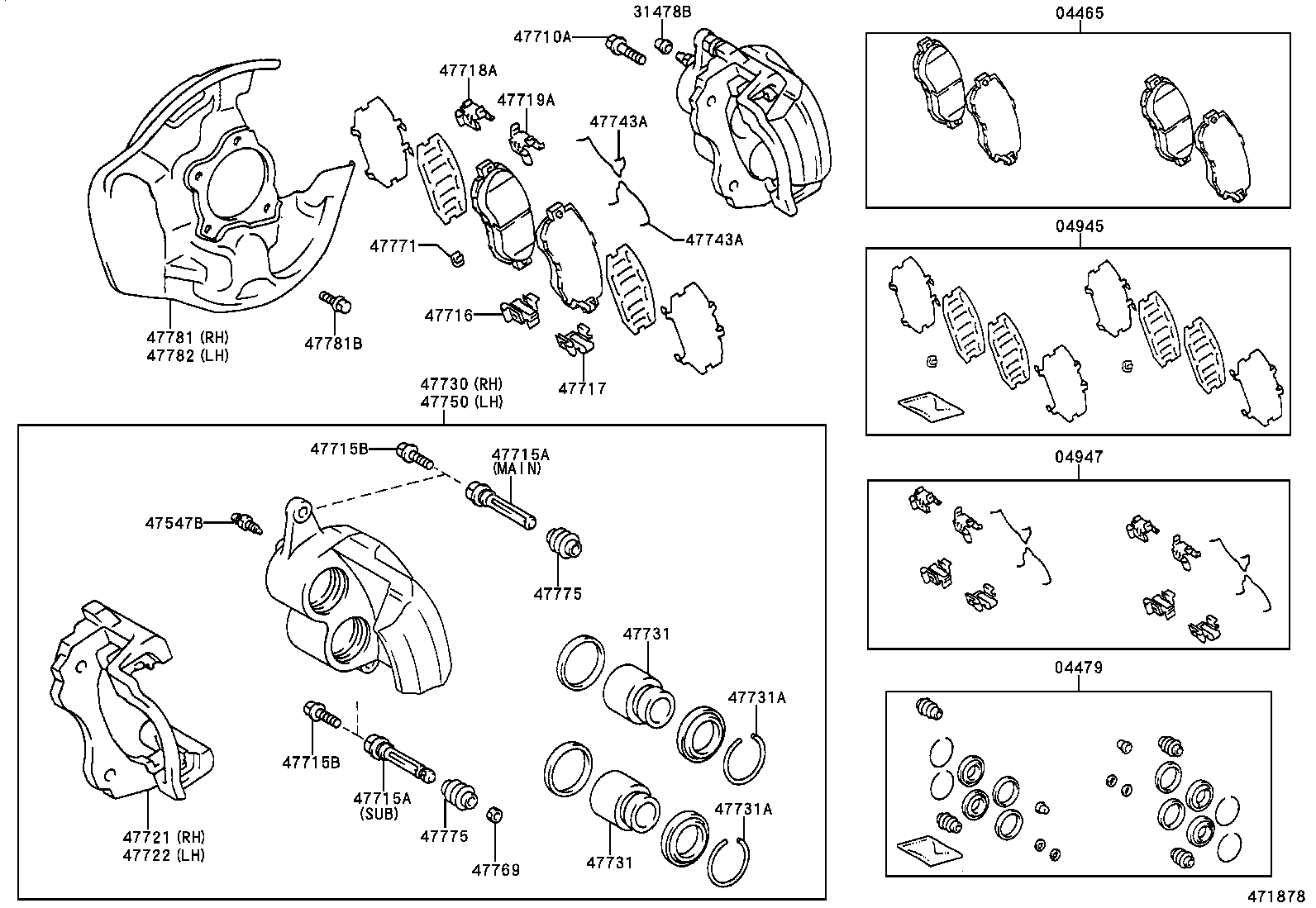

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715A 47715B 47715B 47716 47717 47718A 47719A 47721 47722 47730 47731 47731 47731A 47731A 47743A 47743A 47750 47769 47771 47775 47775 47781 47781B 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-30080

JZS173,177,179,UZS171,175

ﾏｰｸ NBK PN529

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-30190

JZS171,177,UZS17#..D4,HTWC,TWT

 1
04479-30191

JZS171,177,UZS17#..A,ATHV,C

 1
04479-30191

JZS171,177,UZS17#..D4,HTWC,TWT

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-33020

JZS173,177,179,UZS171,175

 1
04945-33020

JZS173,177,179,UZS171,175

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-30080

JZS177,UZS171,175

 1
04947-30080

JZS177,UZS171,175

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GS171,JKS175,JZS17#,UZS17#

 2
31478-30010

GS171,JZS17#,UZS17#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-27030

GS171,JZS17#,UZS17#

 2
47547-27030

GS171,JKS175,JZS17#,UZS17#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12228

GS171,JZS17#,UZS17#

*12−1.25PX32−24

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

JZS173,177,179,UZS17#

ｻﾌﾞ ﾋﾟﾝ側

 2
47715-22070

JZS173,179;JZS171,177,UZS17#..D4,HTWC,TWT

ｻﾌﾞ ﾋﾟﾝ側

 2
47715-30060

JZS171,177,UZS17#..D4,HTWC,TWT

ﾒｲﾝ ﾋﾟﾝ側

 2
47715-30060

JZS171,177,UZS17#..A,ATHV,C

ﾒｲﾝ ﾋﾟﾝ側

 2
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

JZS173,177,179,UZS17#

ｻﾌﾞ ﾋﾟﾝ側

 2
47715-22070

JZS173,179;JZS171,177,UZS17#..D4,HTWC,TWT

ｻﾌﾞ ﾋﾟﾝ側

 2
47715-30060

JZS171,177,UZS17#..D4,HTWC,TWT

ﾒｲﾝ ﾋﾟﾝ側

 2
47715-30060

JZS171,177,UZS17#..A,ATHV,C

ﾒｲﾝ ﾋﾟﾝ側

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

GS171,JZS17#,UZS17#

 4
90105-08164

GS171,JKS175,JZS17#,UZS17#

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

GS171,JZS17#,UZS17#

 4
90105-08164

GS171,JKS175,JZS17#,UZS17#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-30160

JZS173,177,179,UZS171,175

 2
47716-30160

JZS173,177,179,UZS171,175

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47716-30170

JZS173,177,179,UZS171,175

 2
47716-30170

JZS173,177,179,UZS171,175

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47717-30050

JZS173,177,179,UZS171,175

 2
47717-30050

JZS173,177,179,UZS171,175

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47717-30060

JZS173,177,179,UZS171,175

 2
47717-30060

JZS173,177,179,UZS171,175

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-30140

JZS177,UZS171,175

 1
47721-30140

JZS177,UZS171,175

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-30060

JZS177,UZS171,175

 1
47722-30060

JZS177,UZS171,175

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-30490

JZS177,UZS171,175

 1
47730-30490

JZS177,UZS171,175

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30170

JZS171,177,UZS17#..D4,HTWC,TWT

 4
47731-30170

JZS171,177,UZS17#..A,ATHV,C

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30170

JZS171,177,UZS17#..D4,HTWC,TWT

 4
47731-30170

JZS171,177,UZS17#..A,ATHV,C

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90520-52006

JZS171,177,UZS17#..D4,HTWC,TWT

 4
90520-52006

JZS171,177,UZS17#..A,ATHV,C

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90520-52006

JZS171,177,UZS17#..D4,HTWC,TWT

 4
90520-52006

JZS171,177,UZS17#..A,ATHV,C

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-30020

JZS171,177,UZS17#..D4,HTWC,TWT

 4
47743-30020

JZS171,177,UZS17#..A,ATHV,C

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-30020

JZS171,177,UZS17#..D4,HTWC,TWT

 4
47743-30020

JZS171,177,UZS17#..A,ATHV,C

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-30490

JZS177,UZS171,175

 1
47750-30490

JZS177,UZS171,175

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

JZS171..SED..TWT;JZS173,177,179,UZS17#..SED

 2
47769-50010

JZS177;JZS171,173,179,UZS17#..HTWC,TWC,TWT

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-50010

JZS173,177,179,UZS171,175

 2
47771-50010

JZS173,177,179,UZS171,175

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

GS171,JZS17#,UZS17#

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

GS171,JZS17#,UZS17#

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-30160

JZS177,UZS171,175

 1
47781-30160

JZS177,UZS171,175

 1
47781B - BOLT(FOR DUST COVER SETTING)
90148-60028

GS171,JZS17#,UZS17#

*6−1.0PX14−10.5

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-30160

JZS177,UZS171,175

 1
47782-30160

JZS177,UZS171,175

 1
