JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta

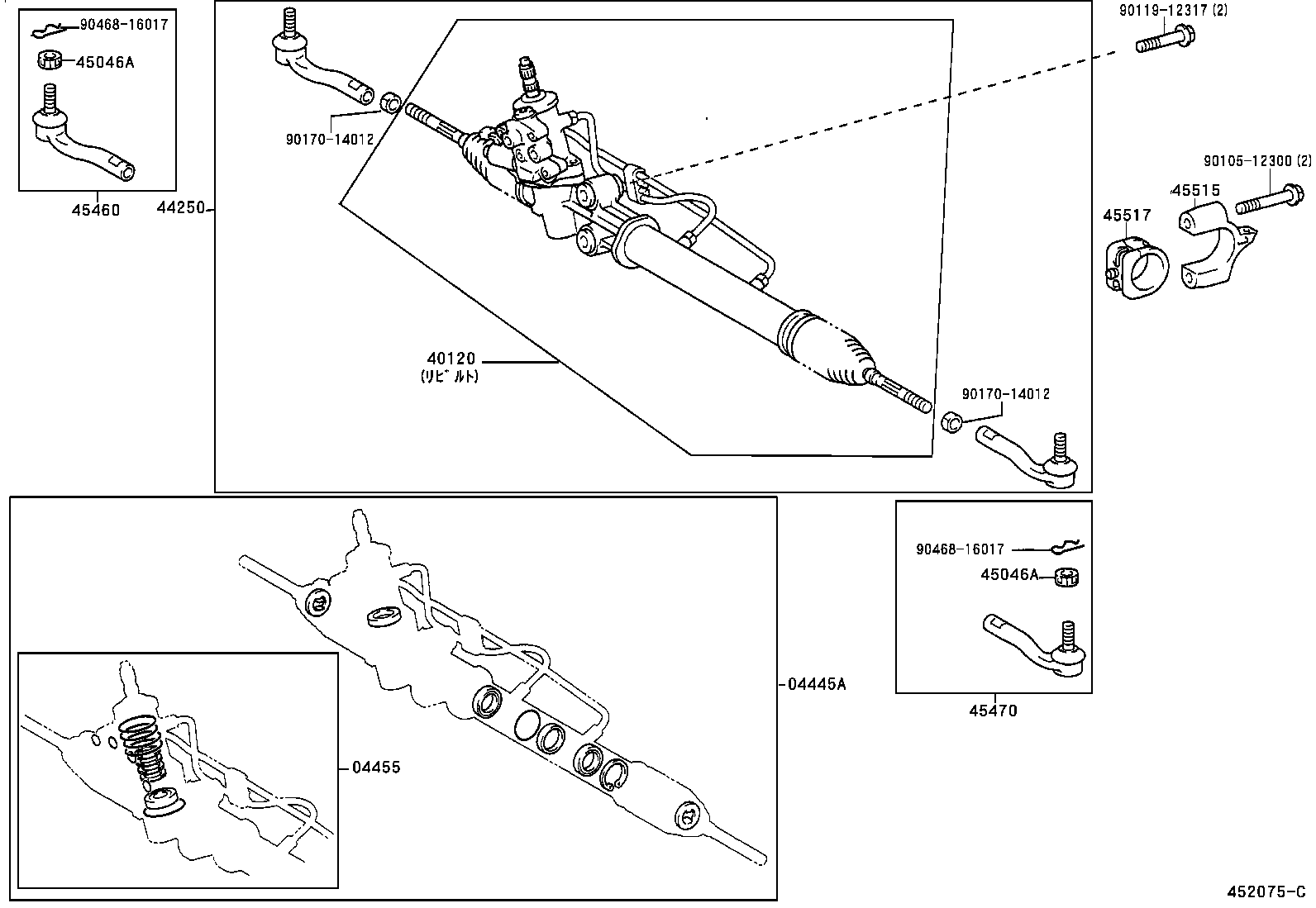

ILLUST NO. 1 OF 2(9909-0108)JZS177,UZS171,175
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

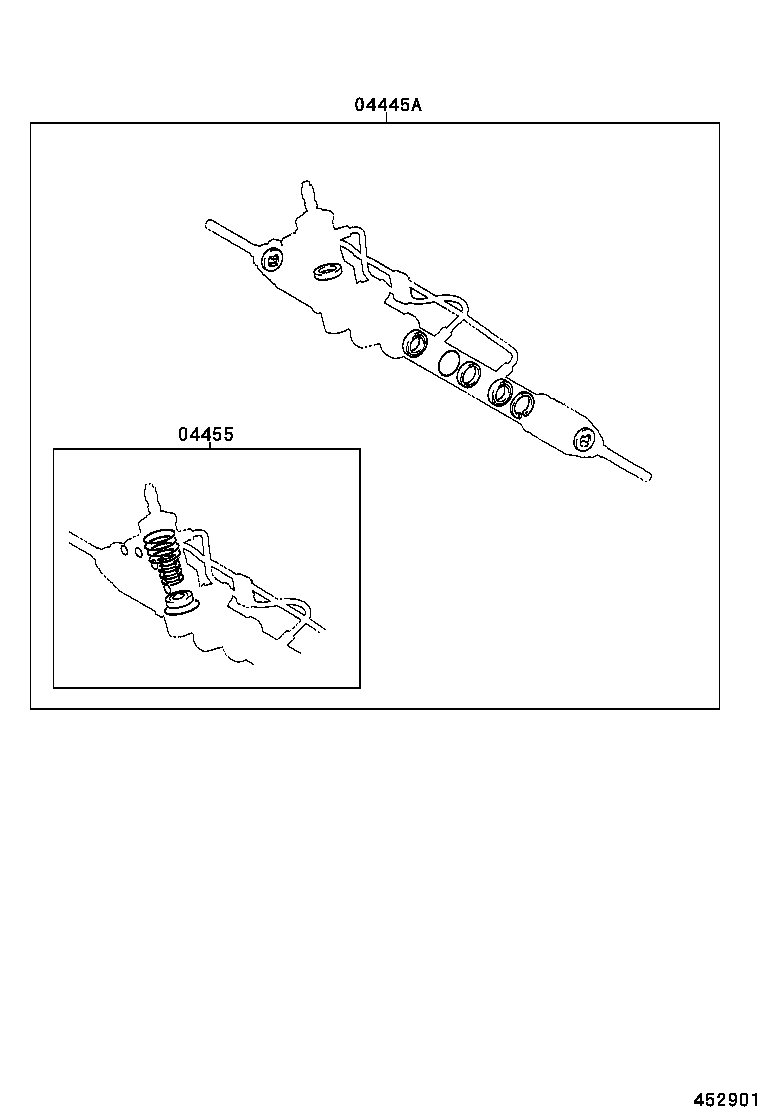

| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-30300 |
JZS177,UZS171,175 |
1 | ||
| 04445-30300 |
JZS177,UZS171,175 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-30120 |
JZS177,UZS171,175 |
1 | ||
| 04455-30120 |
JZS177,UZS171,175 |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-30200 |
JZS177,UZS171,175 TOYOTA |
1 | ||
| 40120-30200 |
JZS177,UZS171,175 TOYOTA |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44200-30200 |
JZS177,UZS171,175 |
1 | ||
| 44200-30200 |
JZS177,UZS171,175 |
1 | ||
| 44200-39015 |
JZS177,UZS171,175 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 90171-12002 |
GS171,JZS17#,UZS17# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 90171-12002 |
GS171,JZS17#,UZS17# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-59015 |
JZS177,UZS171,175 |
1 | ||
| 45460-59015 |
JZS177,UZS171,175 |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-59015 |
JZS177,UZS171,175 |
1 | ||
| 45470-59015 |
JZS177,UZS171,175 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-30080 |
JZS177,UZS171,175 |
1 | ||
| 45515-30080 |
JZS177,UZS171,175 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-30060 |
JZS177,UZS171,175 |
1 | ||
| 45517-30060 |
JZS177,UZS171,175 |
1 | ||
| Common parts | ||||
| 90105-12300 | ||||
| 90119-12317 | ||||
| 90170-14012 | ||||
| 90468-16017 | ||||

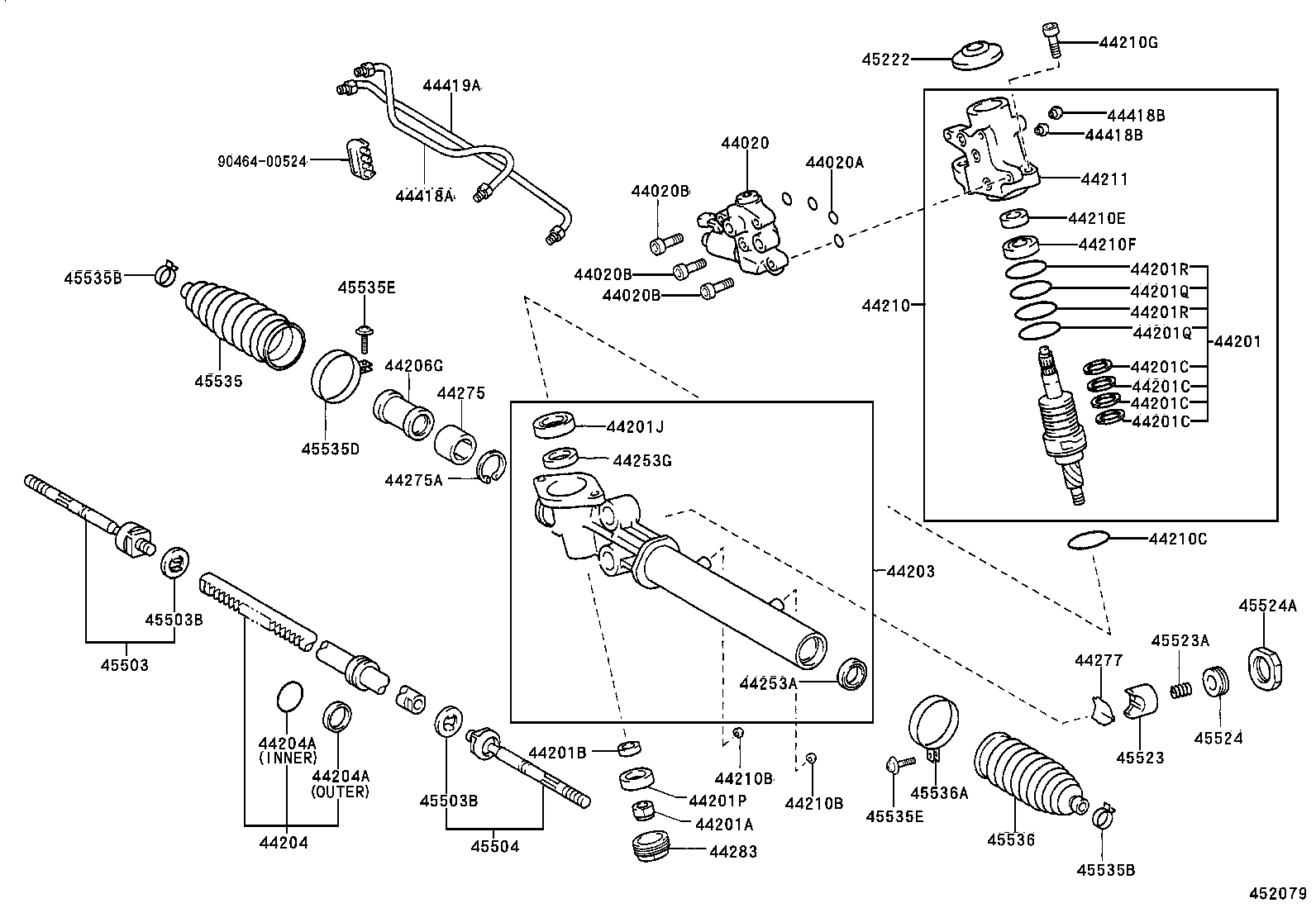

ILLUST NO. 2 OF 2(9909-0108)JZS177,UZS171,175
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE | ||||
| 44020-40030 |
JZS177,UZS171,175 |
1 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90301-11009 |
JZS177,UZS171,175 |
4 | ||
| 44020B - BOLT(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90110-08012 |
JZS177,UZS171,175 *8−1.25PX29−26 |
3 | ||
| 44020B - BOLT(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90110-08012 |
JZS177,UZS171,175 *8−1.25PX29−26 |
3 | ||
| 44020B - BOLT(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90110-08012 |
JZS177,UZS171,175 *8−1.25PX29−26 |
3 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-50130 |
JZS177,UZS171,175 |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61201 |
JZS177,UZS171,175 |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12030 |
JZS177,UZS171,175 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33008 |
JZS177,UZS171,175 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33008 |
JZS177,UZS171,175 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33008 |
JZS177,UZS171,175 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33008 |
JZS177,UZS171,175 |
4 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90363-30054 |
JZS177,UZS171,175 |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12014 |
JZS177,UZS171,175 |
1 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
JZS177,UZS171,175 |
2 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
JZS177,UZS171,175 |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
JZS177,UZS171,175 |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
JZS177,UZS171,175 |
2 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-30140 |
JZS177,UZS171,175 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-50050 |
JZS177,UZS171,175 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90560-40008 |
JZS177,UZS171,175 外側 |
1 | ||
| 90301-36004 |
JZS177,UZS171,175 内側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90560-40008 |
JZS177,UZS171,175 外側 |
1 | ||
| 90301-36004 |
JZS177,UZS171,175 内側 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90561-28009 |
JZS177,UZS171,175 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-50130 |
JZS177,UZS171,175 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-04003 |
JZS177,UZS171,175 |
2 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-04003 |
JZS177,UZS171,175 |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-57003 |
JZS177,UZS171,175 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19016 |
JZS177,UZS171,175 |
1 | ||
| 90311-19014 |
JZS177,UZS171,175 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19002 |
JZS177,UZS171,175 |
1 | ||
| 44210G - BOLT(FOR POWER STEERING CONTROL VALVE) | ||||
| 90110-08012 |
JZS177,UZS171,175 |
2 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-40020 |
JZS177,UZS171,175 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-26021 |
JZS177,UZS171,175 |
1 | ||
| 44253G - SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30013 |
JZS177,UZS171,175 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-24020 |
JZS177,UZS171,175 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-53002 |
JZS177,UZS171,175 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-50011 |
JZS177,UZS171,175 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-12010 |
JZS177,UZS171,175 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-30130 |
JZS177,UZS171,175 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 96390-71200 |
JZS177,UZS171,175 |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 96390-71200 |
JZS177,UZS171,175 |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-30130 |
JZS177,UZS171,175 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-50010 |
JZS177,UZS171,175 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-39155 |
JZS177,UZS171,175 |
1 | ||
| 45503-39155 |
JZS177,UZS171,175 |
1 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
JZS173,177,179,UZS171,175 外径=38 |
2 | ||
| 90214-14007 |
GS171,JKS175,JZS17#,UZS171,175 外径=38 |
2 | ||
| 90214-14007 |
GS171,JZS17#,UZS171,175 外径=38 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
JZS173,177,179,UZS171,175 外径=38 |
2 | ||
| 90214-14007 |
GS171,JKS175,JZS17#,UZS171,175 外径=38 |
2 | ||
| 90214-14007 |
GS171,JZS17#,UZS171,175 外径=38 |
2 | ||
| 45504 - END SUB-ASSY, STEERING RACK, NO.2 | ||||
| 45503-39215 |
JZS177,UZS171,175 |
1 | ||
| 45503-39215 |
JZS177,UZS171,175 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-50011 |
JZS177,UZS171,175 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-30017 |
JZS177,UZS171,175 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-50010 |
JZS177,UZS171,175 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
GS171,JZS17#,UZS17# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-30010 |
GS171,JZS17#,UZS17# |
1 | ||
| 45535-30010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
JZS177,UZS171,175 |
2 | ||
| 90467-19019 |
GS171,JKS175,JZS17#,UZS171,175 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
JZS177,UZS171,175 |
2 | ||
| 90467-19019 |
GS171,JKS175,JZS17#,UZS171,175 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-49002 |
JZS177,UZS17# |
1 | ||
| 90460-49002 |
JZS177,UZS17# |
1 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 90149-30009 |
JZS177,UZS171,175 |
2 | ||
| 90149-30009 |
JZS177,UZS171,175 |
2 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 90149-30009 |
JZS177,UZS171,175 |
2 | ||
| 90149-30009 |
JZS177,UZS171,175 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-30020 |
JZS177,UZS171,175 |
1 | ||
| 45535-30020 |
JZS177,UZS171,175 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-54003 |
JZS177,UZS171,175 |
1 | ||
| 90460-54003 |
JZS177,UZS171,175 |
1 | ||
| Common parts | ||||
| 90464-00524 | ||||
ILLUST NO. 1 OF 2(0108- )JZS177,UZS171,175
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-30200 |
JZS177,UZS171,175 TOYOTA |
1 | ||
| 40120-30200 |
JZS177,UZS171,175 TOYOTA |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44200-30200 |
JZS177,UZS171,175 |
1 | ||
| 44200-30200 |
JZS177,UZS171,175 |
1 | ||
| 44200-39015 |
JZS177,UZS171,175 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 90171-12002 |
GS171,JZS17#,UZS17# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 90171-12002 |
GS171,JZS17#,UZS17# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-59015 |
JZS177,UZS171,175 |
1 | ||
| 45460-59015 |
JZS177,UZS171,175 |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-59015 |
JZS177,UZS171,175 |
1 | ||
| 45470-59015 |
JZS177,UZS171,175 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-39155 |
JZS177,UZS171,175 |
1 | ||
| 45503-39155 |
JZS177,UZS171,175 |
1 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
JZS173,177,179,UZS171,175 外径=38 |
2 | ||
| 90214-14007 |
GS171,JKS175,JZS17#,UZS171,175 外径=38 |
2 | ||
| 90214-14007 |
GS171,JZS17#,UZS171,175 外径=38 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
JZS173,177,179,UZS171,175 外径=38 |
2 | ||
| 90214-14007 |
GS171,JKS175,JZS17#,UZS171,175 外径=38 |
2 | ||
| 90214-14007 |
GS171,JZS17#,UZS171,175 外径=38 |
2 | ||
| 45504 - END SUB-ASSY, STEERING RACK, NO.2 | ||||
| 45503-39215 |
JZS177,UZS171,175 |
1 | ||
| 45503-39215 |
JZS177,UZS171,175 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-30080 |
JZS177,UZS171,175 |
1 | ||
| 45515-30080 |
JZS177,UZS171,175 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-30060 |
JZS177,UZS171,175 |
1 | ||
| 45517-30060 |
JZS177,UZS171,175 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-30010 |
GS171,JZS17#,UZS17# |
1 | ||
| 45535-30010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
JZS177,UZS171,175 |
2 | ||
| 90467-19019 |
GS171,JKS175,JZS17#,UZS171,175 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
JZS177,UZS171,175 |
2 | ||
| 90467-19019 |
GS171,JKS175,JZS17#,UZS171,175 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-49002 |
JZS177,UZS17# |
1 | ||
| 90460-49002 |
JZS177,UZS17# |
1 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 90149-30009 |
JZS177,UZS171,175 |
2 | ||
| 90149-30009 |
JZS177,UZS171,175 |
2 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 90149-30009 |
JZS177,UZS171,175 |
2 | ||
| 90149-30009 |
JZS177,UZS171,175 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-30020 |
JZS177,UZS171,175 |
1 | ||
| 45535-30020 |
JZS177,UZS171,175 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-54003 |
JZS177,UZS171,175 |
1 | ||
| 90460-54003 |
JZS177,UZS171,175 |
1 | ||
| Common parts | ||||
| 90105-12300 | ||||
| 90119-12317 | ||||
| 90170-14012 | ||||
| 90468-16017 | ||||
ILLUST NO. 2 OF 2(0108- )JZS177,UZS171,175
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-30300 |
JZS177,UZS171,175 |
1 | ||
| 04445-30300 |
JZS177,UZS171,175 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-30120 |
JZS177,UZS171,175 |
1 | ||
| 04455-30120 |
JZS177,UZS171,175 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
