JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta
(9909-0108)JZS177,UZS17#
ﾘﾔ

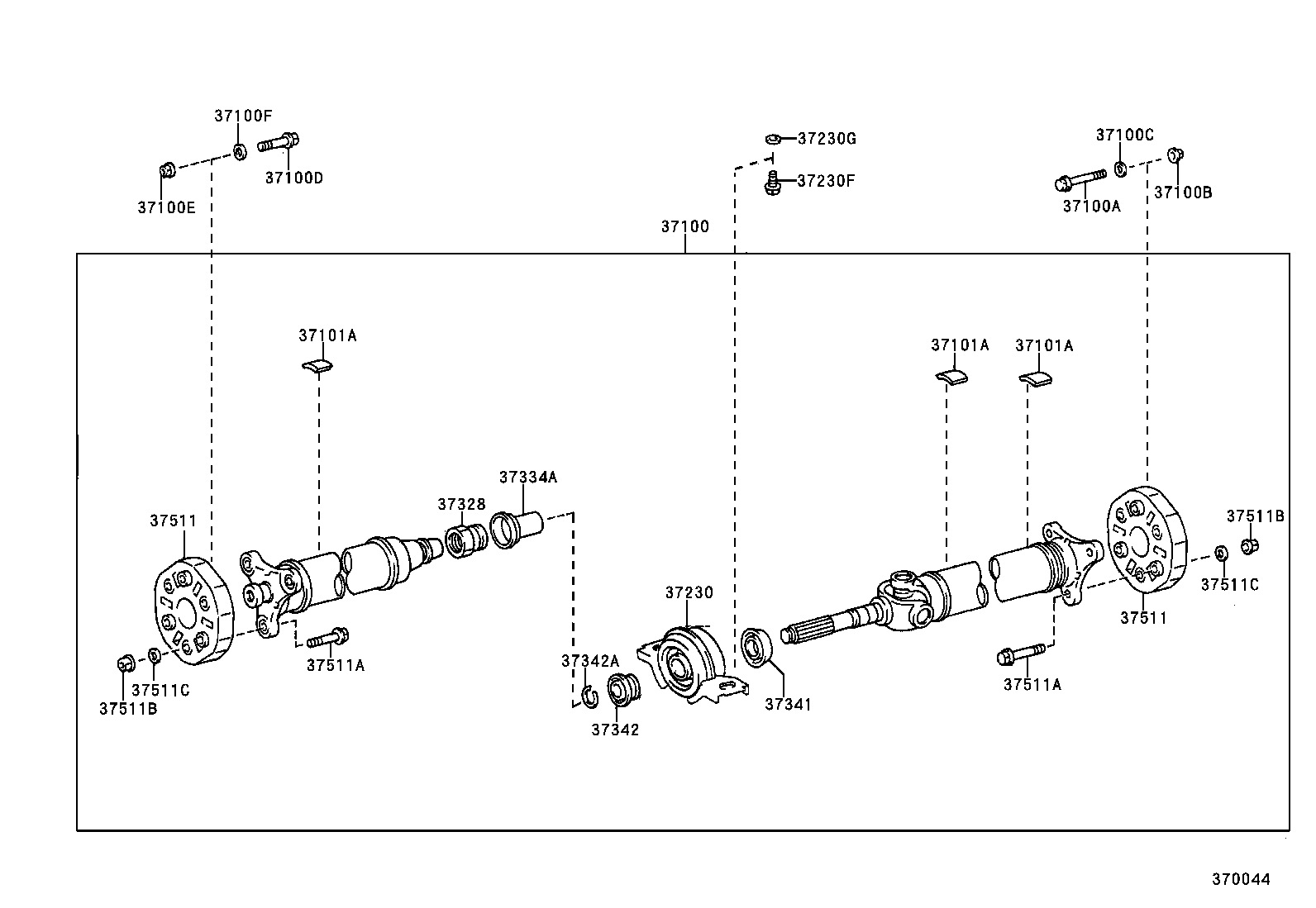

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-30670 |
JZS177 |
1 | ||
| 37100-30670 |
JZS177 |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 37100D - BOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01344 |
JZS177,UZS17# 3G |
1 | ||
| 90937-01343 |
JZS177,UZS17# 2G |
1 | ||
| 90937-01345 |
JZS177,UZS17# 4G |
1 | ||
| 90937-01351 |
JZS177,UZS17# 14G |
1 | ||
| 90937-01348 |
JZS177,UZS17# 8G |
1 | ||
| 90937-01349 |
JZS177,UZS17# 10G |
1 | ||
| 90937-01346 |
JZS177,UZS17# 5G |
1 | ||
| 90937-01347 |
JZS177,UZS17# 6G |
1 | ||
| 90937-01354 |
JZS177,UZS17# 20G |
1 | ||
| 90937-01350 |
JZS177,UZS17# 12G |
1 | ||
| 90937-01352 |
JZS177,UZS17# 16G |
1 | ||
| 90937-01353 |
JZS177,UZS17# 18G |
1 | ||
| 90937-01448 |
JZS177,UZS17# 17G |
1 | ||
| 90937-01445 |
JZS177,UZS17# 11G |
1 | ||
| 90937-01446 |
JZS177,UZS17# 13G |
1 | ||
| 90937-01366 |
JZS177,UZS17# 7G |
1 | ||
| 90937-01444 |
JZS177,UZS17# 9G |
1 | ||
| 90937-01449 |
JZS177,UZS17# 19G |
1 | ||
| 90937-01447 |
JZS177,UZS17# 15G |
1 | ||
| 90937-01452 |
JZS177,UZS17# 1G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01344 |
JZS177,UZS17# 3G |
1 | ||
| 90937-01343 |
JZS177,UZS17# 2G |
1 | ||
| 90937-01345 |
JZS177,UZS17# 4G |
1 | ||
| 90937-01351 |
JZS177,UZS17# 14G |
1 | ||
| 90937-01348 |
JZS177,UZS17# 8G |
1 | ||
| 90937-01349 |
JZS177,UZS17# 10G |
1 | ||
| 90937-01346 |
JZS177,UZS17# 5G |
1 | ||
| 90937-01347 |
JZS177,UZS17# 6G |
1 | ||
| 90937-01354 |
JZS177,UZS17# 20G |
1 | ||
| 90937-01350 |
JZS177,UZS17# 12G |
1 | ||
| 90937-01352 |
JZS177,UZS17# 16G |
1 | ||
| 90937-01353 |
JZS177,UZS17# 18G |
1 | ||
| 90937-01448 |
JZS177,UZS17# 17G |
1 | ||
| 90937-01445 |
JZS177,UZS17# 11G |
1 | ||
| 90937-01446 |
JZS177,UZS17# 13G |
1 | ||
| 90937-01366 |
JZS177,UZS17# 7G |
1 | ||
| 90937-01444 |
JZS177,UZS17# 9G |
1 | ||
| 90937-01449 |
JZS177,UZS17# 19G |
1 | ||
| 90937-01447 |
JZS177,UZS17# 15G |
1 | ||
| 90937-01452 |
JZS177,UZS17# 1G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01344 |
JZS177,UZS17# 3G |
1 | ||
| 90937-01343 |
JZS177,UZS17# 2G |
1 | ||
| 90937-01345 |
JZS177,UZS17# 4G |
1 | ||
| 90937-01351 |
JZS177,UZS17# 14G |
1 | ||
| 90937-01348 |
JZS177,UZS17# 8G |
1 | ||
| 90937-01349 |
JZS177,UZS17# 10G |
1 | ||
| 90937-01346 |
JZS177,UZS17# 5G |
1 | ||
| 90937-01347 |
JZS177,UZS17# 6G |
1 | ||
| 90937-01354 |
JZS177,UZS17# 20G |
1 | ||
| 90937-01350 |
JZS177,UZS17# 12G |
1 | ||
| 90937-01352 |
JZS177,UZS17# 16G |
1 | ||
| 90937-01353 |
JZS177,UZS17# 18G |
1 | ||
| 90937-01448 |
JZS177,UZS17# 17G |
1 | ||
| 90937-01445 |
JZS177,UZS17# 11G |
1 | ||
| 90937-01446 |
JZS177,UZS17# 13G |
1 | ||
| 90937-01366 |
JZS177,UZS17# 7G |
1 | ||
| 90937-01444 |
JZS177,UZS17# 9G |
1 | ||
| 90937-01449 |
JZS177,UZS17# 19G |
1 | ||
| 90937-01447 |
JZS177,UZS17# 15G |
1 | ||
| 90937-01452 |
JZS177,UZS17# 1G |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-30170 |
JZS177,UZS17# |
1 | ||
| 37230-30170 |
JZS177,UZS17# |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10133 |
JZS177,UZS17# |
2 | ||
| 90119-10133 |
JZS177,UZS17# |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10033 |
GS171,JZS171,175,177,UZS17# 厚さ=6.5 |
2 | ||
| 90201-10008 |
GS171,JZS171,175,177,UZS17# 厚さ=4.5 |
2 | ||
| 90201-10017 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=9.0 |
2 | ||
| 90201-10034 |
GS171,JZS171,175,177,UZS17# 厚さ=11.0 |
2 | ||
| 90201-10106 |
GS171,JZS171,175,177,UZS17# 厚さ=2.0 |
2 | ||
| 90201-10017 |
GS171,JZS171,175,177,UZS17# 厚さ=9.0 |
2 | ||
| 90201-10008 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=4.5 |
2 | ||
| 90201-10033 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=6.5 |
2 | ||
| 90201-10034 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=11.0 |
2 | ||
| 90201-10106 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=2.0 |
2 | ||
| 37328 - NUT, PROPELLER SHAFT ADJUSTING | ||||
| 37328-50010 |
JZS177,UZS17# |
1 | ||
| 37334A - BOOT, SLIDING SHAFT | ||||
| 37334-50010 |
JZS177,UZS17# |
1 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-22010 |
JZS177,UZS17# |
1 | ||
| 37341-22010 |
JZS177,UZS17# |
1 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-50010 |
JZS177,UZS17# |
1 | ||
| 37342-50010 |
JZS177,UZS17# |
1 | ||
| 37342A - RING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2) | ||||
| 90520-28009 |
JZS177,UZS17# |
1 | ||
| 90520-28009 |
JZS177,UZS17# |
1 | ||
| 37511 - COUPLING, FLEXIBLE | ||||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511 - COUPLING, FLEXIBLE | ||||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511A - BOLT (FOR FLEXIBLE COUPLING) | ||||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 37511A - BOLT (FOR FLEXIBLE COUPLING) | ||||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 37511B - NUT (FOR FLEXIBLE COUPLING) | ||||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 37511B - NUT (FOR FLEXIBLE COUPLING) | ||||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 37511C - WASHER, PLATE (FOR FLEXIBLE COUPLING) | ||||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
| 37511C - WASHER, PLATE (FOR FLEXIBLE COUPLING) | ||||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
(0108- )JZS177,UZS17#
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-30670 |
JZS177 |
1 | ||
| 37100-30670 |
JZS177 |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 37100D - BOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-30170 |
JZS177,UZS17# |
1 | ||
| 37230-30170 |
JZS177,UZS17# |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10133 |
JZS177,UZS17# |
2 | ||
| 90119-10133 |
JZS177,UZS17# |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10033 |
GS171,JZS171,175,177,UZS17# 厚さ=6.5 |
2 | ||
| 90201-10008 |
GS171,JZS171,175,177,UZS17# 厚さ=4.5 |
2 | ||
| 90201-10017 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=9.0 |
2 | ||
| 90201-10034 |
GS171,JZS171,175,177,UZS17# 厚さ=11.0 |
2 | ||
| 90201-10106 |
GS171,JZS171,175,177,UZS17# 厚さ=2.0 |
2 | ||
| 90201-10017 |
GS171,JZS171,175,177,UZS17# 厚さ=9.0 |
2 | ||
| 90201-10008 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=4.5 |
2 | ||
| 90201-10033 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=6.5 |
2 | ||
| 90201-10034 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=11.0 |
2 | ||
| 90201-10106 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=2.0 |
2 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-22010 |
JZS177,UZS17# |
1 | ||
| 37341-22010 |
JZS177,UZS17# |
1 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-50010 |
JZS177,UZS17# |
1 | ||
| 37342-50010 |
JZS177,UZS17# |
1 | ||
| 37342A - RING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2) | ||||
| 90520-28009 |
JZS177,UZS17# |
1 | ||
| 90520-28009 |
JZS177,UZS17# |
1 | ||
| 37511 - COUPLING, FLEXIBLE | ||||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511 - COUPLING, FLEXIBLE | ||||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511A - BOLT (FOR FLEXIBLE COUPLING) | ||||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 37511A - BOLT (FOR FLEXIBLE COUPLING) | ||||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 37511B - NUT (FOR FLEXIBLE COUPLING) | ||||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 37511B - NUT (FOR FLEXIBLE COUPLING) | ||||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 37511C - WASHER, PLATE (FOR FLEXIBLE COUPLING) | ||||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
| 37511C - WASHER, PLATE (FOR FLEXIBLE COUPLING) | ||||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
Part Price Details
Loading price information...
Part Number:
Price:
