JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta
Production
Sep 1999
-
Jun 2004
Engine
2JZFSE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9909- )JZS177,UZS171,175

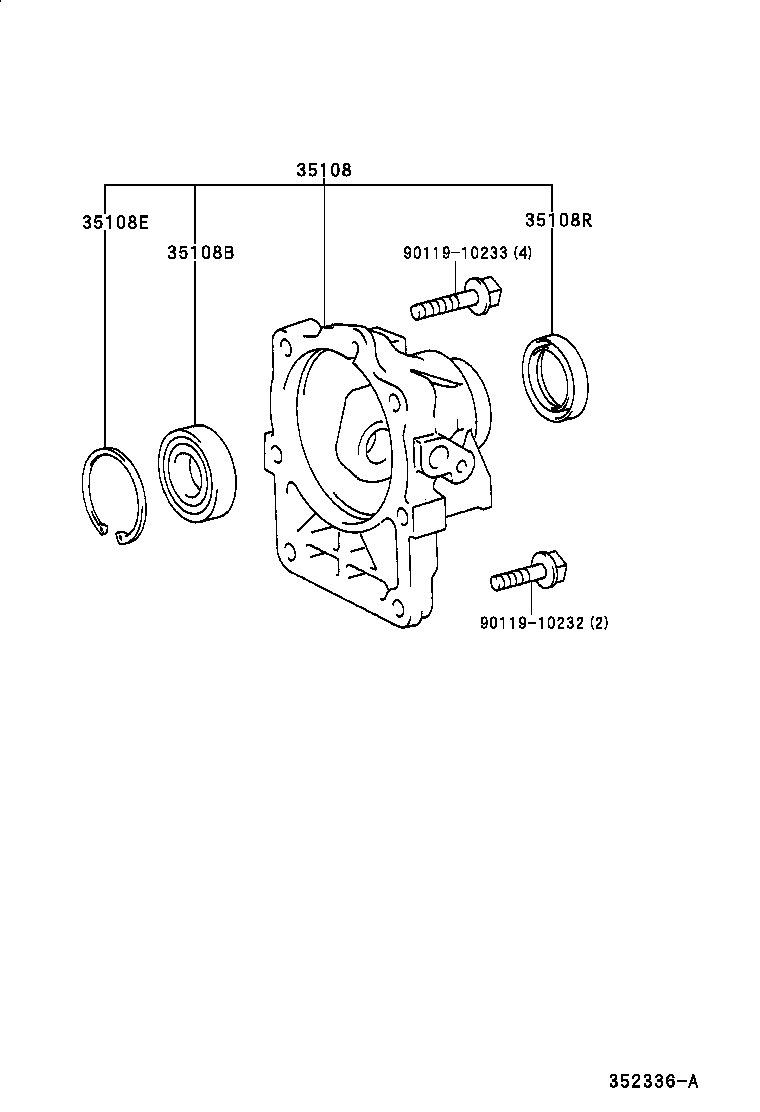

Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35108 - HOUSING SUB-ASSY, EXTENSION (ATM) | ||||
| 35180-30030 |
JZS177,UZS171,175 |
1 | ||
| 35180-30030 |
JZS177,UZS171,175 |
1 | ||
| 35108B - BEARING (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING) | ||||
| 90363-34001 |
JZS177,UZS171,175 |
1 | ||
| 90363-34001 |
JZS177,UZS171,175 |
1 | ||
| 35108E - RING, HOLE SNAP (FOR ATM EXTENSION HOUSING) | ||||
| 90521-66006 |
JZS177,UZS171,175 |
1 | ||
| 90521-66006 |
JZS177,UZS171,175 |
1 | ||
| 35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING | ||||
| 90311-42024 |
JZS177,UZS171,175 |
1 | ||
| 90311-42024 |
JZS177,UZS171,175 |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-10233 | ||||
