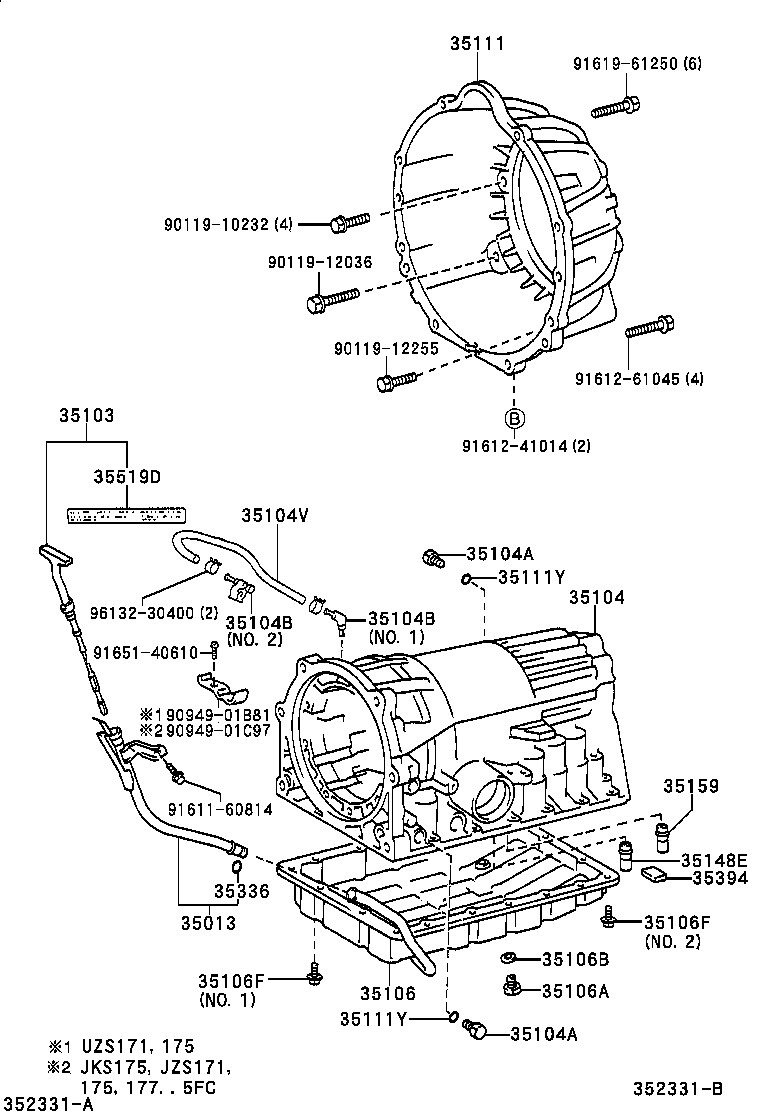

Toyota Crown/crown majesta JZS177 TRANSMISSION CASE & OIL PAN (ATM)

Part #	Description	Period	Qty
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-30530	JZS175,177	09/1999 - 08/2001	1
35013-30530	JZS171,175,177..D4	08/2001 - 12/2999	1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-30650	JZS175,177	09/1999 - 08/2001	1
35103-51020	JZS175,177	08/2001 - 12/2999	1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-30200	JZS171,175,177,UZS171,175..5FC	09/1999 - 08/2001	1
35104-30200	JZS171,175,177,UZS171,175..5FC	08/2001 - 12/2999	1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	GS171,JZS171,175,177,UZS17#	09/1999 - 08/2001	2
90341-08001	GS171,JKS175,JZS171,175,177,UZS17#	08/2001 - 12/2999	2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	GS171,JZS171,175,177,UZS17#	09/1999 - 08/2001	2
90341-08001	GS171,JKS175,JZS171,175,177,UZS17#	08/2001 - 12/2999	2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03165	JZS177	09/1999 - 08/2001	1
90930-03165	JZS177	08/2001 - 06/2004	1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03165	JZS177	09/1999 - 08/2001	1
90930-03165	JZS177	08/2001 - 06/2004	1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30220	JZS171,175,177..D4,TWC	09/1999 - 08/2001	1
35106-30210	JZS171,175,177..A,C,ROY,ROYEX,ROYG	08/2001 - 06/2004	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10018	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
90341-10011	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010	GS171,JKS175,JZS17#,UZS17#	04/2003 - 12/2999	1
35178-50010	GS171,JKS175,JZS17#,UZS17#	08/2001 - 04/2003	1
35178-50010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06866	JZS171,175,177,UZS171,175..5FC NO.2	09/1999 - 08/2001	1
90119-06513	JZS171,175,177,UZS171,175..5FC NO.1	09/1999 - 08/2001	18
90119-06513	JKS175,JZS171,175,177,UZS171,175..5FC NO.1	08/2001 - 12/2999	18
90119-06866	JKS175,JZS171,175,177,UZS171,175..5FC NO.2	08/2001 - 12/2999	1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06866	JZS171,175,177,UZS171,175..5FC NO.2	09/1999 - 08/2001	1
90119-06513	JZS171,175,177,UZS171,175..5FC NO.1	09/1999 - 08/2001	18
90119-06513	JKS175,JZS171,175,177,UZS171,175..5FC NO.1	08/2001 - 12/2999	18
90119-06866	JKS175,JZS171,175,177,UZS171,175..5FC NO.2	08/2001 - 12/2999	1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-30150	JZS17#	09/1999 - 08/2001	1
35111-30150	JZS17#	08/2001 - 12/2999	1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
90301-06196	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
90301-06196	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
35148E - GASKET, BRAKE DRUM, NO.2
35148-30010	JZS177,UZS171,175	08/2001 - 06/2004	1
35148-30010	JZS171,175,177,UZS171,175..5FC	09/1999 - 08/2001	1
35159 - GASKET, BRAKE DRUM
35159-30020	JKS175,JZS171,175,177,UZS171,175..5FC	08/2001 - 12/2999	1
35159-30020	JZS171,175,177,UZS171,175..5FC	09/1999 - 08/2001	1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173	GS171,JKS175,JZS17#	08/2001 - 12/2999	1
90301-09173	GS171,JZS17#	09/1999 - 08/2001	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	JZS171,175,177,UZS171,175	09/1999 - 08/2001	3
35394-30011	JKS175,JZS171,175,177,UZS171,175	08/2001 - 12/2999	3
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-20030	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
35519-20030	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
Common parts
90119-10232
90119-12036
90119-12255
90949-01B81
90949-01C97
91611-60814
91612-41014
91612-61045
91619-61250
91651-40610
96132-30400

JZS177-CEAZH (1999)

(9909- )5FC
