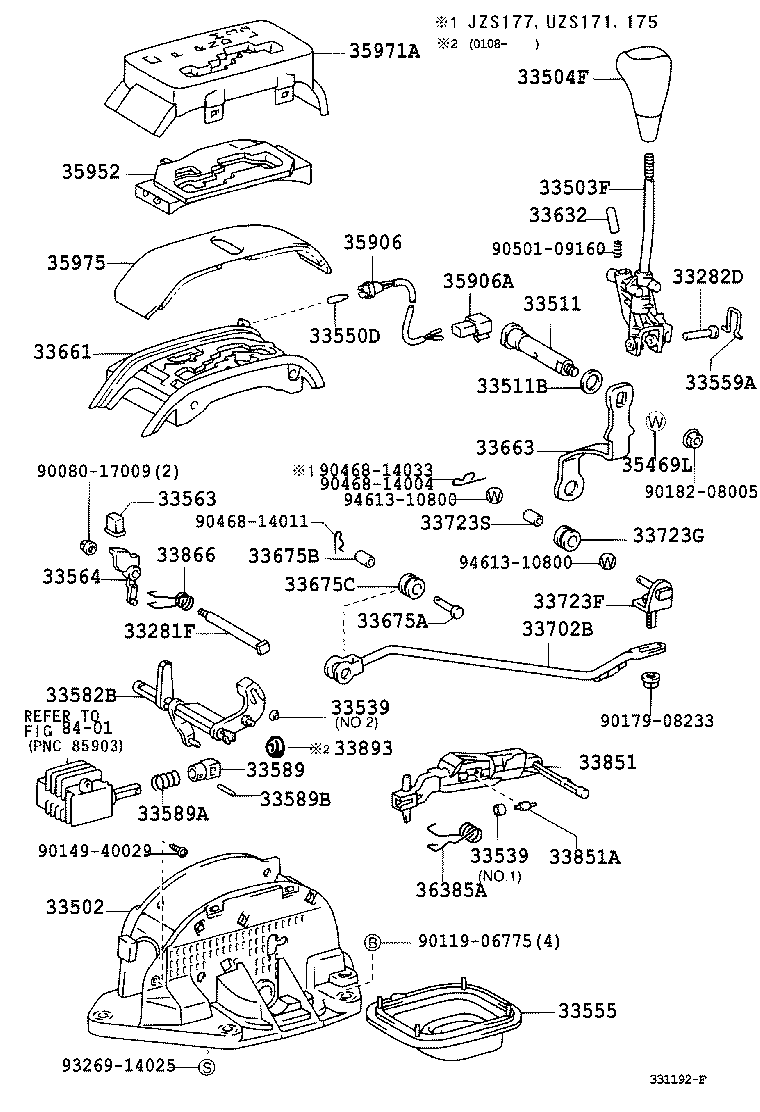

Toyota Crown/crown majesta JZS177 SHIFT LEVER & RETAINER

Part #	Description	Period	Qty
33281F - PIN, LEVER LOCK (FOR FLOOR SHIFT)
33526-30030	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	2
33526-30030	JZS177,UZS17#	08/2001 - 05/2004	2
33282D - PIN, LEVER LOCK, NO.2
33899-30010	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
33899-30010	JZS177,UZS17#	08/2001 - 05/2004	1
33502 - PLATE SUB-ASSY, SHIFT LEVER
33521-30320	JZS177,UZS17#	09/1999 - 08/2001	1
33521-30320	JZS177,UZS17#	08/2001 - 05/2004	1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-30190	JZS177,UZS17#	08/2001 - 05/2004	1
33055-30190	JZS177,UZS17#	09/1999 - 08/2001	1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-30310B0	JZS177,UZS17# DK.CHARCOAL,TRIM1#	09/1999 - 08/2001	1
33504-30310E0	JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06	02/2002 - 07/2002	1
33504-30310E0	JZS177,UZS17# SANDAL WOOD,TRIM0#	08/2001 - 05/2004	1
33504-30310E0	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C SANDAL WOOD,TRIM0#	09/1999 - 08/2001	1
33504-30310C6	JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23	02/2002 - 07/2002	1
33504-30310B0	JZS177,UZS17# DK.CHARCOAL,TRIM1#	08/2001 - 05/2004	1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-30450	JZS177,UZS17#	09/1999 - 08/2001	1
33511-30450	JZS177,UZS17#	08/2001 - 05/2004	1
33511B - BUSH (FOR CONTROL SHAFT)
35469-30030	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	2
35469-30030	JZS177,UZS17#	08/2001 - 05/2004	2
33539 - CUSHION, SHIFT LEVER ANTI-RATTLE
33539-30020	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C NO.2	09/1999 - 08/2001	1
33539-30010	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C NO.1	09/1999 - 08/2001	1
33539-30020	JZS177,UZS17# NO.2	08/2001 - 05/2004	1
33539-30010	JZS177,UZS17# NO.1	08/2001 - 05/2004	1
33539 - CUSHION, SHIFT LEVER ANTI-RATTLE
33539-30020	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C NO.2	09/1999 - 08/2001	1
33539-30010	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C NO.1	09/1999 - 08/2001	1
33539-30020	JZS177,UZS17# NO.2	08/2001 - 05/2004	1
33539-30010	JZS177,UZS17# NO.1	08/2001 - 05/2004	1
33550D - BULB, POSITION INDICATOR LAMP
90981-11014	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C 14V 1.4W	09/1999 - 08/2001	1
90981-11014	JZS177,UZS17# 14V 1.4W	08/2001 - 05/2004	1
33555 - BOOT, SHIFT LEVER
33555-30350	JZS177,UZS17#	09/1999 - 08/2001	1
33555-30350	JZS177,UZS17#	08/2001 - 05/2004	1
33559A - NUT, SHIFT LEVER, NO.1
33559-30030	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
33559-30030	JZS177,UZS17#	08/2001 - 05/2004	1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-30120	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
33563-30120	JZS177,UZS17#	08/2001 - 05/2004	1
33564 - LINK, SHIFT LOCK RELEASE, NO.1
33564-30120	JZS177,UZS17#	09/1999 - 08/2001	1
33564-30120	JZS177,UZS17#	08/2001 - 05/2004	1
33582B - STOPPER, SHIFT LOCK PLATE (FOR FLOOR SHIFT)
33582-30090	JZS177,UZS17#	08/2001 - 05/2004	1
33582-30090	JZS177,UZS17#	09/1999 - 08/2001	1
33589 - LINK, SHIFT LOCK SOLENOID
33589-16030	JZS177,UZS17#	08/2001 - 05/2004	1
33589-16030	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
33589A - SPRING, COMPRESSION (FOR SHIFT LOCK SOLENOID LINK)
90501-06087	JZS177,UZS17#	08/2001 - 05/2004	1
90501-06087	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
33589B - PIN, SLOTTED SPRING (FOR SHIFT LOCK SOLENOID LINK)
90254-02006	JZS177,UZS17#	08/2001 - 05/2004	1
90254-02006	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
33632 - ROD, DETENT, NO.2
33632-30050	JZS177,UZS17#	08/2001 - 05/2004	1
33632-30050	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
33661 - HOUSING, SHIFT LEVER GUIDE
33661-30070	JZS177,UZS171,175	08/2001 - 05/2004	1
33661-30070	JZS177,UZS171,175	09/1999 - 08/2001	1
33663 - LEVER, CONTROL
33663-30020	JZS177,UZS171,175	08/2001 - 05/2004	1
33663-30020	JZS177,UZS171,175	09/1999 - 08/2001	1
33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33726-35010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
33726-35010	GS171,JKS175,JZS17#,UZS17#	08/2001 - 05/2004	1
33675B - BUSH (FOR TRANSMISSION CONTROL ROD)
90560-08091	JZS177,UZS171,175	08/2001 - 05/2004	1
90560-08091	GS171,JZS171,175,177,UZS171,175	09/1999 - 08/2001	1
33675C - GROMMET (FOR TRANSMISSION CONTROL ROD)
90480-17013	JZS177,UZS171,175	08/2001 - 05/2004	1
90480-17013	GS171,JZS171,175,177,UZS171,175	09/1999 - 08/2001	1
33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33702-30560	JZS177	08/2001 - 05/2004	1
33702-30560	JZS177	09/1999 - 08/2001	1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-30100	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
33723-30100	JZS177,UZS17#	08/2001 - 05/2004	1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33572-30060	JZS177,UZS17#	08/2001 - 05/2004	1
33572-30060	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
33723S - BUSH (FOR CONNECTING ROD SWIVEL)
33514-30090	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
33514-30090	JZS177,UZS17#	08/2001 - 05/2004	1
33851 - PLATE, SHIFT LOCK SWITCH
33851-30030	JZS177,UZS17#	09/1999 - 08/2001	1
33851-30030	JZS177,UZS17#	08/2001 - 05/2004	1
33851A - ROLLER (FOR SHIFT LOCK SWITCH)
90903-61002	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
90903-61002	JZS177,UZS17#	08/2001 - 05/2004	1
33866 - SPRING, SHIFT LOCK RELEASE
33866-30010	JZS177,UZS17#	08/2001 - 05/2004	1
33866-30010	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
33893 - CAP, SHIFT LOCK PLATE STOPPER
33893-30010	JZS177,UZS17#	08/2001 - 05/2004	1
35469L - SPACER, SHIFT LEVER
94623-10800	JZS177,UZS17#	08/2001 - 05/2004	1
94623-10800	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-30120	JZS177,UZS17#	08/2001 - 05/2004	1
35906-30120	JZS177,UZS17#	09/1999 - 08/2001	1
35906A - HOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)
90980-11211	JZS177,UZS17#	08/2001 - 05/2004	1
90980-11211	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
35952 - LENS, POSITION INDICATOR
35952-30050	JZS177,UZS171,175	09/1999 - 08/2001	1
35952-30050	JZS177,UZS171,175	08/2001 - 05/2004	1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-30360	JZS177,UZS171,175	08/2001 - 05/2004	1
35971-30360	JZS177,UZS171,175	09/1999 - 08/2001	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-30270	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
35975-30270	JZS177,UZS17#	08/2001 - 05/2004	1
36385A - SPRING, FLOOR SHIFT LEVER TORSION, NO.1
36385-30040	JZS177,UZS17#	08/2001 - 05/2004	1
36385-30040	JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C	09/1999 - 08/2001	1
Common parts
90080-17009
90119-06775
90149-40029
90179-08233
90182-08005
90468-14004
90468-14011
90468-14033
90501-09160
93269-14025
94613-10800
Linked diagrams
8401

JZS177-CEAZH (1999)

(9909- )A,ATH,ATHE,ATHG,ATHV,C
