JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )1JZFSE,2JZFSE

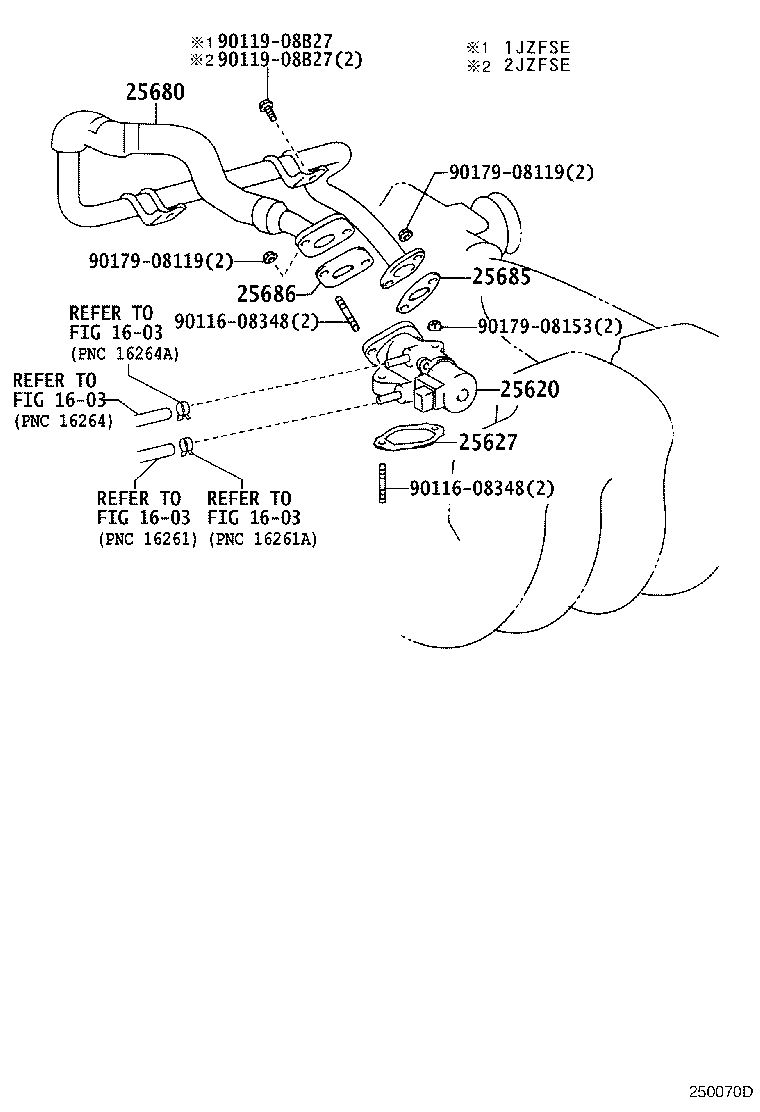

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 25620 25627 25680 25685 25686 9011608348 9011608348 9011908B27 9011908B27 9017908119 9017908119 9017908153
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-46090

1JZFSE,2JZFSE..JKS175,JZS171,175,177

 1
25620-46090

2JZFSE..JZS175,177

 1
25627 - GASKET, EGR VALVE
25627-46020

1JZFSE,2JZFSE..JKS175,JZS171,175,177

 1
25627-46020

2JZFSE..JZS175,177

 1
25680 - COOLER ASSY, EGR
25680-46010

2JZFSE..JZS175,177

 1
25680-46011

2JZFSE..JZS177

 1
25680-46010

2JZFSE..JKS175,JZS175,177

 1
25685 - GASKET, EGR COOLER, NO.1
25685-46020

2JZFSE..JZS175,177

 1
25685-46020

2JZFSE..JZS177

 1
25686 - GASKET, EGR COOLER, NO.2
25686-46010

2JZFSE..JZS175,177

 1
25686-46010

2JZFSE..JZS177

 1
Common parts
90116-08348
90119-08B27
90179-08119
90179-08153
Linked diagrams
1603
