Toyota Crown/crown majesta JZS177 FUEL INJECTION SYSTEM

JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 2JZFSE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

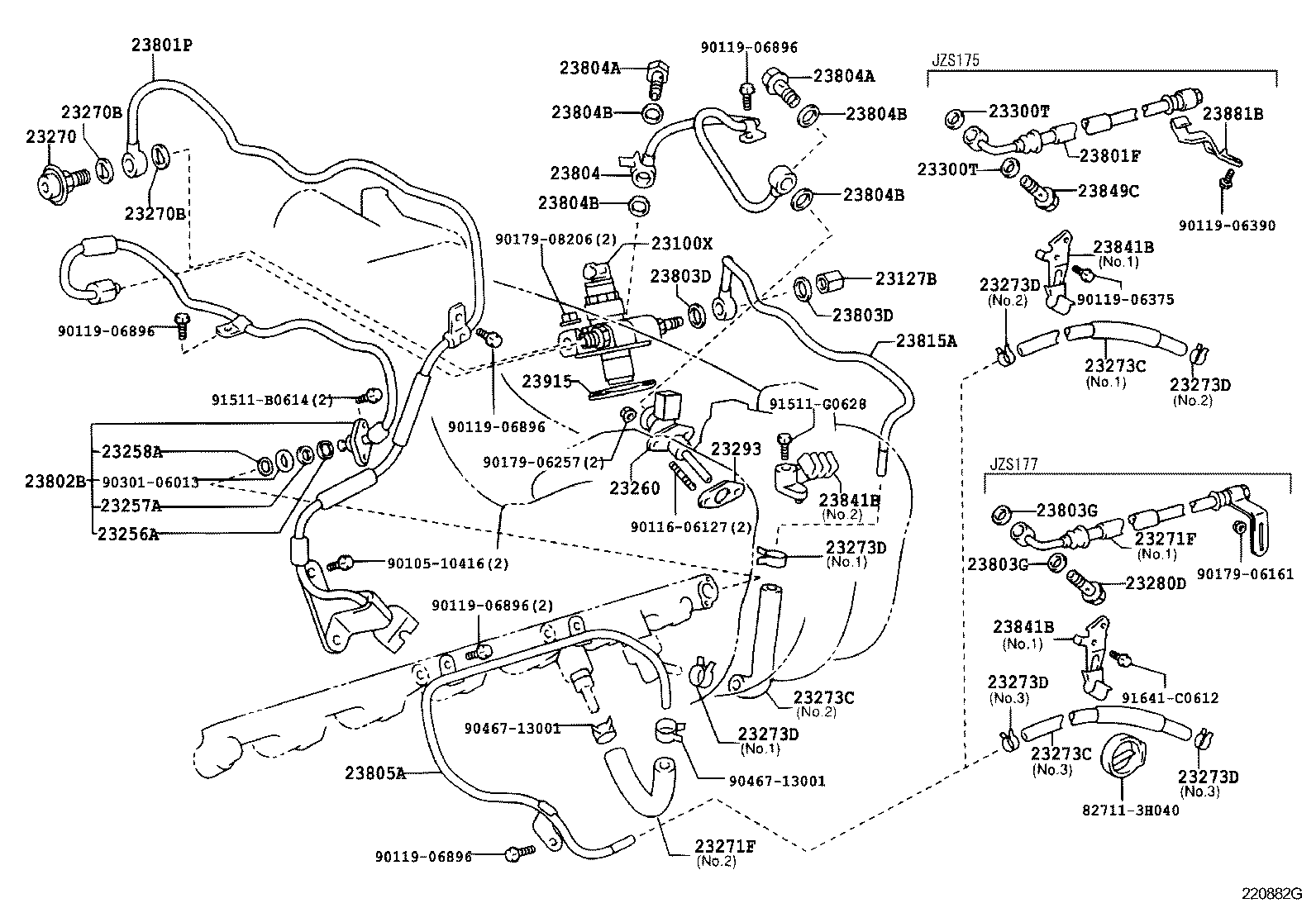

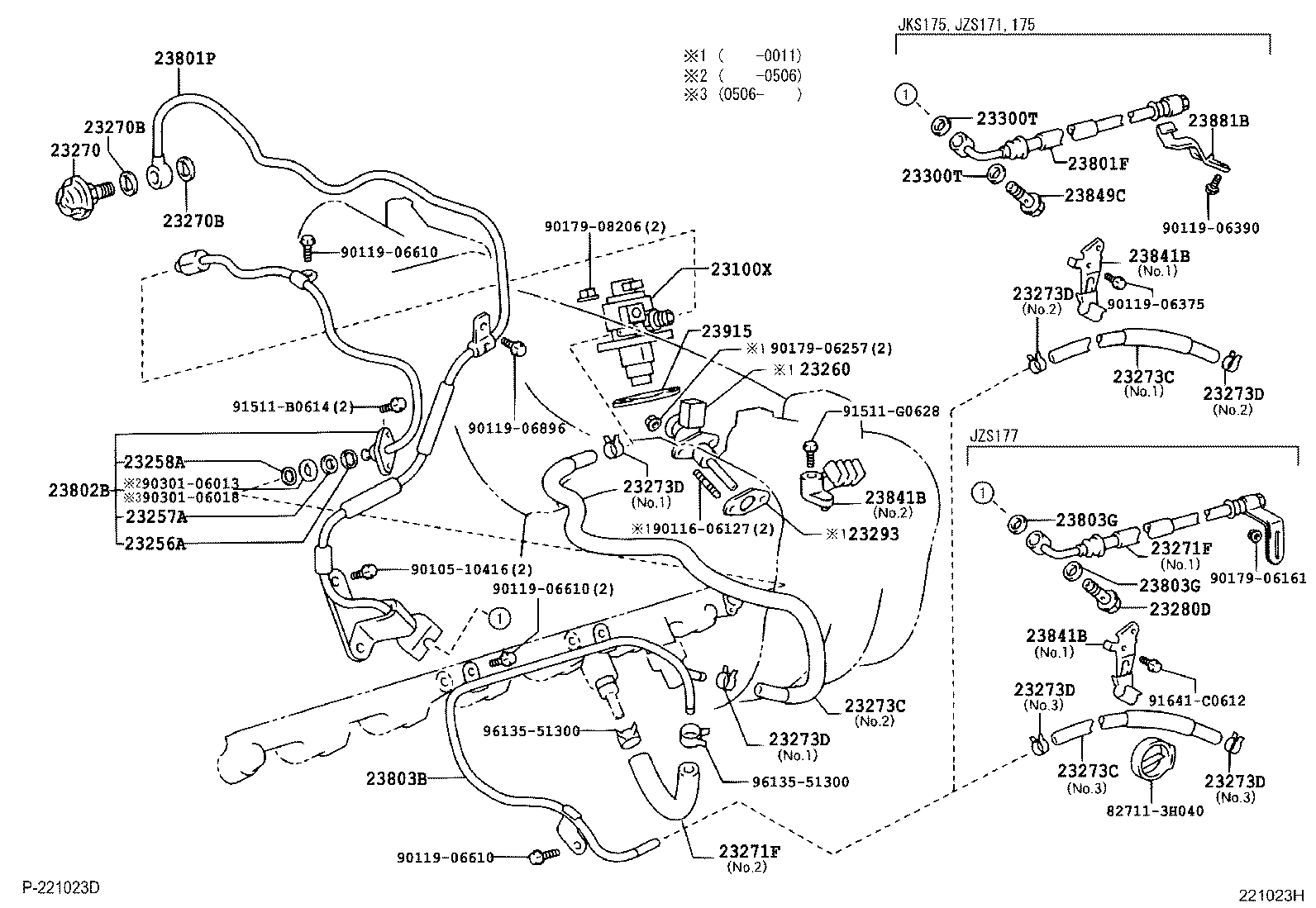

ILLUST NO. 2 OF 3(9909-0010)2JZFSE

Click highlighted areas on diagram

Part #	Description	Period	Qty
23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE)
23100-46022	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2002	1
23100-46023	1JZFSE,2JZFSE..JKS175,JZS171,175,177	12/2002 - 12/2003	1
23100-46010	2JZFSE..JZS175,177	09/1999 - 10/2000	1
23100-46022	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23100-46024	1JZFSE,2JZFSE..JZS171,175,177	12/2003 - 12/2999	1
23127B - NUT, FUEL PUMP
23127-46010	2JZFSE..JZS175,177	09/1999 - 10/2000	1
23256A - RING, FUEL PIPE, NO.1
23256-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23256-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	1
23257A - RING, FUEL PIPE, NO.2
23257-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	1
23257-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23258A - RING, FUEL PIPE, NO.3
23258-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	1
23258-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23260 - INJECTOR ASSY, COLD START FUEL
23260-46010	2JZFSE..JZS175,177	09/1999 - 11/2000	1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23207-46030	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23270-74030	2JZFSE..JZS175,177	09/1999 - 10/2000	1
23207-46030	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 02/2003	1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23279-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	2
23279-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	2
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23279-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	2
23279-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	2
23271F - HOSE, FUEL
23271-46220	2JZFSE..JZS177 NO.1	09/1999 - 08/2001	1
23271-46220	2JZFSE..JZS177 NO.1	08/2001 - 06/2004	1
23271-46260	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23271-46260	2JZFSE..JZS175,177 NO.2	09/1999 - 08/2001	1
23271F - HOSE, FUEL
23271-46220	2JZFSE..JZS177 NO.1	09/1999 - 08/2001	1
23271-46220	2JZFSE..JZS177 NO.1	08/2001 - 06/2004	1
23271-46260	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23271-46260	2JZFSE..JZS175,177 NO.2	09/1999 - 08/2001	1
23273C - HOSE, FUEL, NO.2
23273-46040	2JZFSE..JZS177	03/2000 - 04/2000	1
23273-46040	2JZFSE..JZS177 NO.3	09/1999 - 03/2000	1
23273-46050	2JZFSE..JZS175,177 NO.2	09/1999 - 10/2000	1
23273-46041	2JZFSE..JZS177 NO.3	04/2000 - 08/2001	1
23273-46041	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	1
23273-46060	2JZFSE..JZS175,177 NO.2	10/2000 - 08/2001	1
23273-46060	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23273C - HOSE, FUEL, NO.2
23273-46040	2JZFSE..JZS177	03/2000 - 04/2000	1
23273-46040	2JZFSE..JZS177 NO.3	09/1999 - 03/2000	1
23273-46050	2JZFSE..JZS175,177 NO.2	09/1999 - 10/2000	1
23273-46041	2JZFSE..JZS177 NO.3	04/2000 - 08/2001	1
23273-46041	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	1
23273-46060	2JZFSE..JZS175,177 NO.2	10/2000 - 08/2001	1
23273-46060	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23273C - HOSE, FUEL, NO.2
23273-46040	2JZFSE..JZS177	03/2000 - 04/2000	1
23273-46040	2JZFSE..JZS177 NO.3	09/1999 - 03/2000	1
23273-46050	2JZFSE..JZS175,177 NO.2	09/1999 - 10/2000	1
23273-46041	2JZFSE..JZS177 NO.3	04/2000 - 08/2001	1
23273-46041	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	1
23273-46060	2JZFSE..JZS175,177 NO.2	10/2000 - 08/2001	1
23273-46060	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-41100	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	2
90467-13001	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	2
96135-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96135-41300	2JZFSE..JZS177 NO.3	09/1999 - 08/2001	2
96135-51300	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-41100	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	2
90467-13001	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	2
96135-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96135-41300	2JZFSE..JZS177 NO.3	09/1999 - 08/2001	2
96135-51300	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-41100	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	2
90467-13001	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	2
96135-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96135-41300	2JZFSE..JZS177 NO.3	09/1999 - 08/2001	2
96135-51300	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-41100	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	2
90467-13001	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	2
96135-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96135-41300	2JZFSE..JZS177 NO.3	09/1999 - 08/2001	2
96135-51300	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-41100	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	2
90467-13001	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	2
96135-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96135-41300	2JZFSE..JZS177 NO.3	09/1999 - 08/2001	2
96135-51300	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-41100	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	2
90467-13001	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	2
96135-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96135-41300	2JZFSE..JZS177 NO.3	09/1999 - 08/2001	2
96135-51300	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	2
23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET)
90401-12029	2JZFSE..JZS177	08/2001 - 06/2004	1
90401-12029	2JZFSE..JZS177	09/1999 - 08/2001	1
23293 - GASKET, COLD START INJECTOR
23293-46010	2JZFSE..JZS175,177	09/1999 - 11/2000	1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-46080	2JZFSE..JZS175,177	09/1999 - 10/2000	1
23801-46081	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23801-46081	2JZFSE..JKS175,JZS175,177	08/2001 - 12/2999	1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-46080	2JZFSE..JZS175,177	09/1999 - 10/2000	1
23802-46090	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-10012	2JZFSE..JZS175,177	09/1999 - 10/2000	2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-10012	2JZFSE..JZS175,177	09/1999 - 10/2000	2
23803G - GASKET(FOR FUEL HOSE)
90430-12026	2JZFSE..JZS177	08/2001 - 06/2004	2
90430-12026	2JZFSE..JZS177	09/1999 - 08/2001	2
23803G - GASKET(FOR FUEL HOSE)
90430-12026	2JZFSE..JZS177	08/2001 - 06/2004	2
90430-12026	2JZFSE..JZS177	09/1999 - 08/2001	2
23804 - PIPE SUB-ASSY, FUEL, NO.4
23804-46010	2JZFSE..JZS175,177	09/1999 - 10/2000	1
23804A - BOLT, UNION(FOR FUEL PIPE NO.4)
90401-08004	2JZFSE..JZS175,177	09/1999 - 10/2000	2
23804A - BOLT, UNION(FOR FUEL PIPE NO.4)
90401-08004	2JZFSE..JZS175,177	09/1999 - 10/2000	2
23804B - GASKET(FOR FUEL PIPE NO.4)
90430-08014	2JZFSE..JZS175,177	09/1999 - 10/2000	4
23804B - GASKET(FOR FUEL PIPE NO.4)
90430-08014	2JZFSE..JZS175,177	09/1999 - 10/2000	4
23804B - GASKET(FOR FUEL PIPE NO.4)
90430-08014	2JZFSE..JZS175,177	09/1999 - 10/2000	4
23804B - GASKET(FOR FUEL PIPE NO.4)
90430-08014	2JZFSE..JZS175,177	09/1999 - 10/2000	4
23805A - PIPE SUB-ASSY, FUEL, NO.5
23805-46010	2JZFSE..JZS175,177	09/1999 - 10/2000	1
23815A - PIPE, FUEL, NO.3
23815-46010	2JZFSE..JZS175,177	09/1999 - 10/2000	1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-46031	1JZGE,2JZFSE..JZS171,173,175,177 NO.1	09/1999 - 03/2000	1
23841-46060	2JZFSE..JZS175,177 NO.2	09/1999 - 08/2001	1
23841-46031	1JZGE,2JZFSE..JZS171,173,175,177	03/2000 - 04/2000	1
23841-46080	1JZGE,2JZFSE..JZS171,173,175,177..A,ATH,ATHG,C,ROY,ROYEX,ROYG NO.1	04/2000 - 08/2001	1
23841-46080	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	1
23841-46060	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-46031	1JZGE,2JZFSE..JZS171,173,175,177 NO.1	09/1999 - 03/2000	1
23841-46060	2JZFSE..JZS175,177 NO.2	09/1999 - 08/2001	1
23841-46031	1JZGE,2JZFSE..JZS171,173,175,177	03/2000 - 04/2000	1
23841-46080	1JZGE,2JZFSE..JZS171,173,175,177..A,ATH,ATHG,C,ROY,ROYEX,ROYG NO.1	04/2000 - 08/2001	1
23841-46080	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	1
23841-46060	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-46031	1JZGE,2JZFSE..JZS171,173,175,177 NO.1	09/1999 - 03/2000	1
23841-46060	2JZFSE..JZS175,177 NO.2	09/1999 - 08/2001	1
23841-46031	1JZGE,2JZFSE..JZS171,173,175,177	03/2000 - 04/2000	1
23841-46080	1JZGE,2JZFSE..JZS171,173,175,177..A,ATH,ATHG,C,ROY,ROYEX,ROYG NO.1	04/2000 - 08/2001	1
23841-46080	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	1
23841-46060	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23915 - INSULATOR, FUEL PUMP
23915-46011	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23915-46011	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23915-46010	2JZFSE..JZS175,177	09/1999 - 10/2000	1
Common parts
82711-3H040
90105-10416
90116-06127
90119-06375
90119-06390
90119-06896
90179-06161
90179-06257
90179-08206
90301-06013
90467-13001
91511-B0614
91511-G0628
91641-C0612

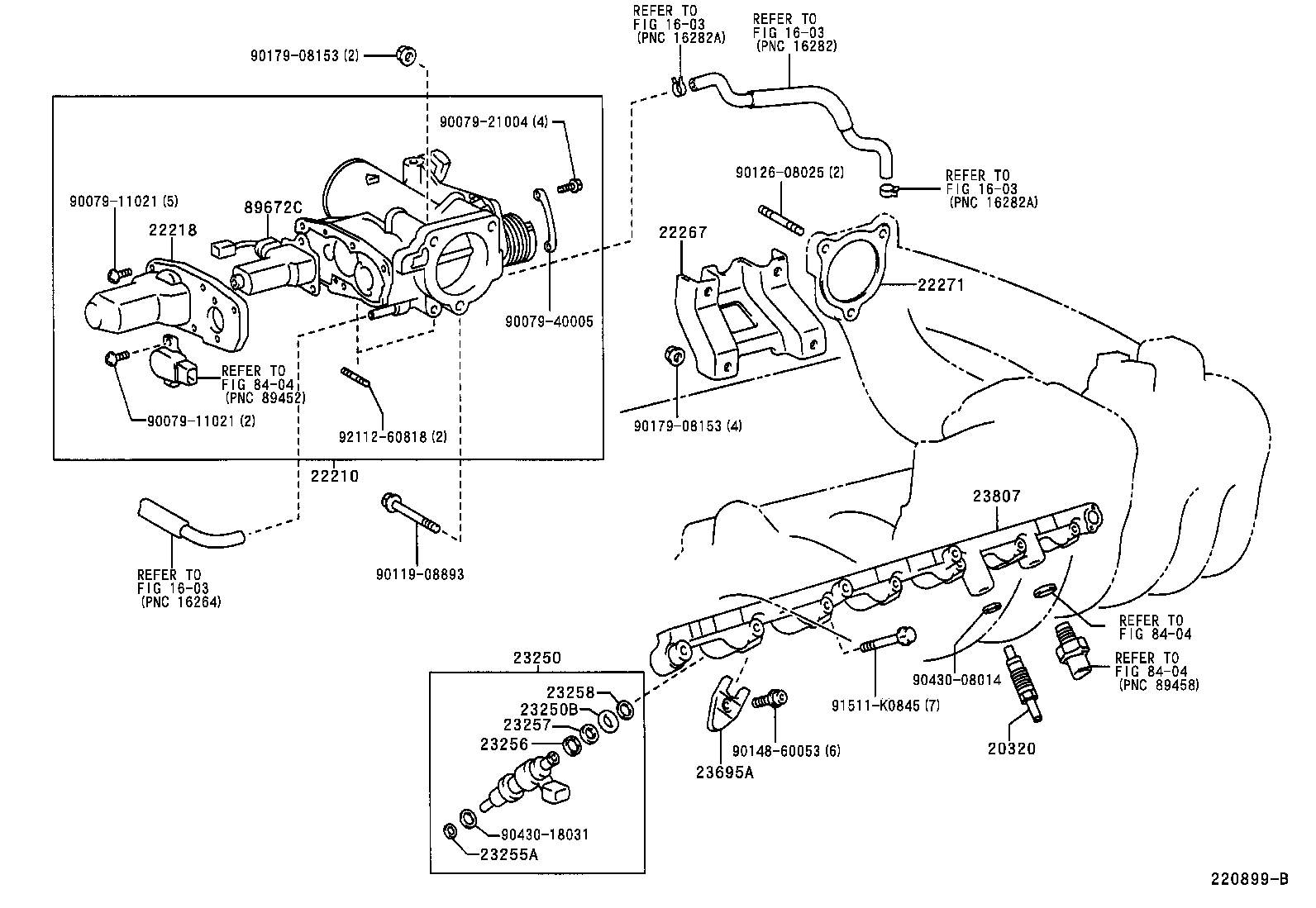

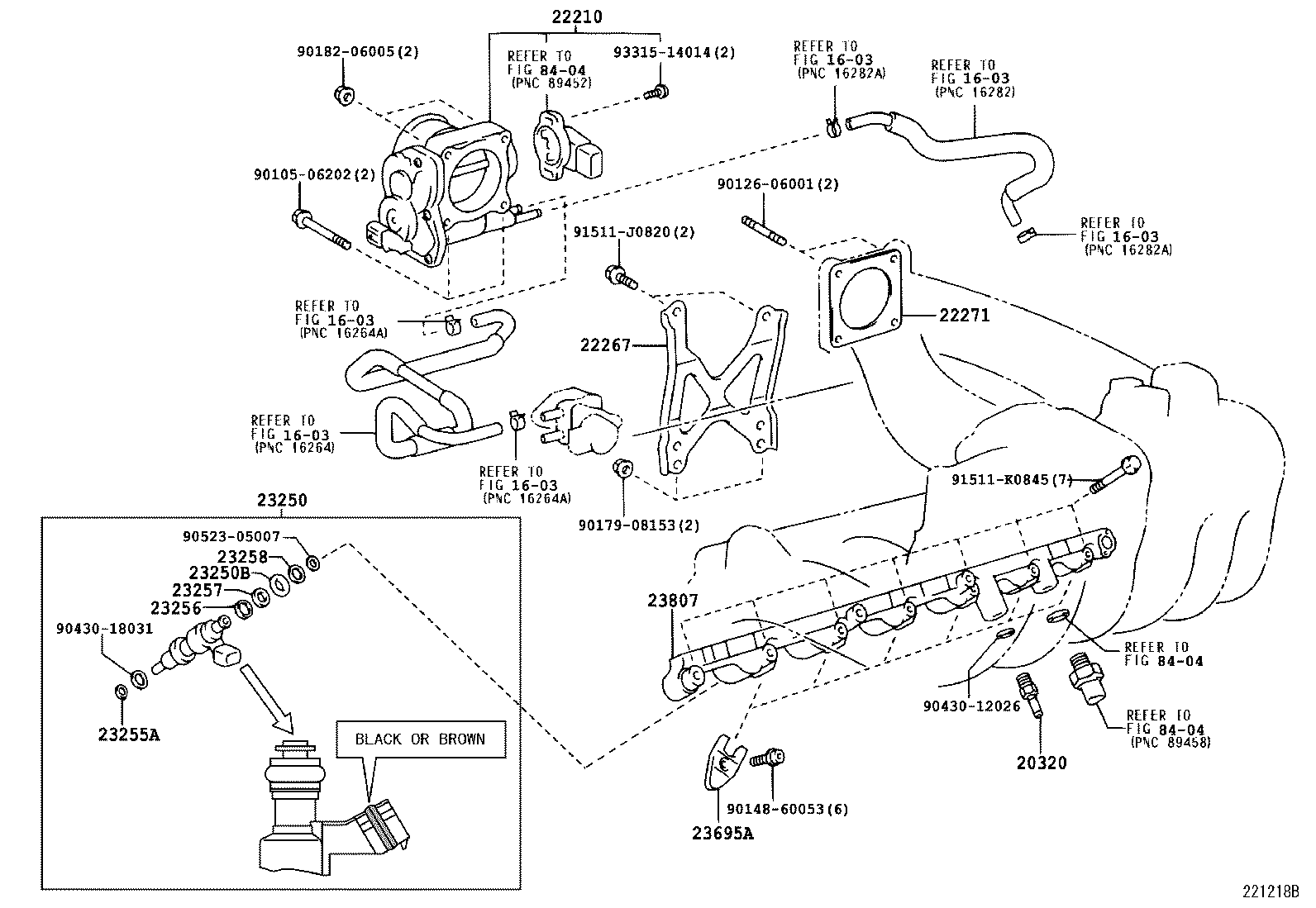

ILLUST NO. 1 OF 3(9909-0108)2JZFSE

Click highlighted areas on diagram

Part #	Description	Period	Qty
20320 - VALVE ASSY, FUEL RELIEF
20320-46010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
20320-74011	2JZFSE..JZS175,177	09/1999 - 08/2001	1
22210 - BODY ASSY, THROTTLE
22030-46170	2JZFSE..JZS175,177	09/1999 - 08/2001	1
22030-46240	2JZFSE..JKS175,JZS175,177	08/2001 - 12/2999	1
22218 - COVER(FOR THROTTLE BODY)
22218-46120	2JZ#..JZS175,177,179	09/1999 - 08/2001	1
22267 - BRACKET, THROTTLE BODY
22267-46060	2JZFSE..JZS175,177	09/1999 - 08/2001	1
22267-46070	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
22271 - GASKET, THROTTLE BODY
22271-46090	2JZFSE..JZS175,177	09/1999 - 08/2001	1
22271-46100	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23209-49046	2JZFSE..JZS175,177	10/2000 - 08/2001	6
23209-49045	2JZFSE..JZS175,177	09/1999 - 10/2000	6
23250B - RING, O(FOR FUEL INJECTOR)
90301-06013	2JZFSE..JZS175,177	09/1999 - 08/2001	6
23255A - SEAL, FUEL INJECTOR
23255-46010	2JZFSE..JZS175,177	01/2000 - 10/2000	6
23255-74020	2JZFSE..JZS175,177	09/1999 - 01/2000	6
23255-46011	2JZFSE..JZS175,177	10/2000 - 08/2001	6
23255-46011	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	6
23256 - RING, FUEL INJECTOR BACK-UP, NO.1
23256-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	6
23256-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	6
23257 - RING, FUEL INJECTOR BACK-UP, NO.2
23257-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	6
23257-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	6
23258 - RING, FUEL INJECTOR BACK-UP, NO.3
23258-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	6
23695A - CLAMP, NOZZLE HOLDER
23695-46010	2JZFSE..JZS175,177	09/1999 - 08/2001	6
23695-46020	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	6
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-46050	2JZFSE..JZS175,177	09/1999 - 08/2001	1
23807-46061	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
89672C - MOTOR, THROTTLE CONTROL
89672-30030	JZS175,177	09/1999 - 08/2001	1
Common parts
90079-11021
90079-21004
90079-40005
90119-08893
90126-08025
90148-60053
90179-08153
90430-08014
90430-18031
91511-K0845
92112-60818
Linked diagrams
1603
8404

ILLUST NO. 2 OF 3(0010- )1JZFSE,2JZFSE

Click highlighted areas on diagram

Part #	Description	Period	Qty
23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE)
23100-46022	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2002	1
23100-46023	1JZFSE,2JZFSE..JKS175,JZS171,175,177	12/2002 - 12/2003	1
23100-46010	2JZFSE..JZS175,177	09/1999 - 10/2000	1
23100-46022	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23100-46024	1JZFSE,2JZFSE..JZS171,175,177	12/2003 - 12/2999	1
23256A - RING, FUEL PIPE, NO.1
23256-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23256-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	1
23257A - RING, FUEL PIPE, NO.2
23257-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	1
23257-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23258A - RING, FUEL PIPE, NO.3
23258-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	1
23258-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23260 - INJECTOR ASSY, COLD START FUEL
23260-46010	2JZFSE..JZS175,177	09/1999 - 11/2000	1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23207-46030	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23270-74030	2JZFSE..JZS175,177	09/1999 - 10/2000	1
23207-46030	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 02/2003	1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23279-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	2
23279-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	2
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23279-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	2
23279-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	2
23271F - HOSE, FUEL
23271-46220	2JZFSE..JZS177 NO.1	09/1999 - 08/2001	1
23271-46220	2JZFSE..JZS177 NO.1	08/2001 - 06/2004	1
23271-46260	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23271-46260	2JZFSE..JZS175,177 NO.2	09/1999 - 08/2001	1
23271F - HOSE, FUEL
23271-46220	2JZFSE..JZS177 NO.1	09/1999 - 08/2001	1
23271-46220	2JZFSE..JZS177 NO.1	08/2001 - 06/2004	1
23271-46260	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23271-46260	2JZFSE..JZS175,177 NO.2	09/1999 - 08/2001	1
23273C - HOSE, FUEL, NO.2
23273-46040	2JZFSE..JZS177	03/2000 - 04/2000	1
23273-46040	2JZFSE..JZS177 NO.3	09/1999 - 03/2000	1
23273-46050	2JZFSE..JZS175,177 NO.2	09/1999 - 10/2000	1
23273-46041	2JZFSE..JZS177 NO.3	04/2000 - 08/2001	1
23273-46041	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	1
23273-46060	2JZFSE..JZS175,177 NO.2	10/2000 - 08/2001	1
23273-46060	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23273C - HOSE, FUEL, NO.2
23273-46040	2JZFSE..JZS177	03/2000 - 04/2000	1
23273-46040	2JZFSE..JZS177 NO.3	09/1999 - 03/2000	1
23273-46050	2JZFSE..JZS175,177 NO.2	09/1999 - 10/2000	1
23273-46041	2JZFSE..JZS177 NO.3	04/2000 - 08/2001	1
23273-46041	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	1
23273-46060	2JZFSE..JZS175,177 NO.2	10/2000 - 08/2001	1
23273-46060	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23273C - HOSE, FUEL, NO.2
23273-46040	2JZFSE..JZS177	03/2000 - 04/2000	1
23273-46040	2JZFSE..JZS177 NO.3	09/1999 - 03/2000	1
23273-46050	2JZFSE..JZS175,177 NO.2	09/1999 - 10/2000	1
23273-46041	2JZFSE..JZS177 NO.3	04/2000 - 08/2001	1
23273-46041	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	1
23273-46060	2JZFSE..JZS175,177 NO.2	10/2000 - 08/2001	1
23273-46060	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-41100	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	2
90467-13001	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	2
96135-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96135-41300	2JZFSE..JZS177 NO.3	09/1999 - 08/2001	2
96135-51300	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-41100	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	2
90467-13001	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	2
96135-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96135-41300	2JZFSE..JZS177 NO.3	09/1999 - 08/2001	2
96135-51300	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-41100	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	2
90467-13001	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	2
96135-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96135-41300	2JZFSE..JZS177 NO.3	09/1999 - 08/2001	2
96135-51300	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-41100	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	2
90467-13001	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	2
96135-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96135-41300	2JZFSE..JZS177 NO.3	09/1999 - 08/2001	2
96135-51300	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-41100	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	2
90467-13001	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	2
96135-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96135-41300	2JZFSE..JZS177 NO.3	09/1999 - 08/2001	2
96135-51300	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-41100	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	2
90467-13001	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	2
96135-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96135-41300	2JZFSE..JZS177 NO.3	09/1999 - 08/2001	2
96135-51300	2JZFSE..JZS177 NO.3	08/2001 - 06/2004	2
23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET)
90401-12029	2JZFSE..JZS177	08/2001 - 06/2004	1
90401-12029	2JZFSE..JZS177	09/1999 - 08/2001	1
23293 - GASKET, COLD START INJECTOR
23293-46010	2JZFSE..JZS175,177	09/1999 - 11/2000	1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-46080	2JZFSE..JZS175,177	09/1999 - 10/2000	1
23801-46081	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23801-46081	2JZFSE..JKS175,JZS175,177	08/2001 - 12/2999	1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-46080	2JZFSE..JZS175,177	09/1999 - 10/2000	1
23802-46090	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-46020	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23803-46020	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23803G - GASKET(FOR FUEL HOSE)
90430-12026	2JZFSE..JZS177	08/2001 - 06/2004	2
90430-12026	2JZFSE..JZS177	09/1999 - 08/2001	2
23803G - GASKET(FOR FUEL HOSE)
90430-12026	2JZFSE..JZS177	08/2001 - 06/2004	2
90430-12026	2JZFSE..JZS177	09/1999 - 08/2001	2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-46031	1JZGE,2JZFSE..JZS171,173,175,177 NO.1	09/1999 - 03/2000	1
23841-46060	2JZFSE..JZS175,177 NO.2	09/1999 - 08/2001	1
23841-46031	1JZGE,2JZFSE..JZS171,173,175,177	03/2000 - 04/2000	1
23841-46080	1JZGE,2JZFSE..JZS171,173,175,177..A,ATH,ATHG,C,ROY,ROYEX,ROYG NO.1	04/2000 - 08/2001	1
23841-46080	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	1
23841-46060	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-46031	1JZGE,2JZFSE..JZS171,173,175,177 NO.1	09/1999 - 03/2000	1
23841-46060	2JZFSE..JZS175,177 NO.2	09/1999 - 08/2001	1
23841-46031	1JZGE,2JZFSE..JZS171,173,175,177	03/2000 - 04/2000	1
23841-46080	1JZGE,2JZFSE..JZS171,173,175,177..A,ATH,ATHG,C,ROY,ROYEX,ROYG NO.1	04/2000 - 08/2001	1
23841-46080	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	1
23841-46060	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-46031	1JZGE,2JZFSE..JZS171,173,175,177 NO.1	09/1999 - 03/2000	1
23841-46060	2JZFSE..JZS175,177 NO.2	09/1999 - 08/2001	1
23841-46031	1JZGE,2JZFSE..JZS171,173,175,177	03/2000 - 04/2000	1
23841-46080	1JZGE,2JZFSE..JZS171,173,175,177..A,ATH,ATHG,C,ROY,ROYEX,ROYG NO.1	04/2000 - 08/2001	1
23841-46080	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	1
23841-46060	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	1
23915 - INSULATOR, FUEL PUMP
23915-46011	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23915-46011	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23915-46010	2JZFSE..JZS175,177	09/1999 - 10/2000	1
Common parts
82711-3H040
90105-10416
90116-06127
90119-06375
90119-06390
90119-06610
90119-06896
90179-06161
90179-06257
90179-08206
90301-06013
90301-06018
91511-B0614
91511-G0628
91641-C0612
96135-51300

ILLUST NO. 1 OF 3(0108- )1JZFSE,2JZFSE

Click highlighted areas on diagram

Part #	Description	Period	Qty
20320 - VALVE ASSY, FUEL RELIEF
20320-46010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
20320-74011	2JZFSE..JZS175,177	09/1999 - 08/2001	1
22210 - BODY ASSY, THROTTLE
22030-46170	2JZFSE..JZS175,177	09/1999 - 08/2001	1
22030-46240	2JZFSE..JKS175,JZS175,177	08/2001 - 12/2999	1
22267 - BRACKET, THROTTLE BODY
22267-46060	2JZFSE..JZS175,177	09/1999 - 08/2001	1
22267-46070	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
22271 - GASKET, THROTTLE BODY
22271-46090	2JZFSE..JZS175,177	09/1999 - 08/2001	1
22271-46100	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23209-49046	2JZFSE..JZS175,177	10/2000 - 08/2001	6
23209-49045	2JZFSE..JZS175,177	09/1999 - 10/2000	6
23250B - RING, O(FOR FUEL INJECTOR)
90301-06013	2JZFSE..JZS175,177	09/1999 - 08/2001	6
23255A - SEAL, FUEL INJECTOR
23255-46010	2JZFSE..JZS175,177	01/2000 - 10/2000	6
23255-74020	2JZFSE..JZS175,177	09/1999 - 01/2000	6
23255-46011	2JZFSE..JZS175,177	10/2000 - 08/2001	6
23255-46011	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	6
23256 - RING, FUEL INJECTOR BACK-UP, NO.1
23256-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	6
23256-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	6
23257 - RING, FUEL INJECTOR BACK-UP, NO.2
23257-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	6
23257-74010	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	6
23258 - RING, FUEL INJECTOR BACK-UP, NO.3
23258-74010	2JZFSE..JZS175,177	09/1999 - 08/2001	6
23695A - CLAMP, NOZZLE HOLDER
23695-46010	2JZFSE..JZS175,177	09/1999 - 08/2001	6
23695-46020	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	6
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-46050	2JZFSE..JZS175,177	09/1999 - 08/2001	1
23807-46061	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
Common parts
90105-06202
90126-06001
90148-60053
90179-08153
90182-06005
90430-12026
90430-18031
90523-05007
91511-J0820
91511-K0845
93315-14014
Linked diagrams
1603
8404

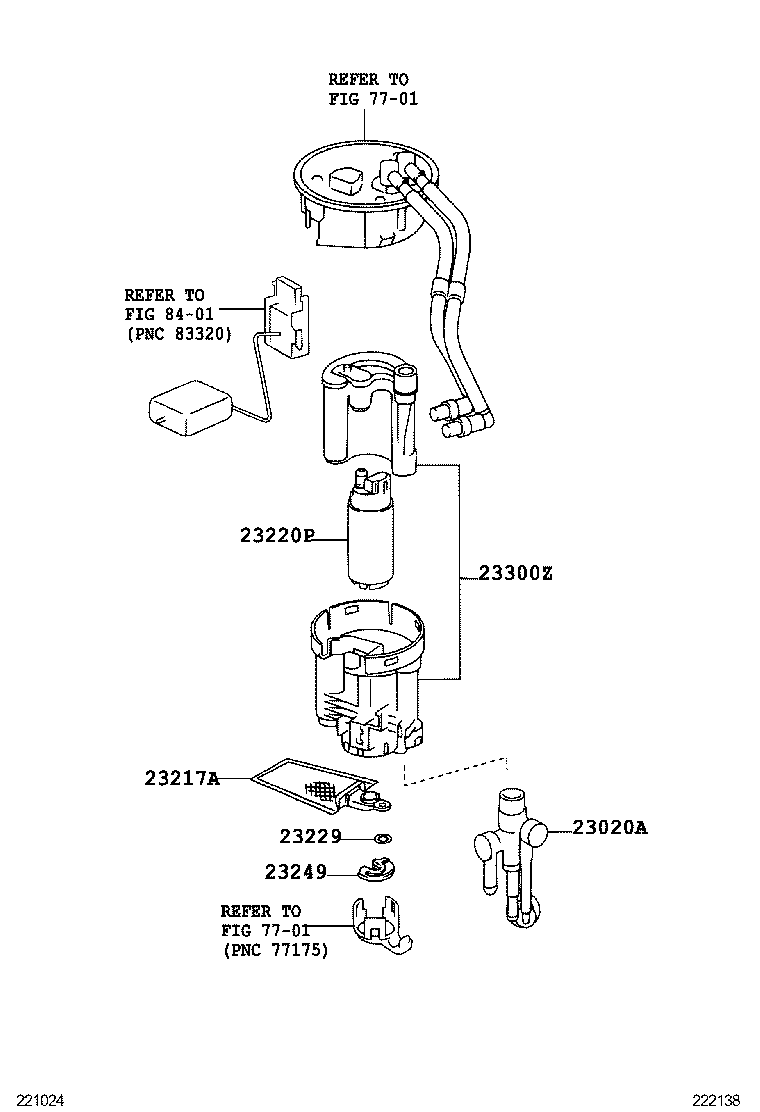

ILLUST NO. 3 OF 3(9909-0010)1JZGE,2JZFSE..A,ATH,ATHG,C,ROY,ROYEX,ROYG ; (0010- )1JZGE

Click highlighted areas on diagram

Part #	Description	Period	Qty
23217A - FILTER, FUEL PUMP
23217-46090	1JZGTE,2JZ#..JZS171,175,177,179	09/1999 - 08/2001	1
23217-46090	2JZFSE..JZS177	08/2001 - 06/2004	1
23220P - PUMP ASSY, FUEL
23221-70360	1JZGTE,2JZFSE..JZS171,175,177	09/1999 - 10/2000	1
23221-50090	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23221-50090	2JZFSE..JZS177	08/2001 - 06/2004	1
23222 - TUBE, FUEL RETURN JET
23222-46050	2JZFSE..JZS177	09/1999 - 10/2000	1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010	2JZFSE..JZS177	08/2001 - 06/2004	1
23229-16010	1JZ#,2JZ#..JZS17#	09/1999 - 08/2001	1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-46180	1JZ#,2JZ#..JZS17#	09/1999 - 08/2001	1
23249-46180	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 03/2002	1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-46120	1JZGE,2JZFSE..JZS171,173,175,177	09/1999 - 10/2000	1
23300-21010	1JZGTE,2JZ#..JZS171,175,177,179	10/2000 - 08/2001	1
Linked diagrams
7701
8401

ILLUST NO. 3 OF 3(0010- )1JZFSE,2JZFSE

Click highlighted areas on diagram

Part #	Description	Period	Qty
23020A - REGULATOR ASSY, FUEL PRESSURE W/JET PUMP
23020-46050	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23217A - FILTER, FUEL PUMP
23217-46090	1JZGTE,2JZ#..JZS171,175,177,179	09/1999 - 08/2001	1
23217-46090	2JZFSE..JZS177	08/2001 - 06/2004	1
23220P - PUMP ASSY, FUEL
23221-70360	1JZGTE,2JZFSE..JZS171,175,177	09/1999 - 10/2000	1
23221-50090	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23221-50090	2JZFSE..JZS177	08/2001 - 06/2004	1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010	2JZFSE..JZS177	08/2001 - 06/2004	1
23229-16010	1JZ#,2JZ#..JZS17#	09/1999 - 08/2001	1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-46180	1JZ#,2JZ#..JZS17#	09/1999 - 08/2001	1
23249-46180	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 03/2002	1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-46120	1JZGE,2JZFSE..JZS171,173,175,177	09/1999 - 10/2000	1
23300-21010	1JZGTE,2JZ#..JZS171,175,177,179	10/2000 - 08/2001	1
Linked diagrams
7701
8401

JZS177-CEAZH (1999)

ILLUST NO. 2 OF 3(9909-0010)2JZFSE

ILLUST NO. 1 OF 3(9909-0108)2JZFSE

ILLUST NO. 2 OF 3(0010- )1JZFSE,2JZFSE

ILLUST NO. 1 OF 3(0108- )1JZFSE,2JZFSE

ILLUST NO. 3 OF 3(9909-0010)1JZGE,2JZFSE..A,ATH,ATHG,C,ROY,ROYEX,ROYG ; (0010- )1JZGE

ILLUST NO. 3 OF 3(0010- )1JZFSE,2JZFSE

Part Price Details
