JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta
Production
Sep 1999
-
Jun 2004
Engine
2JZFSE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9909- )2JZFSE

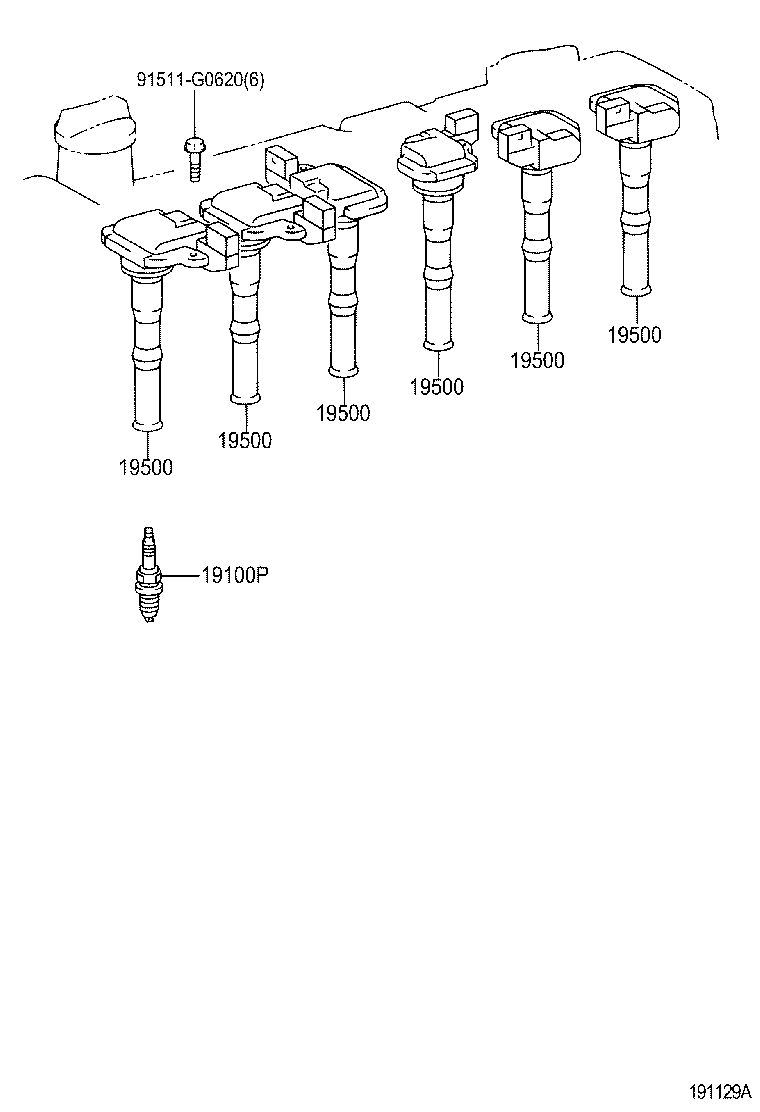

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01226 |
2JZFSE..JZS175,177 SK20BR11 |
6 | ||
| 90919-01226 |
1JZFSE,2JZFSE..JKS175,JZS171,175,177 SK20BR11 |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02242 |
2JZFSE..JZS175,177 |
6 | ||
| 90919-02242 |
2JZFSE..JKS175,JZS175,177 |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02242 |
2JZFSE..JZS175,177 |
6 | ||
| 90919-02242 |
2JZFSE..JKS175,JZS175,177 |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02242 |
2JZFSE..JZS175,177 |
6 | ||
| 90919-02242 |
2JZFSE..JKS175,JZS175,177 |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02242 |
2JZFSE..JZS175,177 |
6 | ||
| 90919-02242 |
2JZFSE..JKS175,JZS175,177 |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02242 |
2JZFSE..JZS175,177 |
6 | ||
| 90919-02242 |
2JZFSE..JKS175,JZS175,177 |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02242 |
2JZFSE..JZS175,177 |
6 | ||
| 90919-02242 |
2JZFSE..JKS175,JZS175,177 |
6 | ||
| Common parts | ||||
| 91511-G0620 | ||||
