Toyota Crown/crown majesta JZS177 MANIFOLD

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-46010	2JZFSE..JZS175,177	09/1999 - 10/2000	1
17101-46011	2JZFSE..JZS175,177	10/2000 - 08/2001	1
17101-46011	2JZFSE..JKS175,JZS175,177	08/2001 - 12/2999	1
17111A - PLUG, NO.1
96411-41400	2JZFSE..JZS175,177	09/1999 - 08/2001	1
96411-41400	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
17118 - STAY, MANIFOLD
17118-46020	2JZFSE..JZS175,177	09/1999 - 04/2001	1
17118-46022	1JZFSE,2JZFSE..JZS171,175,177	02/2004 - 12/2999	1
17118-46021	2JZFSE..JZS175,177	04/2001 - 08/2001	1
17118-46021	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 02/2004	1
17129 - TANK, INTAKE AIR SURGE
17109-46110	2JZFSE..JZS175,177	09/1999 - 10/2000	1
17109-46112	2JZFSE..JZS175,177	12/2000 - 08/2001	1
17109-46111	2JZFSE..JZS175,177	10/2000 - 12/2000	1
17109-46112	2JZFSE..JKS175,JZS175,177	08/2001 - 12/2999	1
17141 - MANIFOLD, EXHAUST
17140-46100	2JZFSE..JZS175,177	09/1999 - 01/2001	1
17140-46101	2JZFSE..JZS175,177	08/2001 - 03/2003	1
17140-46101	2JZFSE..JZS175,177	01/2001 - 08/2001	1
17140-46102	2JZFSE..JZS177	03/2003 - 06/2004	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10014	2JZFSE..JZS175,177 NO.2	09/1999 - 08/2001	8
90126-08026	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
90126-08026	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
90126-10014	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	8
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10014	2JZFSE..JZS175,177 NO.2	09/1999 - 08/2001	8
90126-08026	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
90126-08026	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
90126-10014	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.2	08/2001 - 12/2999	8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-46050	1JZGE,2JZ#..JZS17#	09/1999 - 02/2001	2
17173-46051	2JZFSE..JZS177	08/2001 - 06/2004	2
17173-46051	1JZGE,2JZ#..JZS17#	02/2001 - 08/2001	2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-46050	1JZGE,2JZ#..JZS17#	09/1999 - 02/2001	2
17173-46051	2JZFSE..JZS177	08/2001 - 06/2004	2
17173-46051	1JZGE,2JZ#..JZS17#	02/2001 - 08/2001	2
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-46050	2JZFSE..JZS175,177	09/1999 - 08/2001	1
17176-46050	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-46070	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
17177-46070	2JZFSE..JZS175,177	09/1999 - 08/2001	1
Common parts
90105-10416
90116-08348
90119-08891
90119-08A89
90126-08007
90179-08153
90179-10165
90345-51025
90523-02002
91511-K0845

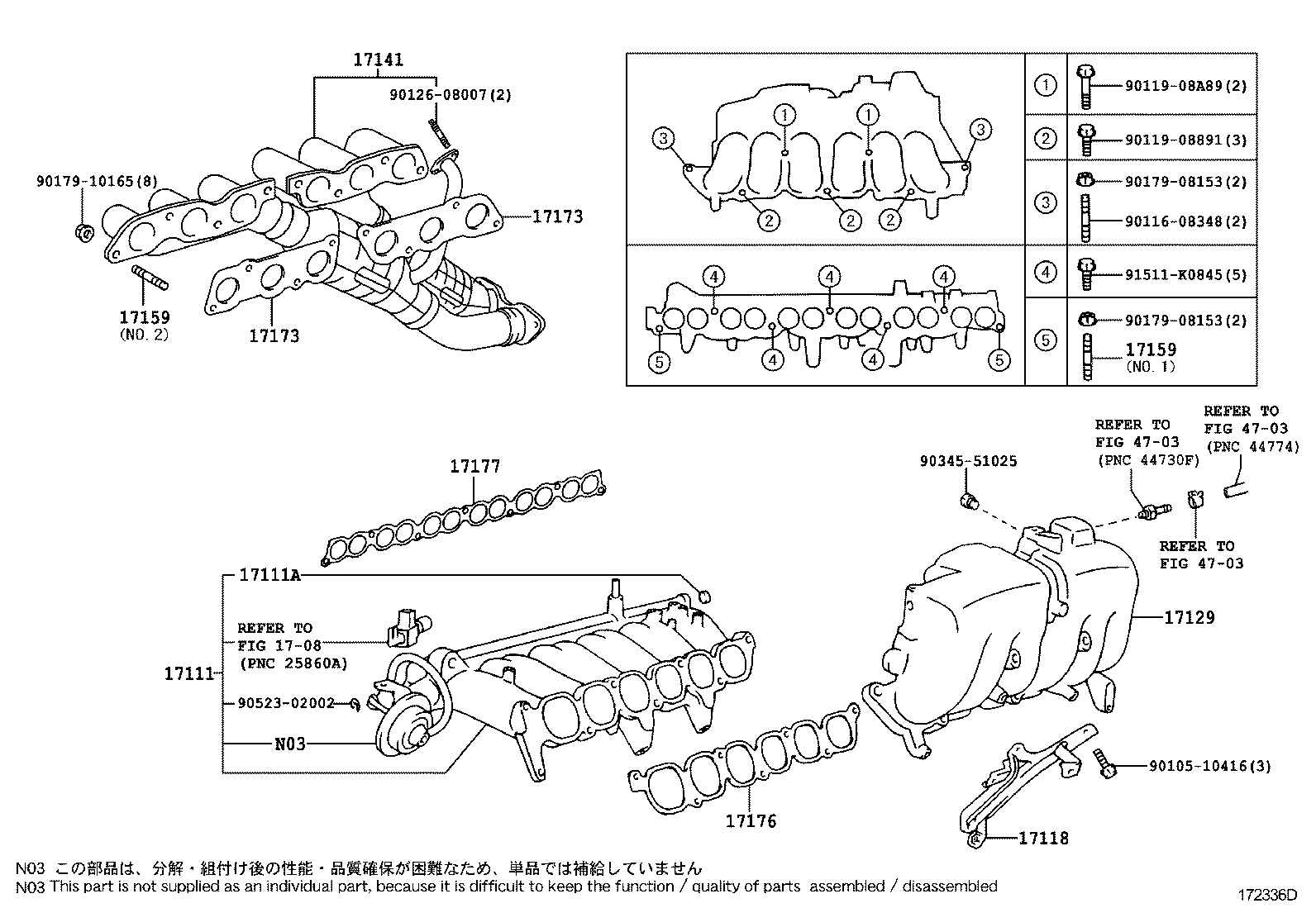

Linked diagrams
1708
4703

JZS177-CEAZH (1999)

(9909- )1JZFSE,2JZFSE
