JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta

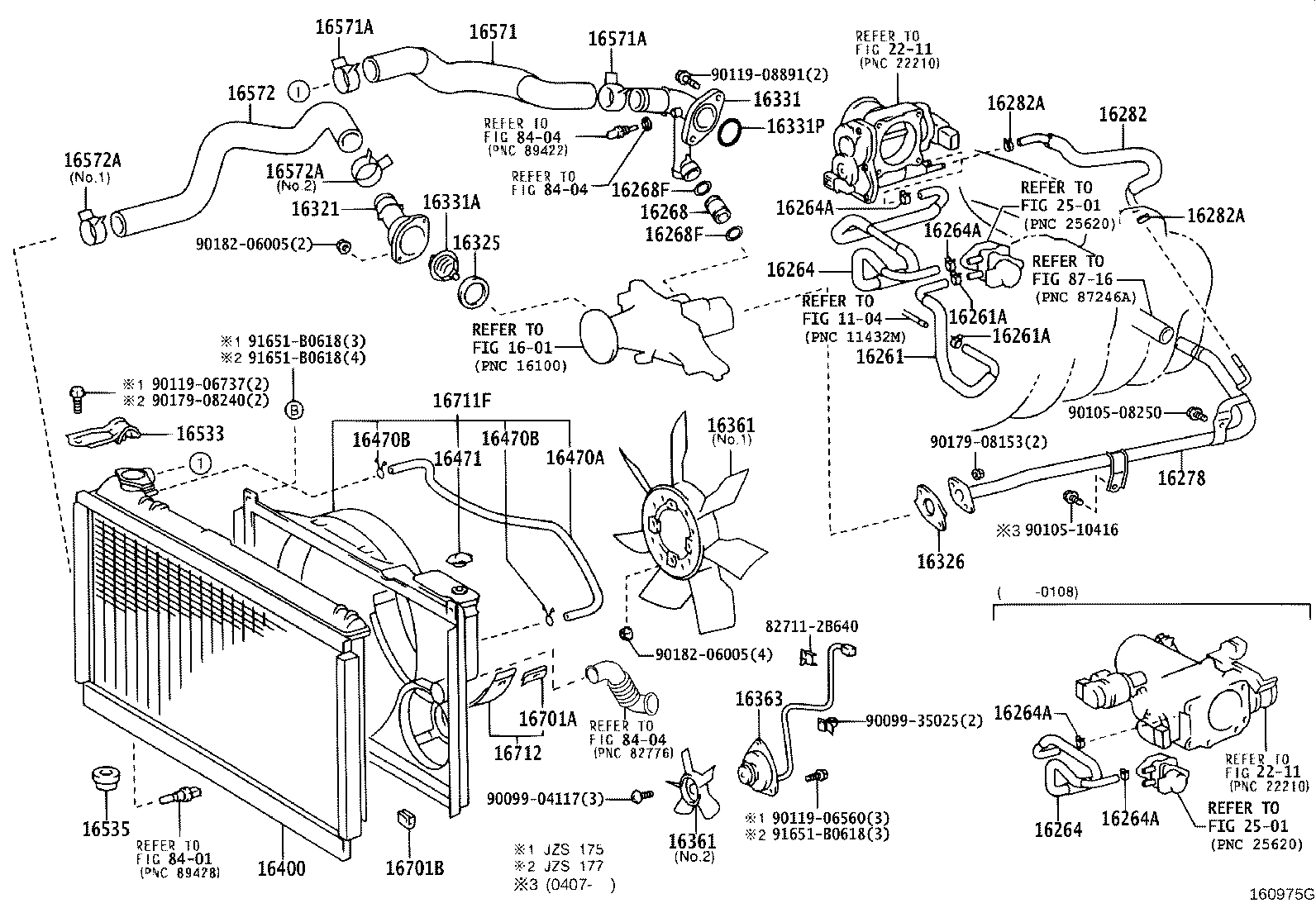

ILLUST NO. 1 OF 2(9909- )2JZFSE..JZS175,177
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-46070 |
2JZFSE..JZS175,177 |
1 | ||
| 16261-46070 |
1JZFSE,2JZFSE..JKS175,JZS171,175,177 |
1 | ||
| 16261-46060 |
2JZFSE..JZS175,177 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
1JZGE,2JZ#..JZS17# |
2 | ||
| 96135-51300 |
1JZFSE,1JZGE,2JZ#..JKS175,JZS17# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
1JZGE,2JZ#..JZS17# |
2 | ||
| 96135-51300 |
1JZFSE,1JZGE,2JZ#..JKS175,JZS17# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-46071 |
1JZFSE,2JZFSE..JKS175,JZS171,175,177 |
1 | ||
| 16264-46050 |
2JZFSE..JZS175,177 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-46071 |
1JZFSE,2JZFSE..JKS175,JZS171,175,177 |
1 | ||
| 16264-46050 |
2JZFSE..JZS175,177 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13050 |
1JZGE,2JZ#..JZS17# |
2 | ||
| 96135-51300 |
1JZFSE,1JZGE,2JZ#..JKS175,JZS17# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13050 |
1JZGE,2JZ#..JZS17# |
2 | ||
| 96135-51300 |
1JZFSE,1JZGE,2JZ#..JKS175,JZS17# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13050 |
1JZGE,2JZ#..JZS17# |
2 | ||
| 96135-51300 |
1JZFSE,1JZGE,2JZ#..JKS175,JZS17# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13050 |
1JZGE,2JZ#..JZS17# |
2 | ||
| 96135-51300 |
1JZFSE,1JZGE,2JZ#..JKS175,JZS17# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-46011 |
1JZGE,2JZ#..JZS17# |
1 | ||
| 16268-46011 |
1JZFSE,1JZGE,2JZ#..JKS175,JZS17# |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24022 |
1JZGE,2JZ#..JZS17# |
2 | ||
| 96761-24022 |
1JZFSE,1JZGE,2JZ#..JKS175,JZS17# |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24022 |
1JZGE,2JZ#..JZS17# |
2 | ||
| 96761-24022 |
1JZFSE,1JZGE,2JZ#..JKS175,JZS17# |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-46070 |
2JZFSE..JZS175,177 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-46020 |
2JZFSE..JZS175,177 |
1 | ||
| 16282-46030 |
1JZFSE,2JZFSE..JKS175,JZS171,175,177 |
1 | ||
| 16282-46030 |
2JZFSE..JZS175,177 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13050 |
2JZFSE..JZS175,177 |
2 | ||
| 96135-51300 |
1JZFSE,2JZFSE..JKS175,JZS171,175,177 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13050 |
2JZFSE..JZS175,177 |
2 | ||
| 96135-51300 |
1JZFSE,2JZFSE..JKS175,JZS171,175,177 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-46040 |
1JZGE,2JZ#..JZS17# |
1 | ||
| 16321-46040 |
1JZFSE,1JZGE,2JZ#..JZS17# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1JZ#,2JZ#..JKS175,JZS17# |
1 | ||
| 16325-62010 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-46010 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 16325-46010 |
1JZ#,2JZ#..JKS175,JZS17# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-46090 |
2JZFSE..JZS175,177 |
1 | ||
| 16331-46090 |
2JZFSE..JKS175,JZS175,177 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03126 |
1JZFSE,2JZFSE..JZS171,175,177 *WAX 88−100 |
1 | ||
| 90916-03126 |
2JZFSE..JZS175,177 *WAX 88−100 |
1 | ||
| 16331P - RING,O(FOR WATER OUTLET) | ||||
| 96761-24037 |
1JZFSE,2JZFSE..JKS175,JZS171,175,177 |
1 | ||
| 96761-24037 |
2JZFSE..JZS175,177 |
1 | ||
| 16361 - FAN | ||||
| 16361-46040 |
2JZFSE..JZS175,177 NO.1 |
1 | ||
| 16361-46050 |
2JZFSE..JZS175,177 NO.2 |
1 | ||
| 16361-46050 |
1JZFSE,2JZFSE..JZS171,175,177 NO.2 |
1 | ||
| 16361-46040 |
1JZFSE,2JZFSE..JZS171,175,177 NO.1 |
1 | ||
| 16361 - FAN | ||||
| 16361-46040 |
2JZFSE..JZS175,177 NO.1 |
1 | ||
| 16361-46050 |
2JZFSE..JZS175,177 NO.2 |
1 | ||
| 16361-46050 |
1JZFSE,2JZFSE..JZS171,175,177 NO.2 |
1 | ||
| 16361-46040 |
1JZFSE,2JZFSE..JZS171,175,177 NO.1 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-46100 |
2JZFSE..JZS177 |
1 | ||
| 16363-46100 |
1JZGE,2JZ#..JZS17# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-46660 |
2JZFSE..JZS177 |
1 | ||
| 16400-46660 |
2JZFSE..JZS177 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16565-46010 |
2JZFSE..JZS177 |
1 | ||
| 16565-46010 |
2JZFSE..JZS177 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1JZGE,2JZ#..JZS17# |
2 | ||
| 90467-11085 |
2JZFSE..JZS177 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1JZGE,2JZ#..JZS17# |
2 | ||
| 90467-11085 |
2JZFSE..JZS177 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-70020 |
2JZFSE..JZS177 |
1 | ||
| 16471-70020 |
2JZFSE..JZS177 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-46090 |
2JZFSE..JZS177 |
2 | ||
| 16505-46090 |
2JZFSE..JZS177 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40016 |
2JZFSE..JZS177 |
2 | ||
| 90480-40016 |
2JZFSE..JZS177 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-46290 |
2JZFSE..JZS177 |
1 | ||
| 16571-46290 |
2JZFSE..JZS177 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37006 |
1JZ#,2JZ#..JZS17# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37006 |
1JZ#,2JZ#..JZS17# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-46270 |
2JZFSE..JZS177 |
1 | ||
| 16572-46270 |
2JZFSE..JZS177 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41007 |
2JZFSE..JZS177 |
2 | ||
| 90467-41007 |
2JZFSE..JZS177 |
2 | ||
| 90466-41003 |
2JZFSE..JZS177 |
2 | ||
| 90466-41008 |
2JZFSE..JZS177 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41007 |
2JZFSE..JZS177 |
2 | ||
| 90467-41007 |
2JZFSE..JZS177 |
2 | ||
| 90466-41003 |
2JZFSE..JZS177 |
2 | ||
| 90466-41008 |
2JZFSE..JZS177 |
2 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-05109 |
1JZGE,2JZ#..JZS17# |
2 | ||
| 90468-05109 |
2JZFSE..JZS177 |
2 | ||
| 16711F - SHROUD, FAN(W/RADIATOR RESERVE TANK) | ||||
| 16711-46320 |
2JZFSE..JZS177 |
1 | ||
| 16711-46320 |
2JZFSE..JZS177 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16702-46030 |
2JZFSE..JZS177 |
1 | ||
| 16702-46030 |
2JZFSE..JZS177 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 90099-04117 | ||||
| 90099-35025 | ||||
| 90105-08250 | ||||
| 90105-10416 | ||||
| 90119-06560 | ||||
| 90119-06737 | ||||
| 90119-08891 | ||||
| 90179-08153 | ||||
| 90179-08240 | ||||
| 90182-06005 | ||||
| 91651-B0618 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1601 | ||||
| 2211 | ||||
| 2501 | ||||
| 8401 | ||||
| 8404 | ||||
| 8716 | ||||

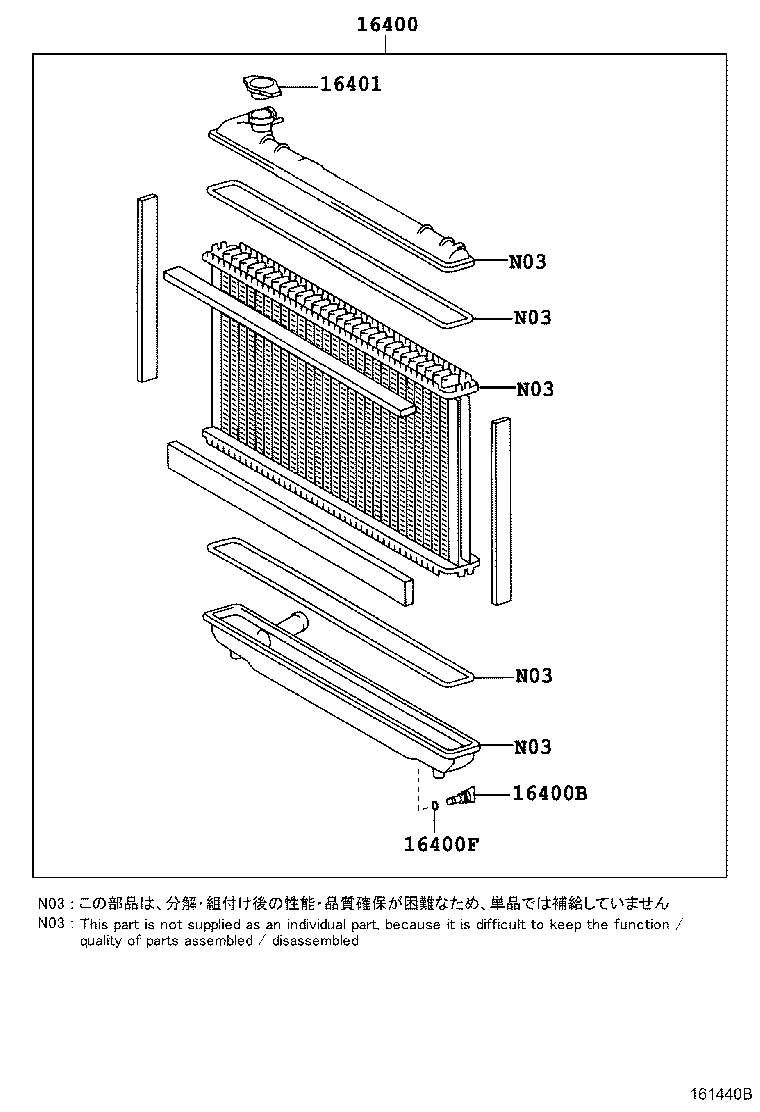

ILLUST NO. 2 OF 2(9909-0108)1JZ#,2JZ#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-46660 |
2JZFSE..JZS177 |
1 | ||
| 16400-46660 |
2JZFSE..JZS177 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 23322-54010 |
2JZFSE..JZS177 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-62100 |
1JZ#,2JZ#..JZS17# |
1 | ||
ILLUST NO. 2 OF 2(0108- )1JZ#,2JZ#..JZS17#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-46660 |
2JZFSE..JZS177 |
1 | ||
| 16400-46660 |
2JZFSE..JZS177 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 23322-54010 |
2JZFSE..JZS177 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-62100 |
1JZ#,2JZ#..JZS17# |
1 | ||
