JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9909- )1JZFSE,1JZGE,2JZ#

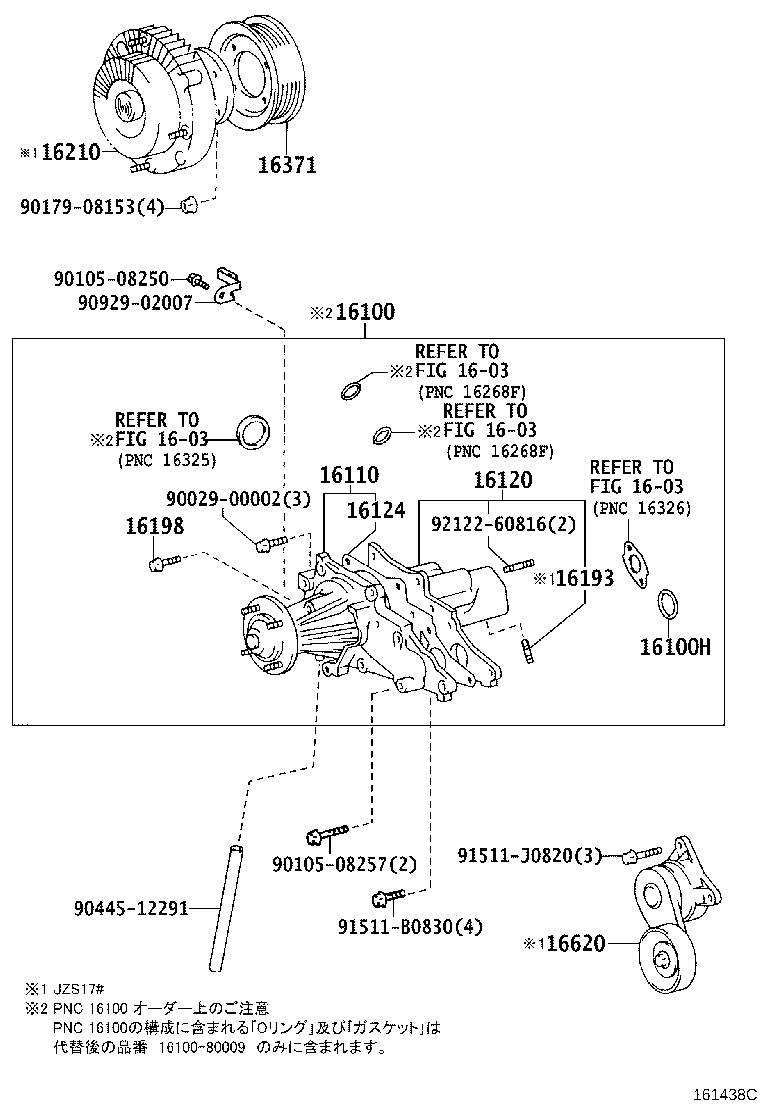

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 16100 16100H 16110 16120 16124 16193 16198 16210 16371 16620 9002900002 9010508250 9010508257 9017908153 9044512291 9092902007 91511B0830 91511J0820 9212260816
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-49867

1JZGE,2JZ#..JZS17#

 1
16100-49866

1JZGE,2JZ#..JZS17#

 1
16100-49868

1JZFSE,1JZGE,2JZ#..JKS175,JZS17#

 1
16100H - RING, O(FOR WATER PUMP)
96761-24040

1JZ#,2JZ#..JKS175,JZS17#

 1
96761-24040

1JZ#,2JZ#..JZS17#

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-49146

1JZGE,2JZ#..JZS17#

 1
16110-49148

1JZFSE,1JZGE,2JZ#..JKS175,JZS17#

 1
16110-49147

1JZGE,2JZ#..JZS17#

 1
16120 - COVER ASSY, WATER PUMP
16102-46073

1JZFSE,1JZGE,2JZ#..JKS175,JZS17#

 1
16120-46080

1JZGE,2JZ#..JZS17#

 1
16102-46072

1JZGE,2JZ#..JZS17#

 1
16124 - GASKET, WATER PUMP COVER
16124-46070

1JZ#,2JZ#..JZS17#

 1
16124-46071

1JZFSE,1JZGE,2JZ#..JKS175,JZS17#

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-46030

1JZFSE,1JZGE,2JZ#..JKS175,JZS17#

 2
16193-46030

1JZGE,2JZ#..JZS17#

 2
16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT)
16198-46031

1JZFSE,1JZGE,2JZ#..JKS175,JZS17#

 1
16198-46031

1JZ#,2JZ#..JZS17#

 1
16210 - COUPLING ASSY, FLUID
16210-46052

1JZFSE,1JZGE,2JZ#..JZS17#

 1
16210-46052

1JZGE,2JZ#..JZS17#

 1
16371 - PULLEY, FAN
16371-46030

1JZ#,2JZ#..JZS17#

 1
16371-46030

1JZ#,2JZ#..JZS17#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W024

2JZ#..JZS175,177,179

 1
16620-0W025

2JZ#..JZS175,177,179

 1
Common parts
90029-00002
90105-08250
90105-08257
90179-08153
90445-12291
90929-02007
91511-B0830
91511-J0820
92122-60816
Linked diagrams
1603
