JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )1JZGE,1JZGTE,2JZ#

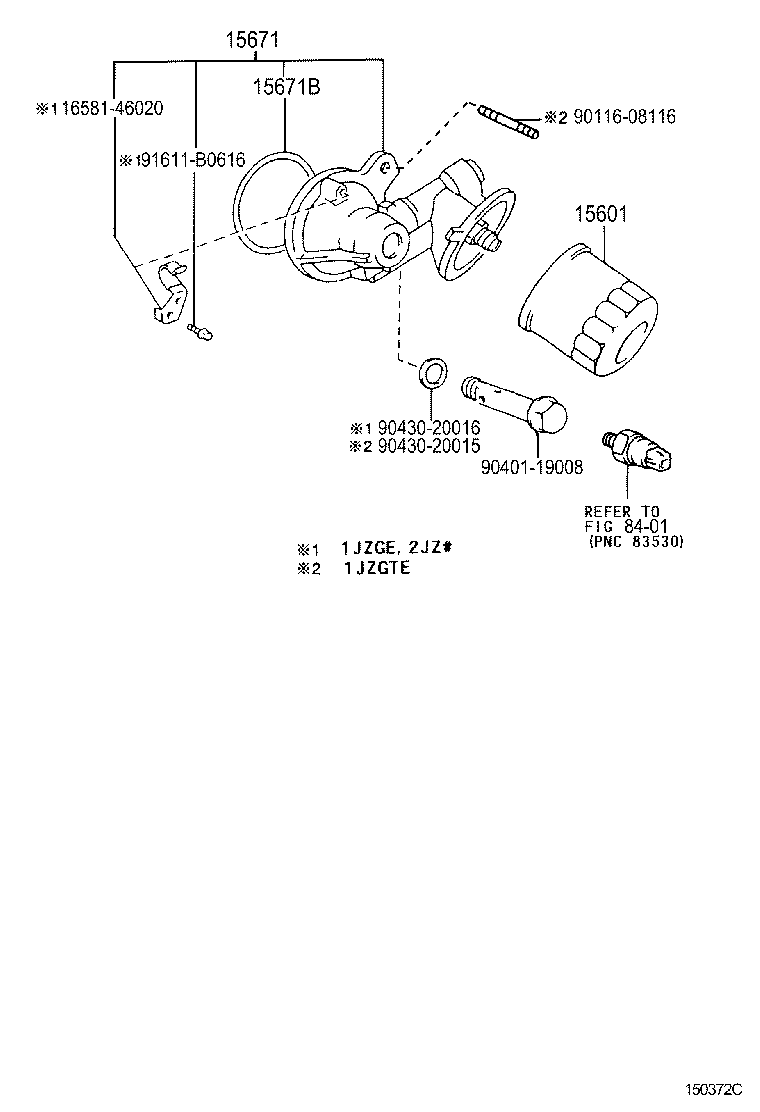

Click highlighted areas on diagram

diagram 15601 15671 15671B 1658146020 8401 9011608116 9040119008 9043020015 9043020016 91611B0616
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-20003

1JZ#,2JZ#..JZS17#

 1
90915-20003

1JZ#,2JZ#..JKS175,JZS17#

 1
15671 - BRACKET, OIL FILTER
15670-46070

1JZGE,2JZ#..JZS17#

 1
15670-46070

1JZGE,2JZ#..JKS175,JZS173,175,177,179

 1
15671B - GASKET, OIL FILTER BRACKET
90301-68005

1JZ#,2JZ#..JZS17#

 1
90301-68005

1JZFSE,1JZGE,2JZ#..JKS175,JZS17#

 1
Common parts
16581-46020
90116-08116
90401-19008
90430-20015
90430-20016
91611-B0616
Linked diagrams
8401
