JZS175W-AWAXH (1999)
Toyota Crown/Crown Majesta

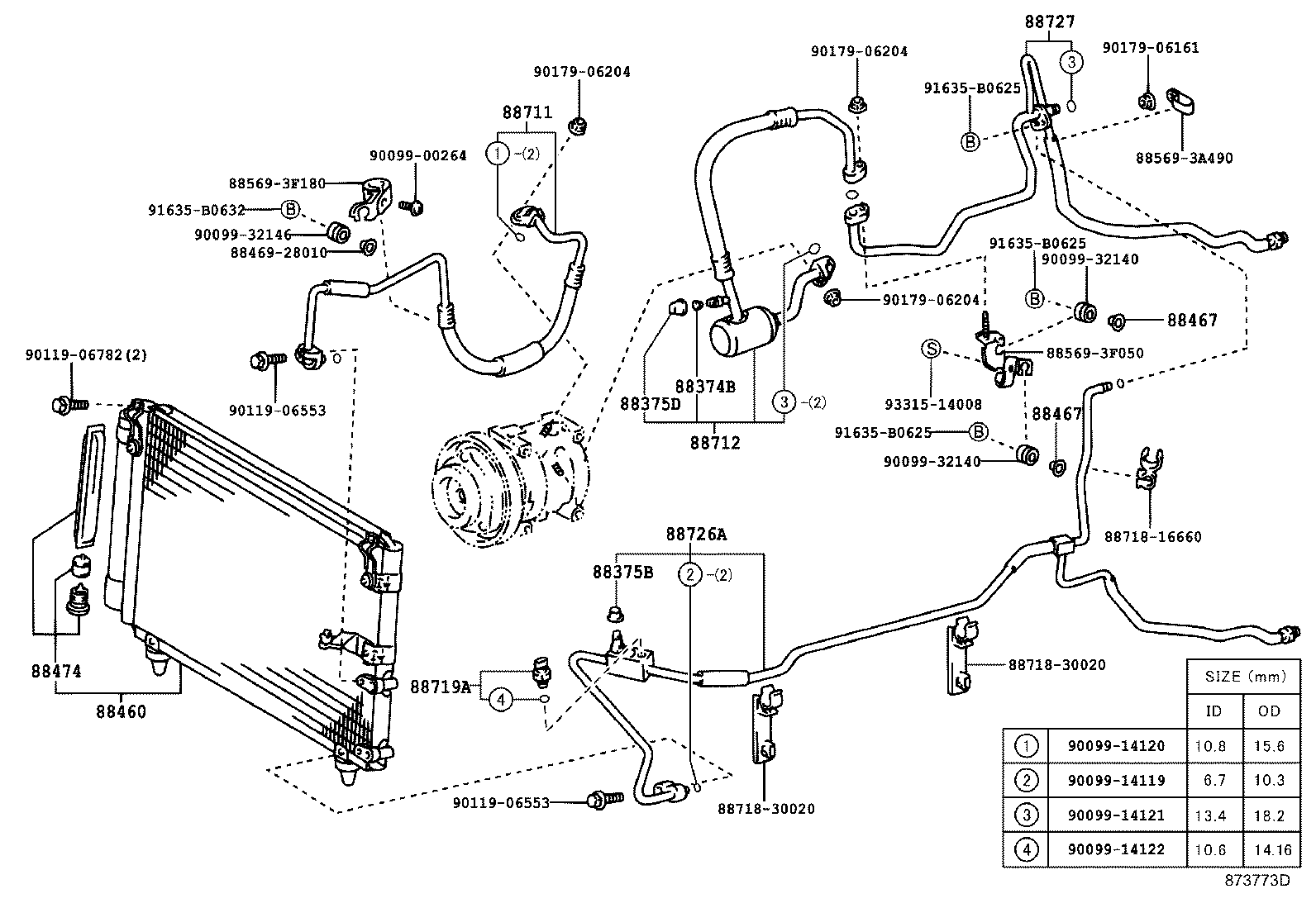

ILLUST NO. 1 OF 2(9909-0108)JZS171,175..ATH,ATHE,ATHG,ROY,ROYEX
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GS171,JZS17#,UZS17# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
GS171,JZS17#,UZS17# |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
GS171,JZS17#,UZS17# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30830 |
GS171,JZS171,173,175,179 |
1 | ||
| 88460-30830 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14070 |
GS171,JZS17# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88474-47010 |
GS171,JZS17#,UZS17# |
1 | ||
| 88474-47010 |
JZS17#,UZS17# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-22070 |
JZS17# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-3A430 |
UZS171,175 |
1 | ||
| 88711-3A460 |
JZS171,175..D4,TWC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3F040 |
UZS171,175 |
1 | ||
| 88712-3A870 |
JZS171,175..D4,TWC |
1 | ||
| 88712-3F041 |
UZS171,175 |
1 | ||
| 88712-51020 |
JZS171,175..D4 |
1 | ||
| 88712-3F041 |
UZS171,175 |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3K480 |
UZS171,175 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 88726-3K520 |
JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 88727 - TUBE, SUCTION, NO.2 | ||||
| 88727-51020 |
GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 88727-3F170 |
UZS171,175 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| Common parts | ||||
| 88469-28010 | ||||
| 88569-3F180 | ||||
| 88569-51030 | ||||
| 88569-51040 | ||||
| 88718-50330 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-32140 | ||||
| 90099-32146 | ||||
| 90119-06459 | ||||
| 90119-06773 | ||||
| 90119-06775 | ||||
| 90179-06143 | ||||
| 91631-B0625 | ||||
| 91631-B0630 | ||||
| 91631-J0612 | ||||
ILLUST NO. 1 OF 2(9909-0108)JZS171,175..D4,TWC
ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GS171,JZS17#,UZS17# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
GS171,JZS17#,UZS17# |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
GS171,JZS17#,UZS17# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30830 |
GS171,JZS171,173,175,179 |
1 | ||
| 88460-30830 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14070 |
GS171,JZS17# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88474-47010 |
GS171,JZS17#,UZS17# |
1 | ||
| 88474-47010 |
JZS17#,UZS17# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-22070 |
JZS17# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-3A430 |
UZS171,175 |
1 | ||
| 88711-3A460 |
JZS171,175..D4,TWC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3F040 |
UZS171,175 |
1 | ||
| 88712-3A870 |
JZS171,175..D4,TWC |
1 | ||
| 88712-3F041 |
UZS171,175 |
1 | ||
| 88712-51020 |
JZS171,175..D4 |
1 | ||
| 88712-3F041 |
UZS171,175 |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3K480 |
UZS171,175 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 88726-3K520 |
JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 88727 - TUBE, SUCTION, NO.2 | ||||
| 88727-51020 |
GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 88727-3F170 |
UZS171,175 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| Common parts | ||||
| 88469-28010 | ||||
| 88569-3F180 | ||||
| 88569-51030 | ||||
| 88569-51040 | ||||
| 88718-50330 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-32140 | ||||
| 90099-32146 | ||||
| 90119-06459 | ||||
| 90119-06773 | ||||
| 90119-06775 | ||||
| 90179-06143 | ||||
| 91631-B0625 | ||||
| 91631-B0630 | ||||
| 91631-J0612 | ||||
ILLUST NO. 1 OF 2(9909-0108)UZS171,175
ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GS171,JZS17#,UZS17# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
GS171,JZS17#,UZS17# |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
GS171,JZS17#,UZS17# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30830 |
GS171,JZS171,173,175,179 |
1 | ||
| 88460-30830 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14070 |
GS171,JZS17# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14070 |
GS171,JZS17# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88474-47010 |
GS171,JZS17#,UZS17# |
1 | ||
| 88474-47010 |
JZS17#,UZS17# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-3A430 |
UZS171,175 |
1 | ||
| 88711-3A460 |
JZS171,175..D4,TWC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3F040 |
UZS171,175 |
1 | ||
| 88712-3A870 |
JZS171,175..D4,TWC |
1 | ||
| 88712-3F041 |
UZS171,175 |
1 | ||
| 88712-51020 |
JZS171,175..D4 |
1 | ||
| 88712-3F041 |
UZS171,175 |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3K480 |
UZS171,175 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 88726-3K520 |
JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 88727 - TUBE, SUCTION, NO.2 | ||||
| 88727-51020 |
GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 88727-3F170 |
UZS171,175 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| Common parts | ||||
| 88469-28010 | ||||
| 88569-3A490 | ||||
| 88569-3F050 | ||||
| 88569-3F180 | ||||
| 88718-16660 | ||||
| 88718-30020 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-32140 | ||||
| 90099-32146 | ||||
| 90119-06553 | ||||
| 90119-06782 | ||||
| 90179-06161 | ||||
| 90179-06204 | ||||
| 91635-B0625 | ||||
| 91635-B0632 | ||||
| 93315-14008 | ||||

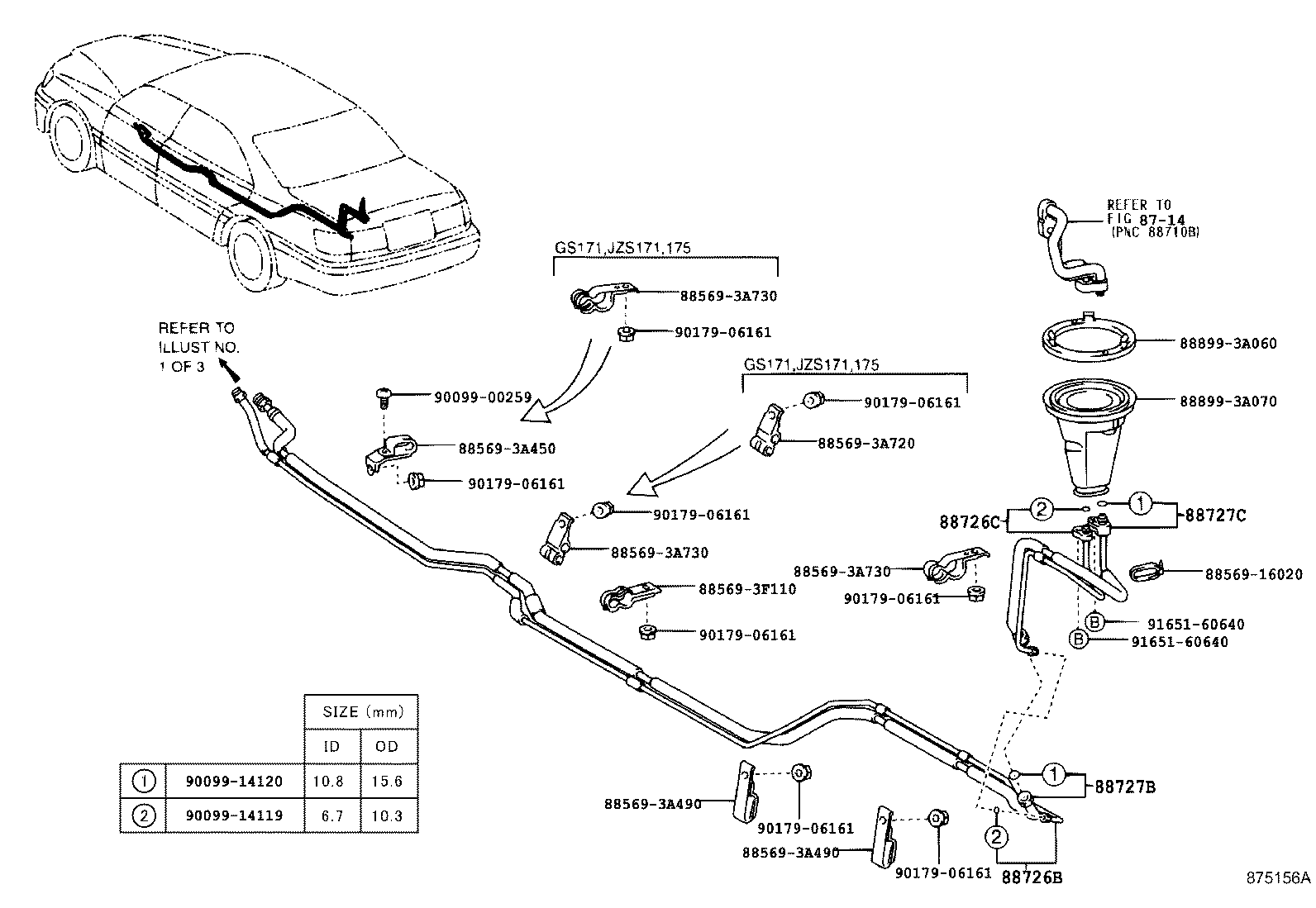

ILLUST NO. 2 OF 2(9909-0108)GS171,JZS171,173,175,179
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-3K560 |
JZS177,UZS171,175 |
1 | ||
| 88726-3K560 |
JZS177,UZS171,175 |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88727-3F110 |
JZS177,UZS171,175 |
1 | ||
| 88727-3F110 |
JZS177,UZS171,175 |
1 | ||
| Common parts | ||||
| 88569-16020 | ||||
| 88569-3A450 | ||||
| 88569-3A490 | ||||
| 88569-3A720 | ||||
| 88569-3A730 | ||||
| 88569-3F110 | ||||
| 88899-3A060 | ||||
| 88899-3A070 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90179-06161 | ||||
| 91651-60640 | ||||
ILLUST NO. 1 OF 2(0108- )UZS171,175
ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30830 |
GS171,JZS171,173,175,179 |
1 | ||
| 88460-30830 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
GS171,JZS17#,UZS17# |
1 | ||
| 88474-47010 |
JZS17#,UZS17# |
1 | ||
| 88474-47010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-30790 |
UZS171,175 |
1 | ||
| 88703-3A130 |
JZS171,175..D4 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-3A260 |
UZS171,175 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 88706-3A290 |
JZS171,173,175,179..ATH,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-30600 |
UZS171,175 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 88707-51010 |
GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3F040 |
UZS171,175 |
1 | ||
| 88712-3A870 |
JZS171,175..D4,TWC |
1 | ||
| 88712-3F041 |
UZS171,175 |
1 | ||
| 88712-51020 |
JZS171,175..D4 |
1 | ||
| 88712-3F041 |
UZS171,175 |
1 | ||
| Common parts | ||||
| 88569-3A490 | ||||
| 88718-16660 | ||||
| 88718-30020 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06773 | ||||
| 90119-06782 | ||||
| 90179-06161 | ||||
| 90179-06204 | ||||
| 91631-B0630 | ||||
| 91635-B0625 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

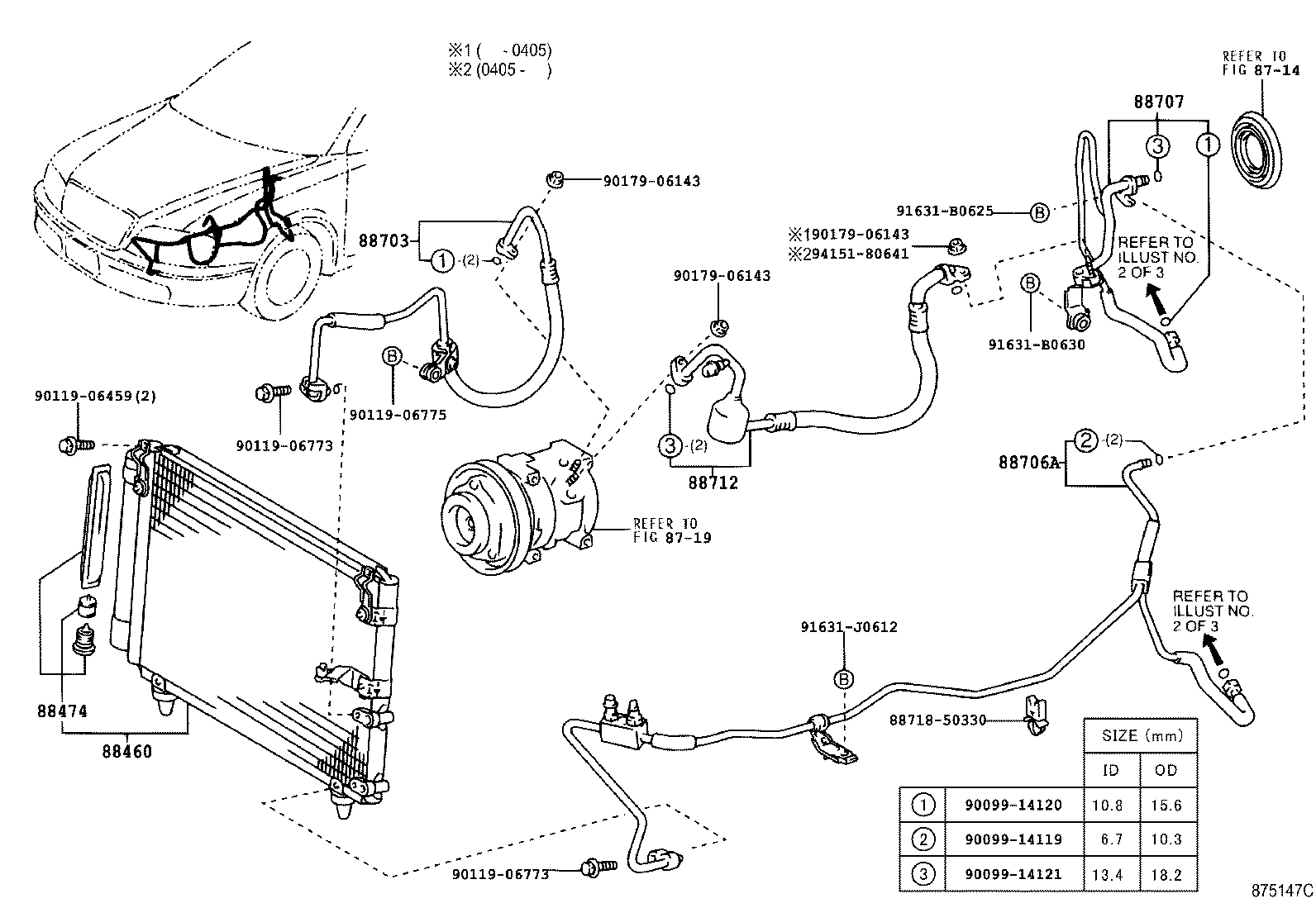

ILLUST NO. 1 OF 2(0108- )JZS171,173,175,179..ATH,ATHG,ROY,ROYEX
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30830 |
GS171,JZS171,173,175,179 |
1 | ||
| 88460-30830 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
GS171,JZS17#,UZS17# |
1 | ||
| 88474-47010 |
JZS17#,UZS17# |
1 | ||
| 88474-47010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-30790 |
UZS171,175 |
1 | ||
| 88703-3A130 |
JZS171,175..D4 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-3A260 |
UZS171,175 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 88706-3A290 |
JZS171,173,175,179..ATH,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-30600 |
UZS171,175 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 88707-51010 |
GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3F040 |
UZS171,175 |
1 | ||
| 88712-3A870 |
JZS171,175..D4,TWC |
1 | ||
| 88712-3F041 |
UZS171,175 |
1 | ||
| 88712-51020 |
JZS171,175..D4 |
1 | ||
| 88712-3F041 |
UZS171,175 |
1 | ||
| Common parts | ||||
| 88718-50330 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06459 | ||||
| 90119-06773 | ||||
| 90119-06775 | ||||
| 90179-06143 | ||||
| 91631-B0625 | ||||
| 91631-B0630 | ||||
| 91631-J0612 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

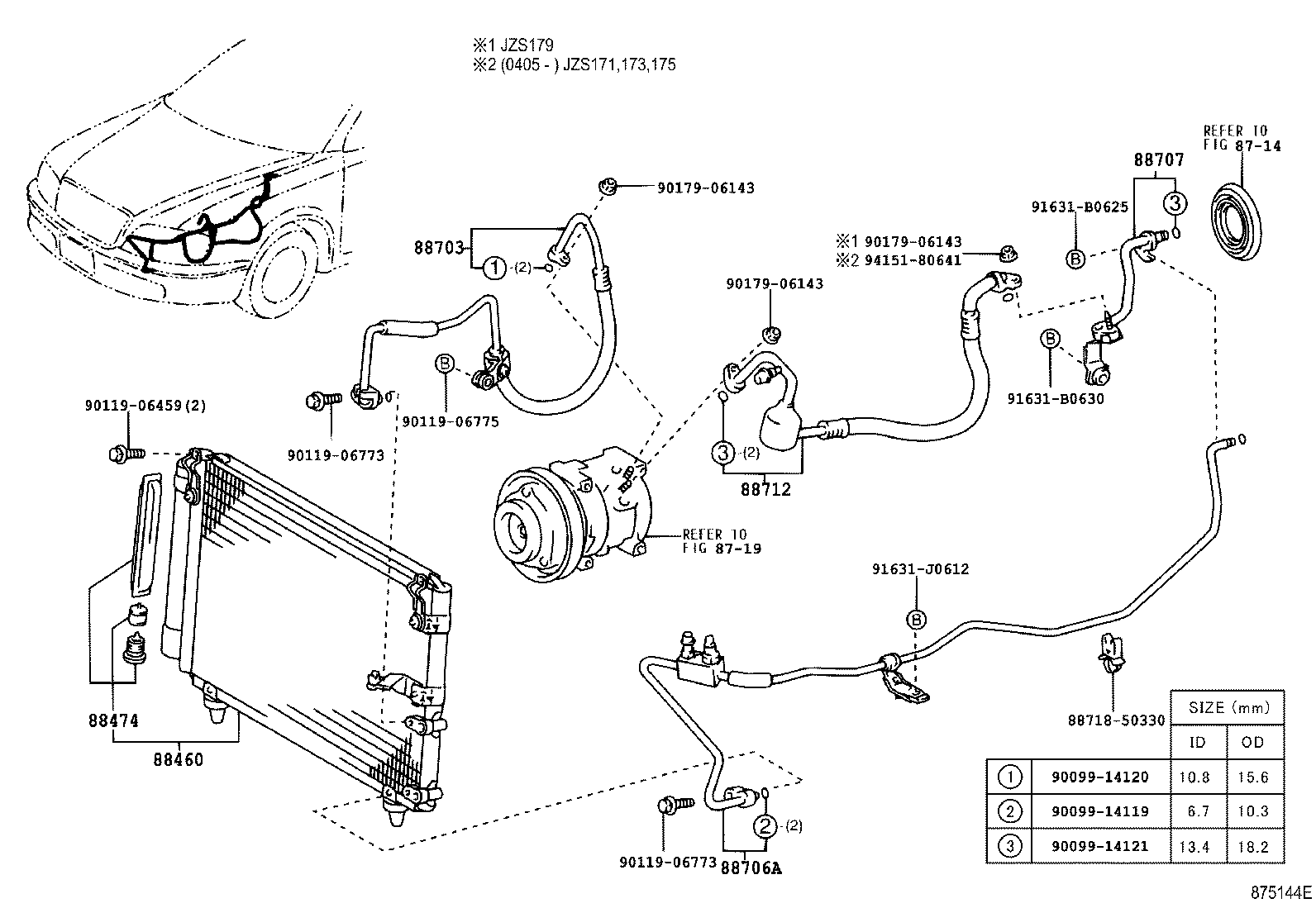

ILLUST NO. 1 OF 2(0108- )JZS171,175..D4
ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30830 |
GS171,JZS171,173,175,179 |
1 | ||
| 88460-30830 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
GS171,JZS17#,UZS17# |
1 | ||
| 88474-47010 |
JZS17#,UZS17# |
1 | ||
| 88474-47010 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-30790 |
UZS171,175 |
1 | ||
| 88703-3A130 |
JZS171,175..D4 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-3A260 |
UZS171,175 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 88706-3A290 |
JZS171,173,175,179..ATH,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-30600 |
UZS171,175 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 88707-51010 |
GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3F040 |
UZS171,175 |
1 | ||
| 88712-3A870 |
JZS171,175..D4,TWC |
1 | ||
| 88712-3F041 |
UZS171,175 |
1 | ||
| 88712-51020 |
JZS171,175..D4 |
1 | ||
| 88712-3F041 |
UZS171,175 |
1 | ||
| Common parts | ||||
| 88718-50330 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06459 | ||||
| 90119-06773 | ||||
| 90119-06775 | ||||
| 90179-06143 | ||||
| 91631-B0625 | ||||
| 91631-B0630 | ||||
| 91631-J0612 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(0108- )GS171,JZS171,173,175,179
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-3K560 |
JZS177,UZS171,175 |
1 | ||
| 88726-3K560 |
JZS177,UZS171,175 |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88727-3F110 |
JZS177,UZS171,175 |
1 | ||
| 88727-3F110 |
JZS177,UZS171,175 |
1 | ||
| Common parts | ||||
| 88569-16020 | ||||
| 88569-3A450 | ||||
| 88569-3A490 | ||||
| 88569-3A720 | ||||
| 88569-3A730 | ||||
| 88569-3F110 | ||||
| 88899-3A060 | ||||
| 88899-3A070 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90179-06161 | ||||
| 91651-60640 | ||||
| Linked diagrams | ||||
| 8714 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
