JZS175W-AWAXH (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Jun 2007
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

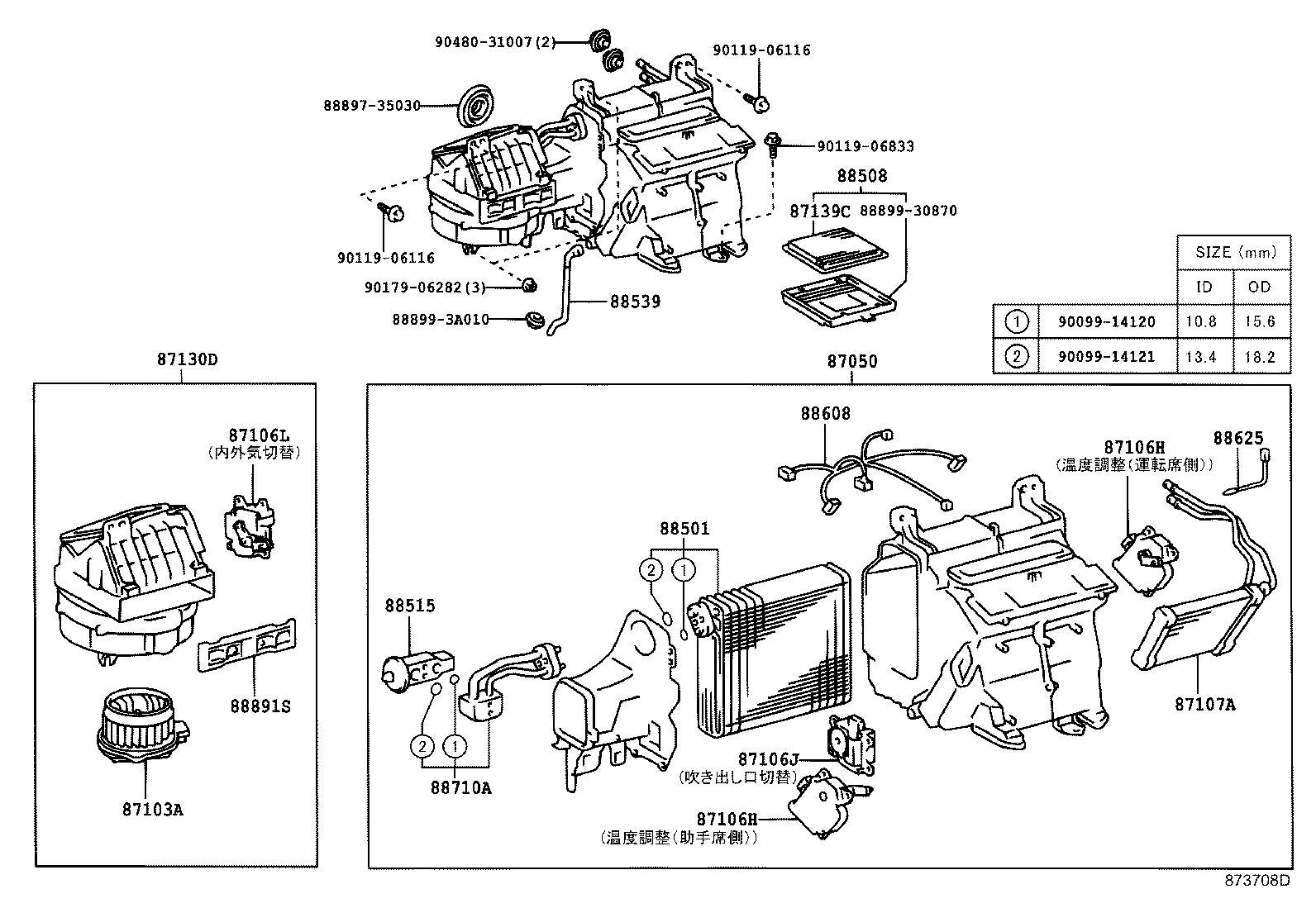

ILLUST NO. 1 OF 2(9909-0108)GS171,JZS171,173,175,179

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 87050 87103A 87106H 87106H 87106J 87106L 87107A 87130D 87139C 88501 88508 88515 88539 88608 88625 88710A 88891S 8889735030 8889930870 888993A010 9009914120 9009914121 9011906116 9011906116 9011906833 9017906282 9048031007
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-30050

JZS171,173,175,179

 1
87050-30050

JKS175,JZS171,173,175,179

 1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-30440

GS171,JKS175,JZS17#,UZS17#

 1
87103-30410

GS171,JZS17#,UZS17#

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30340

GS171,JKS175,JZS17#,UZS17#

運転席側

 1
87106-30340

GS171,JZS17#,UZS17#

運転席側

 1
87106-30341

GS171,JKS175,JZS17#,UZS17#

運転席側

 1
87106-30350

GS171,JKS175,JZS17#,UZS17#

助手席側

 1
87106-30350

GS171,JZS17#,UZS17#

助手席側

 1
87106-30351

GS171,JKS175,JZS17#,UZS17#

助手席側

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30340

GS171,JKS175,JZS17#,UZS17#

運転席側

 1
87106-30340

GS171,JZS17#,UZS17#

運転席側

 1
87106-30341

GS171,JKS175,JZS17#,UZS17#

運転席側

 1
87106-30350

GS171,JKS175,JZS17#,UZS17#

助手席側

 1
87106-30350

GS171,JZS17#,UZS17#

助手席側

 1
87106-30351

GS171,JKS175,JZS17#,UZS17#

助手席側

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-30361

GS171,JKS175,JZS17#,UZS17#

 1
87106-30361

GS171,JZS17#,UZS17#

 1
87106L - SERVO SUB-ASSY, DAMPER
87106-30380

GS171,JZS17#,UZS17#

 1
87106-30380

GS171,JKS175,JZS17#,UZS17#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-30540

GS171,JZS171,173,175,179

 1
87107-30540

GS171,JKS175,JZS171,173,175,179

 1
87130D - BLOWER ASSY
87130-30710

GS171,JZS171,173,175,179

 1
87130-30760

GS171,JKS175,JZS171,173,175,179

 1
87139C - FILTER, CLEAN AIR
87139-48030

GS171,JKS175,JZS17#,UZS17#

 1
87139-48030

GS171,JZS17#,UZS17#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-3A020

GS171,JZS17#,UZS17#

 1
88501-3A050

GS171,JKS175,JZS17#,UZS17#

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-48020

GS171,JZS17#,UZS17#

 1
88508-48020

GS171,JKS175,JZS17#,UZS17#

 1
88515 - VALVE, COOLER EXPANSION
88515-30690

JZS17#,UZS17#

 1
88515-30690

JKS175,JZS17#,UZS17#

 1
88515-22260

JZS17#,UZS17#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-51010

GS171,JZS171,175

 1
88539-30870

GS171,JKS175,JZS171,175

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-3A061

GS171,JKS175,JZS17#,UZS17#

 1
88608-3A060

GS171,JKS175,JZS17#,UZS17#

 1
88608-3A060

GS171,JZS17#,UZS17#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-3A120

GS171,JZS17#,UZS17#

 1
88625-3A120

GS171,JKS175,JZS17#,UZS17#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-3A220

GS171,JKS175,JZS171,173,175,179

 1
88710-3A220

GS171,JZS171,173,175,179

 1
88891S - COVER, COOLER, NO.1
88891-30680

GS171,JKS175,JZS17#,UZS17#

 1
88891-30680

GS171,JZS17#,UZS17#

 1
Common parts
88897-35030
88899-30870
88899-3A010
90099-14120
90099-14121
90119-06116
90119-06833
90179-06282
90480-31007

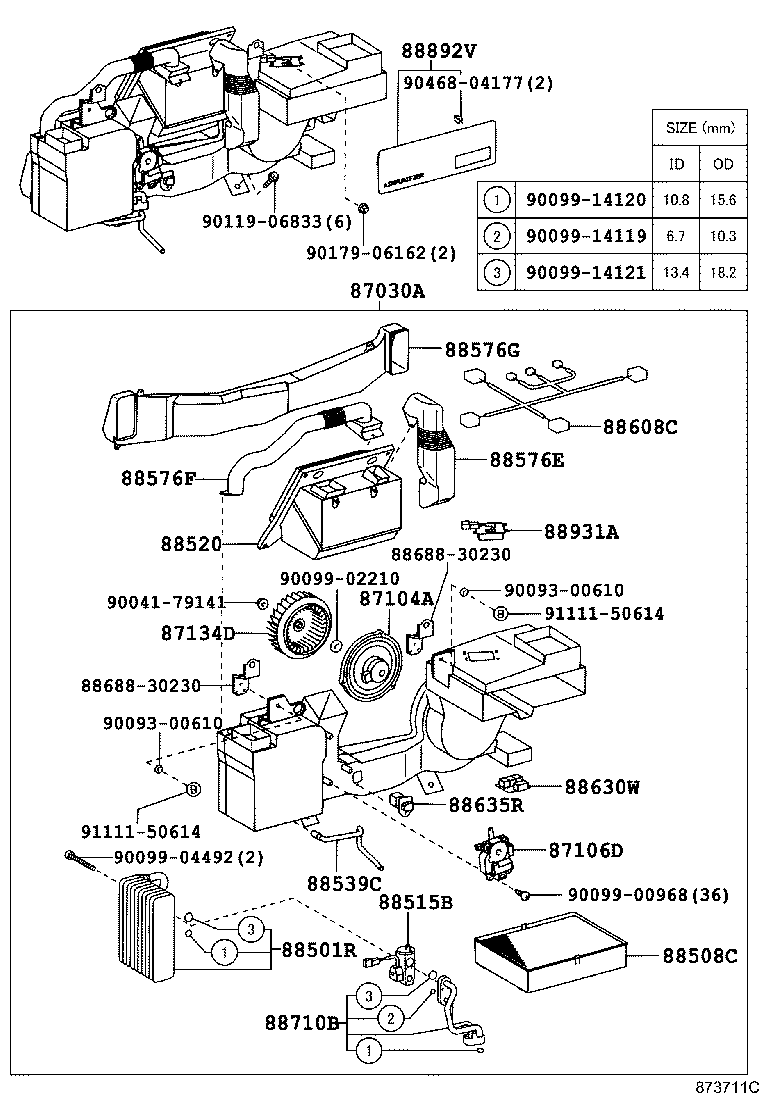

ILLUST NO. 2 OF 2(9909-0108)

Click highlighted areas on diagram

ﾘﾔ

diagram 87030A 87104A 87106D 87134D 88501R 88508C 88515B 88539C 88576G 88608C 88630W 88635R 8868830230 8868830230 88710B 88892V 88931A 9004179141 9009300610 9009300610 9009900968 9009902210 9009904492 9009914119 9009914120 9009914121 9011906833 9017906162 9046804177 9111150614 9111150614
Part # Description Qty Price
88892V - COVER, AIR PURIFIER
88891-30690C0

GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

BLACK,TRIM0#,1#

 1
Common parts
88688-30230
90041-79141
90093-00610
90099-00968
90099-02210
90099-04492
90099-14119
90099-14120
90099-14121
90119-06833
90179-06162
90468-04177
91111-50614

ILLUST NO. 2 OF 2(9909-0108)

Click highlighted areas on diagram

ﾘﾔ--ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ)

diagram 87030A 87104A 87106D 87134D 88501R 88508C 88515B 88520 88539C 88576E 88576F 88576G 88608C 88630W 88635R 8868830230 8868830230 88710B 88892V 88931A 9004179141 9009300610 9009300610 9009900968 9009902210 9009904492 9009914119 9009914120 9009914121 9011906833 9017906162 9046804177 9111150614 9111150614
Part # Description Qty Price
88892V - COVER, AIR PURIFIER
88891-30690C0

GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

BLACK,TRIM0#,1#

 1
Common parts
88688-30230
90041-79141
90093-00610
90099-00968
90099-02210
90099-04492
90099-14119
90099-14120
90099-14121
90119-06833
90179-06162
90468-04177
91111-50614

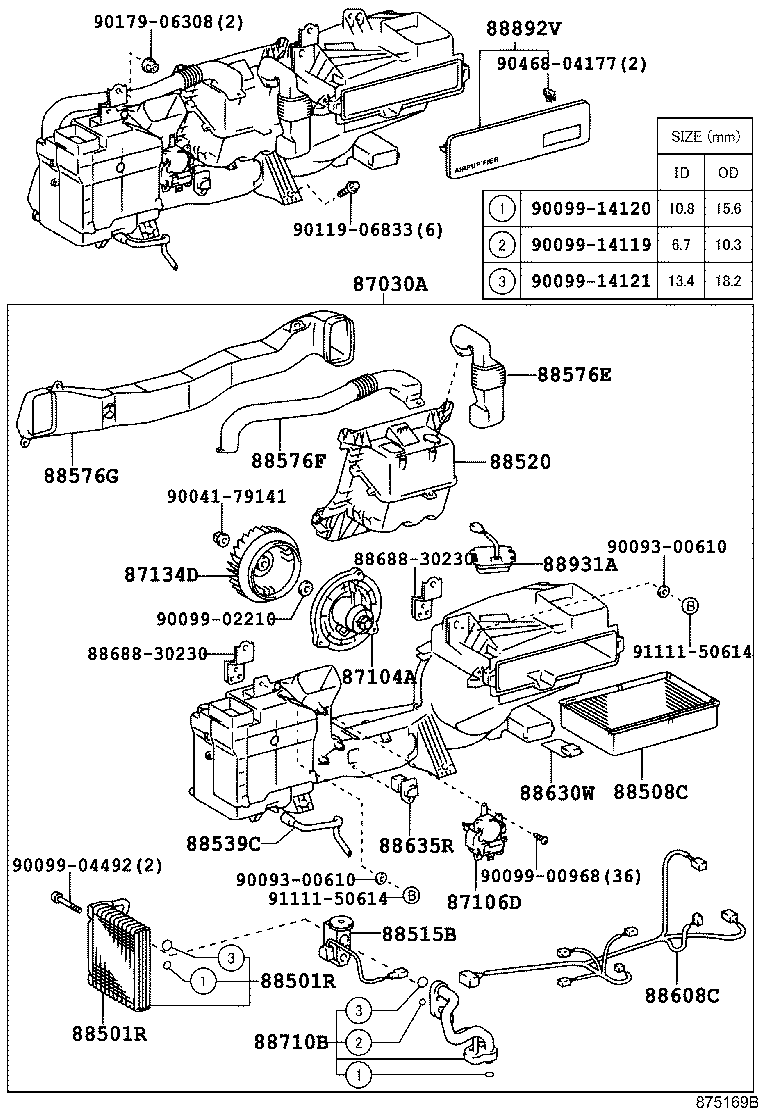

ILLUST NO. 2 OF 2(0108- )

Click highlighted areas on diagram

ﾘﾔ

diagram 87030A 87104A 87106D 87134D 88501R 88501R 88508C 88515B 88539C 88576G 88608C 88630W 88635R 8868830230 8868830230 88710B 88892V 88931A 9004179141 9009300610 9009300610 9009900968 9009902210 9009904492 9009914119 9009914120 9009914121 9011906833 9017906308 9046804177 9111150614 9111150614
Part # Description Qty Price
88892V - COVER, AIR PURIFIER
88891-30690C0

GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

BLACK,TRIM0#,1#

 1
Common parts
88688-30230
90041-79141
90093-00610
90099-00968
90099-02210
90099-04492
90099-14119
90099-14120
90099-14121
90119-06833
90179-06308
90468-04177
91111-50614

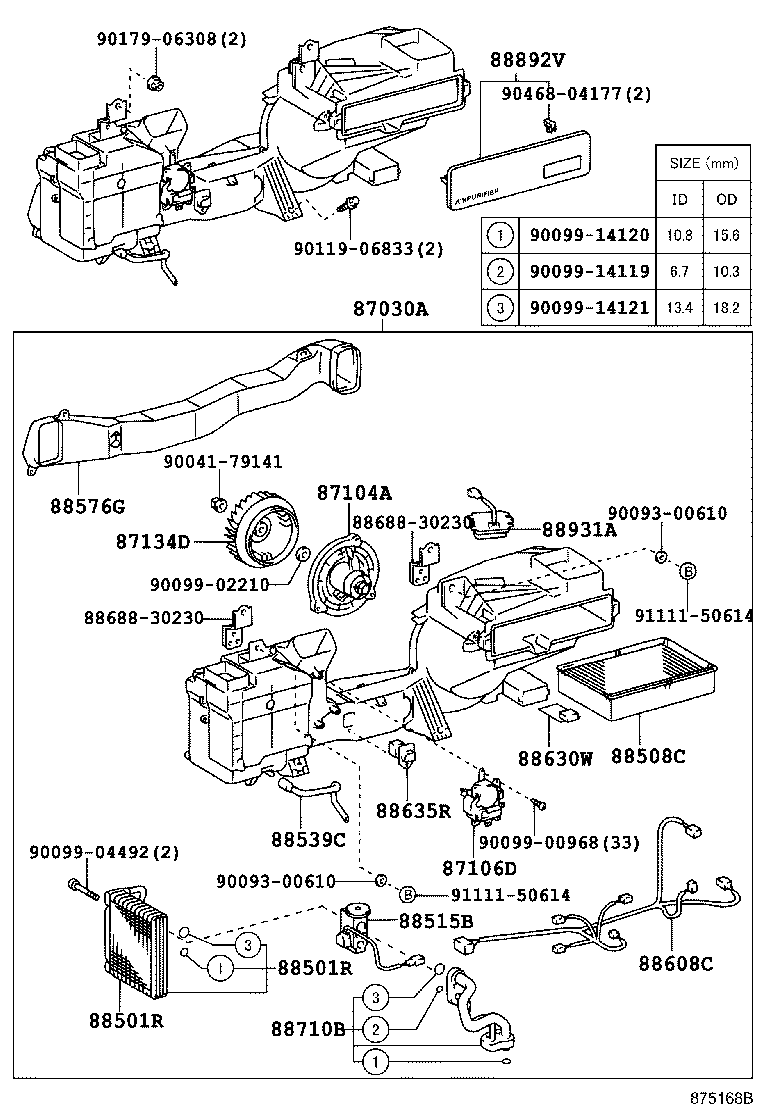

ILLUST NO. 2 OF 2(0108- )

Click highlighted areas on diagram

ﾘﾔ--ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ)

diagram 87030A 87104A 87106D 87134D 88501R 88501R 88508C 88515B 88520 88539C 88576E 88576F 88576G 88608C 88630W 88635R 8868830230 8868830230 88710B 88892V 88931A 9004179141 9009300610 9009300610 9009900968 9009902210 9009904492 9009914119 9009914120 9009914121 9011906833 9017906308 9046804177 9111150614 9111150614
Part # Description Qty Price
88892V - COVER, AIR PURIFIER
88891-30690C0

GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

BLACK,TRIM0#,1#

 1
Common parts
88688-30230
90041-79141
90093-00610
90099-00968
90099-02210
90099-04492
90099-14119
90099-14120
90099-14121
90119-06833
90179-06308
90468-04177
91111-50614

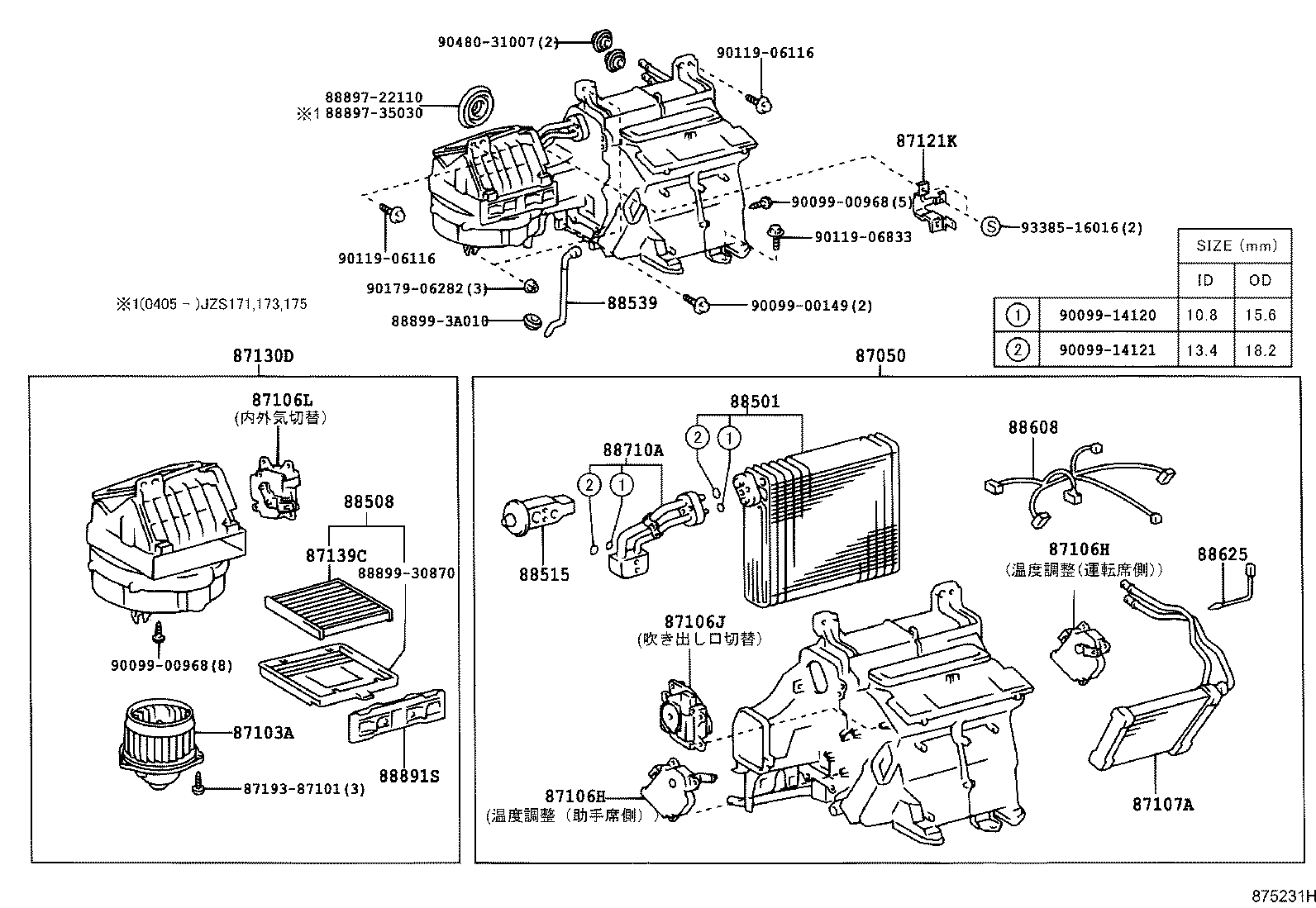

ILLUST NO. 1 OF 2(0108- )GS171,JKS175,JZS171,173,175,179

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 87050 87103A 87106H 87106H 87106J 87106L 87107A 87121K 87130D 87139C 8719387101 88501 88508 88515 88539 88608 88625 88710A 88891S 8889722110 8889735030 8889930870 888993A010 9009900149 9009900968 9009900968 9009914120 9009914121 9011906116 9011906116 9011906833 9017906282 9048031007 9338516016
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-30050

JZS171,173,175,179

 1
87050-30050

JKS175,JZS171,173,175,179

 1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-30440

GS171,JKS175,JZS17#,UZS17#

 1
87103-30410

GS171,JZS17#,UZS17#

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30340

GS171,JKS175,JZS17#,UZS17#

運転席側

 1
87106-30340

GS171,JZS17#,UZS17#

運転席側

 1
87106-30341

GS171,JKS175,JZS17#,UZS17#

運転席側

 1
87106-30350

GS171,JKS175,JZS17#,UZS17#

助手席側

 1
87106-30350

GS171,JZS17#,UZS17#

助手席側

 1
87106-30351

GS171,JKS175,JZS17#,UZS17#

助手席側

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30340

GS171,JKS175,JZS17#,UZS17#

運転席側

 1
87106-30340

GS171,JZS17#,UZS17#

運転席側

 1
87106-30341

GS171,JKS175,JZS17#,UZS17#

運転席側

 1
87106-30350

GS171,JKS175,JZS17#,UZS17#

助手席側

 1
87106-30350

GS171,JZS17#,UZS17#

助手席側

 1
87106-30351

GS171,JKS175,JZS17#,UZS17#

助手席側

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-30361

GS171,JKS175,JZS17#,UZS17#

 1
87106-30361

GS171,JZS17#,UZS17#

 1
87106L - SERVO SUB-ASSY, DAMPER
87106-30380

GS171,JZS17#,UZS17#

 1
87106-30380

GS171,JKS175,JZS17#,UZS17#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-30540

GS171,JZS171,173,175,179

 1
87107-30540

GS171,JKS175,JZS171,173,175,179

 1
87121K - BRACKET, HEATER
87121-53020

GS171,JKS175,JZS17#,UZS17#

 1
87130D - BLOWER ASSY
87130-30710

GS171,JZS171,173,175,179

 1
87130-30760

GS171,JKS175,JZS171,173,175,179

 1
87139C - FILTER, CLEAN AIR
87139-48030

GS171,JKS175,JZS17#,UZS17#

 1
87139-48030

GS171,JZS17#,UZS17#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-3A020

GS171,JZS17#,UZS17#

 1
88501-3A050

GS171,JKS175,JZS17#,UZS17#

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-48020

GS171,JKS175,JZS17#,UZS17#

 1
88508-48020

GS171,JZS17#,UZS17#

 1
88515 - VALVE, COOLER EXPANSION
88515-30690

JZS17#,UZS17#

 1
88515-30690

JKS175,JZS17#,UZS17#

 1
88515-22260

JZS17#,UZS17#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-51010

GS171,JZS171,175

 1
88539-30870

GS171,JKS175,JZS171,175

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-3A061

GS171,JKS175,JZS17#,UZS17#

 1
88608-3A060

GS171,JKS175,JZS17#,UZS17#

 1
88608-3A060

GS171,JZS17#,UZS17#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-3A120

GS171,JZS17#,UZS17#

 1
88625-3A120

GS171,JKS175,JZS17#,UZS17#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-3A220

GS171,JKS175,JZS171,173,175,179

 1
88710-3A220

GS171,JZS171,173,175,179

 1
88891S - COVER, COOLER, NO.1
88891-30680

GS171,JKS175,JZS17#,UZS17#

 1
88891-30680

GS171,JZS17#,UZS17#

 1
Common parts
87193-87101
88897-22110
88897-35030
88899-30870
88899-3A010
90099-00149
90099-00968
90099-14120
90099-14121
90119-06116
90119-06833
90179-06282
90480-31007
93385-16016
