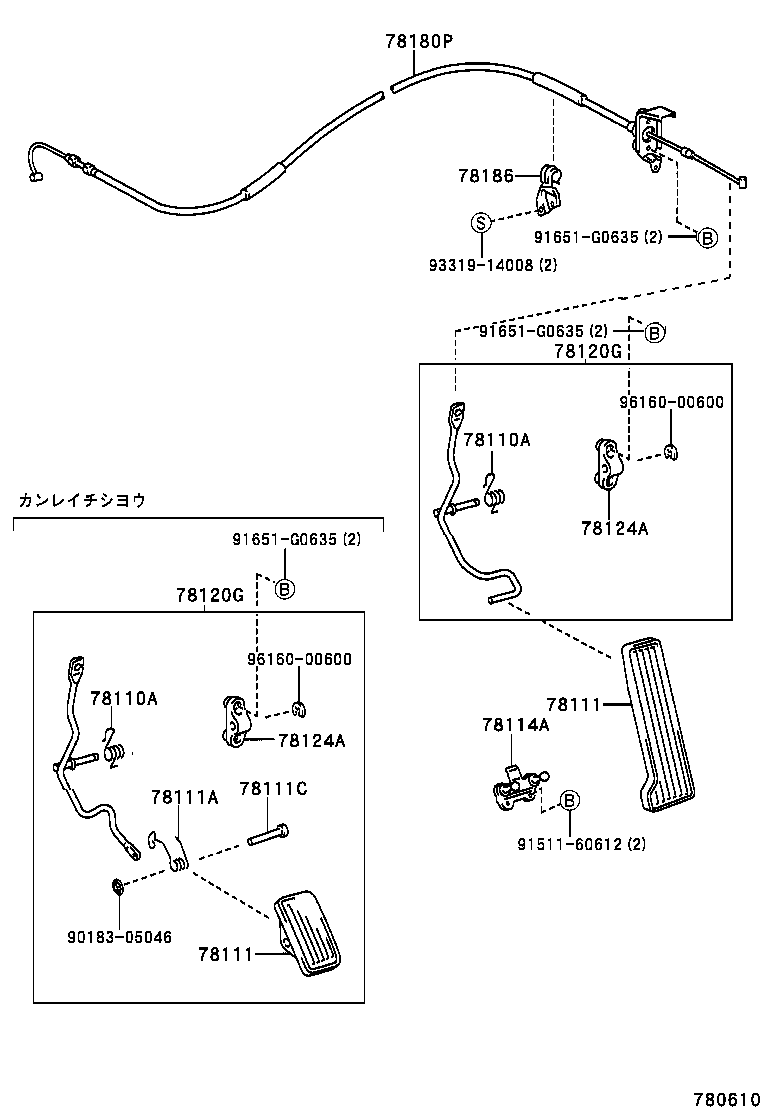

JZS175-AEAXH (1999)
Toyota Crown/Crown Majesta
(9909-0108)JZS175
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03204 |
GS171,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78214-50010 |
JZS179;GS171,JZS171,175,177,UZS17#..D4,HTWC,TWT |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03204 |
GS171,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78214-50010 |
JZS179;GS171,JZS171,175,177,UZS17#..D4,HTWC,TWT |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-22020 |
GS171,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 78111-22020 |
GS171,JKS175,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JZS17#,UZS17# |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-22020 |
GS171,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 78111-22020 |
GS171,JKS175,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JZS17#,UZS17# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90905-08002 |
GS171,JZS171,173,175,179 |
1 | ||
| 90905-08002 |
GS171,JKS175,JZS17# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90241-05022 |
GS171,JZS17#,UZS17# |
1 | ||
| 90241-05022 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 78114A - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-30070 |
GS171,JZS171,173,175,179 |
1 | ||
| 78114-30070 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-3A170 |
GS171,JZS171,173,175,179 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78010-30090 |
JKS175,JZS171,175..D4 |
1 | ||
| 78120-3A200 |
JZS179;GS171,JZS171,175..D4,HTWC,TWT |
1 | ||
| 78010-30060 |
JKS175,JZS171,175..D4 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78010-30050 |
JKS175,JZS171,175..D4 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-3A170 |
GS171,JZS171,173,175,179 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78010-30090 |
JKS175,JZS171,175..D4 |
1 | ||
| 78120-3A200 |
JZS179;GS171,JZS171,175..D4,HTWC,TWT |
1 | ||
| 78010-30060 |
JKS175,JZS171,175..D4 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78010-30050 |
JKS175,JZS171,175..D4 |
1 | ||
| 78124A - BRACKET, ACCELERATOR PEDAL ROD | ||||
| 78124-50020 |
GS171,JZS17#,UZS17# |
1 | ||
| 78124A - BRACKET, ACCELERATOR PEDAL ROD | ||||
| 78124-50020 |
GS171,JZS17#,UZS17# |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-3A700 |
UZS171,175 |
1 | ||
| 78180-3A730 |
JZS175 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-30180 |
JZS175 |
1 | ||
| Common parts | ||||
| 90183-05046 | ||||
| 91511-60612 | ||||
| 91651-G0635 | ||||
| 93319-14008 | ||||
| 96160-00600 | ||||
(0108- )D4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-22020 |
GS171,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 78111-22020 |
GS171,JKS175,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JZS17#,UZS17# |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-22020 |
GS171,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 78111-22020 |
GS171,JKS175,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30081 |
GS171,JZS17#,UZS17# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90905-08002 |
GS171,JZS171,173,175,179 |
1 | ||
| 90905-08002 |
GS171,JKS175,JZS17# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90241-05022 |
GS171,JZS17#,UZS17# |
1 | ||
| 90241-05022 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 78114A - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-30070 |
GS171,JZS171,173,175,179 |
1 | ||
| 78114-30070 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06008 |
JKS175,JZS171,175,177..D4 |
2 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06008 |
JKS175,JZS171,175,177..D4 |
2 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06008 |
JKS175,JZS171,175,177..D4 |
2 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06008 |
JKS175,JZS171,175,177..D4 |
2 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-3A170 |
GS171,JZS171,173,175,179 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78010-30090 |
JKS175,JZS171,175..D4 |
1 | ||
| 78120-3A200 |
JZS179;GS171,JZS171,175..D4,HTWC,TWT |
1 | ||
| 78010-30060 |
JKS175,JZS171,175..D4 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78010-30050 |
JKS175,JZS171,175..D4 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-3A170 |
GS171,JZS171,173,175,179 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78010-30090 |
JKS175,JZS171,175..D4 |
1 | ||
| 78120-3A200 |
JZS179;GS171,JZS171,175..D4,HTWC,TWT |
1 | ||
| 78010-30060 |
JKS175,JZS171,175..D4 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78010-30050 |
JKS175,JZS171,175..D4 |
1 | ||
| 78125A - BRACKET, ACCELERATOR PEDAL ROD, NO.2 | ||||
| 78125-30060 |
JKS175,JZS171,175,177..D4 |
1 | ||
| Common parts | ||||
| 90178-06008 | ||||
| 90179-06274 | ||||
| 90183-05046 | ||||
| 91511-60612 | ||||
| 91651-G0635 | ||||
| 91666-60635 | ||||
| 96160-00600 | ||||
