Toyota Crown/crown majesta JZS175 RADIATOR GRILLE

JZS175-AEAXH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Dec 2003

Engine 2JZFSE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

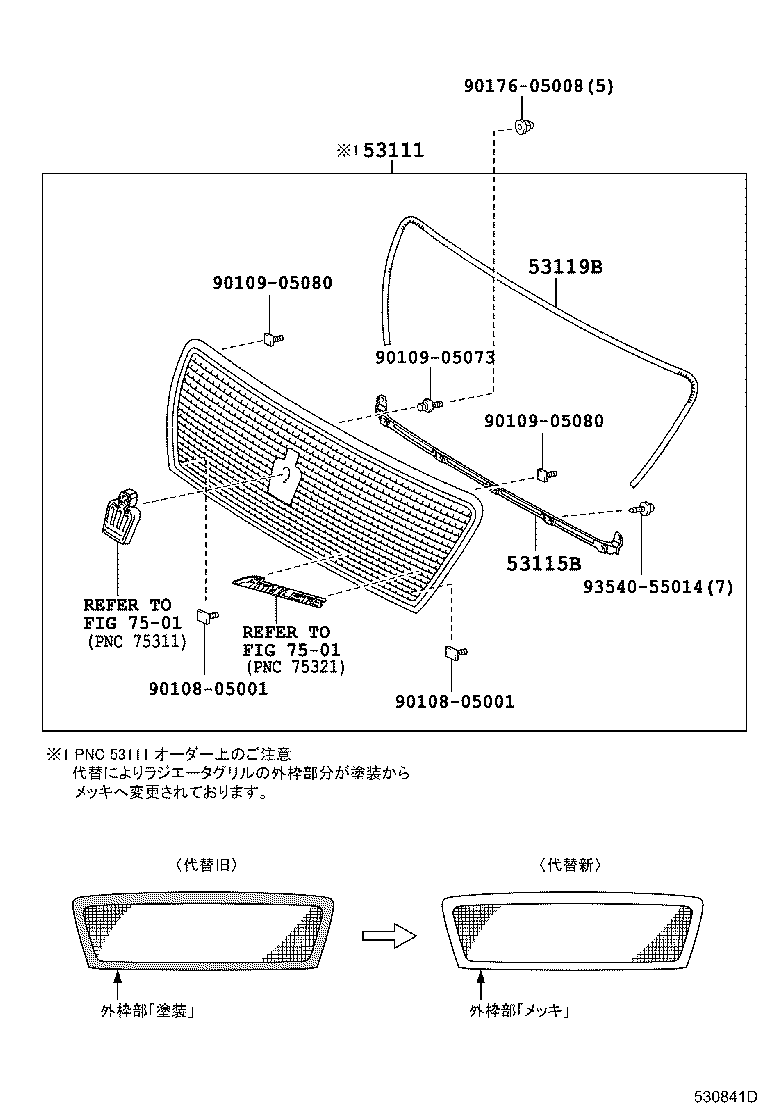

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53100-30200D0	JZS171,173,175..SED..(ATH,ATHG,ATHV) ROSE RED MC.,3M9	09/1999 - 08/2001	1
53100-30200A0	JZS171,173,175..ATH,ATHE,ATHG,ATHV WHITE PEARL CS.,062 ,2FQ	09/1999 - 08/2001	1
53100-30200J1	JZS171,173,175..ATH,ATHE,ATHG,ATHV GRAYISH BLUE ME.,8N6	09/1999 - 08/2001	1
53100-30200G0	JZS171,173,175..ATH,ATHE,ATHG,ATHV BLACKISH GREEN MC.CC,6R5	09/1999 - 08/2001	1
53100-30200B0	JZS171,173,175..ATH,ATHE,ATHG,ATHV SILVER ME.,1C0	09/1999 - 08/2001	1
53111-30830J0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV DARK BLUE MC.,8P8	08/2001 - 12/2003	1
53100-30200J0	JZS171,173,175..SED..(ATH,ATHG,ATHV) DK.BLUE MC.,2FR ,8L4	09/1999 - 08/2001	1
53111-30830G0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV BLACKISH GREEN MC.CC,6R5	08/2001 - 12/2003	1
53111-30830B0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV SILVER ME.,1C0	08/2001 - 12/2003	1
53111-30830C0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV BLACK,202	08/2001 - 12/2003	1
53111-30830A0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV WHITE PEARL CS.,062 ,2FQ	08/2001 - 12/2003	1
53111-30830G1	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV LT.GREEN M.M.,6S8	08/2001 - 12/2003	1
53115B - BRACKET, RADIATOR GRILLE
53115-30060	JZS171,173,175..ATH,ATHE,ATHG,ATHV	09/1999 - 08/2001	1
53119B - PROTECTOR, RADIATOR GRILLE
53119-30160	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
53119-30160	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
Common parts
90108-05001
90109-05073
90109-05080
90176-05008
93540-55014
Linked diagrams
7501

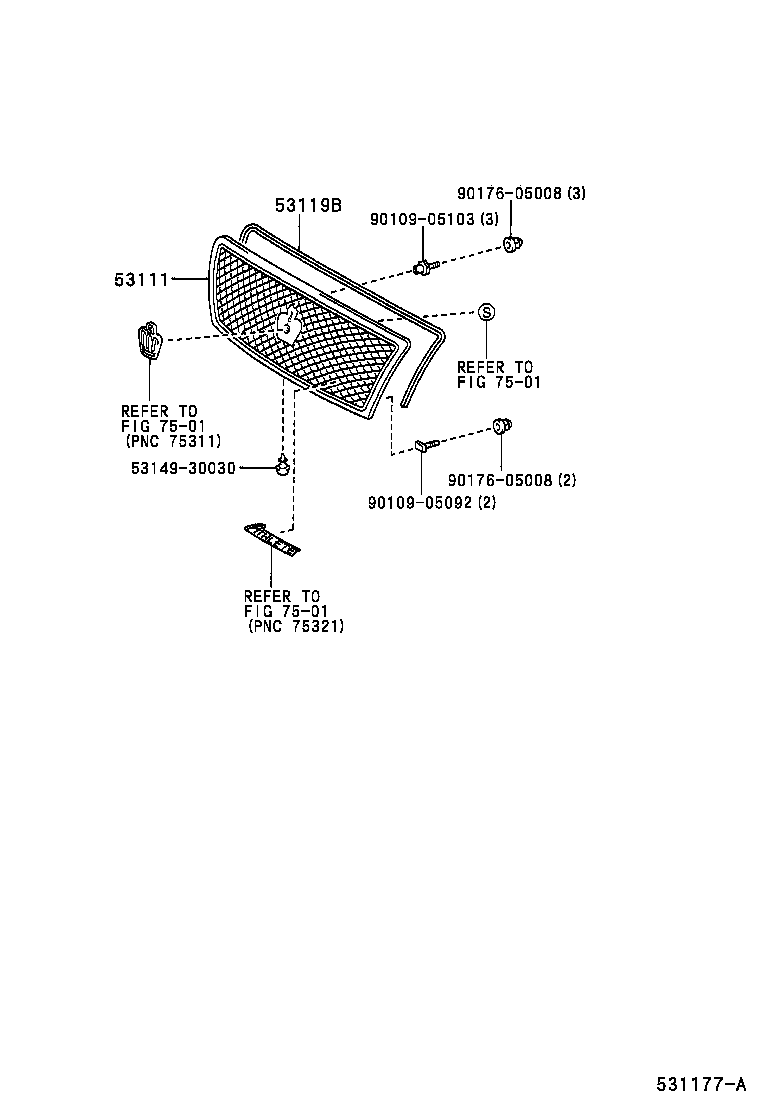

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53100-30200D0	JZS171,173,175..SED..(ATH,ATHG,ATHV) ROSE RED MC.,3M9	09/1999 - 08/2001	1
53100-30200A0	JZS171,173,175..ATH,ATHE,ATHG,ATHV WHITE PEARL CS.,062 ,2FQ	09/1999 - 08/2001	1
53100-30200J1	JZS171,173,175..ATH,ATHE,ATHG,ATHV GRAYISH BLUE ME.,8N6	09/1999 - 08/2001	1
53100-30200G0	JZS171,173,175..ATH,ATHE,ATHG,ATHV BLACKISH GREEN MC.CC,6R5	09/1999 - 08/2001	1
53100-30200B0	JZS171,173,175..ATH,ATHE,ATHG,ATHV SILVER ME.,1C0	09/1999 - 08/2001	1
53111-30830J0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV DARK BLUE MC.,8P8	08/2001 - 12/2003	1
53100-30200J0	JZS171,173,175..SED..(ATH,ATHG,ATHV) DK.BLUE MC.,2FR ,8L4	09/1999 - 08/2001	1
53111-30830G0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV BLACKISH GREEN MC.CC,6R5	08/2001 - 12/2003	1
53111-30830B0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV SILVER ME.,1C0	08/2001 - 12/2003	1
53111-30830C0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV BLACK,202	08/2001 - 12/2003	1
53111-30830A0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV WHITE PEARL CS.,062 ,2FQ	08/2001 - 12/2003	1
53111-30830G1	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV LT.GREEN M.M.,6S8	08/2001 - 12/2003	1
53119B - PROTECTOR, RADIATOR GRILLE
53119-30160	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
53119-30160	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
Common parts
53149-30030
90109-05092
90109-05103
90176-05008
Linked diagrams
7501

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53100-30200D0	JZS171,173,175..SED..(ATH,ATHG,ATHV) ROSE RED MC.,3M9	09/1999 - 08/2001	1
53100-30200A0	JZS171,173,175..ATH,ATHE,ATHG,ATHV WHITE PEARL CS.,062 ,2FQ	09/1999 - 08/2001	1
53100-30200J1	JZS171,173,175..ATH,ATHE,ATHG,ATHV GRAYISH BLUE ME.,8N6	09/1999 - 08/2001	1
53100-30200G0	JZS171,173,175..ATH,ATHE,ATHG,ATHV BLACKISH GREEN MC.CC,6R5	09/1999 - 08/2001	1
53100-30200B0	JZS171,173,175..ATH,ATHE,ATHG,ATHV SILVER ME.,1C0	09/1999 - 08/2001	1
53111-30830J0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV DARK BLUE MC.,8P8	08/2001 - 12/2003	1
53100-30200J0	JZS171,173,175..SED..(ATH,ATHG,ATHV) DK.BLUE MC.,2FR ,8L4	09/1999 - 08/2001	1
53111-30830G0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV BLACKISH GREEN MC.CC,6R5	08/2001 - 12/2003	1
53111-30830B0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV SILVER ME.,1C0	08/2001 - 12/2003	1
53111-30830C0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV BLACK,202	08/2001 - 12/2003	1
53111-30830A0	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV WHITE PEARL CS.,062 ,2FQ	08/2001 - 12/2003	1
53111-30830G1	GS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV LT.GREEN M.M.,6S8	08/2001 - 12/2003	1
53119B - PROTECTOR, RADIATOR GRILLE
53119-30160	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
53119-30160	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
Common parts
53149-30030
90109-05092
90109-05103
90176-05008
Linked diagrams
7501
