Toyota Crown/crown majesta JZS175 VACUUM PIPING

JZS175-AEAQH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Dec 2003

Engine 2JZFSE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9909-0010)2JZFSE

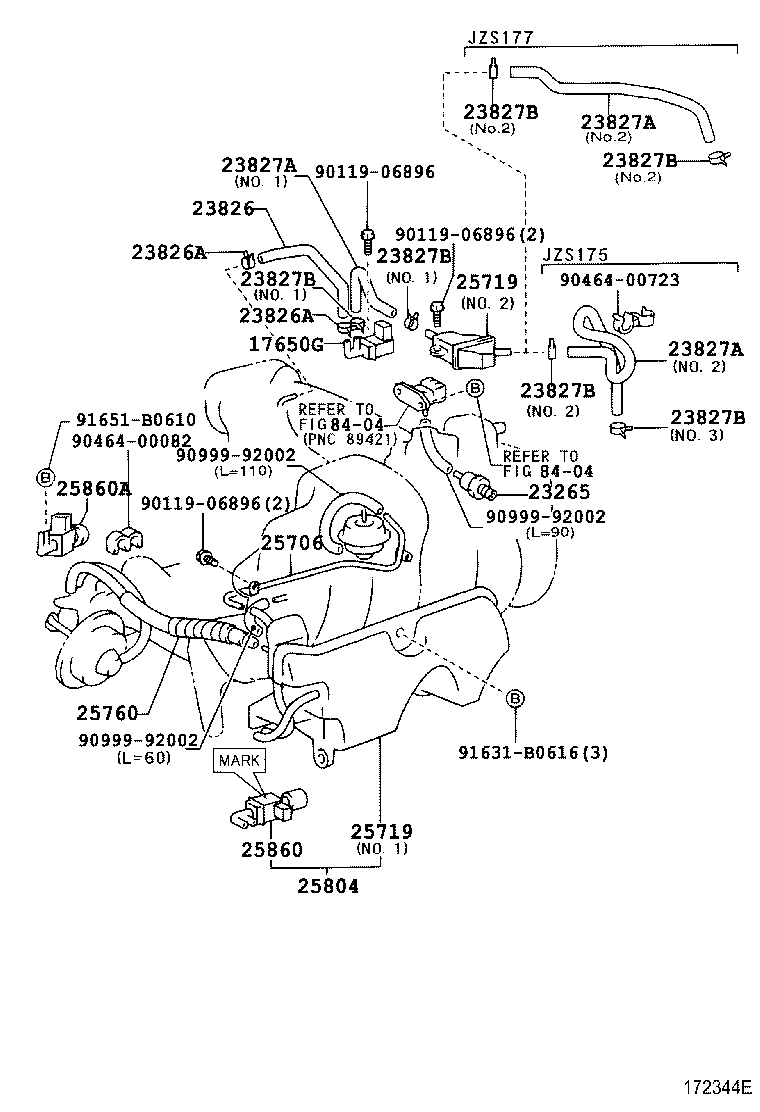

Click highlighted areas on diagram

Part #	Description	Period	Qty
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12226	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
90910-12226	2JZFSE..JZS175,177	09/1999 - 08/2001	1
23265 - FILTER, GAS, NO.1
90917-11031	1JZFSE,1JZGE,2JZFSE..JKS175,JZS171,173,175,177	08/2001 - 12/2999	1
90917-11031	1JZGE,2JZFSE..JZS171,173,175,177	09/1999 - 08/2001	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-46040	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23826-46040	2JZFSE..JZS175,177	09/1999 - 08/2001	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	2
96132-51100	2JZFSE..JZS175,177	09/1999 - 08/2001	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	2
96132-51100	2JZFSE..JZS175,177	09/1999 - 08/2001	2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-46070	2JZFSE..JZS175 NO.2	09/1999 - 10/2000	1
23827-46100	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	1
23827-46070	2JZFSE..JZS175 NO.2	04/2001 - 08/2001	1
23827-46130	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	1
23827-46110	2JZFSE..JZS175 NO.2	10/2000 - 04/2001	1
23827-46130	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	1
23827-46070	1JZFSE,2JZFSE..JZS171,175 NO.2	08/2001 - 12/2999	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-46070	2JZFSE..JZS175 NO.2	09/1999 - 10/2000	1
23827-46100	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	1
23827-46070	2JZFSE..JZS175 NO.2	04/2001 - 08/2001	1
23827-46130	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	1
23827-46110	2JZFSE..JZS175 NO.2	10/2000 - 04/2001	1
23827-46130	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	1
23827-46070	1JZFSE,2JZFSE..JZS171,175 NO.2	08/2001 - 12/2999	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-46070	2JZFSE..JZS175 NO.2	09/1999 - 10/2000	1
23827-46100	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	1
23827-46070	2JZFSE..JZS175 NO.2	04/2001 - 08/2001	1
23827-46130	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	1
23827-46110	2JZFSE..JZS175 NO.2	10/2000 - 04/2001	1
23827-46130	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	1
23827-46070	1JZFSE,2JZFSE..JZS171,175 NO.2	08/2001 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
96132-41500	2JZFSE..JZS175 NO.3	09/1999 - 08/2001	1
96132-41300	2JZFSE..JZS175 NO.2	09/1999 - 08/2001	1
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96132-51300	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.2	08/2001 - 12/2999	1
96132-41500	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.3	08/2001 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
96132-41500	2JZFSE..JZS175 NO.3	09/1999 - 08/2001	1
96132-41300	2JZFSE..JZS175 NO.2	09/1999 - 08/2001	1
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96132-51300	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.2	08/2001 - 12/2999	1
96132-41500	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.3	08/2001 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
96132-41500	2JZFSE..JZS175 NO.3	09/1999 - 08/2001	1
96132-41300	2JZFSE..JZS175 NO.2	09/1999 - 08/2001	1
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96132-51300	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.2	08/2001 - 12/2999	1
96132-41500	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.3	08/2001 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
96132-41500	2JZFSE..JZS175 NO.3	09/1999 - 08/2001	1
96132-41300	2JZFSE..JZS175 NO.2	09/1999 - 08/2001	1
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96132-51300	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.2	08/2001 - 12/2999	1
96132-41500	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.3	08/2001 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
96132-41500	2JZFSE..JZS175 NO.3	09/1999 - 08/2001	1
96132-41300	2JZFSE..JZS175 NO.2	09/1999 - 08/2001	1
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96132-51300	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.2	08/2001 - 12/2999	1
96132-41500	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.3	08/2001 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
96132-41500	2JZFSE..JZS175 NO.3	09/1999 - 08/2001	1
96132-41300	2JZFSE..JZS175 NO.2	09/1999 - 08/2001	1
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96132-51300	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.2	08/2001 - 12/2999	1
96132-41500	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.3	08/2001 - 12/2999	1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-46120	2JZFSE..JZS175,177	09/1999 - 08/2001	1
25706-46120	2JZFSE..JKS175,JZS175,177	08/2001 - 12/2999	1
25719 - TANK, VACUUM SURGE
25719-46060	2JZFSE..JZS175,177 NO.2	09/1999 - 10/2000	1
25719-46050	2JZFSE..JZS175,177	10/2000 - 08/2001	1
25719-46050	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	1
25719-46050	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
25719 - TANK, VACUUM SURGE
25719-46060	2JZFSE..JZS175,177 NO.2	09/1999 - 10/2000	1
25719-46050	2JZFSE..JZS175,177	10/2000 - 08/2001	1
25719-46050	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	1
25719-46050	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-46110	2JZFSE..JZS175,177	09/1999 - 08/2001	1
25760-46120	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
25804 - VALVE SET, VACUUM CONTROL
25804-46070	2JZFSE..JZS175,177	09/1999 - 08/2001	1
25804-46070	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-46010	1JZFSE,1JZGE,2JZ#..JKS175,JZS17# ﾏｰｸ 25860−46010	08/2001 - 12/2999	1
25860-46010	1JZGE,2JZ#..JZS17# ﾏｰｸ 25860−46010	09/1999 - 08/2001	1
90910-12124	1JZGE,2JZ#..JZS17# ﾏｰｸ 90910−12124	09/1999 - 08/2001	1
90910-12124	1JZFSE,2JZ#..JKS175,JZS171,175,177,179 ﾏｰｸ 90910−12124	08/2001 - 12/2999	1
25860A - VALVE, VACUUM SWITCHING, NO.1
25860-46130	2JZFSE..JZS175,177	09/1999 - 08/2001	1
25860-46130	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
Common parts
90119-06896
90464-00082
90464-00723
90999-92002
91631-B0616
91651-B0610
Linked diagrams
8404

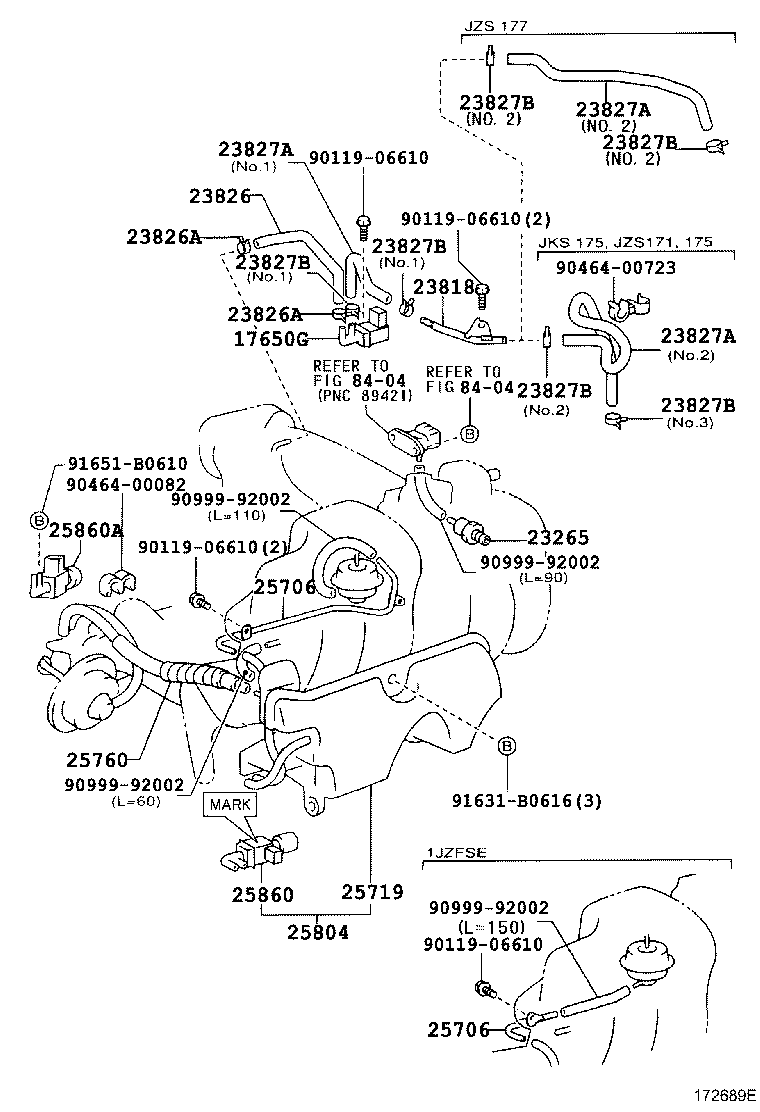

(0010- )1JZFSE,2JZFSE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12226	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
90910-12226	2JZFSE..JZS175,177	09/1999 - 08/2001	1
23265 - FILTER, GAS, NO.1
90917-11031	1JZFSE,1JZGE,2JZFSE..JKS175,JZS171,173,175,177	08/2001 - 12/2999	1
90917-11031	1JZGE,2JZFSE..JZS171,173,175,177	09/1999 - 08/2001	1
23818 - PIPE, FUEL VAPOR FEED
23818-46120	2JZFSE..JZS175,177	10/2000 - 08/2001	1
23818-46120	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-46040	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
23826-46040	2JZFSE..JZS175,177	09/1999 - 08/2001	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	2
96132-51100	2JZFSE..JZS175,177	09/1999 - 08/2001	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	2
96132-51100	2JZFSE..JZS175,177	09/1999 - 08/2001	2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-46070	2JZFSE..JZS175 NO.2	09/1999 - 10/2000	1
23827-46100	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	1
23827-46070	2JZFSE..JZS175 NO.2	04/2001 - 08/2001	1
23827-46130	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	1
23827-46110	2JZFSE..JZS175 NO.2	10/2000 - 04/2001	1
23827-46130	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	1
23827-46070	1JZFSE,2JZFSE..JZS171,175 NO.2	08/2001 - 12/2999	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-46070	2JZFSE..JZS175 NO.2	09/1999 - 10/2000	1
23827-46100	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	1
23827-46070	2JZFSE..JZS175 NO.2	04/2001 - 08/2001	1
23827-46130	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	1
23827-46110	2JZFSE..JZS175 NO.2	10/2000 - 04/2001	1
23827-46130	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	1
23827-46070	1JZFSE,2JZFSE..JZS171,175 NO.2	08/2001 - 12/2999	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-46070	2JZFSE..JZS175 NO.2	09/1999 - 10/2000	1
23827-46100	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	1
23827-46070	2JZFSE..JZS175 NO.2	04/2001 - 08/2001	1
23827-46130	2JZFSE..JZS175,177 NO.1	10/2000 - 08/2001	1
23827-46110	2JZFSE..JZS175 NO.2	10/2000 - 04/2001	1
23827-46130	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	1
23827-46070	1JZFSE,2JZFSE..JZS171,175 NO.2	08/2001 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
96132-41500	2JZFSE..JZS175 NO.3	09/1999 - 08/2001	1
96132-41300	2JZFSE..JZS175 NO.2	09/1999 - 08/2001	1
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96132-51300	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.2	08/2001 - 12/2999	1
96132-41500	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.3	08/2001 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
96132-41500	2JZFSE..JZS175 NO.3	09/1999 - 08/2001	1
96132-41300	2JZFSE..JZS175 NO.2	09/1999 - 08/2001	1
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96132-51300	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.2	08/2001 - 12/2999	1
96132-41500	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.3	08/2001 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
96132-41500	2JZFSE..JZS175 NO.3	09/1999 - 08/2001	1
96132-41300	2JZFSE..JZS175 NO.2	09/1999 - 08/2001	1
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96132-51300	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.2	08/2001 - 12/2999	1
96132-41500	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.3	08/2001 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
96132-41500	2JZFSE..JZS175 NO.3	09/1999 - 08/2001	1
96132-41300	2JZFSE..JZS175 NO.2	09/1999 - 08/2001	1
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96132-51300	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.2	08/2001 - 12/2999	1
96132-41500	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.3	08/2001 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
96132-41500	2JZFSE..JZS175 NO.3	09/1999 - 08/2001	1
96132-41300	2JZFSE..JZS175 NO.2	09/1999 - 08/2001	1
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96132-51300	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.2	08/2001 - 12/2999	1
96132-41500	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.3	08/2001 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100	2JZFSE..JZS175,177 NO.1	09/1999 - 08/2001	2
96132-41500	2JZFSE..JZS175 NO.3	09/1999 - 08/2001	1
96132-41300	2JZFSE..JZS175 NO.2	09/1999 - 08/2001	1
96132-51100	1JZFSE,2JZFSE..JKS175,JZS171,175,177 NO.1	08/2001 - 12/2999	2
96132-51300	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.2	08/2001 - 12/2999	1
96132-41500	1JZFSE,2JZFSE..JKS175,JZS171,175 NO.3	08/2001 - 12/2999	1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-46120	2JZFSE..JZS175,177	09/1999 - 08/2001	1
25706-46120	2JZFSE..JKS175,JZS175,177	08/2001 - 12/2999	1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-46120	2JZFSE..JZS175,177	09/1999 - 08/2001	1
25706-46120	2JZFSE..JKS175,JZS175,177	08/2001 - 12/2999	1
25719 - TANK, VACUUM SURGE
25719-46060	2JZFSE..JZS175,177 NO.2	09/1999 - 10/2000	1
25719-46050	2JZFSE..JZS175,177	10/2000 - 08/2001	1
25719-46050	2JZFSE..JZS175,177 NO.1	09/1999 - 10/2000	1
25719-46050	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-46110	2JZFSE..JZS175,177	09/1999 - 08/2001	1
25760-46120	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
25804 - VALVE SET, VACUUM CONTROL
25804-46070	2JZFSE..JZS175,177	09/1999 - 08/2001	1
25804-46070	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-46010	1JZFSE,1JZGE,2JZ#..JKS175,JZS17# ﾏｰｸ 25860−46010	08/2001 - 12/2999	1
25860-46010	1JZGE,2JZ#..JZS17# ﾏｰｸ 25860−46010	09/1999 - 08/2001	1
90910-12124	1JZGE,2JZ#..JZS17# ﾏｰｸ 90910−12124	09/1999 - 08/2001	1
90910-12124	1JZFSE,2JZ#..JKS175,JZS171,175,177,179 ﾏｰｸ 90910−12124	08/2001 - 12/2999	1
25860A - VALVE, VACUUM SWITCHING, NO.1
25860-46130	2JZFSE..JZS175,177	09/1999 - 08/2001	1
25860-46130	1JZFSE,2JZFSE..JKS175,JZS171,175,177	08/2001 - 12/2999	1
Common parts
90119-06610
90464-00082
90464-00723
90999-92002
91631-B0616
91651-B0610
Linked diagrams
8404

JZS175-AEAQH (1999)

(9909-0010)2JZFSE

(0010- )1JZFSE,2JZFSE

Part Price Details
