JZS173W-AWPXF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Jun 2007
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909-0108)TWC ; (0108- )JZS173,179

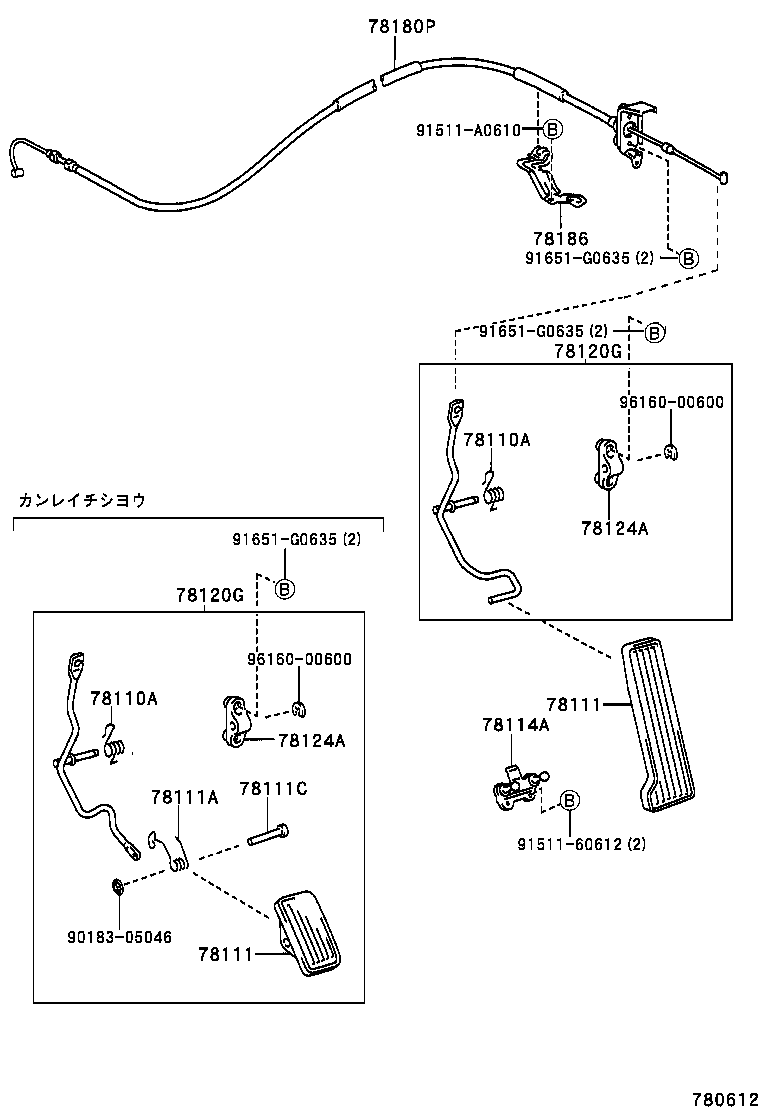

Click highlighted areas on diagram

diagram 78110A 78110A 78111 78111 78111A 78111C 78114A 78120G 78120G 78124A 78124A 78180P 78186 9018305046 9151160612 91511A0610 91651G0635 91651G0635 91651G0635 9616000600 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03204

GS171,JZS171,173,179,UZS17#..HTWC,TWC,TWT

ｶﾝﾚｲﾁ ｼﾖｳ

 1
90959-03204

GS171,JZS17#,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78214-50010

GS171,JZS173,179,UZS17#

 1
90508-18103

JZS171,173..TWC

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03204

GS171,JZS171,173,179,UZS17#..HTWC,TWC,TWT

ｶﾝﾚｲﾁ ｼﾖｳ

 1
90959-03204

GS171,JZS17#,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78214-50010

GS171,JZS173,179,UZS17#

 1
90508-18103

JZS171,173..TWC

 1
78111 - PEDAL, ACCELERATOR
78111-22020

GS171,JZS17#,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78111-30081

GS171,JKS175,JZS17#,UZS17#

 1
78111-22020

GS171,JKS175,JZS17#,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78111-30081

GS171,JZS17#,UZS17#

 1
78111 - PEDAL, ACCELERATOR
78111-22020

GS171,JZS17#,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78111-30081

GS171,JKS175,JZS17#,UZS17#

 1
78111-22020

GS171,JKS175,JZS17#,UZS17#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78111-30081

GS171,JZS17#,UZS17#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90905-08002

GS171,JZS171,173,175,179

 1
90905-08002

GS171,JKS175,JZS17#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90241-05022

GS171,JZS17#,UZS17#

 1
90241-05022

GS171,JKS175,JZS17#,UZS17#

 1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-30070

GS171,JZS171,173,175,179

 1
78114-30070

GS171,JKS175,JZS171,173,175,179

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-3A170

GS171,JZS171,173,175,179

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78120-3A160

JZS171,173..TWC

 1
78120-3A170

GS171,JZS171,173,179..HTWC,TWC,TWT

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78120-3A201

GS171,JZS173,179

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-3A170

GS171,JZS171,173,175,179

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78120-3A160

JZS171,173..TWC

 1
78120-3A170

GS171,JZS171,173,179..HTWC,TWC,TWT

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78120-3A201

GS171,JZS173,179

 1
78124A - BRACKET, ACCELERATOR PEDAL ROD
78124-50020

GS171,JZS171,173,179,UZS17#..HTWC,TWC,TWT

 1
78124-50020

GS171,JZS17#,UZS17#

 1
78124A - BRACKET, ACCELERATOR PEDAL ROD
78124-50020

GS171,JZS171,173,179,UZS17#..HTWC,TWC,TWT

 1
78124-50020

GS171,JZS17#,UZS17#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-3A760

JZS171,173..TWC

 1
78180-3A760

JZS173

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-30160

GS171,JZS171,173,179

 1
78186-30160

GS171,JZS171,173,179..HTWC,TWC,TWT

 1
Common parts
90183-05046
91511-60612
91511-A0610
91651-G0635
96160-00600
